Hyundai Sonata Y3 (1993 – 1998) Fuse Box Diagrams & Location
The Hyundai Sonata Y3 (1993–1998) features multiple fuse boxes that protect essential electrical systems and components. This blog helps you locate each fuse box, understand fuse diagrams, and identify the correct fuse for troubleshooting electrical issues, ensuring easier maintenance and reliable vehicle operation.
Fuse Box Location
Passenger Compartment Fuse Box

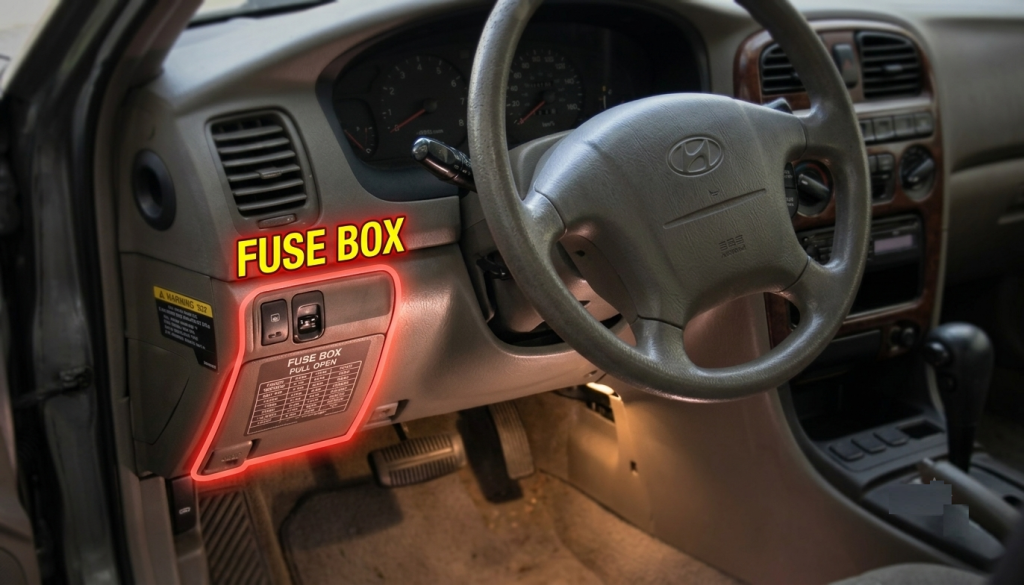

Located inside the cabin, underneath the driver’s side of the instrument panel (dashboard).
Engine Compartment Fuse Box

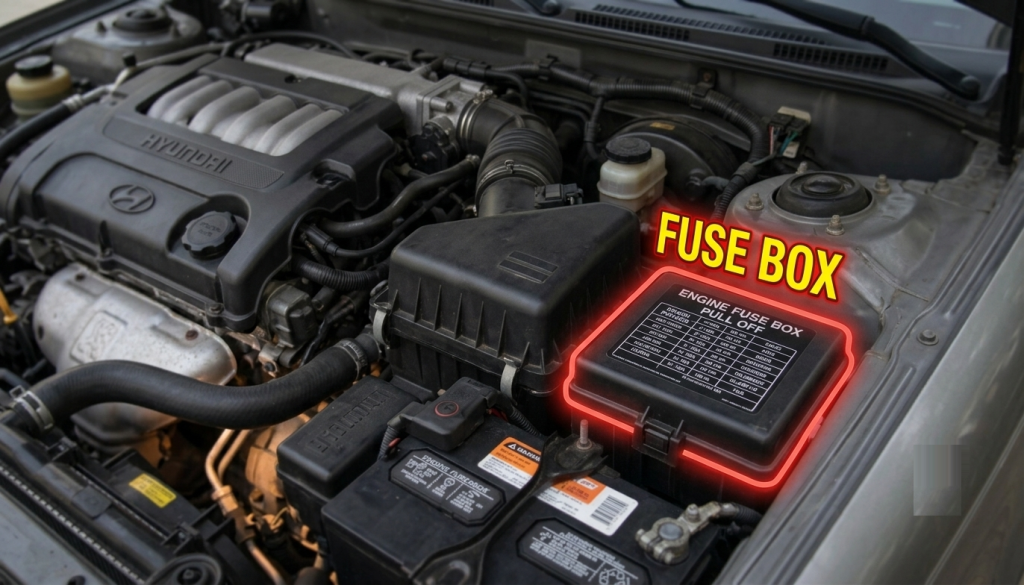

Located under the hood, mounted on the driver’s side of the engine bay near the battery.
Fuse Box Diagrams

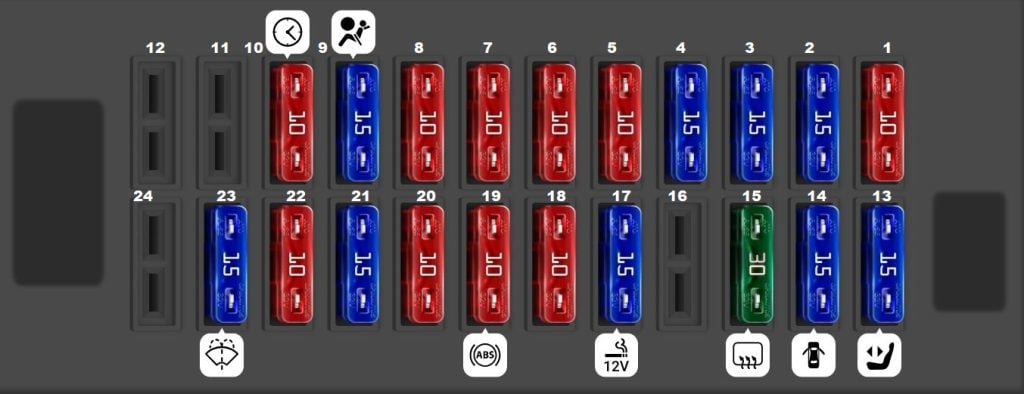

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse ATO
10A |
1 | B/ALARM HAZARD |
| Fuse ATO 15A |
2 | STOP LP |
| Fuse ATO 15A |
3 | COOLING UNIT |
| Fuse ATO
15A |
4 | SUN ROOF |
| Fuse ATO
10A |
5 | RADIO P/ANT ETACS |
| Fuse ATO 10A |
6 | ROOM LP A/CON |
| Fuse ATO
10A |
7 | T/SIG LP , B/UP LP , ETACS |
| Fuse ATO
10A |
8 | STOP LP FAIL , S/BELT TIMER, ATM INTER LOCK |
| Fuse ATO 15A |
9 | AIR BAG |
| Fuse ATO
10A |
10 | CLUSTER CLOCK |
| Fuse ATO
15A |
13 | PWR SEAT |
| Fuse ATO 15A |
14 | T/LID OPENER, DOOR LOCK |
| Fuse ATO
30A |
15 | RR DEF |
| Fuse ATO
15A |
17 | O/S MIRROR, C/ LIGHTER |
| Fuse ATO 10A |
18 | RADIO ATM INTER LOCK |
| Fuse ATO
10A |
19 | ABS |
| Fuse ATO
10A |
20 | A/ CRUISE |
| Fuse ATO 15A |
21 | HTD SEAT |
| Fuse ATO
10A |
22 | BLOWER ATM ELC , HEAD LP, RR FOG LP |
| Fuse ATO
15A |
23 | WIPER WASHER |

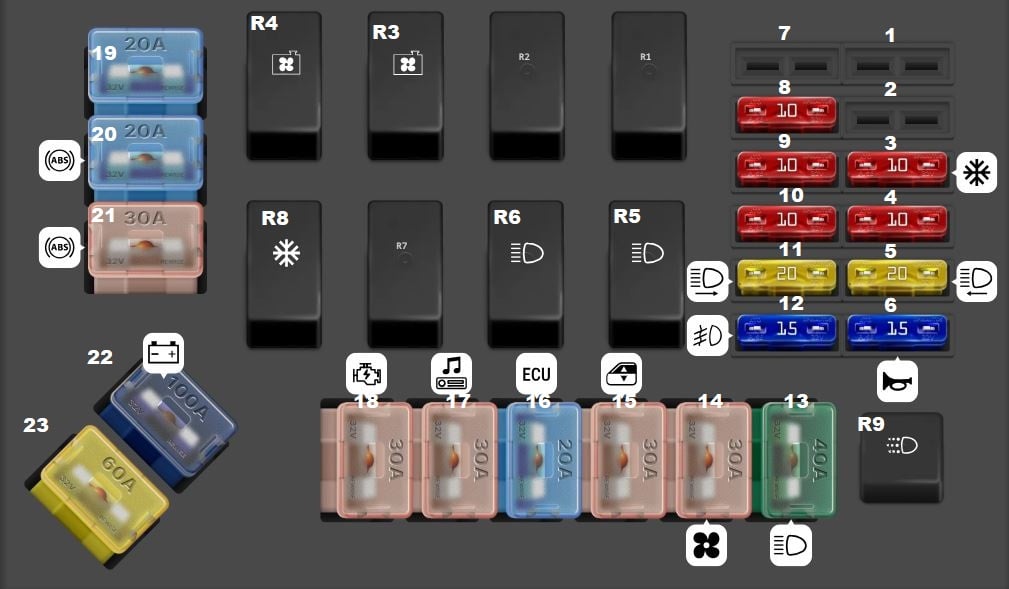

Engine Compartment Fuse Box
| Type | No. | Description |
| Fuse ATO 10A |
3 | (AIR CON) Air conditioning |
| Fuse ATO
10A |
4 | (T/LP LH) Tail light left-hand |
| Fuse ATO
20A |
5 | (H/LP LH) Left-hand headlight |
| Fuse ATO 15A |
6 | (HORN) Horn |
| Fuse ATO
10A |
8 | H/LP IND |
| Fuse ATO
10A |
9 | BURG ALRM |
| Fuse ATO 10A |
10 | T/ LP RH |
| Fuse ATO
20A |
11 | (H/ LP RH) Right-hand headlight |
| Fuse ATO
15A |
12 | (FOG) Fog lights |
| Fuse FLF/PAL 293 40A |
13 | (LAMP) Headlamps |
| Fuse FLF/PAL 293
30A |
14 | (BLOWER) AC blower motor |
| Fuse FLF/PAL 293
30A |
15 | (P/WDW) Power windows |
| Fuse FLF/PAL 293 20A |
16 | (ECU) Engine control unit |
| Fuse FLF/PAL 293
30A |
17 | (RAD) Audio system |
| Fuse FLF/PAL 293
30A |
18 | (IGN) Ignition |
| Fuse FLF/PAL 293 20A |
19 | CNDSR |
| Fuse FLF/PAL 293
20A |
20 | (ABS) Anti-lock braking system |
| Fuse FLF/PAL 293
30A |
21 | (ABS) Anti-lock braking system |
| Fuse FLF/PAL 293 100A |
22 | (ALT) Battery and charging system |
| Fuse FLF/PAL 293
60A |
23 | B+ |
| Relay | R1 | R/FAN LOW |
| Relay | R2 | R/FAN HI |
| Relay | R3 | (C/FAN LOW) Radiator fan low speed |
| Relay | R4 | (C/FAN HI) Radiator fan high speed |
| Relay | R5 | (H/LAMP) Headlamps |
| Relay | R6 | (H/LAMP) Headlamps |
| Relay | R7 | (TAIL) Tail lights |
| Relay | R8 | (A/CON) Air conditioning |
| Relay | R9 | (D.R.L) Daytime running lights |
