Hyundai Veloster (2012 – 2017) Fuse Box Diagrams & Location
Finding the correct fuse box and fuse layout is essential for troubleshooting electrical problems in your Hyundai Veloster (2012–2017). This blog provides fuse box locations, detailed fuse diagrams, and fuse assignment information to help identify and replace the correct fuse quickly and safely.
Fuse Box Location

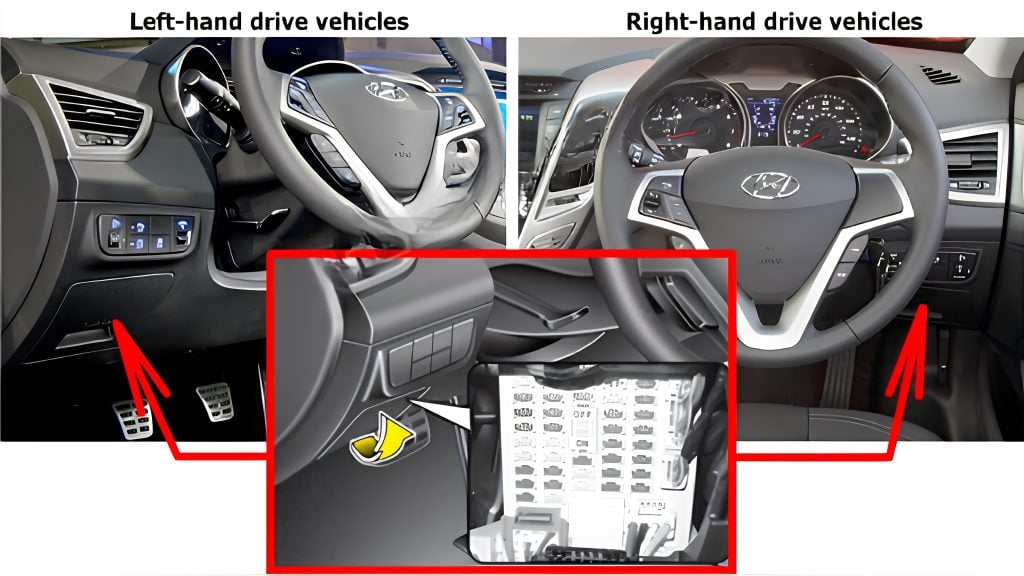

Passenger Compartment Fuse Box
The fuse box is located in the instrument panel (on the driver’s side), behind the cover.

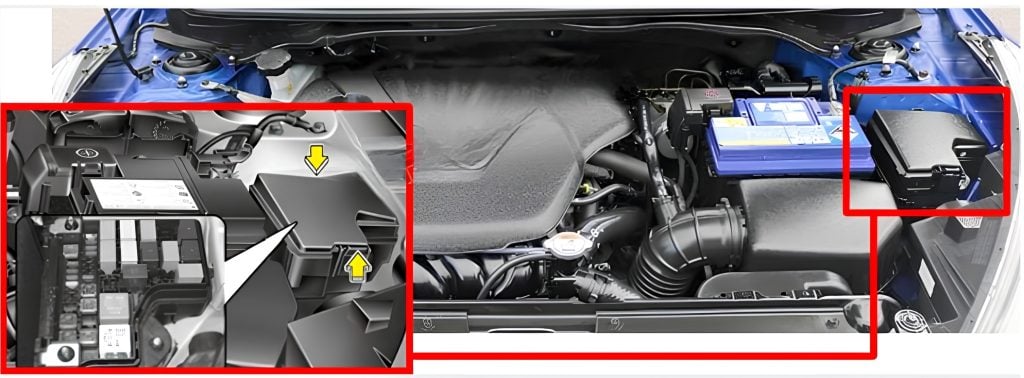

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left-side).
Fuse Box Diagrams

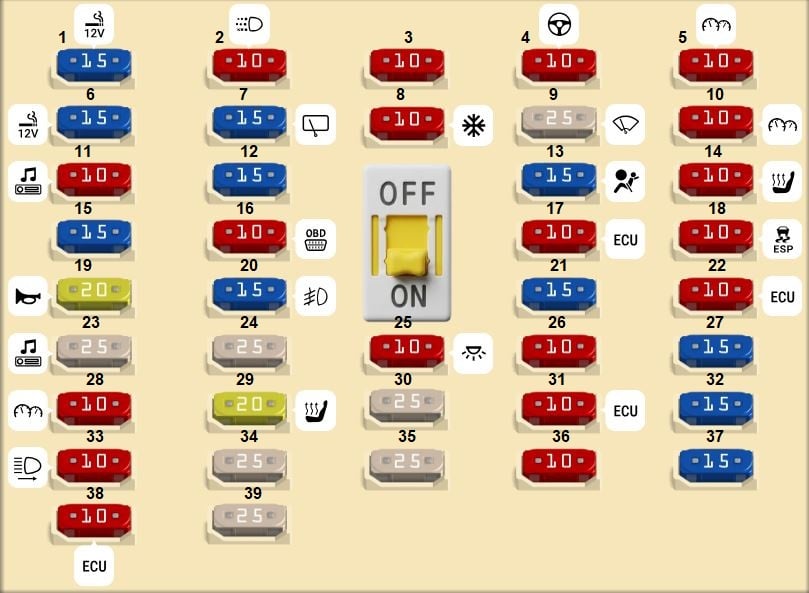

Passenger Compartment Fuse Box
Hyundai Veloster (2012 & 2013)
| Type | Description |
| Fuse MINI 15A |
1 Cigarette Lighter |
| Fuse MINI
10A |
2 DRL Relay |
| Fuse MINI
10A |
3
DC-DC Converter, DC-DC Converter (AMP), Smart Key Control Module |
| Fuse MINI 10A |
4
EPS Control Module |
| Fuse MINI
10A |
5 Instrument Cluster |
| Fuse MINI
15A |
6
Power Outlet |
| Fuse MINI 15A |
7
E/R Fuse & Relay Box (RELAY 5), Rear Wiper Motor, Multifunction Switch |
| Fuse MINI
10A |
8 E/R Fuse & Relay Box (RELAY 10, RELAY 3), Crash Pad Switch, Panoramic Sunroof Motor, A/C Control Module |
| Fuse MINI
25A |
9
Multifunction Switch, Front Wiper Motor, E/R Fuse & Relay Box (RELAY 10) |
| Fuse MINI 10A |
10
Instrument Cluster, Tire Pressure Control Module, Sport Mode Switch |
| Fuse MINI
10A |
11 Outside Power Mirror Switch, AMP, A/V & Navigation Head Unit, DC-DC Converter, DC-DC Converter (AMP), Smart Key Control Module |
| Fuse MINI
15A |
12
DC-DC Converter, A/V & Navigation Head Unit |
| Fuse MINI 15A |
13
PAB ON/OFF IND. & SBR Switch, SRS Control Module |
| Fuse MINI
10A |
14 Rear Parking Assist Sensor RH/LH, Rear Parking Assist Sensor RH/LH (Center), Rear Parking Assist Buzzer, SBR Switch, Headlamp Leveling Device Switch, Driver/Passenger Seat Warmer, Driver/Passenger Seat Warmer Switch, Driver Seat Warmer Module, Headlamp Leveling Device Actuator RH/LH |
| Fuse MINI
15A |
15
Smart Key Control Module |
| Fuse MINI 10A |
16
Data Link Connector, Instrument Cluster, A/C Control Module |
| Fuse MINI
10A |
17 ECM |
| Fuse MINI
10A |
18
ESP Control Module, ESP OFF Switch, E/R Fuse & Relay Box (RELAY 14, Multi-purpose Control Connector) |
| Fuse MINI 20A |
19
Door Lock Relay, Door Unlock Relay, Horn Relay, Tailgate Latch Relay, Interlock Relay (RH) |
| Fuse MINI
15A |
20 Outside Power Mirror Switch, Rear Fog Lamp Relay |
| Fuse MINI
15A |
21
Stop Lamp Switch, Key Solenoid, Stop Signal Relay, Smart Key Control Module |
| Fuse MINI 10A |
22
Immobilizer Module, Smart Key Control Module, ECM, Stop Lamp Switch |
| Fuse MINI
25A |
23 AMP, DC-DC Converter (AMP) |
| Fuse MINI
25A |
24
Unused |
| Fuse MINI 10A |
25
Luggage Lamp, Map Lamp, Room Lamp, Courtesy Lamp LH/RH, Overhead Console Lamp, Glove Box Lamp |
| Fuse MINI
10A |
26 Smart Key Control Module, Immobilizer Module, Start/Stop Button Switch |
| Fuse MINI
15A |
27
TCM (Engine Compartment Fuse & Relay Box (Vacuum Pump Relay)) |
| Fuse MINI 10A |
28
Rear Combination Lamp LH, License Plate Lamp LH/RH, ATM Shift Lever Indicator, Instrument Cluster, Multifunction Switch, Passenger Power Window Switch, Power Window Main Switch, AUX & USB Jack, A/C Control Module, ESP OFF Switch, A/V & Navigation Head Unit, Crash Pad Switch, Driver/Passenger Seat Warmer Switch, Headlamp Leveling Device Switch, Headlamp LH |
| Fuse MINI
20A |
29 Driver Seat Warmer Module, Driver/Passenger Seat Warmer |
| Fuse MINI
25A |
30
Rear Power Window Switch LH, Power Window Main Switch |
| Fuse MINI 10A |
31
Burglar Alarm Relay, Transaxle Range Switch, ECM, E/R Fuse & Relay Box (RELAY 8), TCM |
| Fuse MINI
15A |
32 Back-Up Lamp Switch, Transaxle Range Switch |
| Fuse MINI
10A |
33
Headlamp RH, Rear Combination Lamp RH |
| Fuse MINI 25A |
34
Driver Safety Power Window Module |
| Fuse MINI
25A |
35 Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| Fuse MINI
10A |
36
A/V & Navigation Head Unit, Transaxle Range Switch, TCM, Back-Up Lamp Switch, Rear Combination Lamp LH/RH |
| Fuse MINI 15A |
37
Condenser, Ignition Coil 1 / 2 / 3 / 4 |
| Fuse MINI
10A |
38 ECM, A/C Control Module, Driver/Passenger Outside Power Mirror |
| Fuse MINI
25A |
39
Driver Manual Seat Switch |
| misc | misc1 FUSE SWITCH |

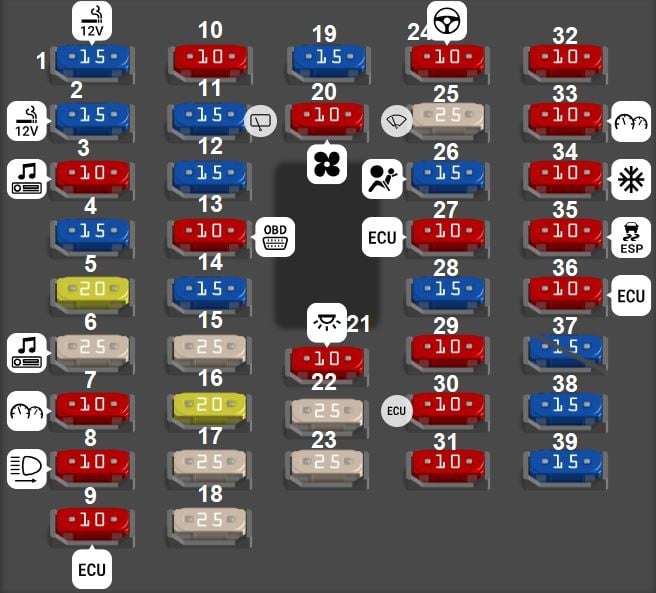

Hyundai Veloster (2014 – 2017)
| Type | Description |
| Fuse MINI
15A |
F1
Cigarette Lighter |
| Fuse MINI 15A |
F2
Power Outlet |
| Fuse MINI
10A |
F3 Power Outside Mirror Switch, AMP, A/V & Navigation Head Unit, MTS Module, Smart Key Control Module, IPS Control Module |
| Fuse MINI
15A |
F4
Smart Key Control Module |
| Fuse MINI 20A |
F5
Door Lock Relay, Door Unlock Relay, Flasher Sound Relay, Tail Gate Latch Relay, Two Turn Unlock Relay, IPS Control Module |
| Fuse MINI
25A |
F6 AMP |
| Fuse MINI
10A |
F7
Rear Combination Lamp LH, License Lamp LH/RH, Shift Lever Indicator, Instrument Cluster, Multifunction Switch, Passenger Power Window Switch, Power Window Main Switch, AUX & USB Jack, Inside Miiror A/C Control Module, ESC Off Switch, A/V & Navigation Head Unit, Crash Pad Switch, Driver/Passenger Seat Warmer Switch, Head Lamp LH |
| Fuse MINI 10A |
F8
Head Lamp RH, Rear Combination Lamp RH |
| Fuse MINI
10A |
F9 ECM, A/C Control Module, Dirver/Passenger Power Outside Mirror |
| Fuse MINI
10A |
F10
Not Used |
| Fuse MINI 15A |
F11
Engine Room Fuse & Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch |
| Fuse MINI
15A |
F12 A/V & Navigation Head Unit, MTS Module |
| Fuse MINI
10A |
F13
Data Link Connector, Instrument Cluster, A/C Control Module |
| Fuse MINI 15A |
F14
Not Used |
| Fuse MINI
25A |
F15 A/C Inverter Module |
| Fuse MINI
20A |
F16
Driver/Passenger Seat Warmer |
| Fuse MINI 25A |
F17
Driver Safety Power Window Module |
| Fuse MINI
25A |
F18 Lumber Support |
| Fuse MINI
15A |
F19
Smart Key Control Module, A/C Inverter Module, Steering wheel heated |
| Fuse MINI 10A |
F20
Engine Room Fuse & Relay Box (Front Wiper Relay, Blower Relay), Crash Pad Switch, Panaroma Sunroof Motor, A/C Control Module, IPS Control Module |
| Fuse MINI
10A |
F21 Luggage Room Lamp, Map Lamp, Room Lamp, Vanity Lamp LH/RH, Overhead Console Lamp |
| Fuse MINI
25A |
F22
Power Window Main Switch |
| Fuse MINI 25A |
F23
Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| Fuse MINI
10A |
F24 EPS Control Module |
| Fuse MINI
25A |
F25
Multifunction Switch, Front Wiper Motor, Engine Room Fuse & Relay Box (Front Wiper Relay) |
| Fuse MINI 15A |
F26
Passenger Occupant Detection Sensor, SRS Control Module, Telltale |
| Fuse MINI
10A |
F27 ECM |
| Fuse MINI
15A |
F28
Stop Lamp Switch, Stop Signal Relay, Smart Key Control Module |
| Fuse MINI 10A |
F29
Smart Key Control Module, Immobilizer Module, Start Stop Button Switch |
| Fuse MINI
10A |
F30 Burglar Alarm Relay, Transaxle Range Switch, Smart Key Control Module, ECM, TCM, Engine Room Fuse & Relay Box (Start Relay) |
| Fuse MINI
10A |
F31
A/V & Navigation Head Unit, Transaxle Range Switch, MTS Module, TCM, Back-Up Lamp Switch, Rear Combination Lamp LH/RH, IPS Control Module |
| Fuse MINI 10A |
F32
Instrument Cluster (Air Bag IND.) |
| Fuse MINI
10A |
F33 Instrument Cluster, Tire Pressure Monitoring Module, Sport Mode Switch, Shift Lever Indicator, MTS Module |
| Fuse MINI
10A |
F34
Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor Center LH/RH, Rear Parking Assist Buzzer, IPS Control Module, Driver/Passenger Seat Warmer, Driver/Passenger Seat Warmer Switch, MTS Module, A/C Control Module |
| Fuse MINI 10A |
F35
ESC Module, ESC Off Switch, E/R Fuse & Relay Box (HAC Relay, Multipurpose Check Connector) |
| Fuse MINI
10A |
F36 Immobilizer Module, Smart Key Control Module, ECM, Stop Lamp Switch |
| Fuse MINI
15A |
F37
Engine Room Fuse & relay box (Vacuum Pump Relay) [ T-GDI] |
| Fuse MINI 15A |
F37
TCM [GDI] |
| Fuse MINI
15A |
F38 Back-Up Lamp Switch, Transaxle Range Switch |
| Fuse MINI
15A |
F39
– Not Used |
| Other | Other FUSE SWITCH |

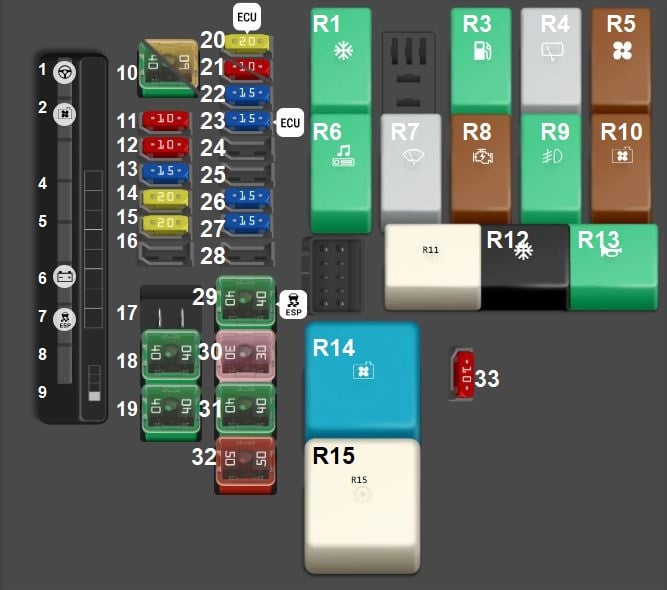

Engine Compartment Fuse Box
Hyundai Veloster (2012 & 2013)
| Type | No. | Description |
| Multi fuse block MUSB | 1 | EPS control module |
| Multi fuse block MUSB | 2 | Blower motor |
| Multi fuse block MUSB | 4 | TCM [G4FD-DCT] [GDI] |
| Multi fuse block MUSB | 5 | E/R fuse & relay box (RELAY 15) |
| Multi fuse block MUSB | 6 | [Without ISG] E/R fuse & relay box (multi-fuse), alternator |
| Multi fuse block MUSB | 6 | [With ISG or TGDI] E/R fuse & relay box (multi-fuse), alternator |
| Multi fuse block MUSB | 7 | Multi-purpose control connector, ESP control module |
| Multi fuse block MUSB | 8 | Smart junction box (power window relay, ARISU-LT, FUSE F34, F23) |
| Multi fuse block MUSB | 9 | Automatic current leak cut-off device (automatic current leak cut-off relay, automatic current leak cut-off switch, FUSE – F25, F12, F16), FUSE-F20, F39, F29 |
| Fuse FMX/JCase
40A |
10 | [GDI/MPI] E/R fuse & relay box (RELAY 1, RELAY 4) |
| Fuse FMX/JCase
60A |
10 | [T-GDI] E/R fuse & relay box (RELAY 1, RELAY 4) |
| Fuse MINI 10A |
11 | E/R fuse & relay box (RELAY 11) |
| Fuse MINI
10A |
12 | E/R fuse & relay box (RELAY 6) |
| Fuse MINI
15A |
13 | E/R fuse & relay box (RELAY 12, RELAY 13) |
| Fuse MINI 20A |
14 | Panoramic sunroof motor |
| Fuse MINI
20A |
15 | Engine compartment fuse & relay box (vacuum pump relay) [T-GDI] |
| Fuse FMX/JCase
40A |
18 | Ignition switch, PDM relay box (IG2 relay), E/R fuse & relay box (RELAY 8) |
| Fuse FMX/JCase 40A |
19 | Ignition switch, PDM relay box (IG1 relay, ACC relay) |
| Fuse MINI
20A |
20 | ECM |
| Fuse MINI
10A |
21 | [GDI] Oil control valve 1/ 2, purge control solenoid valve, variable intake solenoid valve, E/R fuse & relay box (RELAY 11) |
| Fuse MINI 10A |
21 | [T-GDI] Oil control valve 1/ 2, purge control solenoid valve, variable intake solenoid valve, E/R fuse & relay box (RELAY 11), Wastegate valve, Recirculation valve |
| Fuse MINI
15A |
22 | Camshaft position sensor (EX)/(IN)[G4FC], injector 1/ 2/ 3/ 4 [G4FC], oxygen sensor (UP)/(DOWN), E/R fuse & relay box (RELAY 14) |
| Fuse MINI
15A |
23 | TCM [G4FC], ECM [G4FD] |
| Fuse MINI 15A |
26 | TCM [G4FD-DCT] [GDI] |
| Fuse MINI
15A |
27 | E/R fuse & relay box (RELAY 7) |
| Fuse FMX/JCase
40A |
29 | ESP control module |
| Fuse FMX/JCase 30A |
30 | E/R fuse & relay box (RELAY 2, FUSE – F23, F33) |
| Fuse FMX/JCase
40A |
31 | TCM [G4FD-DCT] [GDI] |
| Fuse FMX/JCase
50A |
32 | Smart junction box (tail light relay, fuse – F21, F15, F19, F24, F26, ARISU-RT) |
| Fuse MINI 10A |
33 | Sport mode switch |
| Relay | R1 | Air conditioning |
| Relay | R3 | Fuel pump |
| Relay | R4 | Rear wiper |
| Relay | R5 | Heater blower |
| Relay | R6 | Audio |
| Relay | R7 | Front wiper |
| Relay | R8 | Starter |
| Relay | R9 | Front fog lights |
| Relay | R10 | Radiator fan (low speed), Vacuum pump |
| Relay | R11 | Rear heater |
| Relay | R12 | Climate control |
| Relay | R13 | Horn |
| Relay | R14 | Radiator fan (high speed) |
| Relay | R15 | Main relay |
Hyundai Veloster (2014 – 2017)
| Type | Description |
| Multi fuse block MUSB | 1
EPS Control Module |
| Multi fuse block MUSB | 2
Engine Room Fuse & Relay Box (Blower Relay) |
| Multi fuse block MUSB | 4 TCM |
| Multi fuse block MUSB | 5
Engine Room Fuse & Relay Box (Rear Defogger Relay) |
| Multi fuse block MUSB | 6
Engine Room Fuse & Relay Box (Multi Fuse – EcoShift dual clutch transmission 1, |
| Multi fuse block MUSB | 6 MDPS, RR HTD, BLOWER), Alternator |
| Multi fuse block MUSB | 7
Multipurpose Check Connector, ESC Module |
| Multi fuse block MUSB | 8
Smart Junction Box (Power Window Relay, IPS Control Module (ARISU LT), Fuse – SAFETY POWER WINDOW, AMP) |
| Multi fuse block MUSB | 9 Leak Current Autocut Device (Room Lamp Relay, Leak Current Autocut Switch, Fuse – INTERIOR LAMP, MULTIMEDIA, MEMORY Fuse – S/HEATER |
| Fuse FMX/JCase
40A |
10
Engine Room Fuse & Relay Box (Cooling Fan (High) Relay, Cooling Fan (Low) Relay) [GDI] |
| Fuse FMX/JCase 60A |
10
Engine Room Fuse & Relay Box (Cooling Fan (High) Relay) [T-GDI] |
| Fuse MINI
10A |
11 Engine Room Fuse & Relay Box (A/CON Relay) |
| Fuse MINI
10A |
12
Engine Room Fuse & Relay Box (Fog Lamp Relay) |
| Fuse MINI 15A |
13
Engine Room Fuse & Relay Box (Burglar Alarm Horn Relay, Horn Relay) |
| Fuse MINI
20A |
14 Panorama Sunroof Motor |
| Fuse MINI
20A |
15
Engine Room Fuse & Relay Box (Vacuum Pump Relay) |
| Fuse MINI 10A |
16
Battery Sensor |
| Fuse FMX/JCase
40A |
18 Ignition Switch, PDM Relay Box (IG 2 Relay), Engine Room Fuse & Relay Box (Start Relay) |
| Fuse FMX/JCase
40A |
19
Ignition Switch, PDM Relay Box (IG 1 Relay, ACC Relay) |
| Fuse MINI 20A |
20
ECM |
| Fuse MINI
10A |
21 Oxygen Sensor (Up)/(Down), Canister Close Valve, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Engine Room Fuse & Relay Box (Cooling Fan (High/Low) Relay) [ GDI] |
| Fuse MINI
10A |
21
Oxygen Sensor (Up)/(Down), Canister Close Valve, Recirulation valve, Waste gate valve, Purge Control Solenoid Valve, Engine Room Fuse & Relay Box (Cooling Fan (High) Relay) [T-GDI] |
| Fuse MINI 15A |
22
Engine Room Fuse & Relay Box (Fuel Pump Relay), Engine Room Fuse & Relay Box (A/CON Relay), Oil Control Valve #1 (Intake)/#2 (Exhaust), ECM |
| Fuse MINI
15A |
23 ECM |
| Fuse MINI
10A |
24
Sport Mode Switch, Key Solenoid |
| Fuse MINI 15A |
26
TCM |
| Fuse MINI
15A |
27 Engine Room Fuse & Relay Box (Fuel Pump Relay) [GDI] |
| Fuse MINI
20A |
27
Engine Room Fuse & Relay Box (Fuel Pump Relay) [T-GDI] |
| Fuse MINI 10A |
28
BRAKE SWITCH |
| Fuse FMX/JCase
40A |
29 ESC Module |
| Fuse FMX/JCase
30A |
30
Engine Room Fuse & Relay Box (Engine Conrol Relay, Fuse – ECU 2) |
| Fuse FMX/JCase 40A |
31
TCM |
| Fuse FMX/JCase
50A |
32 Smart Junction Box (Tail Lamp Relay, IPS Control Module (ARISU RT), Fuse – STOP LP, SMART KEY 1/2, INVERTER 2, DR LOCK ) |
| Fuse MINI
15A |
33
Condenser, Ignition coil #1/#2/#3/#4 |
| Connector | Connector DIAGNOSIS |
| Relay | R1
A/CON RELAY |
| Relay | R3
F/PUMP RELAY |
| Relay | R4 WIPER RR RELAY |
| Relay | R5
BLOWER RELAY |
| Relay | R6
B/A HORN RELAY |
| Relay | R7 WIPER FRT RELAY |
| Relay | R8
START RELAY |
| Relay | R9
FOG LAMP FRT RELAY |
| Relay | R10 C / FAN RELAY |
| Relay | R11
RR HTD RELAY |
| Relay | R13
HORN RELAY |
| Relay | R14 C / FAN RELAY |
| Relay | R15
MAIN RELAY |
Related Posts:
