2025 Infiniti Qx55 Fuses and Fuse Box User Guide
The 2025 Infiniti QX55 fuses and the fuse box will be covered in this article, along with important details on fuse kinds, locations, and troubleshooting techniques. Maintaining the electrical system in your car and making sure it runs smoothly requires an understanding of these parts.
2024 INFINITI QX55 Review, Price, Features and Mileage (Brochure)
Infiniti FUSES Guide
If any electrical equipment does not operate, check for an open fuse. Fuses are used in the passenger and engine compartment. Spare fuses are provided and can be found in the passenger compartment fuse box. When installing a fuse make sure the fuse is installed in the fuse box securely.

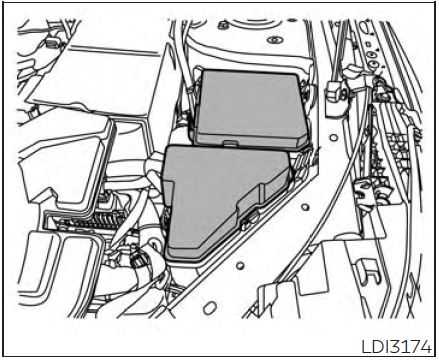

ENGINE COMPARTMENT
WARNING
Never use a fuse of a higher or lower amperage rating than that specified on the fuse box cover. This could damage the electrical system or electronic control units or cause a fire.
If any electrical equipment does not come on, check for an open fuse.
- Be sure the ignition switch and the headlight switch are OFF.
- Open the engine hood.
- Remove the fuse box cover by pushing the tabs and lifting the cover-up.
- Remove the fuse with the fuse puller. The fuse puller is located in the fuse block in the passenger compartment.
- If the fuse is open A, replace it with a new fuse B.
- If a new fuse also opens, have the electrical system checked and repaired. It is recommended that you visit an INFINITI retailer for this service.
Fusible links
If the electrical equipment does not operate and the fuses are in good condition, check the fusible links. If any of these fusible links are melted, replace them with only Genuine NISSAN parts.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-age rating than that specified on the fuse box cover. This could damage the electrical system or electronic control units or cause a fire.
If any electrical equipment does not operate, check for an open fuse.
NOTE:
The fuse box is located on the driver’s side of the instrument panel.
- Be sure the ignition switch and the headlight switch are OFF.

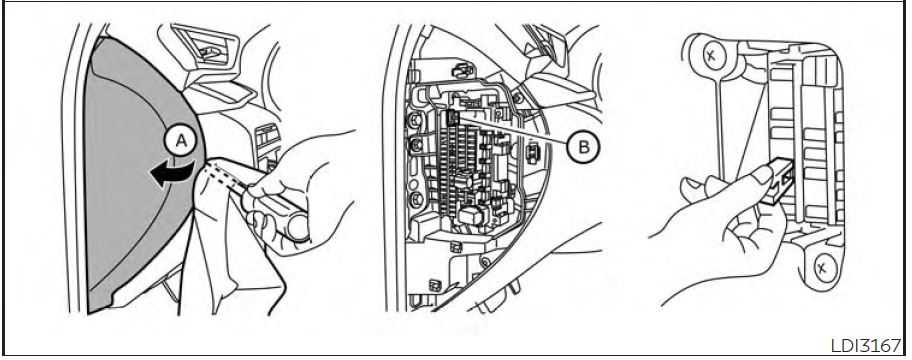

- Remove the fuse box cover A with a suitable tool. Use a cloth to avoid damaging the trim.
- Locate the fuse that needs to be replaced.
- Remove the fuse with the fuse puller B.
- If the fuse is open OC , replace it with an equivalent good fuse OD.
- Push the fuse box cover to install.
If a new fuse also opens, have the electrical system checked and repaired. It is recom-mended that you visit an INFINITI retailer for this service.
NOTE:
Your vehicle may not be equipped with all fuses listed on the fuse label.
WARNING
- Ingestion hazard: Death or serious injury can occur if ingested.
- A swallowed button cell or coin battery can cause internal chemical burns in as little as 2 hours.
- Keep new and used batteries out of reach of children.
- Be careful not to allow children to swal-low removed parts.
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
- For treatment information call the National battery ingestion hotline @ 1-800-498-8666.
- There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type of battery. Incorrectly replacing the battery can lead to injury or death.
- Do not crush or cut the battery.
- Do not subject the battery to extremely low air pressure at high altitude.
- Do not expose the battery to excessive heat such as sunshine, fire or similar heat sources.
CAUTION
- An improperly disposed battery can harm the environment. Always confirm local regulations for battery disposal.
- When changing batteries, do not let dust or oil get on the components.
2024 INFINITI QX55 Review, Price, Features and Mileage (Brochure)
How to Replace the Fuses of the 2025 Infiniti Qx55
Replacing the fuses in your 2025 Infiniti Qx55 is a straightforward process, but it’s important to follow the proper steps to ensure safety and that you replace the correct fuse. Here’s how you can do it:
Materials:
- The new fuse of the correct amperage.
- Fuse puller or needle-nose pliers.
Steps to Replace Fuses
Locate the Fuse Box
- The Infiniti QX55 has multiple fuse boxes:
- Engine compartment fuse box: Located in the engine bay near the battery.
- Interior fuse box: Located under the dashboard on the driver’s side, usually near the side of the dashboard or beneath the steering wheel area.
2. Turn Off the Engine and Remove the Key
Ensure the vehicle is turned off, and the key is removed from the ignition to avoid any electrical shock or accidental activation.
3. Identify the Faulty Fuse
- Use the fuse box diagram (usually found on the fuse box cover or in the owner’s manual) to locate the fuse related to the specific component that is malfunctioning.
- Check the fuse visually to see if the metal strip inside is broken or burnt.
4. Remove the Fuse
- Use a fuse puller (typically provided inside the fuse box or you can use a pair of needle-nose pliers) to grip and remove the faulty fuse.
5. Install the New Fuse
- Insert a new fuse of the same amperage (the amperage rating is indicated on the fuse itself or in the vehicle manual).
- Ensure the fuse is securely seated in the fuse slot.
6. Test the Component
- Turn on the vehicle and check if the component that was malfunctioning (e.g., lights, radio, etc.) is working correctly.
7. Close the Fuse Box
- After replacing the fuse, close the fuse box cover securely.
Tips:
- Always use a fuse with the correct amperage rating to prevent electrical issues or damage to the vehicle.
