Jaguar XF (2015 – 2024) Fuse Box Diagrams & Location
The Jaguar XF (2015–2024) features multiple fuse boxes that protect essential electrical systems throughout the vehicle. Knowing their locations and fuse assignments makes it easier to identify electrical issues, replace blown fuses, and maintain your Jaguar XF safely and efficiently.
Fuse Box Location

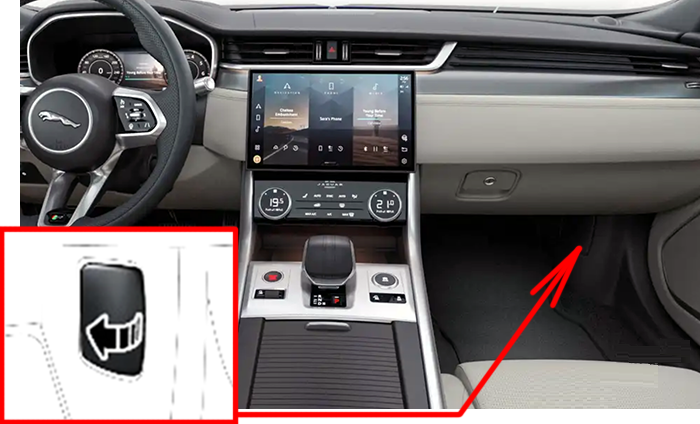

Passenger Compartment Fuse Box
The fuse panel is located on the right-side A-pillar, below the fascia. Use a suitable tool to unclip and release the rearward edge of the panel. Pull to remove.

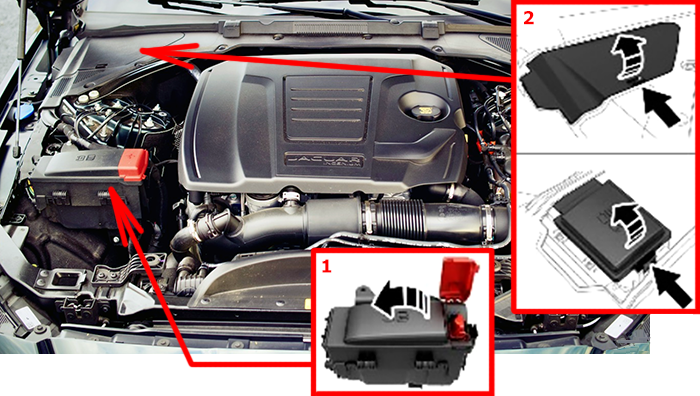

Engine Compartment Fuse Box
- Engine compartment front fuse box.
Lift up the positive booster terminal cover. Press and hold the fuse box cover’s securing clips. Lift to open the cover. - Engine compartment rear fuse box.
Remove the under hood cover – lightly press and hold the securing clip, then lift to release and pull to remove. Press and hold the fuse box cover’s securing clip. Lift to open the cover and pull to remove.

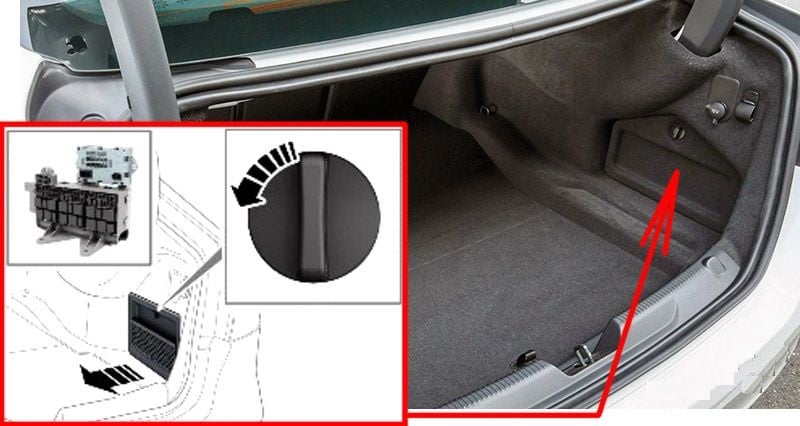

Luggage Compartment Fuse Box
Remove the right-side luggage compartment access panel. To do this, turn the securing clip 90 degrees counter-clockwise to release the panel.
Sedan/Saloon: Remove the right-side luggage compartment access panel – turn the securing clip 90 degrees counter-clockwise to release the panel.

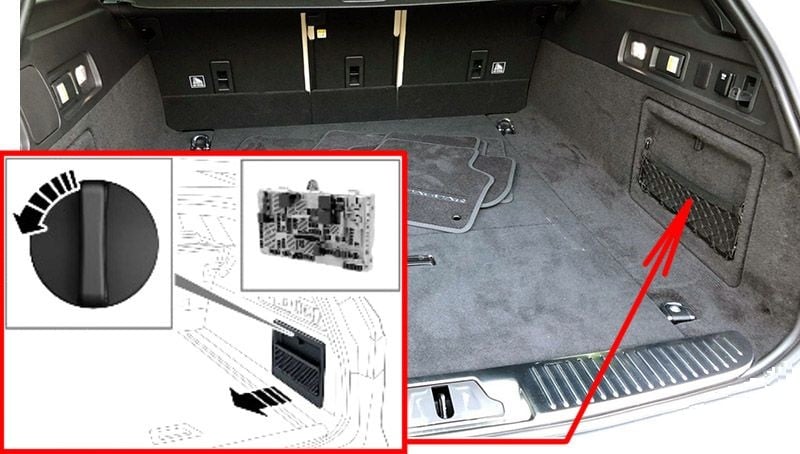

Sportbrake (Estate): Remove the right-side luggage compartment access panel – turn the securing clip 90 degrees counter-clockwise, to release the panel.
Fuse Box Diagrams
Passenger Compartment Fuse Box

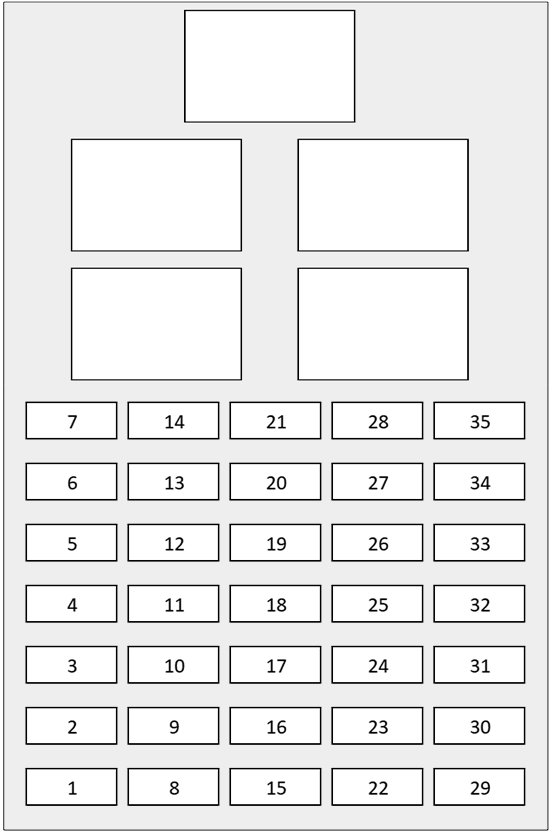

Jaguar XF (2015 – 2020)
| № | Amps | Circuit |
|---|---|---|
| 1 | 20A | Sunroof. |
| 2 | 5A | Brake pedal switch. |
| 3 | 5A | Immobilizer. |
| 4 | 5A | Diagnostic socket. |
| 5 | 5A | Battery back-up sounder. |
| 6 | 20A | Second row auxiliary power socket. |
| 7 | 20A | Cubby box auxiliary power socket. |
| 8 | 20A | Left-side front seat. |
| 9 | 20A | Right-side front seat. |
| 10 | 30A | Left-side front seat. |
| 11 | 30A | Right-side front seat. |
| 12 | – | – |
| 13 | 20A | Front auxiliary power socket. |
| 14 | – | – |
| 15 | – | – |
| 16 | 5A | 2015-2017: Electrical supply. 2018-2020: Steering wheel module. |
| 17 | 5A | Door handles antenna. |
| 18 | 15A | Horns. |
| 19 | – | – |
| 20 | 20A | Driver’s heated or climate seat. |
| 21 | 20A | Front passenger’s heated or climate seat. |
| 22 | 25A | Right-side front door. |
| 23 | 25A | Left-side rear door. |
| 24 | 25A | Right-side rear door. |
| 25 | 25A | Left-side front door. |
| 26 | – | – |
| 27 | 5A | 2018: Air ionizer. |
| 28 | 10A | Steering wheel module. |
| 29 | 5A | Keyless entry. |
| 30 | 20A | Keyless entry. |
| 31 | – | – |
| 32 | 5A | Tire Pressure Monitoring System (TPMS). |
| 33 | 15A | Air Conditioning (A/C). |
| 34 | – | – |
| 35 | – | – |

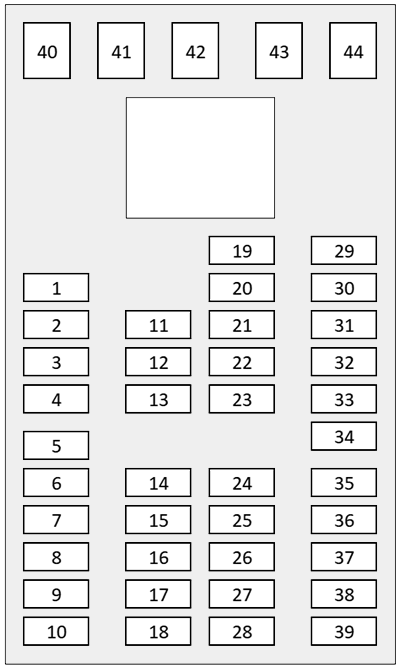

Jaguar XF (2021 – 2024)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | 25A | Right-side rear door module. |
| 4 | 25A | Right-side front door module. |
| 5 | 20A | Sunroof. |
| 6 | – | – |
| 7 | 5A | Vehicle immobiliser. |
| 8 | 5A | Diagnostic socket. |
| 9 | 5A | Battery back-up sounder. |
| 10 | – | – |
| 11 | 5A | Tyre Pressure Monitoring System (TPMS). |
| 12 | – | – |
| 13 | 25A | Left-side front door module. |
| 14 | – | – |
| 15 | 30A | Right-side front seat. |
| 16 | 30A | Left-side front seat. |
| 17 | 20A | Right-side front seat. |
| 18 | 20A | Left-side front seat. |
| 19 | 20A | Cubby box auxiliary power socket. |
| 20 | 20A | Second row auxiliary power socket. |
| 21 | 20A | Auxiliary power socket. |
| 22 | 10A | Wireless phone charging. |
| 23 | 25A | Left-side rear door module. |
| 24 | 15A | Horns. |
| 25 | 5A | Radio Frequency (RF) receiver. |
| 26 | 5A | Steering wheel switches. |
| 27 | 5A | – |
| 28 | 5A | Road pricing. |
| 29 | – | – |
| 30 | – | – |
| 31 | 10A | Heated steering wheel. |
| 32 | 20A | Left-side front heated or climate seat. |
| 33 | 20A | Right-side front heated or climate seat. |
| 34 | 5A | Ioniser. |
| 35 | 5A | Keyless entry. |
| 36 | – | – |
| 37 | – | – |
| 38 | 20A | Keyless locking. |
| 39 | 5A | Driver assistance systems. |
| 40 | 40A | Climate and comfort systems. |
| 41 | – | – |
| 42 | 40A | Body control systems. |
| 43 | – | – |
| 44 | 40A | Body control systems. |
Engine Compartment Fuse Box
Jaguar XF (2015 – 2020)

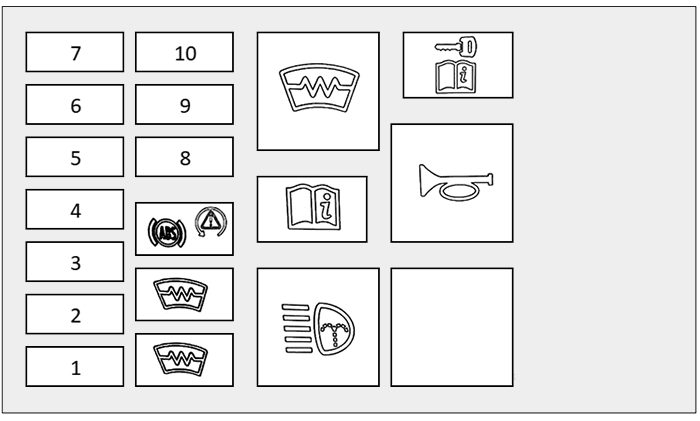

Fuse Box №1
| № | Amps | Circuit |
| 1 | 5A | Left-side headlight motor. |
| 2 | 5A | Headlights. |
| 3 | 5A | Right-side headlight motor. |
| 4 | – | – |
| 5 | – | – |
| 6 | 30A | Headlight power wash. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | 15A | Intercooler water pump. |

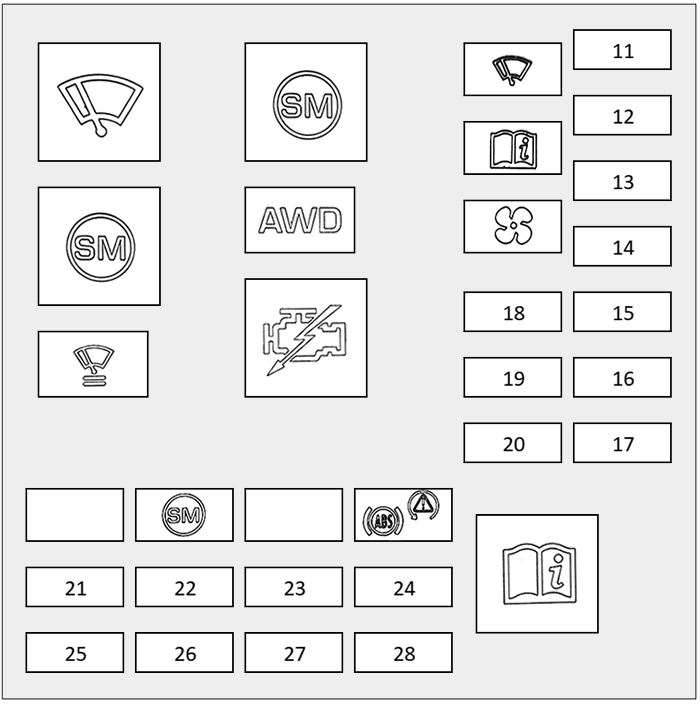

Fuse Box №2
| № | Amps | Circuit |
| 11 | 15A | Engine management system. |
| 12 | 15A | Engine management system. |
| 13 | 10A | 2015-2019: Gear selector. Fuel system. Engine management system. 2020: Fuel system. Engine management system. |
| 14 | 15A | Engine management system (2.0L diesel). |
| 15 | 10A | Engine cooling. Engine mounts. Engine management system. |
| 16 | 25A | Engine management system (3.0L gasoline). |
| 17 | 10A/20A | Exhaust sensors. |
| 18 | 20A | Exhaust sensors. |
| 19 | 20A | Exhaust sensors (3.0L gasoline). |
| 20 | 15A | Engine management system. |
| 21 | – | – |
| 22 | 5A | Intercooler water pump. |
| 23 | 5A | Engine management system. Starter motor. Electrical power management. |
| 24 | – | – |
| 25 | 30A | Starter motor. |
| 26 | 5A | 2019: Engine management system. |
| 27 | 25A | Transfer box. |
| 28 | 30A | 2018-2020: Fuel pump. |

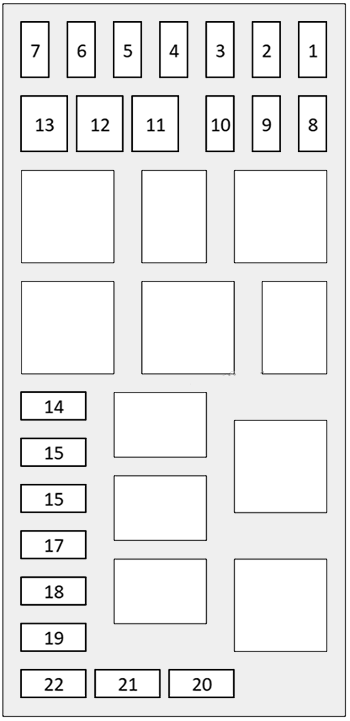

Jaguar XF (2021 – 2024)
Fuse Box №1
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 25A | Left-side headlight. |
| 2 | 25A | Right-side headlight. |
| 3 | 5A | Driver assistance systems. |
| 4 | 5A | Mild Hybrid Electric Vehicle (MHEV). |
| 5 | – | – |
| 6 | – | – |
| 7 | – | – |
| 8 | 30A | Headlight power wash. |
| 9 | – | – |
| 10 | 15A | Intercooler water pump. |
| 11 | 60A | Anti-lock Braking System (ABS). |
| 12 | 40A | Heated front windscreen (right side). |
| 13 | 40A | Heated front windscreen (left side). |
| 14 | – | – |
| 15 | – | – |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
| 19 | – | – |
| 20 | 40A | Glow plugs. |
| 21 | 40A | Glow plugs. |
| 22 | – | – |
Fuse Box №2
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 30A | Wiper motor (front). |
| 2 | 40A | Engine management system. |
| 3 | 20A | Rear blower motor. |
| 4 | 20A | Engine management system. |
| 5 | 20A | Engine management system. |
| 6 | – | – |
| 7 | 10A | Engine management system. |
| 8 | 10A | Engine management system. |
| 9 | 10A | Engine management system. |
| 10 | 10A | Engine management system. |
| 11 | 10A | Engine management system. |
| 12 | 25A | Ignition coils. |
| 13 | 20A | Engine management system (diesel only). |
| 14 | – | – |
| 15 | 40A | Starter motor. |
| 16 | – | – |
| 17 | 60A | Anti-lock Braking System (ABS). |
| 18 | – | – |
| 19 | 5A | Intercooler water pump. |
| 20 | – | – |
| 21 | 15A | Gear selector. |
| 22 | – | – |
| 23 | – | – |
| 24 | 25A | All Wheel Drive (AWD system). |
| 25 | – | – |
Luggage Compartment Fuse Box
Jaguar XF (2015 – 2020)

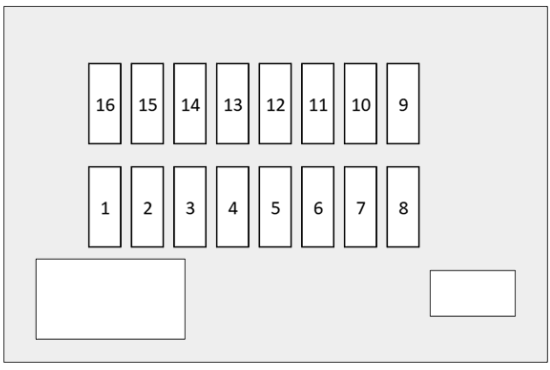

Upper Fuse Box
| № | Amps | Circuits protected |
| 1 | 15A | Touchscreen. Climate control panel. |
| 2 | 10A | 2015-2019: Audio amplifier. 2020: Video panel. |
| 3 | 10A | 2019-2020: Gesture trunk. |
| 4 | 10A | 2015-2018: Navigation system. 2019: Navigation system. Television tuner. |
| 5 | 15A | Audio head unit. |
| 6 | 15A | 2015-2019: Portable media connector panel. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15A | Heating and ventilation system. |
| 16 | 20A | 2015-2018: Auxiliary heater. 2020: Fuel burning heater. |

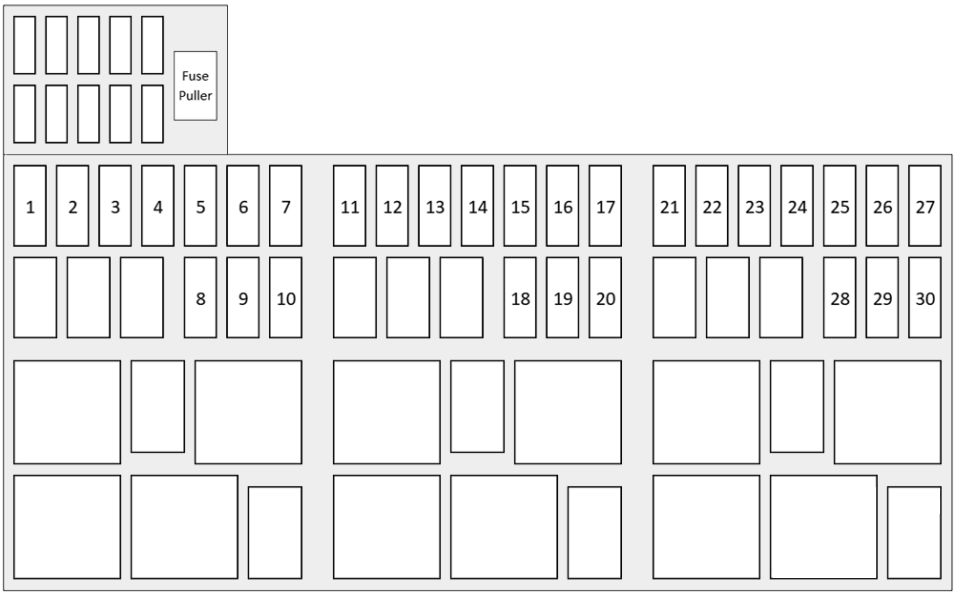

Lower Fuse Box
| № | Amps | Circuits protected |
| 1 | 20A | Luggage compartment auxiliary power socket. |
| 2 | 5A | Rear heated seats. |
| 3 | 20A | Left-side heated rear seat. |
| 4 | 20A | Right-side heated rear seat. |
| 5 | 10A | Dynamic Stability Control (DSC). Electronic differential. |
| 6 | 10A | 2015-2017: Message center module. 2018-2020: Instrument panel. |
| 7 | 5A | 2015-2017: Electrical power management. |
| 8 | 25A | Trailer. |
| 9 | 10A | Diesel Exhaust Fluid (DEF). |
| 10 | 25A | Diesel Exhaust Fluid (DEF). |
| 11 | 10A | Rear-view mirror. Blind spot monitor. Camera. |
| 12 | 10A | Entertainment system. |
| 13 | 10A | Heated steering wheel. |
| 14 | 10A | Head Up Display (HUD). |
| 15 | 5A | Camera. |
| 16 | – | – |
| 17 | 5A | Adaptive cruise control. |
| 18 | 20A | Trailer. |
| 19 | – | – |
| 20 | 10A | Telematics. |
| 21 | – | – |
| 22 | 15A | Driver’s door switches. Driver’s seat. Driver’s seat controls. Front passenger seat. |
| 23 | 10A | Rear sunblind. |
| 24 | 20A | Rear auxiliary power socket. |
| 25 | – | – |
| 26 | – | – |
| 27 | 30A | Electrically deployable tow bar. Trailer. |
| 28 | 30A | Fuel system. |
| 29 | 30A | Powered trunk. |
| 30 | 5A | Diesel pump. |
Sportbrake Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 11 | 5A | Spare |
| 12 | 20A | Left-side heated rear seat. |
| 13 | 20A | Right-side heated rear seat. |
| 14 | 20A | Dynamic Stability Control (DSC). |
| 15 | 5A | Heated rear seats. |
| 16 | 10A | Heated steering wheel. |
| 17 | 25A | Spare |
| 18 | 15A | Rear wiper. |
| 19 | 5A | Blind spot monitor. Clear exit detection. |
| 20 | 15A | Spare |
| 21 | 15A | Seat switches. |
| 22 | 15A | 2018-2019: Seat massage. |
| 23 | 10A | 2018-2019: Rear sunblind. |
| 24 | 10A | Telematics. |
| 25 | 15A | Rear wiper. |
| 26 | 20A | Luggage compartment auxiliary socket. |
| 27 | 20A | Center console rear auxiliary socket. |
| 28 | 5A | Adaptive cruise control. |
| 29 | 15A | Climate control. Rear blower motor. |
| 30 | 20A | Auxiliary heater. |
| 31 | 25A | Spare |
| 32 | 25A | Spare |
| 33 | – | – |
| 34 | 10A | Rear-view mirror. Blind spot monitor. Camera. Parking aid. |
| 35 | 10A | Head Up Display (HUD). |
| 36 | 5A | 2018-2019: Auto High Beam Assist (AHBA). 2020: Camera. |
| 37 | 25A | Spare |
| 38 | 10A | Instrument panel. |
| 39 | 10A | 2018: Head-Up Display (HUD). |
| 40 | 10A | Gesture tailgate. Portable media connections. |
| 41 | 15A | Entertainment system. |
| 42 | 15A | Climate control. |
| 43 | 10A | Spare |
| 44 | 15A | Entertainment system. |
| 45 | 10A | Entertainment system. Portable media connections. Occupant detection. |
| 46 | 15A | Spare |
| 47 | 30A | Fuel system. |
| 48 | 25A | 2018-2019: Heating system. |
| 49 | 5A | Fuel system (diesel vehicles only). |
| 50 | 15A | Powered luggage compartment cover. |
| 51 | 5A | Adaptive dynamics. |
| 52 | 25A | Spare |
| 53 | 10A | Air suspension. |
| 54 | 25A | Spare |
| 55 | – | – |
| 56 | 15A | Adaptive dynamics. |
| 57 | 25A | Spare |
| 58 | 10A | 2018-2019: Adaptive cruise control. |
| 59 | 30A | Powered tailgate. |
| 60 | 25A | Spare |
| 61 | 25A | 2018-2019: Electrical power management. |
| 62 | 25A | Spare |
| 63 | 25A | Spare |
| 64 | 10A | Entertainment system. |
| 65 | 10A | Diesel Exhaust Fluid (DEF). |
| 66 | 25A | Spare |
| 67 | 15A | Trailer. |
| 68 | 15A | Trailer. |
| 69 | 30A | Deployable side steps. |
| 70 | 30A | Trailer braking. |
| 71 | 30A | Electrically deployable tow bar. |

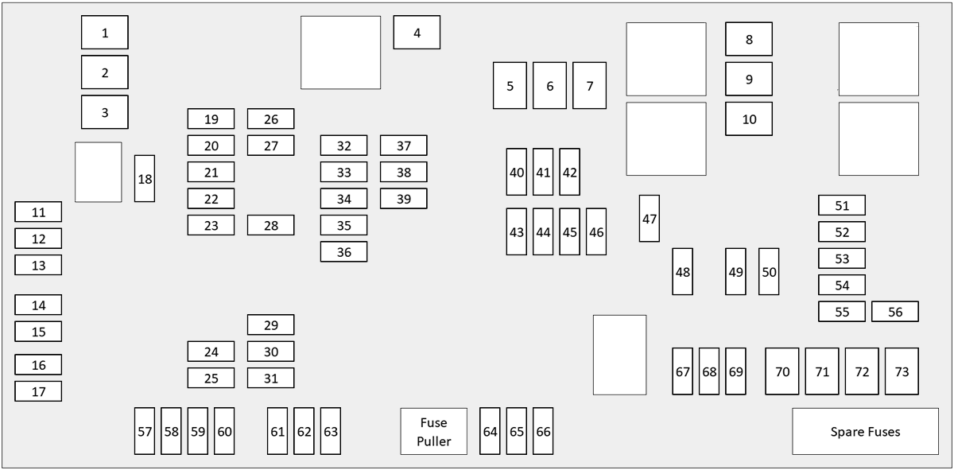

Jaguar XF (2021 – 2024)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | – | – |
| 4 | 30A | Heated rear screen. |
| 5 | – | – |
| 6 | – | – |
| 7 | 40A | Infotainment amplifier. |
| 8 | – | – |
| 9 | 40A | Auxiliary heater. |
| 10 | 40A | Auxiliary heater. |
| 11 | 5A | All Surface Progress Control (ASPC). |
| 12 | 20A | Left-side heated rear seat. |
| 13 | 20A | Right-side heated rear seat. |
| 14 | 15A | Chassis control module. |
| 15 | 5A | Rear seat switches. |
| 16 | 5A | 2021: ADC module. |
| 17 | – | – |
| 18 | – | – |
| 19 | 5A | Blind spot monitor. Clear exit monitor. |
| 20 | 5A | ClearSight rear-view mirror. |
| 21 | 15A | Seat switch packs. |
| 22 | – | – |
| 23 | 10A | Rear sunblind. |
| 24 | 5A | Telematics. |
| 25 | – | – |
| 26 | 20A | Loadspace USB socket. |
| 27 | 20A | Centre console rear USB socket. |
| 28 | 5A | Adaptive cruise control radar. |
| 29 | 15A | Climate and comfort systems. |
| 30 | 20A | Auxiliary heater. |
| 31 | – | – |
| 32 | – | – |
| 33 | 2A | Electronic toll charge. |
| 34 | 10A | ClearSight rear-view mirror camera. |
| 35 | – | – |
| 36 | 5A | Forward-facing camera. |
| 37 | – | – |
| 38 | 10A | Instrument panel. |
| 39 | 10A | Head Up Display (HUD). |
| 40 | 10A | Gesture tailgate. |
| 41 | – | – |
| 42 | 10A | Touchscreen. |
| 43 | – | – |
| 44 | 15A | Infotainment module. |
| 45 | 10A | Audio/video input and output. |
| 46 | 10A | Touchscreen. |
| 47 | 30A | Fuel pump. |
| 48 | 25A | Vehicle emissions. |
| 49 | 5A | Fuel pump. |
| 50 | – | – |
| 51 | – | – |
| 52 | – | – |
| 53 | – | – |
| 54 | – | – |
| 55 | – | – |
| 56 | – | – |
| 57 | – | – |
| 58 | 10A | Near field sensing module. |
| 59 | 30A | Powered tailgate. |
| 60 | – | – |
| 61 | 10A | Hybrid system. |
| 62 | – | – |
| 63 | 15A | Hybrid system. |
| 64 | – | – |
| 65 | – | – |
| 66 | – | – |
| 67 | 15A | Trailer socket. |
| 68 | 15A | Trailer socket. |
| 69 | – | – |
| 70 | – | – |
| 71 | 30A | Electrically deployable tow bar. Legal lighting. |
| 72 | – | – |
| 73 | – | – |
Related Posts:
