Jaguar XJ (2010 – 2019) Fuse Box Diagrams & Location
The Jaguar XJ (2010–2019) fuse box protects important electrical systems, including lighting, engine controls, infotainment, and power accessories. Knowing the fuse box locations and diagrams helps owners identify fuse positions, understand circuit functions, and troubleshoot electrical problems efficiently for reliable vehicle operation.
Fuse Box Location

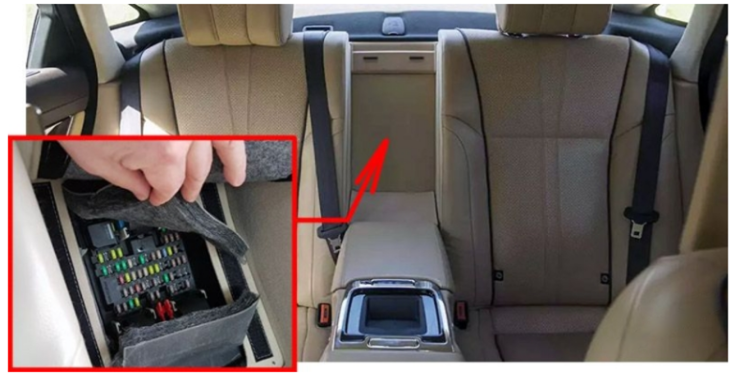

Passenger Compartment Fuse Box
The fuse box is accessed through the flap behind the rear center armrest.

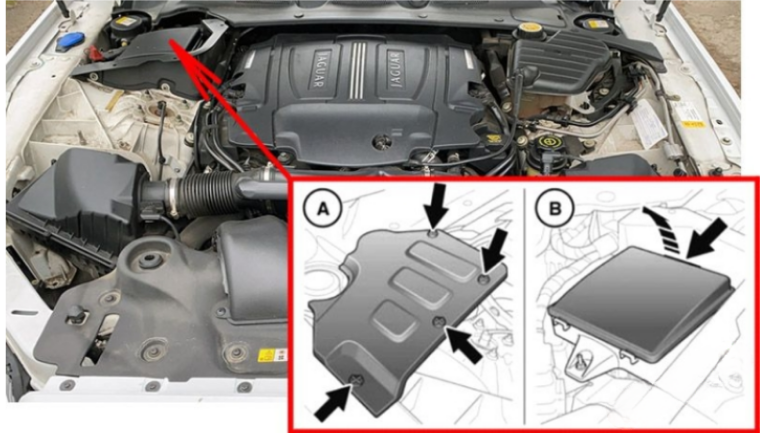

Engine Compartment Fuse Box
- Undo the 4 turn-buckles and remove the engine cover to access the fuse box.
- Remove the fuse box cover.

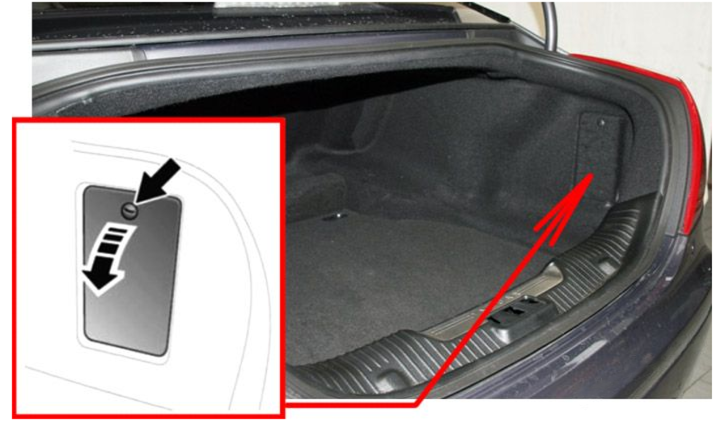

Luggage Compartment Fuse Box
The fuse box is behind the cover on the right side of the trunk.
Fuse Box Diagrams
Passenger Compartment Fuse Box
Jaguar XJ (2010-2015)
| № | Amps | Circuit |
|---|---|---|
| F1 | 5A | RF-RX, IMS, TPM system. |
| F2 | – | – |
| F3 | – | – |
| F4 | – | – |
| F5 | 5A | DSC module, Yaw rate, SAS. |
| F6 | 5A | ACC. |
| F7 | 20A | Rear climate control. |
| F8 | 30A | Front passenger’s seat adjustment. |
| F9 | 5A | EPB. |
| F10 | 5A | Air suspension ECM. |
| F11 | – | – |
| F12 | – | – |
| F13 | – | – |
| F14 | 5A | Brake pedal switch. |
| F15 | 30A | Heated rear screen. |
| F16 | – | – |
| F17 | 5A | KVM supply. |
| F18 | 5A | Fuel pump relay. |
| F19 | 5A | ECM. |
| F20 | 10A | Heated steering wheel. |
| F21 | 5A | AC sensor, Front overhead console, Front dual climate control module and smog sensor. |
| F22 | 5A | TCM, E-Diff, Jaguar Drive selector. |
| F23 | 5A | Headlamp levelling. |
| F24 | 5A | RH front and rear lamp clusters. |
| F25 | 10A | LH front and rear lamp clusters. |
| F26 | – | – |
| F27 | – | – |
| F28 | 20A | Rear seat dual climate control module. |
| F29 | 20A | Front seat dual climate control module. |
| F30 | 25A | Passenger door module. |
| F31 | 5A | Rain/light sensor. |
| F32 | 25A | Driver’s door module. |
| F33 | 20A | Front dual climate control module. |
| F34 | 10A | Fuel filler flap lock. |
| F35 | – | – |
| F36 | 5A | Battery back up sounder/tilt sensor. |
| F37 | 20A | KVM. |
| F38 | 15A | Front screen wash pump relay. |
| F39 | 25A | LH rear door module. |
| F40 | 5A | Driver’s window, Clock, ICP, Rear climate panel, passenger door memory. |
| F41 | 5A | Power amp. |
| F42 | 30A | Driver’s seat module. |
| F43 | – | – |
| F44 | 25A | RH rear door module. |
| F45 | 30A | Passenger front seat switch pack. |
| F46 | 30A | Driver’s seat module. |
| F47 | – | – |
| F48 | – | – |
| F49 | 5A | RH headlamp motor. |
| F50 | 5A | LH headlamp motor. |
| F51 | 5A | Steering wheel switches. |
| F52 | 20A | Front cigar lighter. |
| F53 | 20A | Rear cigar lighter. |
| F54 | – | – |
| F55 | 20A | Rear accessory socket. |
| F56 | 10A | RCM/OCS. |
| F57 | 10A | Glove box, glove box lamp, front and rear overhead consoles, sun visor lamps, vanity lamps. |
| F58 | – | – |
| F59 | – | – |
| F60 | – | – |
| F61 | 10A | IAU, cluster, cluster fan. |
| F62 | 10A | Climate control module. |
| F63 | 20A | Front accessory socket. |
| F64 | 15A | IAM (head unit). |
| F65 | – | – |
| F66 | 5A | OBD 2. |
| F67 | – | – |
| F68 | 10A | DAB, TVM. |
| F69 | 15A | HLDF. |
Jaguar XJ (2016-2019)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 5A | Radio Frequency (RF) receiver. Alarm sensors. Tire Pressure Monitoring System (TPMS). |
| 2 | – | – |
| 3 | – | – |
| 4 | 5A | Databus gateway module. |
| 5 | 5A | Stability control. |
| 6 | 5A | Engine compartment fuse box. |
| 7 | 20A | Left side rear climate seat. |
| 8 | 30A | Front passenger’s seat. |
| 9 | 5A | Electric Parking Brake (EPB). |
| 10 | 5A | Air suspension. |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | 5A | Brake pedal switch. |
| 15 | 30A | Heated rear window. |
| 16 | 5A | 2017-2019: Power steering. |
| 17 | 5A | Keyless vehicle systems. |
| 18 | – | – |
| 19 | 5A | Engine management system. |
| 20 | 10A | Heated steering wheel. |
| 21 | 5A | Climate seats. Steering wheel. Center console rear media panel. Alarm sensors. Smog sensor. |
| 22 | 5A | Transmission control module. Rear differential. Center console switches. Gear selector. |
| 23 | 5A | Headlight levelling. |
| 24 | 5A | Right side front fog lights. |
| 25 | 5A | Left side front fog lights. |
| 26 | – | – |
| 27 | – | – |
| 28 | 20A | 2016: Rear seat dual climate control module. 2017-2019: Right side rear climate seat. |
| 29 | 20A | 2016: Front seat dual climate control module. 2017-2019: Driver’s climate seat. Driver’s heated seat. |
| 30 | 25A | Front passenger door switches. |
| 31 | 5A | Rain sensor. |
| 32 | 25A | Driver’s door switches. |
| 33 | 20A | Front passenger climate seat. Front passenger heated seat. |
| 34 | 10A | Fuel filler flap lock. |
| 35 | – | – |
| 36 | 5A | Battery back-up sounder. |
| 37 | 20A | Keyless vehicle systems. |
| 38 | 15A | Windshield washer. |
| 39 | 25A | Left side rear door switches. |
| 40 | 5A | Driver’s door window. Driver’s door memory switch. Clock. Center console switches. Rear climate control panel. |
| 41 | 5A | 2016: Power amp. |
| 42 | 30A | Driver’s seat. |
| 43 | – | – |
| 44 | 25A | Right side rear door switches. |
| 45 | 20A | Front passenger seat. |
| 46 | 20A/30A | Driver’s seat. |
| 47 | – | – |
| 48 | 20A/30A | 2016: Left-side rear seat module. 2017-2019: Driver’s seat. |
| 49 | 5A | Right side headlight levelling. |
| 50 | 5A | Left side headlight levelling. |
| 51 | 5A | Steering wheel switches. |
| 52 | 20A | Front cigar lighter. |
| 53 | 20A | Rear cigar lighter. |
| 54 | – | – |
| 55 | 20A | Rear accessory sockets. |
| 56 | 10A | Supplementary Restraint System (SRS). |
| 57 | 10A | 2016: Glovebox, glovebox lamp, front and rear overhead consoles, sun visor lamps, vanity lamps. 2017-2019: Electrical power management. JaguarSense. |
| 58 | 20A/30A | 2016: Right-side rear seat module. 2017-2019: Rear passenger seats. |
| 59 | – | – |
| 60 | 5A | 2017-2019: Dynamic response. Occupant sensor. |
| 61 | 10A | 2016: Integrated antenna unit, cluster, cluster fan. 2017-2019: Engine immobilizer. Instrument panel. |
| 62 | 10A | Climate control. |
| 63 | 20A | Front accessory socket. |
| 64 | 15A | Left side rear sunblind. |
| 65 | – | – |
| 66 | 5A | Diagnostic socket. |
| 67 | – | – |
| 68 | – | – |
| 69 | 15A | Right side rear sunblind. |

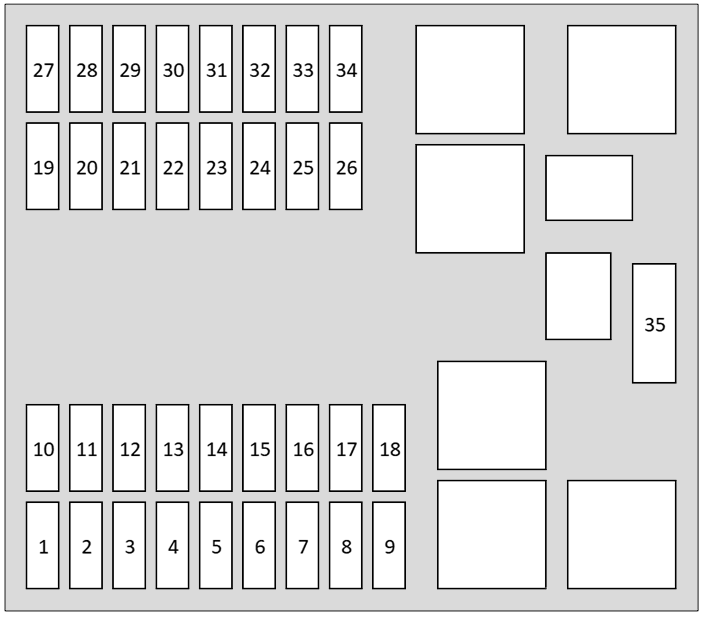

Engine Compartment Fuse Box
Jaguar XJ (2010-2015)
| № | Amps | Circuit |
|---|---|---|
| F1 | – | – |
| F2 | 15A | Ignition coils (petrol) or ECM (Diesel) |
| F3 | 5A | CDCS ECU, EPB, EMS, ECM (Petrol) |
| F4 | 30A | Power wash pump. |
| F5 | – | – |
| F6 | 5A | AC Clutch compressor (Diesel) |
| F7 | 40A | RH front screen heater. |
| F8 | 10A | GPC, UHEGO, MAFA (Diesel) |
| F9 | 5A | EBF, ECFC, EOTL, Engine cooling fan, PCM cooling fan (Diesel) |
| F10 | – | – |
| F11 | – | – |
| F12 | 5A | ESOV, CRV, EGR CBV, TSOV, MAFB (Diesel) |
| F13 | 5A | AEM, WIF (Diesel) |
| F14 | 5A | PCV, MEU, Fuel pump relay control (Diesel) |
| F15 | – | – |
| F16 | – | – |
| F17 | 15A | TCM, ETS. |
| F18 | 20A | EMS main, EMS secondary control (petrol). |
| F19 | 30A | Starter. |
| F20 | 40A | DSC pump. |
| F21 | 25A | ABS slip valves. |
| F22 | – | – |
| F23 | – | – |
| F24 | 15A | Intercooler water pump (petrol). |
| F25 | 15A | Horns. |
| F26 | 40A | Wiper motor. |
| F27 | – | – |
| F28 | 15A | ECM, VVT diode (petrol). |
| F29 | 5A | Oil quality, MAFS, DHTL (petrol). |
| F30 | 10A | Throttle motor (petrol). |
| F31 | 10A | Radiator fan, ECM cooling fan, purge valve, CPS valves, IMTV (petrol). |
| F32 | 40A | Front screen heater. |
| F33 | 20A | UHEGO bank A heaters (petrol). |
| F34 | 20A | UHEGO bank B heaters (petrol). |
| F35 | 100A | Engine cooling fan. |
Jaguar XJ (2016-2019)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | – | – |
| 2 | 5A/10A | Engine management sensors / Engine and E-box cooling fans. |
| 3 | 25A | Ignition coils. |
| 4 | 30A | Windshield washer pump. |
| 5 | 40A | Main electrical power to module. |
| 6 | 40A | Right side windshield heater. Heated wipers. |
| 7 | 30A | All Wheel Drive (AWD). |
| 8 | 5A/10A | Oxygen sensor / Active engine mount. |
| 9 | 10A | Engine cooling fan, Engine management. |
| 10 | – | – |
| 11 | – | – |
| 12 | 10A/20A | Oxygen sensors Bank A / Engine management sensors. |
| 13 | 20A | Oxygen sensors Bank B. |
| 14 | 5A | Adaptive cruise control (ACC). |
| 15 | 20A | Oxygen sensors. |
| 16 | – | – |
| 17 | – | – |
| 18 | 15A | Horn. |
| 19 | 30A | Starter motor. |
| 20 | 40A | Anti-lock Braking System (ABS). |
| 21 | 25A | ABS. |
| 22 | 15A | Left side headlights. |
| 23 | 15A | Right side headlights. |
| 24 | – | – |
| 25 | 15A | Intercooler water pump – EWP. |
| 26 | 40A | Wiper motor. |
| 27 | 5A | 2016: Monitor. 2017-2019: Starter motor. |
| 28 | 15A | Transmission. |
| 29 | – | – |
| 30 | – | – |
| 31 | – | – |
| 32 | 40A | Left side windshield heater. |
| 33 | – | – |
| 34 | – | – |
| 35 | 80A | 2016: Cooling fan. |
Luggage Compartment Fuse Box

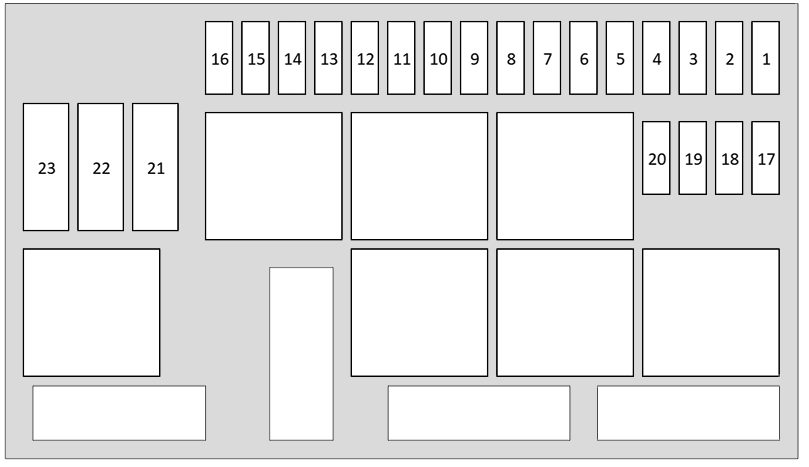

Jaguar XJ (2010-2015)
| № | Amps | Circuit |
|---|---|---|
| F1 | 40A | LH seat belt retract module. |
| F2 | 15A | CVD ECU, ACC. |
| F3 | 5A | PAM, RH blind spot monitor, rearview mirror. |
| F4 | 10A | Chassis control module. |
| F5 | 20A | Air suspension. |
| F6 | 30A | Electronic parking brake (EPB). |
| F7 | 40A | RH seat belt retractor module. |
| F8 | 30A | Fuel pump. |
| F9 | 40A | Power amp. |
| F10 | – | – |
| F11 | – | – |
| F12 | – | – |
| F13 | 5A | Air suspension. |
| F14 | 40A | AC Blower. |
| F15 | 10A | Passenger seat switch pack. |
| F16 | – | – |
| F17 | 20A | Front seats. |
| F18 | 20A | Rear RH seat heater module, parcel shelf sunblind. |
| F19 | 10A | Driver’s seat switch pack. |
| F20 | 20A | Power boot lid. |
| F21 | 30A | Sun roof module. |
| F22 | 60A | Air suspension. |
| F23 | 40A | E-diff module. |

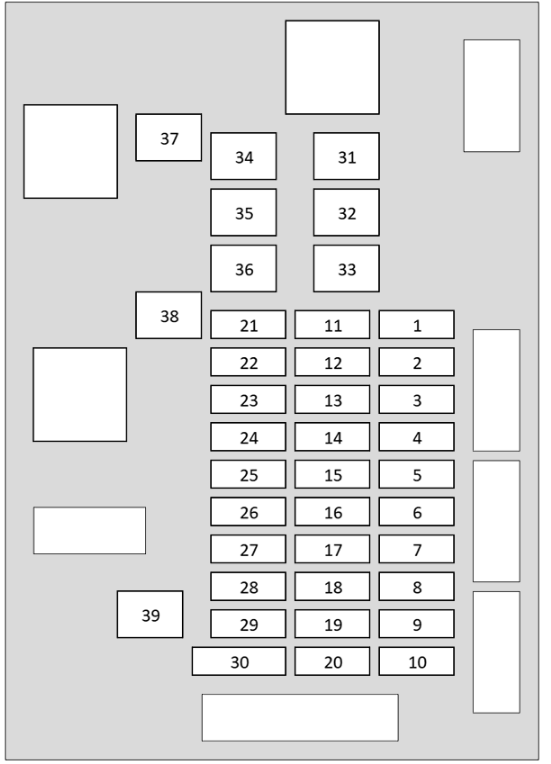

Jaguar XJ (2016-2019)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 30A | Electric Parking Brake (EPB). |
| 2 | – | – |
| 3 | – | – |
| 4 | – | – |
| 5 | – | – |
| 6 | 30A | Power trunk lid. |
| 7 | – | – |
| 8 | 5A | Telematics. |
| 9 | – | – |
| 10 | – | – |
| 11 | 20A | Front passenger heated seat. Front passenger climate seat. |
| 12 | 10A | Front seat switches. Front seat massage. |
| 13 | 10A | Rear seat switches. Rear seat massage. |
| 14 | 20A | Driver’s heated seat. Driver’s climate seat. |
| 15 | – | – |
| 16 | 10A | Chassis systems. |
| 17 | 10A | Air suspension. |
| 18 | 10A | 2016: Infotainment Master Controller (IMC) fan. 2017-2019: Entertainment system. |
| 19 | 30A | 2016: Fuel pump, Body control module. 2017-2019: Fuel pump. |
| 20 | – | – |
| 21 | 10A | Instrument panel / DiM |
| 22 | 10A | Headlights. Camera. Lane keep assist. Parking aid, Interior mirror. |
| 23 | 5A | Adaptive cruise control (ACC). |
| 24 | 5A | Databus gateway module (GATEWAY). |
| 25 | 5A | Air suspension. |
| 26 | 20A | Right side rear heated seat. Right side rear climate seat. |
| 27 | 20A | Left side rear heated seat. Left side rear climate seat. |
| 28 | – | – |
| 29 | – | – |
| 30 | 2A | Electronic toll collection (VICS). |
| 31 | – | – |
| 32 | 30A | EPB. |
| 33 | 40A | Rear differential. |
| 34 | 40A | Heating and ventilation blower. |
| 35 | 60A | Electrical power management. |
| 36 | 40A | Sunroof. |
| 37 | 60A | Air suspension. |
| 38 | 40A | Body control module / Power amp. |
| 39 | – | – |

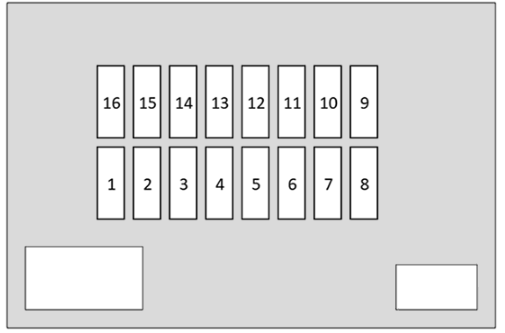

Secondary luggage
To access the fuse box, raise the luggage compartment floor trim.
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 15A | Touchscreen. |
| 2 | 10A | Clock. Audio system amplifier. Portable audio interface. |
| 3 | – | – |
| 4 | 10A | 2016: Phone connect view, Navigation, TV. |
| 5 | 15A | Entertainment system. |
| 6 | 15A | Entertainment system. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15A | Heating and ventilation. |
| 16 | – | – |
Related Posts:
