Land Rover Discovery 1 (1989 – 1998) Fuse Box Diagrams & Location
The Land Rover Discovery 1, produced from 1989 to 1998, features several fuse boxes that protect essential electrical systems. This blog provides clear fuse box locations and diagrams, helping you identify fuse positions and understand which electrical circuits each fuse protects.
Fuse Box Location

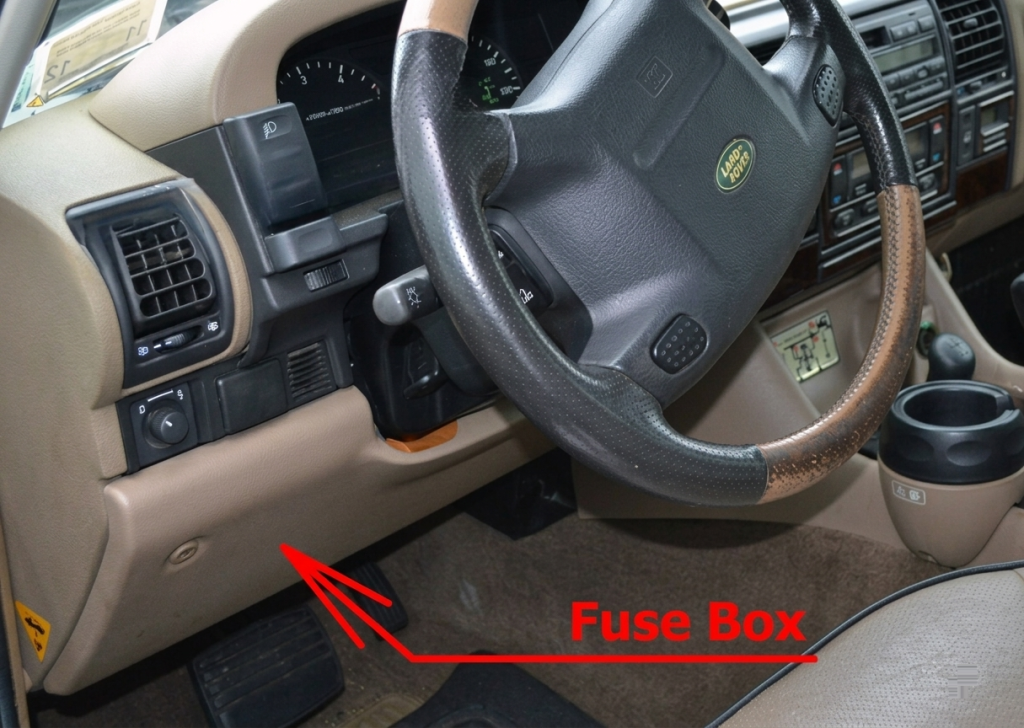

Passenger Compartment Fuse Box
It is located behind the panel below the steering wheel (with something flat, turn the two clamps counterclockwise and lower the panel).

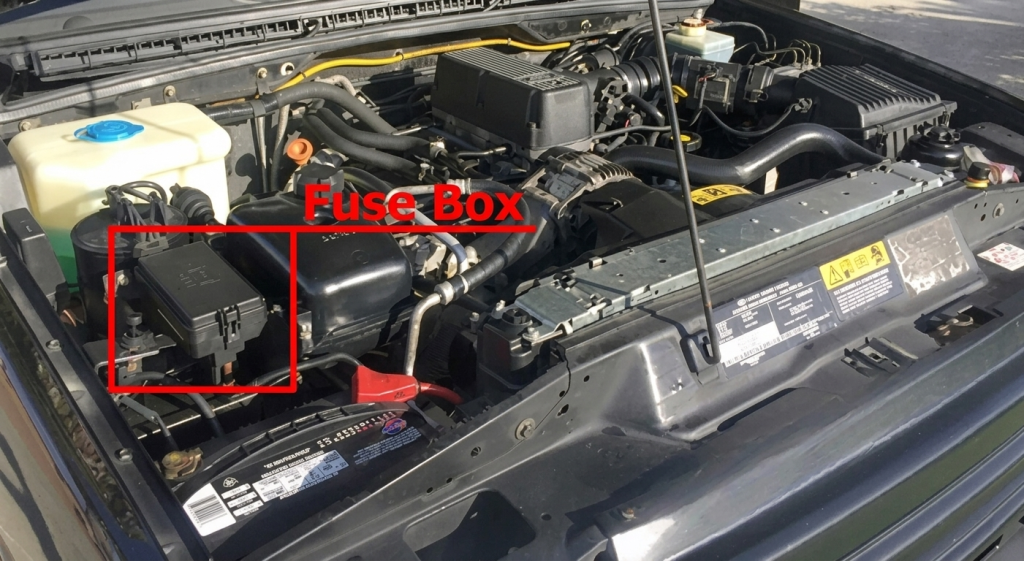

Engine Compartment Fuse Box
Fuse Box Diagrams

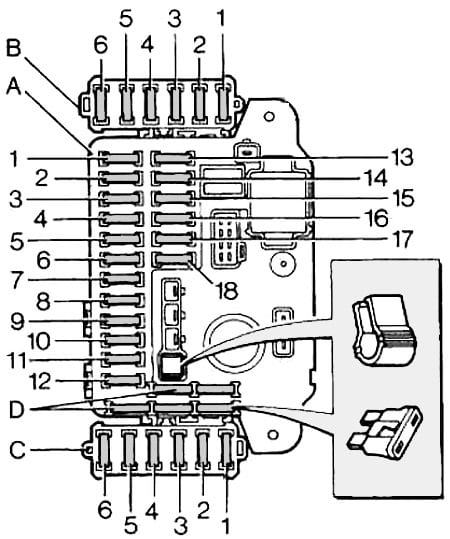

Passenger Compartment Fuse Box
| № | Amp | Description |
| 1 | 15A | Stop lights, direction indicators |
| 2 | 10A | Side light (left-hand side) |
| 3 | 10A | Radio/cassette/CD player |
| 4 | 10A | Headlight main beam (right-hand side) |
| 5 | 10A | Headlight main beam (left-hand side) |
| 6 | 20A | Cigar lighter |
| 7 | 10A | Airbag SRS |
| 8 | 10A | Side lights (right-hand side) |
| 9 | 10A | Rear fog guard lights |
| 10 | 10A | Headlight dipped beam (right-hand side) |
| 11 | 10A | Headlight dipped beam (left-hand side) |
| 12 | 10A | Multi-function unit |
| 13 | 10A | Ignition feed for Multi-function unit |
| 14 | 10A | Instrument panel, clock, speed transducer, SRS (secondary) |
| 15 | 10A | Air conditioning, windows |
| 16 | 20A | Washers & wipers (front) |
| 17 | 10A | Starter, glow plug |
| 18 | 10A | Washers & wipers (rear), mirrors, cruise control |
| D | Spare fuses | |
| “B”-Satellite | ||
| 1 | 30A | Electric windows – front |
| 2 | 30A | Electric windows – rear |
| 3 | 10A | Anti-lock braking |
| 4 | 15A | Central door locking |
| 5 | 30A | Electric sun roof |
| 6 | 20A | Trailer lights |
| “C”-Satellite | ||
| 1 | 15A | Anti-theft alarm |
| 2 | 20A | Headlight washers |
| 3 | 10A | Engine management |
| 4 | 5A | Anti-lock brakes |
| 5 | 10A | Anti-theft alarm |
| 6 | 25A | Rear air conditioning, heater |

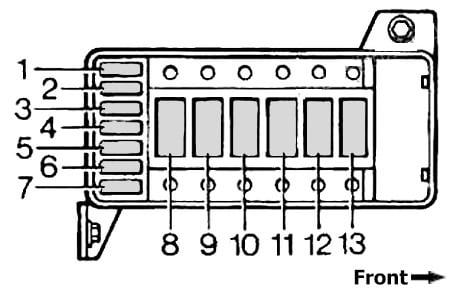

Engine Compartment Fuse Box
| № | Amp | Description |
|---|---|---|
| 1 | 30A | Heated rear window |
| 2 | 20A | Lights |
| 3 | 30A | Air conditioning |
| 4 | 30A | Hazard warning lights, horn |
| 5 | 30A | Anti-lock braking |
| 6 | 5A | Fuel pump |
| 7 | 20A | Fuel system |
| 8 | ABS pump | |
| 9 | Ignition circuits | |
| 10 | Lighting | |
| 11 | Window lift, central door locking, rear blower | |
| 12 | Heater, air conditioning | |
| 13 | Generator |
