Land Rover Discovery 2 (1998 – 2004) Fuse Box Diagrams & Location
The Land Rover Discovery 2 (1998–2004) features fuse boxes that protect essential electrical systems throughout the vehicle. Knowing their locations and fuse assignments makes troubleshooting electrical problems easier. This blog provides clear fuse box locations and diagrams to help identify the correct fuse quickly and safely.
Fuse Box Location
Passenger Compartment Fuse Box
It is located below the steering wheel behind the panel.

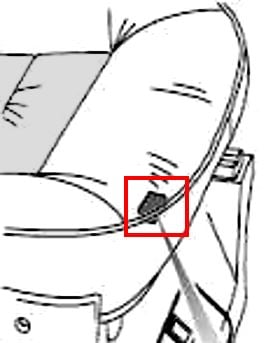

Under Seat Fuses: It is located under each front seatю
Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box
Main Fuse Box
| № | A | Circuit protected |
|---|---|---|
| 1 | 25 | Central door locking |
| 2 | 10 | Fuel flap release |
| 3 | 10 | Instrument pack Switch illumination |
| 4 | 10 | Fog guard lights – rear |
| 5 | 10 | Headlight high beam – LH |
| 6 | 25 | Air conditioning blower – rear |
| 7 | 30 | Heater blower – front |
| 8 | 30 | Heated rear window Heated mirrors |
| 9 | 10 | Headlight normal beam – LH |
| 10 | 10 | Headlight normal beam – RH |
| 11 | 10 | Side & tail lights – LH Number plate light Switch illumination Trailer socket |
| 12 | 30 | Sunroof |
| 13 | 30 | Electric windows – rear |
| 14 | 20 | Ignition coils |
| 15 | 20 | Cigar lighter Interior lights Seat heaters Vanity mirror illumination |
| 16 | 15 | Clock Radio Park distance control Rear head phones |
| 17 | 15 | Radio amplifier Speakers |
| 18 | 15 | Wiper motor – rear |
| 19 | 15 | Wiper motor – front Screen washer – front |
| 20 | 15 | Interior lights Clock/radio memory Engine remobilisation CD player Key i/lock Diagnostics |
| 21 | 15 | Transfer box Alarm audible warning Shift i/lock |
| 22 | 10 | Headlight high beam – RH |
| 23 | 10 | Starter motor |
| 24 | 10 | Alternator Automatic transmission Engine management |
| 25 | 15 | Brake lights Reverse lights |
| 26 | 10 | Auxiliary circuits relays |
| 27 | 10 | Instruments Hill descent control |
| 28 | 10 | Self levelling suspension Anti-lock braking |
| 29 | 10 | Active cornering enhancement (ACE) |
| 30 | 20 | Cruise control Electric mirrors Screen washer – rear |
| 31 | 10 | Air conditioning blower – front |
| 32 | 25 | Accessory socket |
| 33 | 10 | Side & tail lights – RH Radio Trailer socket Switch illumination |
| 34 | 30 | Electric windows – front |
| 35 | 10 | Airbag SRS |
Under Seat Fuses
| № | A | Circuit protected |
|---|---|---|
| 1 | 3 | Lumbar support – solenoid |
| 2 | 3 | Lumbar support – pump |
| 3 | 40 | Seat electrics |
Engine Compartment Fuse Box
| № | A | Circuit protected |
|---|---|---|
| 1 | 30 | Fuel injectors |
| 2 | 15 | Engine management system |
| 3 | 15 | Front fog lights |
| 4 | 20 | Headlight washers |
| 5 | 40 | Cooling fans |
| 6 | 10 | Air conditioning |
| 7 | 40 | Heated front screen – LH |
| 8 | 40 | Heated front screen – RH |
| 9 | 30 | Trailer lights |
| 10 | 30 | Fuel pump |
| 11 | 30 | ABS valve |
| 12 | 20 | Automatic gearbox |
| 13 | 10 | Body Control Unit (BCU) |
| 14 | 15 | Direction indicators Hazard lights |
| 15 | 15 | Active cornering enhancement (ACE) |
| 16 | 10 | Horn |
