Land Rover Range Rover Evoque (2012 – 2018) Fuse Box Diagrams & Location
The Land Rover Range Rover Evoque (2012–2018) features fuse boxes that protect essential electrical systems throughout the vehicle. Knowing their locations and fuse assignments can make troubleshooting easier when an electrical component stops working. This blog provides clear fuse box locations and diagrams to help identify the correct fuse quickly.
Fuse Box Location
Passenger Compartment Fuse Box

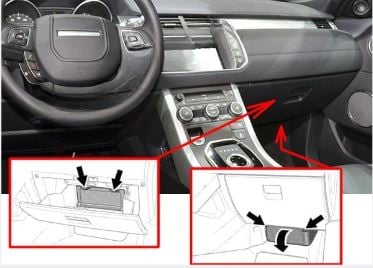

Passenger compartment fuse box (upper): Open the glovebox and remove the panel from the glovebox liner. Passenger compartment fuse box (lower): Remove the lower access panel.

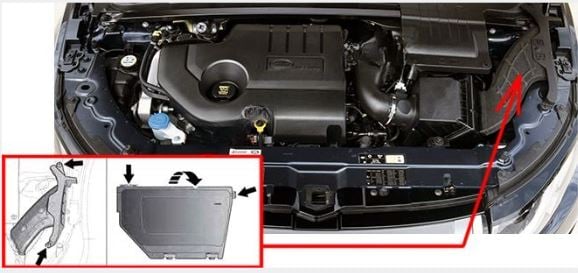

Engine Compartment Fuse Box
- Remove the two plastic fixings.
- Pull the tube up to release from the air box.
- Delatch the tabs. The fuse box can now be opened.
Luggage Compartment Fuse Box

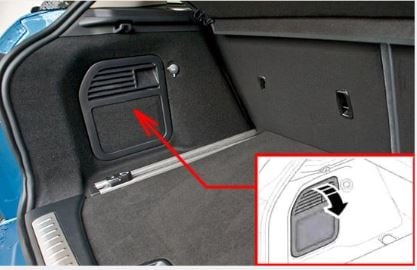

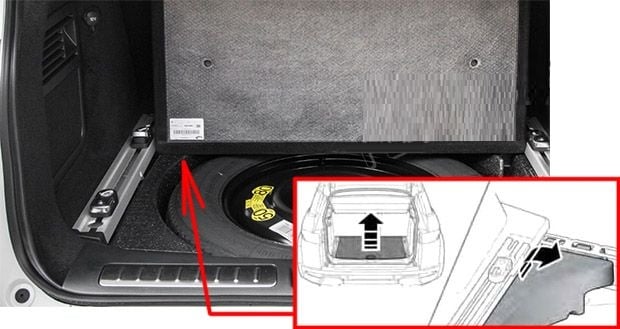

Upper and lower fuse boxes are located behind a panel on the left side of the luggage compartment. Remove the panel from the left side trim of the luggage compartment.
The underfloor fuse box is located under the floor in the luggage compartment.
Fuse Box Diagrams

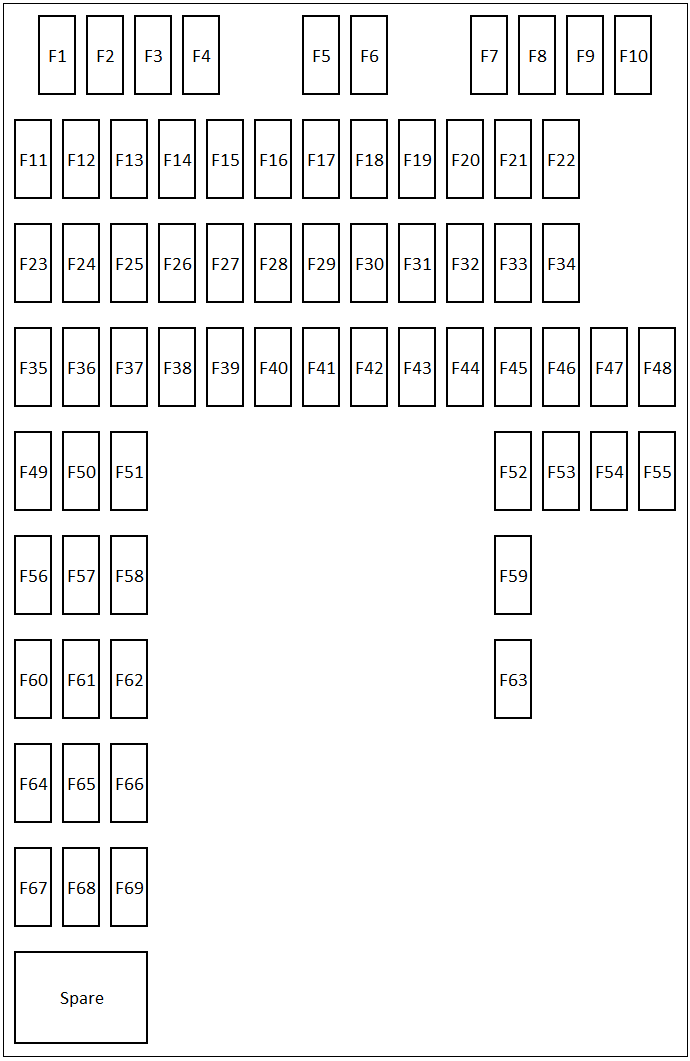

Passenger Compartment Fuse Box
Land Rover Range Rover Evoque (2012 – 2015)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 5 | Smart key receiver. Alarm sensor. Tyre Pressure Monitoring System (TPMS) |
| 2 | – | – |
| 3 | 10 | Front fog lamps |
| 4 | – | – |
| 5 | 5 | Anti-lock Braking System (ABS) |
| 6 | 5 | Engine/luggage compartment fusebox Adaptive dynamics, Electric differential control module (E-diff) |
| 7 | – | – |
| 8 | 25 | Passenger door module |
| 9 | 5 | Electric parking brake |
| 10 | 5 | Heated washer jets |
| 11 | 10 | Reverse light trailer |
| 12 | 5 | Reverse lights |
| 13 | – | – |
| 14 | 5 | Brake pedal switch |
| 15 | 30 | Heated rear screen |
| 16 | 5 | Electric power assisted steering |
| 17 | 5 | Keyless entry control module |
| 18 | – | – |
| 19 | 5 | Engine management control module |
| 20 | 5 | Adaptive Cruise Control (ACC) |
| 21 | 5 | PTC heater control unit, Centre console switch, Outboard fascia switch |
| 22 | 5 | Automatic transmission |
| 23 | – | – |
| 24 | 5 | RH rear fog lamp |
| 25 | 5 | LH rear fog lamp |
| 26 | – | – |
| 27 | 10 | Trailer position lamps |
| 28 | – | – |
| 29 | – | – |
| 30 | – | – |
| 31 | 5 | Rain sensor, Auxiliary lamp switch, Voltage module, Humidity sensor, Passenger airbag disabling lamp |
| 32 | 25 | Driver door module |
| 33 | – | – |
| 34 | 10 | Fuel flap locking, Fuel flap unlocking |
| 35 | – | – |
| 36 | 5 | Battery backed sounder |
| 37 | 20 | Keyless entry control module |
| 38 | 15 | Front screen washer |
| 39 | 25 | LH rear door module |
| 40 | 5 | Driver door window switch, Clock, Pass front seat logic lumbar |
| 41 | – | – |
| 42 | 30 | Driver front seat |
| 43 | 15 | Rear screen washer |
| 44 | 25 | RH rear door module |
| 45 | 30 | Passenger front seat |
| 46 | – | – |
| 47 | 20 | Sunblind control unit |
| 48 | 15 | Trailer connector power supply |
| 49 | – | – |
| 50 | – | – |
| 51 | 5 | Steering wheel switches |
| 52 | 20 | Cigar lighter |
| 53 | 20 | Cubby box accessory power socket |
| 54 | – | – |
| 55 | 20 | Rear console accessory power socket |
| 56 | 10 | Supplementary Restraint system (SRS) |
| 57 | 10 | Interior lamps |
| 58 | – | – |
| 59 | – | – |
| 60 | 5 | Occupancy sensor, Passenger airbag disabling lamp |
| 61 | 5 | Start control unit |
| 62 | 10 | Climate control system |
| 63 | 20 | Luggage compartment accessory power socket |
| 64 | – | – |
| 65 | – | – |
| 66 | 5 | Diagnostics |
| 67 | 15 | Trailer |
| 68 | – | – |
| 69 | 15 | Automatic transmission |

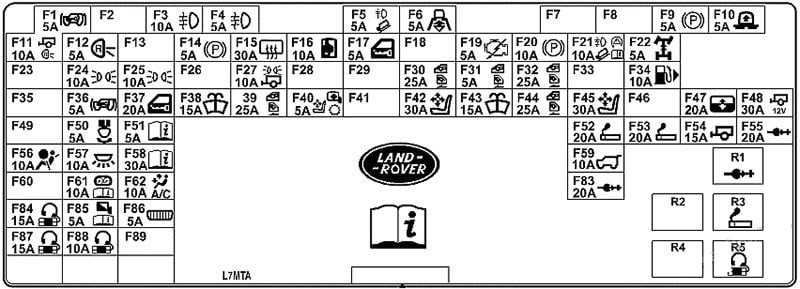

Land Rover Range Rover Evoque (2016 – 2018)
| № | Amps | Circuit protected |
|---|---|---|
| 1 | 5 | Smart key receiver. Alarm sensor. Tire Pressure Monitoring System (TPMS) |
| 2 | — | — |
| 3 | 10 | Front fog lamps |
| 4 | — | — |
| 5 | 5 | Anti-lock Braking System (ABS) |
| 6 | 5 | Adaptive dynamics. Electric differential |
| 7 | — | — |
| 8 | 25 | Passenger door module |
| 9 | 5 | 2016: Electric Parking Brake (EPB) |
| 10 | 5 | Heated washer jets |
| 11 | 10 | Reverse light trailer |
| 12 | 5 | Reverse lights |
| 13 | — | — |
| 14 | 5 | Brake pedal switch |
| 15 | 30 | Heated rear screen |
| 16 | 5 | Power steering |
| 17 | 5 | Passive entry |
| 18 | 5 | Auxiliary coolant pump |
| 19 | 5 | Engine management system |
| 20 | 5 | Adaptive Cruise Control (ACC) |
| 21 | 5 | 2016: PTC heater, Center console switches. Outboard facia switches. 2017-2018: Center console switches. Outboard dashboard switches |
| 22 | 5 | Automatic transmission |
| 23 | — | — |
| 24 | 5 | 2016: Right rear fog lamp |
| 25 | 5 | 2016: Left rear fog lamp |
| 26 | — | — |
| 27 | 10 | 2017-2018: Trailer fog lights |
| 28 | — | — |
| 29 | — | — |
| 30 | — | — |
| 31 | 5 | 2016: Rain sensor. Auxiliary lamp switch. Humidity sensor. 2017-2018: Rain sensor. Lamp switch. Electrical power management. Humidity sensor |
| 32 | 25 | Driver door module |
| 33 | — | — |
| 34 | 10 | 2017-2018: Fuel flap |
| 35 | — | — |
| 36 | 5 | 2017-2018: Battery back-up sounder |
| 37 | 20 | Keyless vehicle module |
| 38 | 15 | Windshield washer |
| 39 | 25 | Left rear door module |
| 40 | 5 | Driver door window switch |
| 41 | 5 | 2017-2018: Gateway module |
| 42 | 30 | Driver’s seat |
| 43 | 15 | Rear screen washer |
| 44 | 25 | Right rear door module |
| 45 | 30 | Front passenger seat |
| 46 | — | — |
| 47 | 20 | Sunblind |
| 48 | 15 | Trailer connector power supply |
| 49 | — | — |
| 50 | — | — |
| 51 | 5 | Steering wheel switches |
| 52 | 20 | Cigar lighter |
| 53 | 20 | Cubby box accessory power socket |
| 54 | — | — |
| 55 | 20 | Rear console accessory power socket |
| 56 | 10 | Supplementary Restraint System (SRS) |
| 57 | 10 | Interior lamps |
| 58 | — | — |
| 59 | — | — |
| 60 | 5 | Occupancy sensor. Passenger air bag disabling lamp |
| 61 | 5 | Engine starting |
| 62 | — | — |
| 63 | 20 | Luggage compartment accessory power socket |
| 64 | — | — |
| 65 | — | — |
| 66 | 5 | Diagnostics |
| 67 | 15 | Trailer |
| 68 | — | — |
| 69 | 15 | Automatic transmissio |

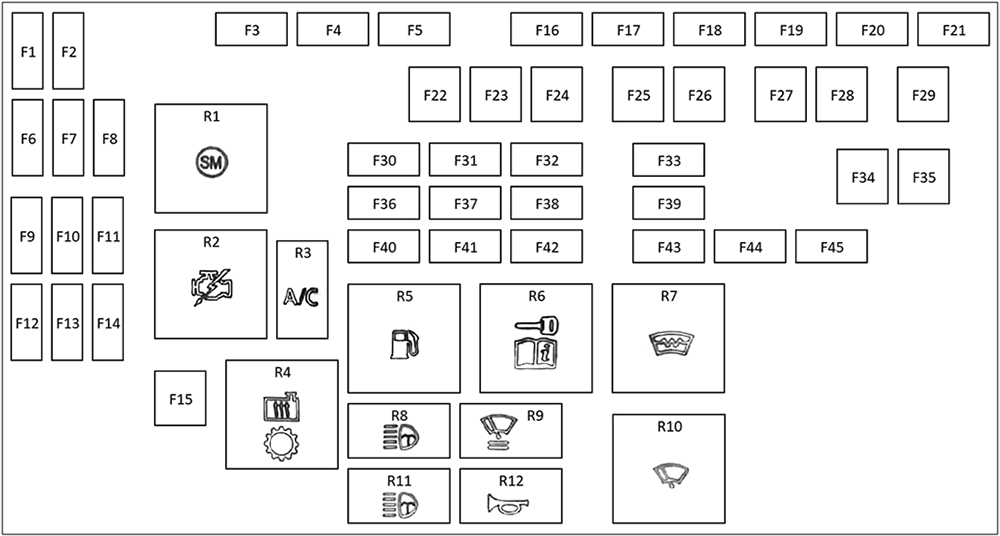

Engine Compartment Fuse Box
Land Rover Range Rover Evoque (2012 – 2015)
| № | Amps | Circuits protected |
|---|---|---|
| 1 | Diode | Engine management supply |
| 2 | 5 | Voltage module supply |
| 3 | 80 | Cooling fans |
| 4 | 60 | Diesel – Glow plugs |
| 5 | 80 | Electric power assisted steering (EPAS) |
| 6 | 15 | Oxygen sensors |
| 7 | 5 | Engine management, Air conditioning (A/C) compressor clutch, Intelligent stop/start motor |
| 8 | 20 | Engine management system (2.0L petrol. 2.2L diesel) |
| 9 | 10 | Diesel – Engine sensors. Engine management system (2.0L diesel. 2.2L diesel). Diesel Exhaust Fluid (DEF) (2.0L diesel) |
| 10 | 20 | Automatic transmission |
| 11 | 10 | Diesel and Petrol – Engine sensors |
| 12 | 15 | Diesel – Exhaust Gas Recirculation (EGR) bypass, water in fuel sensor |
| 12 | 15 | Petrol – Ignition coils |
| 13 | 10 | A/C compressor clutch |
| 14 | 10/15 | Engine management system (2.0L petrol. 2.2L diesel) |
| 15 | 40 | Starter motor |
| 16 | 100 | PTC heater |
| 17 | 60 | Passenger compartment fuse box |
| 18 | 60 | Passenger compartment fuse box |
| 19 | 60 | Luggage compartment fuse box |
| 20 | 60 | Luggage compartment fuse box |
| 21 | 60 | Voltage quality module, Luggage compartment fuse box |
| 22 | 30 | Front wipers |
| 23 | 40 | Passenger compartment fuse box |
| 24 | 30 | |
| 25 | 30 | Anti lock braking system |
| 26 | 40 | Anti lock braking system |
| 27 | 40 | Passenger compartment fuse box |
| 28 | 40 | Heater blower |
| 29 | 30 | Electric trailer brake -Australia |
| 30 | 15 | Headlamp washer |
| 31 | 15 | Horns |
| 32 | 20 | Auxiliary heater |
| 32 | 20 | Anti-lock braking system (ABS) |
| 33 | 5 | Relay coils – Horn, Heated front screen, Fuel pump, Extended ignition |
| 34 | 40 | LH Heated front screen |
| 35 | 40 | RH Heated front screen |
| 36 | 5 | Auxiliary water pump |
| 37 | 20 | Fuel pump |
| 38 | 5 | Steering wheel module |
| 39 | 5 | Adaptive cruise control (ACC) |
| 40 | 5 | Adaptive Front Lighting System (AFS) – Right headlamp |
| 41 | 5 | Adaptive Front Lighting System (AFS)- Left headlamp |
| 42 | 5 | Headlamp control, Dynamic headlamp levelling control unit, Rear view camera |
| 43 | 5 | High beam assist, Rear view camera, Climate/Heated seat relay coils |
| 44 | 10 | Heated steering wheel |
| 45 | 5 | Diesel – Auxiliary water pump, water in fuel sensor |
Land Rover Range Rover Evoque (2016 – 2018)
| № | Amps | Circuit protected |
|---|---|---|
| 1 | 5/30 | Engine management system |
| 2 | 5 | Electrical power management |
| 3 | 80 | Power steering |
| 4 | — | — |
| 5 | 100 | Engine cooling fans |
| 6 | 15 | Engine management system |
| 7 | — | — |
| 8 | 20/15 | Engine management system |
| 9 | 10 | 2016: Vehicle emissions. 2017-2018: Engine management system |
| 10 | — | — |
| 11 | 10 | Engine management system |
| 12 | 10/15 | Engine management system |
| 13 | — | — |
| 14 | 10/15 | 2016: Engine management system. 2017: Engine cooling. 2018: Engine management system (diesel only), Engine cooling (petrol only) |
| 15 | 40 | 2016: Starter motor. 2017-2018: Engine management system |
| 16 | 100 | Heater |
| 17 | 60 | Passenger compartment fuse box |
| 18 | 60 | Passenger compartment fuse box |
| 19 | 60 | Luggage compartment fuse box |
| 20 | 60 | Luggage compartment fuse box |
| 21 | 60 | Electrical power management |
| 22 | 30 | Front windscreen wipers |
| 23 | 40 | Passenger compartment fuse box |
| 24 | 40 | 2017: Starter motor. 2018: Starter motor (diesel automatic and petrol only) |
| 25 | 40 | Anti-lock braking system (ABS) |
| 26 | 40 | Anti-lock braking system (ABS) |
| 27 | 40 | Passenger compartment fuse box |
| 28 | 40 | Heater blower motor |
| 29 | 30 | 2016: Electric trailer brake |
| 30 | 15 | Headlamp washers |
| 31 | 15 | Horns |
| 32 | 10 | Air Conditioning (A/C) |
| 33 | 5 | Horn. Heated front screen. Fuel system |
| 34 | 40 | Left-side heated windscreen |
| 35 | 40 | Right-side heated windscreen |
| 36 | 5 | Engine management system. A/C |
| 37 | 20 | Fuel system |
| 38 | 20 | Headlamp – left side |
| 39 | 20 | Headlamp – right side |
| 40 | 5 | Adaptive Front lighting System (AFS) – right headlamp |
| 41 | 5 | Adaptive Front lighting System (AFS) – right headlamp |
| 42 | 5 | 2016: Headlamps. Headlamp levelling. Rear view camera. 2017: Headlights. Dynamic headlight levelling. 2018: Headlight levelling |
| 43 | — | — |
| 44 | 10 | Heated steering wheel |
| 45 | 5 | Steering wheel |
Luggage Compartment Fuse Box

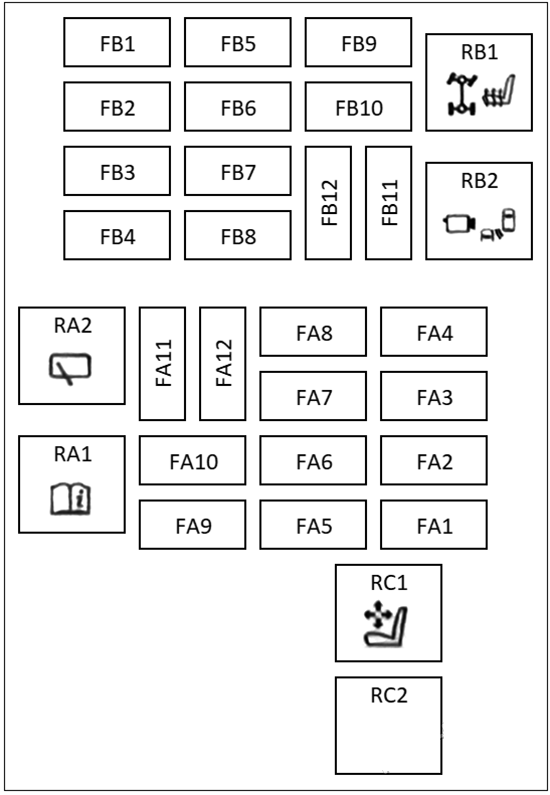

Land Rover Range Rover Evoque (2012 – 2014)
| № | Amps | Circuits protected |
|---|---|---|
| FA1 | 10 | Touch screen |
| FA2 | 15 | Radio module |
| FA3 | 10 | Digital radio/TV module |
| FA4 | 15 | Rear seat entertainment |
| FA5 | 5 | Seat switches |
| FA6 | 30 | Electric park brake |
| FA7 | 15 | Rear wiper |
| FA8 | 30 | Electric parking brake |
| FA9 | – | – |
| FA10 | 5 | Amplifier |
| FA11 | 40 | Amplifier |
| FA12 | – | – |
| FB1 | 5 | Adaptive dynamics |
| FB2 | 15 | E differential module |
| FB3 | 15 | Driver seat heater |
| FB4 | 15 | Passenger seat heater |
| FB5 | 30 | Adaptive dynamics |
| FB6 | 25 | Power tailgate |
| FB7 | 5 | Fuel burning heater RF receiver |
| FB8 | 10 | Instrument cluster |
| FB9 | 5 | Proximity camera |
| FB10 | 5 | Blindspot monitoring |
| FB11 | – | – |
| FB12 | – | – |

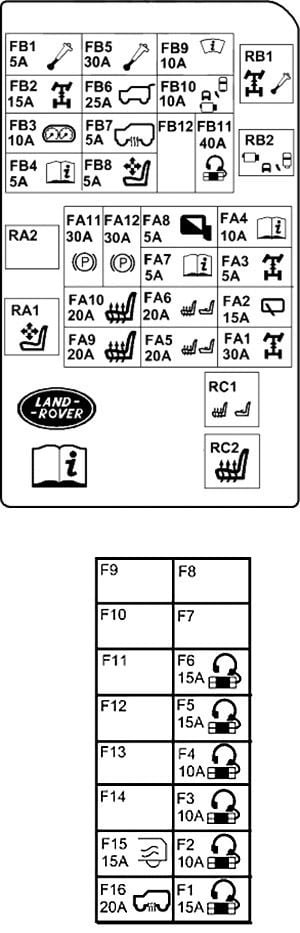

Land Rover Range Rover Evoque (2015)
| № | Amps | Circuits protected |
|---|---|---|
| FB1 | 5 | Adaptive dynamics |
| FB2 | 15 | Electric differential control module (E-diff) |
| FB3 | 10 | Message centre |
| FB4 | 5 | Gateway module |
| FB5 | 30 | Adaptive dynamics |
| FB6 | 25 | Powered tailgate |
| FB7 | 5 | Auxiliary heater receiver |
| FB8 | 5 | Driver/passenger seat switches |
| FB9 | – | – |
| FB10 | 10 | Blind Spot Monitoring (BSM), Rear view camera |
| FB11 | 40 | Audio amplifier |
| FB12 | – | – |
| FA1 | 30 | Electric differential control module (E-diff) |
| FA2 | 15 | Rear wiper |
| FA3 | 5 | Electric differential control module (E-diff) |
| FA4 | 10 | Road telematics |
| FA5 | 20 | Driver’s heated/climate seat |
| FA6 | 20 | Passenger’s heated/climate seat |
| FA7 | 5 | Wade sensing module |
| FA8 | 5 | Interior dimming mirror/High beam assist |
| FA9 | 20 | Left side rear heated seat |
| FA10 | 20 | Right side rear heated seat |
| FA11 | 30 | Electric Parking Brake (EPB) |
| FA12 | 30 | Electric Parking Brake (EPB) |
| Underfloor fuse box | ||
| 1 | 15 | Touch screen, Front integrated control panel |
| 2 | 10 | Audio amplifier |
| 3 | – | – |
| 4 | 10 | Navigation, Television tuner |
| 5 | 15 | Audio head unit |
| 6 | 15 | Audio video input/output panel |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15 | Front and rear integrated control panels-heating and ventilation |
| 16 | 20 | Fuel fired booster heater |
Land Rover Range Rover Evoque (2016 – 2018)
| № | Amps | Circuit protected |
|---|---|---|
| FA1 | 30 | Four-Wheel Drive (4WD) systems, Dynamic Stability Control (DSC) |
| FA2 | 15 | Rear wiper |
| FA3 | 5 | 4WD systems |
| FA4 | 10 | Telematics |
| FA5 | 20 | Driver’s heated/climate seat |
| FA6 | 20 | Front passenger heated/climate seat |
| FA7 | — | — |
| FA8 | 5 | Rear view mirror. Auto High Beam Assist (AHBA) |
| FA9 | 20 | Left side rear heated seat |
| FA10 | 20 | Right side rear heated seat |
| FA11 | — | — |
| FA12 | 25 | 2017-2018: Powered tailgate |
| FB1 | — | — |
| FB2 | 5 | Adaptive Cruise Control (ACC) |
| FB3 | 10 | Instrument panel |
| FB4 | 5 | Gateway module |
| FB5 | 30 | Adaptive suspension |
| FB6 | 25 | 2016: Powered tailgate |
| FB7 | 5 | 2017-2018: Auxiliary heater |
| FB8 | 15 | Driver’s and passenger seat switches |
| FB9 | 10 | Head-Up Display (HUD) |
| FB10 | 10 | Blind Spot Monitor (BSM) |
| FB11 | 40 | Audio amplifier |
| FB12 | 20 | Audio amplifier |
| Underfloor fuse box | ||
| 1 | 15 | Touch screen. Front integrated control panel |
| 2 | 10 | Audio amplifier |
| 3 | 10 | Gesture tailgate |
| 4 | 10 | Navigation. Telephone |
| 5 | 15 | Audio head unit |
| 6 | 15 | Audio video input/output panel |
| 7 | — | — |
| 8 | — | — |
| 9 | — | — |
| 10 | — | — |
| 11 | — | — |
| 12 | — | — |
| 13 | — | — |
| 14 | — | — |
| 15 | 15 | Front and rear integrated control panels – heating and ventilation |
| 16 | 20 | 2017-2018: Auxiliary heater |

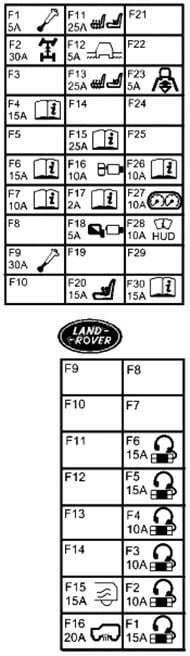

Land Rover Range Rover Evoque Convertible
| № | Amps | Circuit protected |
|---|---|---|
| Upper fuse box | ||
| FA1 | 5 | Dynamic Stability Control (DSC) |
| FA2 | 30 | DSC |
| FA3 | — | — |
| FA4 | 15 | Convertible roof – lock |
| FA5 | — | — |
| FA6 | 15 | Convertible roof – front latch |
| FA7 | 10 | Telematics |
| FA8 | — | — |
| FA9 | 30 | 4 Wheel Drive (4WD) systems |
| FA10 | — | — |
| FA11 | 25 | Driver’s heated/climate seat |
| FA12 | 5 | Wade sensing |
| FA13 | 25 | Front passenger heated/climate seat |
| FA14 | — | — |
| FA15 | 25 | Fuel system |
| Fa16 | 10 | Blind spot monitor. Auto High Beam Assist (AH BA). Rear view camera |
| FA17 | 2 | Road toll reader |
| FA18 | 5 | Interior mirror. AH BA. Rear view camera |
| FA19 | — | — |
| FA20 | 15 | Electric seats |
| FA21 | — | — |
| FA22 | — | — |
| FA23 | 5 | Adaptive cruise control |
| FA24 | — | — |
| FA25 | — | — |
| FA26 | 10 | Gateway module |
| FA27 | 10 | Instrument panel |
| FA28 | 10 | Head-Up Display (HUD) |
| FA29 | — | — |
| FA30 | 5 | Convertible roof – side window drop |
| Lower fuse box | ||
| FB1 | 15 | Touch screen. Front integrated control panel |
| FB2 | 10 | Audio amplifier |
| FB3 | 10 | Entertainment systems |
| FB4 | 10 | Navigation. Audio video input and output panel |
| FB5 | 15 | Audio head unit |
| FB6 | 15 | Audio video input and output panel |
| FB7 | — | — |
| FB8 | — | — |
| FB9 | — | — |
| FB10 | — | — |
| FB11 | — | — |
| FB12 | — | — |
| FB13 | — | — |
| FB14 | — | — |
| FB15 | 15 | Heating and ventilation |
| FB16 | 20 | Auxiliary heater |
Related Posts:
