MG ZS EV (2019 – 2021) Fuse Box Diagrams & Location
The MG ZS EV (2019 – 2021) fuse box protects important electrical circuits from overloads and short circuits. This guide covers fuse box locations, fuse assignments, and diagrams to help identify fuses for lighting, charging, windows, accessories, and other electrical systems.
Fuse Box Location

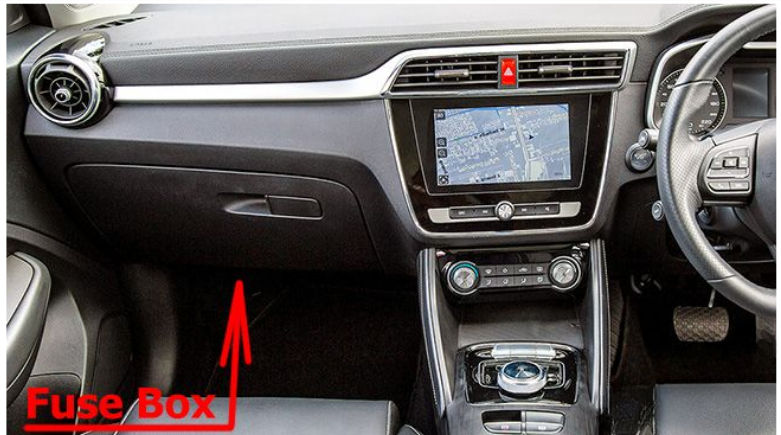

Passenger Compartment Fuse Box
The fuse panel is located below the glove box at the front passenger side. Remove the closing panel below the glove box to gain access to the fuse box.

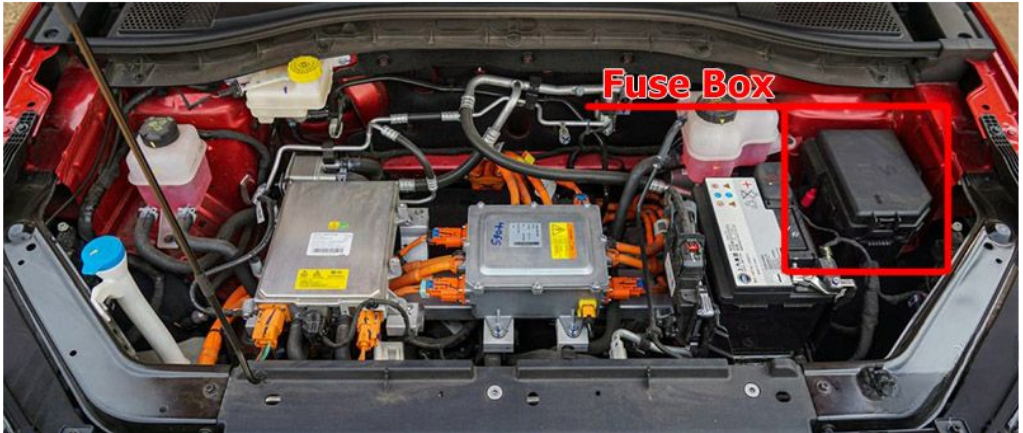

Engine Compartment Fuse Box
Press the locating clips to remove the fuse box lid.
Fuse Box Diagram

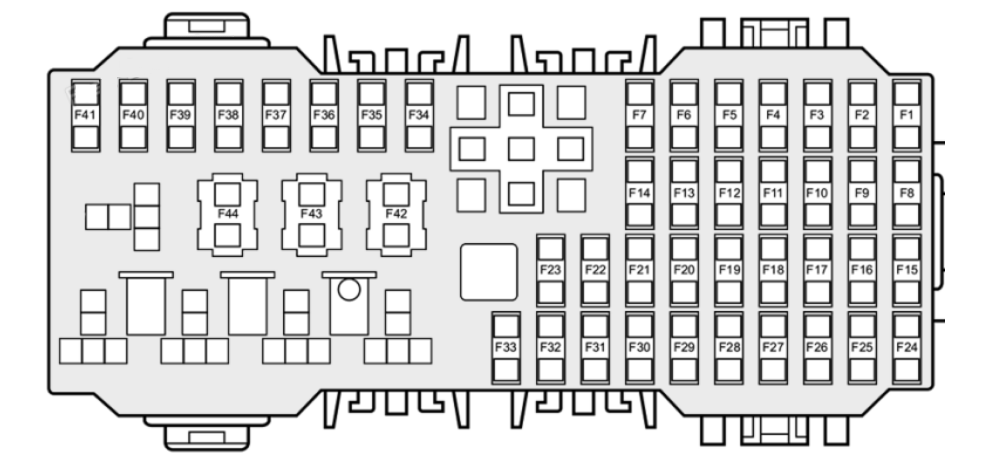

Passenger Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| F1 | 5A | Charging Plug Unlock Relay, Charging Plug Lock Relay |
| F2 | 10A | Diagnostic Socket |
| F3 | 5A | Charger, EVCC |
| F4 | 15A | Front Wash Relay, Rear Wash Relay |
| F5 | 5A | SDM |
| F6 | 5A | HV PTC, ESS PTC |
| F7 | 10A | ESS (High Voltage Battery) |
| F8 | 5A | TPMS, EPB Switch |
| F9 | 5A | VCU |
| F10 | 10A | PACM |
| F11 | 5A | PEPS |
| F12 | – | – |
| F13 | 30A | Driver Seat Adjust Switch |
| F14 | 5A | IMMO Coil |
| F15 | 15A | Front Power Socket |
| F16 | 5A | Rear USB Charge Module, Master Light Switch, Headlamp Assembly |
| F17 | – | – |
| F18 | 30A | Rear Left Window Lift Switch |
| F19 | 30A | Passenger Window Lift Switch |
| F20 | 30A | Rear Right Window Lift Switch |
| F21 | 30A | Driver Window Lift Motor |
| F22 | 10A | Heated Mirrors |
| F23 | 25A | Rear Windshield Assembly |
| F24 | 20A | FICM, IFP, DAB |
| F25 | 15A | ETC, ACFP |
| F26 | 5A | Instrument Pack |
| F27 | 10A | Driver Door Switch Pack, Master Light Switch |
| F28 | 5A | RLS, Master Radar |
| F29 | 10A | Gateway |
| F30 | 10A | Gateway |
| F31 | 30A | Sunroof ECU |
| F32 | 30A | Sunroof ECU |
| F33 | 5A | SCU |
| F34 | 10A | ESCL |
| F35 | 15A | Super Lock Relay |
| F36-41 | – | – |
| F42 | 30A | EPB |
| F43 | 30A | EPB |
| F44 | – | – |

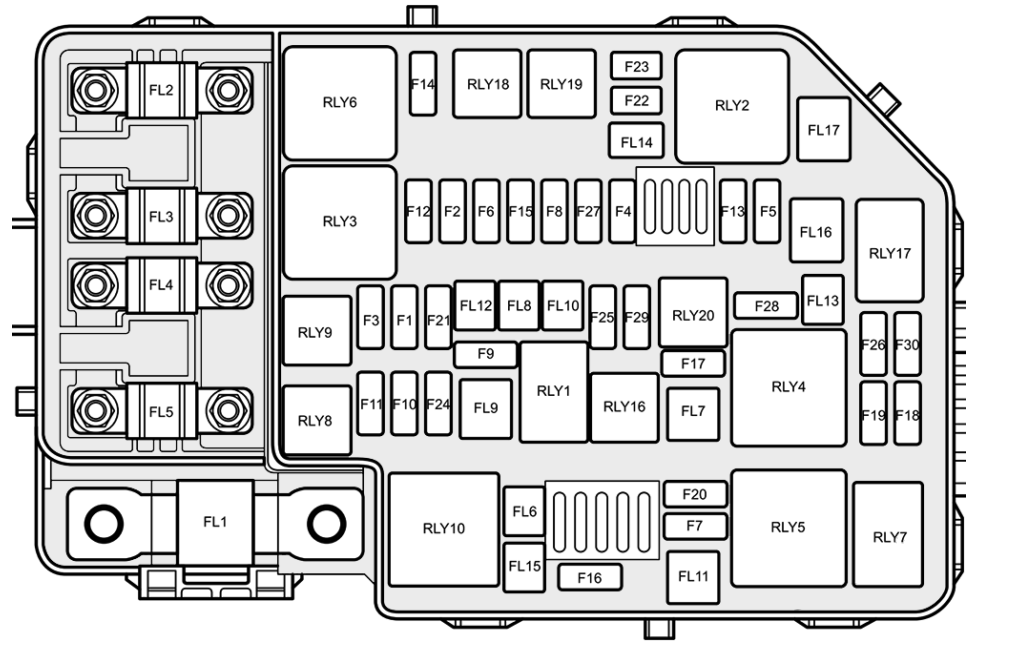

Engine Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| FL1 | I50A | PEB |
| FL2 | 80A | EPS |
| FL3 | 40A | Cooling Fan Relay Pack |
| FL4 | 80A | Passenger Compartment Fusebox Fuse F18, F19, F20, F21, F34, F35, F42, F43 |
| FL5 | 80A | Passenger Compartment Fusebox Fuse F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F13, F14, F24, F25, F26, F27, F28, F29, F30, F31, F32, F33, HRW Relay |
| FL6 | 25A | SCS Valve |
| FL7 | 30A | Blower Motor, ETC |
| FL8 | 20A | BCM |
| FL9 | 40A | SCS Pump |
| FL10 | 30A | BCM |
| FL11 | – | – |
| FL12 | 20A | BCM |
| FL13 | – | – |
| FL14 | – | – |
| FL15 | 30A | KLR Relay |
| FL16 | – | – |
| FL17 | 40A | EVP Relay |
| F1 | – | – |
| F2 | 15A | PEB Water Pump, Cooling Fan Relay Pack |
| F3 | – | – |
| F4 | – | – |
| F5 | 10A | EVAP |
| F6 | – | – |
| F7 | 30A | Wiper Enable Relay, Wiper Speed Relay |
| F8 | – | – |
| F9 | – | – |
| F10 | 10A | Main Beam – RH |
| F11 | 10A | Main Beam – LH |
| F12 | – | – |
| F13 | 15A | Horn Relay |
| F14 | – | – |
| F15 | 5A | Brake Pedal Switch |
| F16 | 15A | Rear Wiper Relay |
| F17 | 15A | ESS PWM Pump Relay |
| F18 | 5A | SDM |
| F19 | 5A | VCU |
| F20 | – | – |
| F21 | 15A | BCM |
| F22 | 10A | Seat Heat Relay – LH |
| F23 | 10A | Seat Heat Relay – RH |
| F24 | 10A | PEB |
| F25 | 15A | BCM |
| F26 | – | – |
| F27 | 5A | BCM, EVP Relay, Front Breath Lamp |
| F28 | – | – |
| F29 | – | – |
| F30 | 10A | BCM, SCU, Instrument Pack, ADM, FVCM, Front Radar |
