Peugeot 107 (2005 – 2014) Fuse Box Diagrams & Location
The Peugeot 107 (2005–2014) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 107.
Fuse Box Location
Passenger Compartment Fuse Box
These are located on each side of the instrument panel under the trim.

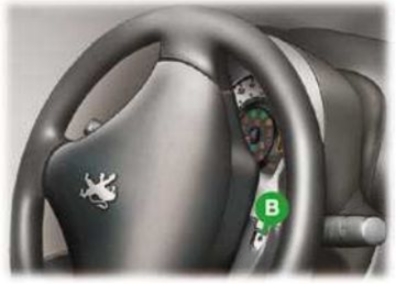

If necessary, unlock the steering using the key. Turn the steering wheel to the left, remove bolt B.

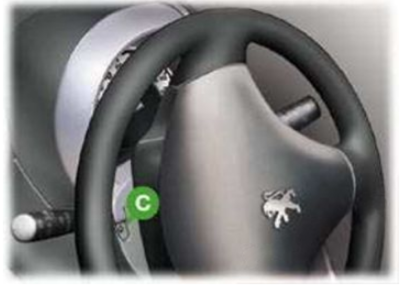

Turn the steering wheel to the right, remove bolt C.

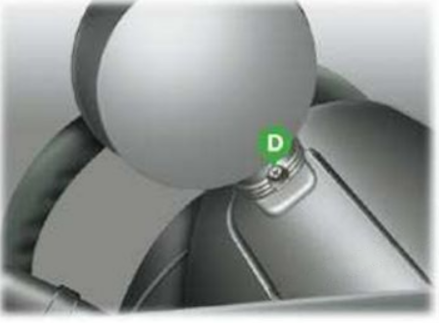

For the rev counter, partially unscrew bolt D located behind it.

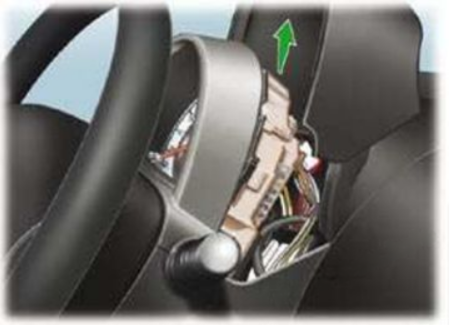

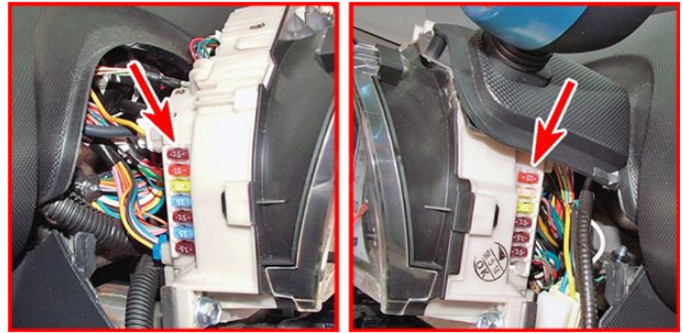

Raise the instrument panel trim, and the rev counter trim if necessary, to gain access to the fuses located on the left and on the right.

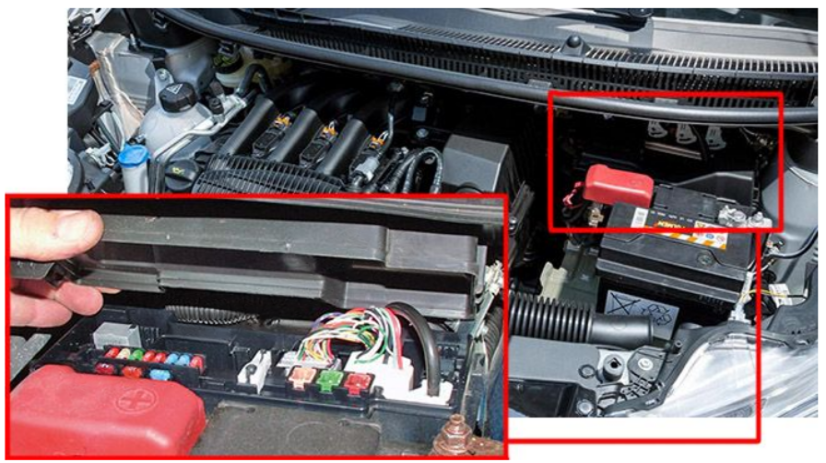

Engine Compartment Fuse Box

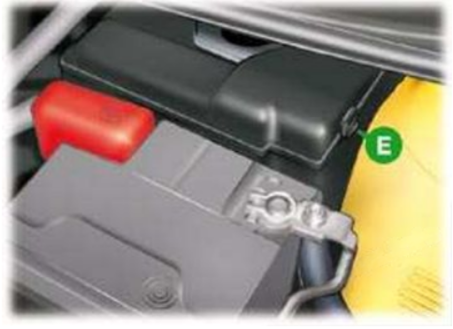

Unclip the cover, pressing on the right on lug E, to gain access to the fuses.
Fuse Box Diagram

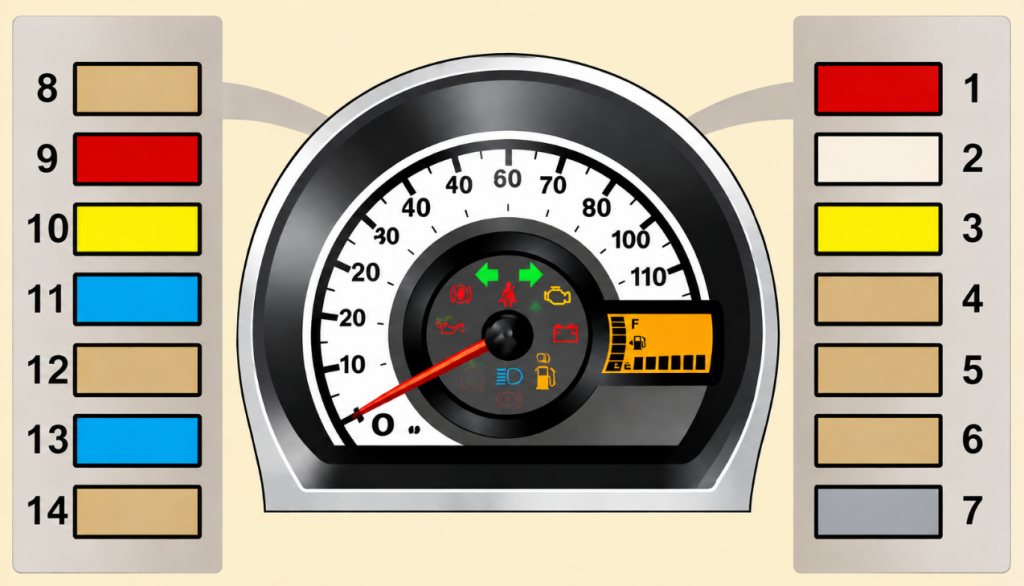

Passenger Compartment Fuse Box
| No. | Rating | Functions |
|---|---|---|
| 1 | 10 A | Brake lights – ABS – 2 Tronic gearbox (2005-2014) |
| 2 | 25 A | Central locking/unlocking (2005-2011). Central locking/unlocking – Remote control (2012-2014) |
| 3 | 20 A | Rear screen demisting / Rear window defogger (2005-2014) |
| 4 | 7.5 A | Rear lights – Number plate/license plate lights – Instrument panel/dashboard – Display (2005-2011). Rear lamps – Number plate lamps – Instrument panel – Screen – headlamp adjustment – LED daytime running lamps – Sidelamps (2012-2014) |
| 5 | 7.5 A | Diagnostic socket (2005-2014) |
| 6 | 7.5 A | Rear fog lamp/light – Instrument panel/dashboard – 2 Tronic gearbox (2005-2011). 2 Tronic gearbox – Rear foglamp – ESP – LED daytime running lamps – Instrument panel – Rev counter (2012-2014) |
| 7 | – | Not used from 2007-2014. Used as ABS – Power steering on earlier 2005-2006 models |
| 8 | 7.5 A | ABS – Power steering – Air conditioning – Fan assembly/group (2005-2011). ABS/ESP – Power steering – Fan assembly (2012-2014) |
| 9 | 10 A | Rear lights – Central locking/unlocking – Electric windows – Rear screen demisting – Speedometer/speed indicator – Air conditioning – Heating – Rev counter/tachometer. Remote control added from 2012 |
| 10 | 20 A | Front and rear wipers – Washer system (2005-2014). |
| 11 | 15 A | Audio equipment/car radio – Electronic immobiliser (2005-2010). 12 V socket (120 W max) added from 2007 onward |
| 12 | 7.5 A | Rear screen demisting – ABS – Fan assembly – Front and rear wipers – Power steering – Central locking/unlocking – Air conditioning – Electric windows – Speedometer – Rev counter/tachometer. Remote control and reversing lamp added from 2012 |
| 13 | 15 A | Airbag – Engine control unit/fuel injection system – Electronic immobiliser – 2 Tronic gearbox – Instrument panel/dashboard – Rev counter. LED daytime running lights added from 2012 |
| 14 | 7.5 A | Air conditioning (2005-2011). Air conditioning and heating (2012-2014) |
| 15* | 40 A | Accessories – Demisting – ABS – Fan assembly relay – Front and rear wipers (2005-2012). Audio system -12 V socket – Front and rear wipers – Power steering – ABS/ESP – Cooling fan assembly (2012-2014) |
| 16* | 30 A | Electric windows (2005-2014) |
| 17* | 40 A | Heating (2005-2011). Heating and air conditioning combined from 2012 |
* Fuses located behind the instrument panel. To change them, contact a PEUGEOT dealer.

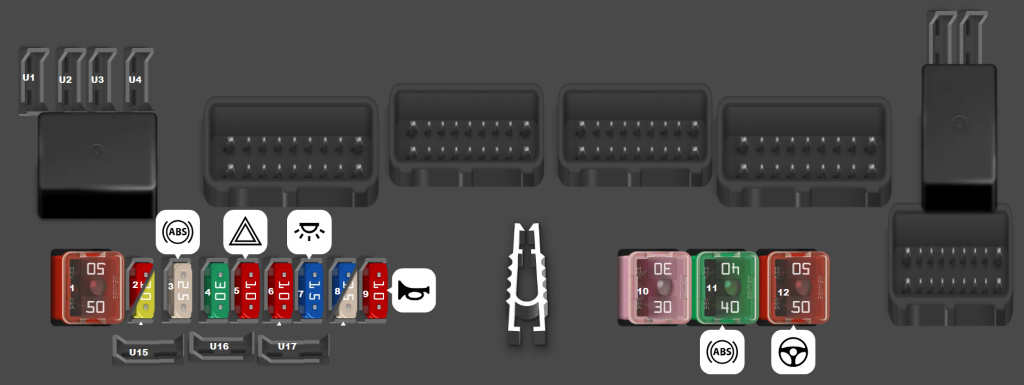

Engine Compartment Fuse Box
| Fuse Type | Fuse No. | Rating | Description |
|---|---|---|---|
| Fuse FMX/JCase | 1 | 50A | “2 Tronic” Gearbox / “2 Tronic” Gearbox – Fan Group (Diesel) (2005–2014) |
| Fuse MINI | 2 | 10A | Headlights (2005–2011) |
| Fuse MINI | 2 | 20A | Headlights with Daytime Running Lights (2005–2011) |
| Fuse MINI | 2 | 30A | LED Daytime Running Lights – Fog Lights (2012–2014) |
| Fuse MINI | 3 | 25A | ABS / ABS Calculator (2005–2014) |
| Fuse MINI | 3 | 30A | ABS/ESP Computer / ABS-ESP (with VSC) (2007–2014) |
| Fuse MINI | 4 | 30A | Anti-theft Contact Power Supply (2005–2011) |
| Fuse MINI | 4 | 30A | Starter Motor – Rear Window Defogger – ABS – Fan Group – Windshield/Wiper and Washer – Power Steering – Central Lock/Unlock – Air Conditioning – Heating – Electric Windows – Speed Indicator – Tachometer – Remote Control – Reverse Light – Airbag – Fuel Injection System – 2 Tronic Gearbox – Dashboard – LED Daytime Running Lights (2012–2014) |
| Fuse MINI | 5 | 10A | Emergency Lights – Combined Indicators – Turn Signals (Blinkers) (2005–2011) |
| Fuse MINI | 5 | 10A | Emergency Lights – Dashboard – Tachometer Indicators (2012–2014) |
| Fuse MINI | 6 | 10A | Headlights (2005–2011) |
| Fuse MINI | 6 | 20A | Left Headlight – Right Headlight (2012–2014) |
| Fuse MINI | 7 | 15A | Ceiling Light – Speed Indicator – Car Radio – Combined – Tachometer (2005–2011) |
| Fuse MINI | 7 | 15A | Ceiling Light – Speed Indicator – Car Radio – Dashboard – Tachometer (2012–2014) |
| Fuse MINI | 8 | 15A | Gasoline/Diesel Engine Calculator (2005–2011) |
| Fuse MINI | 8 | 25A | Gasoline/Diesel Engine Calculator (2005–2011) |
| Fuse MINI | 8 | 15A | Fuel Injection System – Fan Group (2012–2014) |
| Fuse MINI | 9 | 10A | Horn (2005–2014) |
| Fuse FMX/JCase | 10 | 30A | Fan Group / Fan Motor Group (Gasoline) (2005–2014) |
| Fuse FMX/JCase | 10 | 40A | Fan Group (2008–2014) |
| Fuse FMX/JCase | 11 | 40A | ABS (2008–2014) |
| Fuse FMX/JCase | 11 | 50A | ABS/ESP (with VSC) (2007) |
| Fuse FMX/JCase | 11 | 50A | ABS/ESP (with VSC) (2008–2011) |
| Fuse FMX/JCase | 12 | 50A | Power Steering (2005–2014) |
| Fuse MINI | U1 | 5A | LED Daytime Running Lights (2008,2012–2014) |
| Fuse MINI | U2 | 20A | Front Fog Lamps / Fog Lights (2008,2012–2014) |
| Fuse MINI | U3 | 10A | Left Front Lamp / Left Headlight (2008,2012–2014) |
| Fuse MINI | U4 | 10A | Right Front Lamp / Right Headlight (2008,2012–2014) |
| Fuse MINI | U12 | 7.5A | 2 Tronic Gearbox – Fuel Injection System (2008,2012–2014) |
| Fuse MINI | U13 | 7.5A | 2 Tronic Gearbox – Fuel Injection System (2008,2012–2014) |
| Fuse MINI | U15 | 7.5A | Spare Fuse (2008,2012–2014) |
| Fuse MINI | U16 | 10A | Spare Fuse (2008,2012–2014) |
| Fuse MINI | U17 | 15A | Spare Fuse (2008,2012–2014) |
| Fuse Puller | U18 | — | Extraction Tool for Fuse Replacement (2005–2014) |
