Peugeot 508 (2011 – 2017) Fuse Box Diagrams & Location
The Peugeot 508 fuse box protects the vehicle’s electrical systems from overloads and faults. This blog covers the fuse box locations and diagrams for Peugeot 508 models from 2011 to 2017, making it easier to identify fuse positions, ratings, and the components they protect.
Fuse Box Location

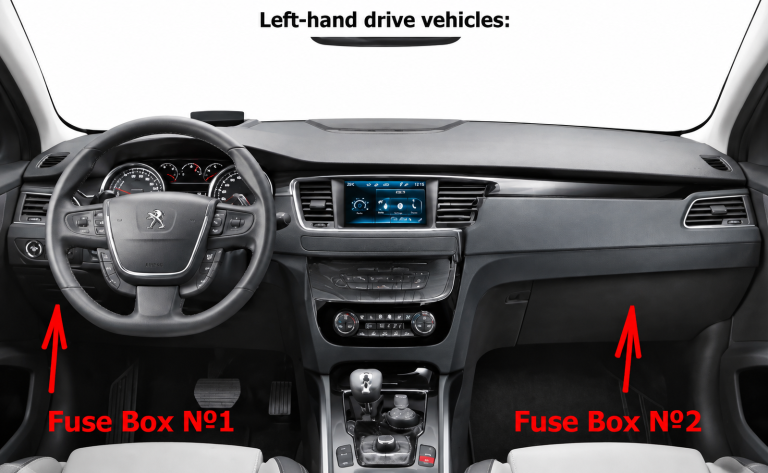

Passenger Compartment Fuse Box

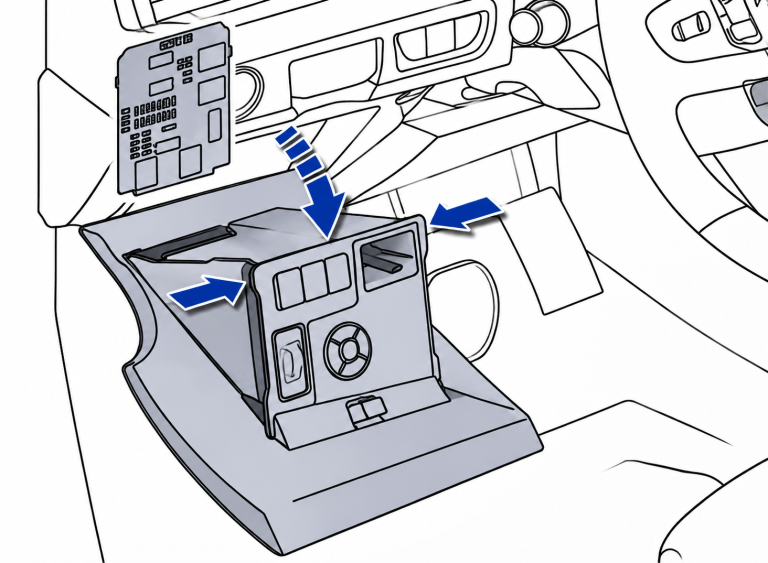

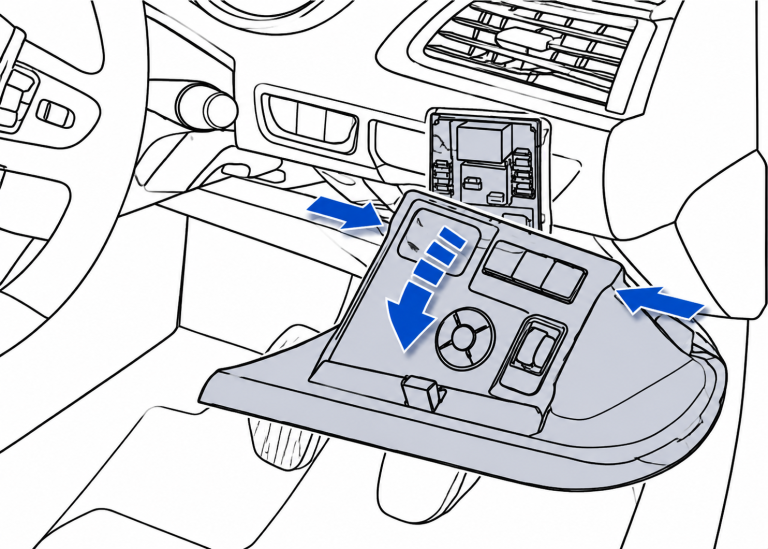

Fuse Box 1 is located in the lower dashboard (left-hand side). Open the hinged panel, then apply light force to bypass the stops.

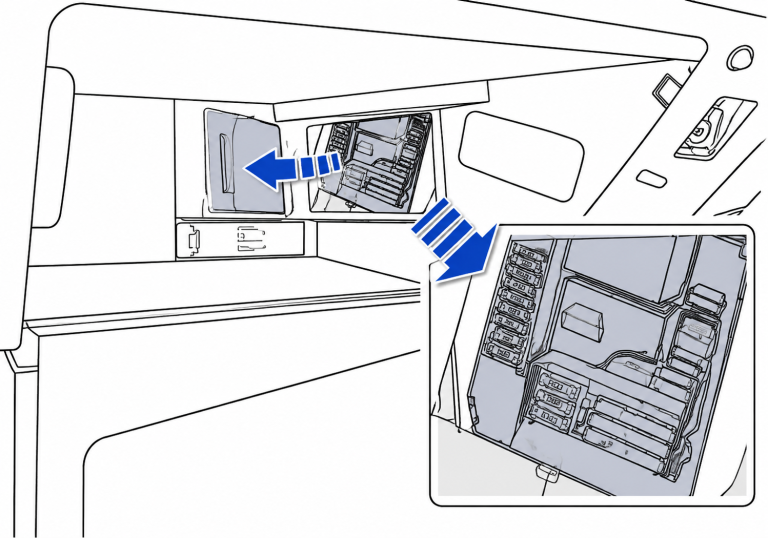

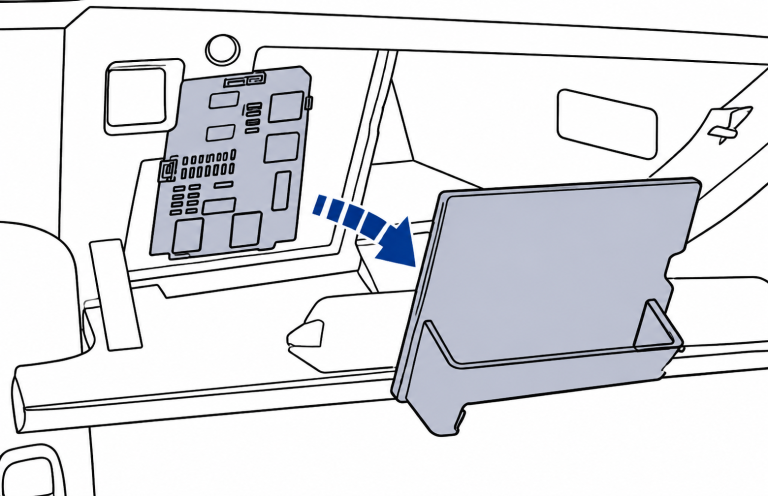

Fuse Box 2 is located in the glove box (right-hand side).

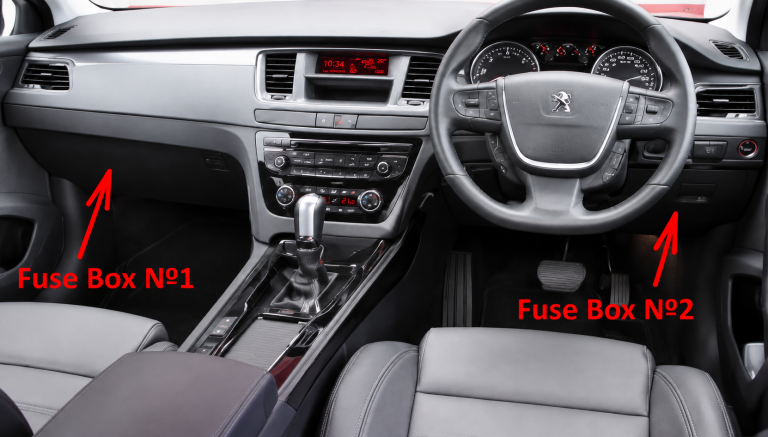

Right-Hand Drive Vehicle
Fuse Box 1 is located in the glove box (left-hand side)
Fuse Box 2 is located in the lower dashboard (right-hand side)

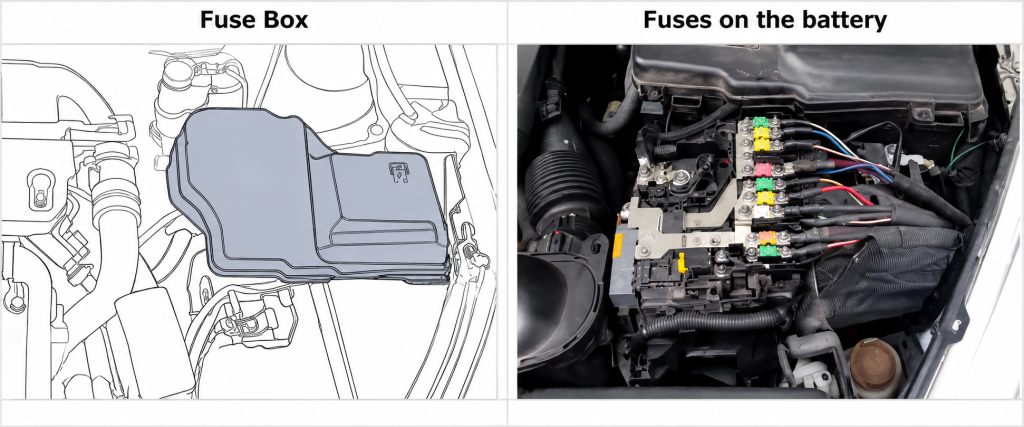

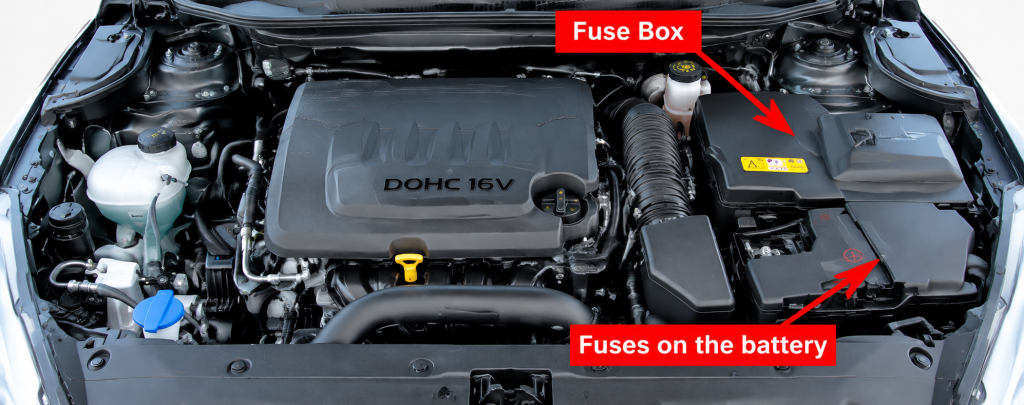

Engine Compartment Fuse Box
It is placed in the engine compartment near the battery.
Fuse Box Diagrams
Passenger Compartment Fuse Box

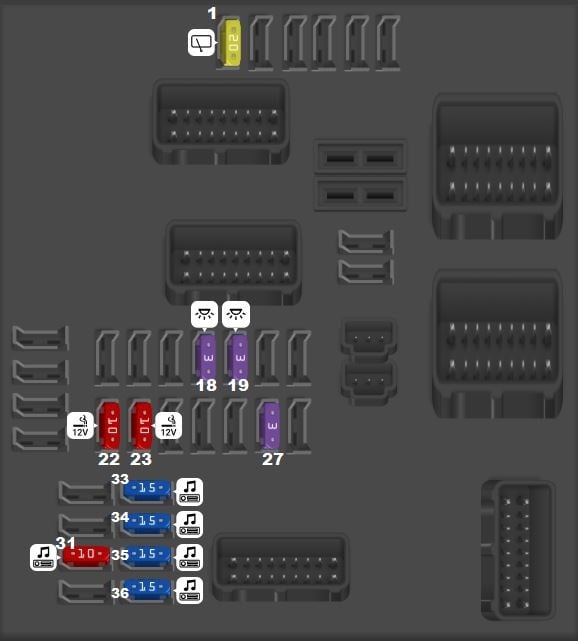

Dashboard Fuse Box 1
| Type | No. | Description |
| Fuse MINI 20A |
F1 | Rear window wiper |
| Fuse MINI
3A |
F18 | Front ceiling light, vanity mirror |
| Fuse MINI
3A |
F19 | Rear ceiling light, rear map readers |
| Fuse MINI 10A |
F22 | Front 12 V socket |
| Fuse MINI
10A |
F23 | Front cigarette lighter |
| Fuse MINI
3A |
F27 | Alarm |
| Fuse MINI 10A |
F31 | Audio amplifier |
| Fuse MINI
15A |
F33 | Car radio |
| Fuse MINI
15A |
F34 | Car radio |
| Fuse MINI 15A |
F35 | Car radio |
| Fuse MINI
15A |
F36 | Car radio |

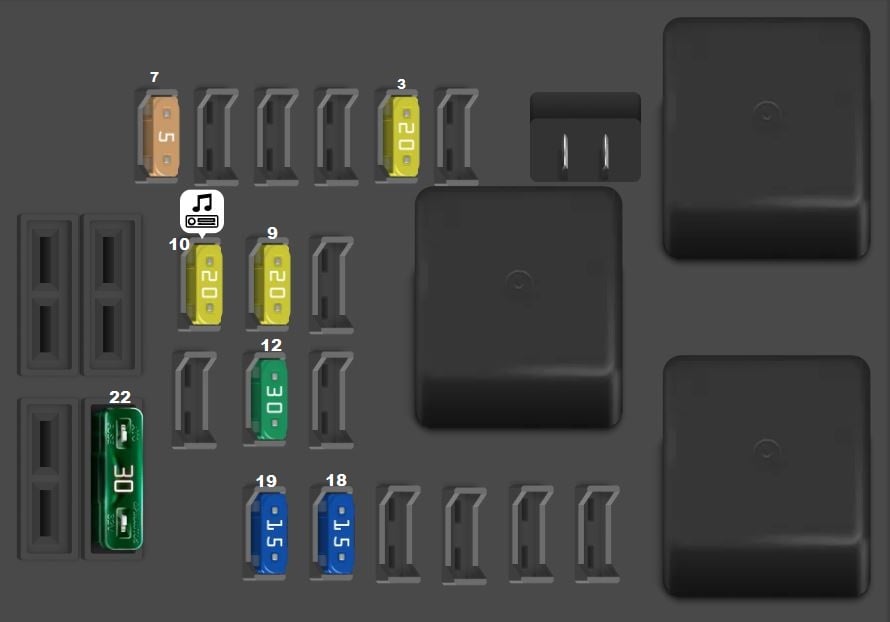

Dashboard Fuse Box 2
| Type | No. | Description |
| Fuse MINI
20A |
F3 | Panoramic glass roof concealment blind 2016-2017: Panoramic glass roof concealment blind (SW and RXH thermal) |
| Fuse MINI
5A |
F7 | Driver’s window control panel
2016-2017: Driver’s power window panel |
| Fuse MINI 20A |
F9 | Trailer box |
| Fuse MINI
20A |
F10 | Audio amplifier |
| Fuse MINI
30A |
F12 | Rear sequential power windows |
| Fuse MINI 15A |
F18 | Driver’s window control panel, rear seat 12V socket
2016-2017: Driver’s power window panel, rear seat 12 V socket |
| Fuse MINI
15A |
F19 | Trunk 12V socket |
| Fuse ATO 30A |
F22 | Front sequential power windows |

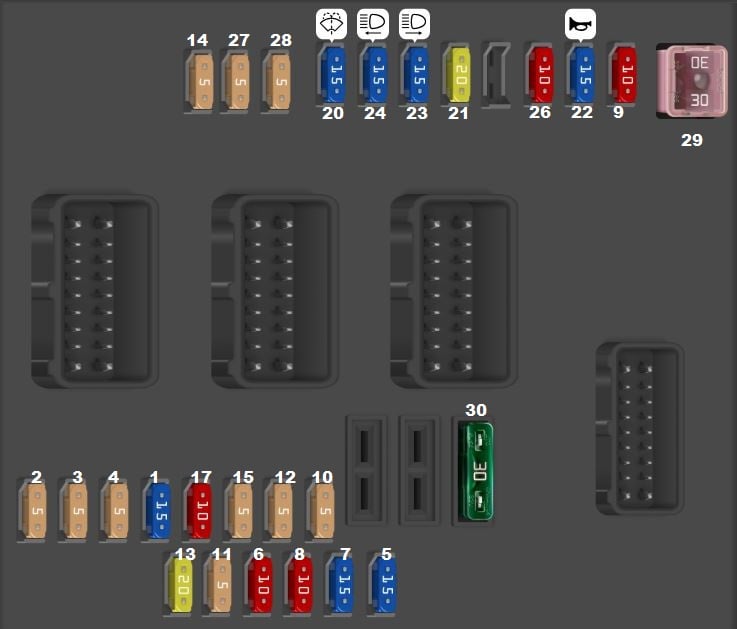

Engine Compartment Fuse Box
Main Fuse Box
| Type | No. | Description |
| Fuse MINI
15A |
F1 | Not identified |
| Fuse MINI
5A |
F2 | Not identified |
| Fuse MINI 5A |
F3 | Not identified |
| Fuse MINI
5A |
F4 | Not identified |
| Fuse MINI
15A |
F5 | Not identified |
| Fuse MINI 10A |
F6 | Not identified |
| Fuse MINI
15A |
F7 | Not identified |
| Fuse MINI
10A |
F8 | Not identified |
| Fuse MINI 10A |
F9 | Not identified |
| Fuse MINI
5A |
F10 | Not identified |
| Fuse MINI
5A |
F11 | Not identified |
| Fuse MINI 5A |
F12 | Not identified |
| Fuse MINI
20A |
F13 | Not identified |
| Fuse MINI
5A |
F14 | Not identified |
| Fuse MINI 5A |
F15 | Not identified |
| Fuse MINI
10A |
F17 | Not identified |
| Fuse MINI
15A |
F20 | Windshield/rear window washer pump |
| Fuse MINI 20A |
F21 | Headlight washer pump |
| Fuse MINI
15A |
F22 | Horn |
| Fuse MINI
15A |
F23 | Right high beam |
| Fuse MINI 15A |
F24 | Left high beam |
| Fuse MINI
10A |
F26 | Not identified |
| Fuse MINI
5A |
F27 | Left light display 2016-2017: Not identified |
| Fuse MINI
5A |
F28 | Right light display
2016-2017: Not identified |
| Fuse FMX/JCase 30A |
F29 | Not identified |
| Fuse ATO
30A |
F30 | Not identified |

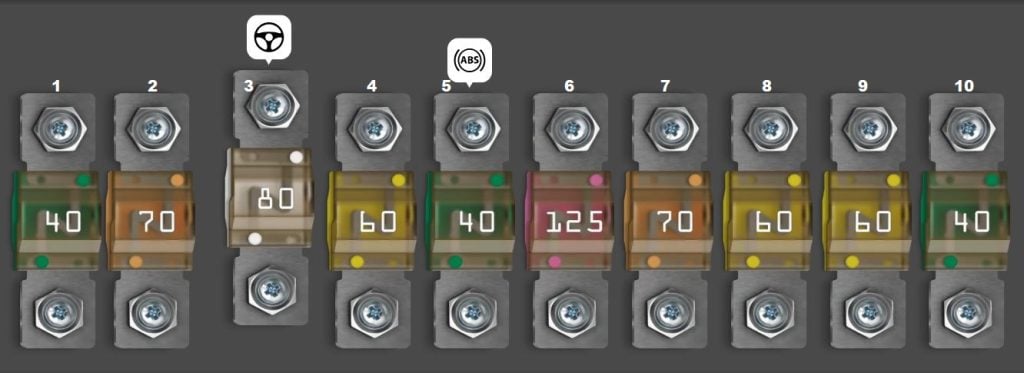

Battery Fuse Box (2011 & 2012)
| Type | No. | Description |
| Fuse MIDI
70A |
2 | Integrated systems interface |
| Fuse MIDI 80A |
3 | Power steering |
| Fuse MIDI
60A |
4 | Cooling fan electric control unit |
| Fuse MIDI
40A |
5 | ABS – ESP |
| Fuse MIDI 125A |
6 | Engine compartment fuse box PSF1 |
| Fuse MIDI
70A |
7 | Preheating and post-heating control unit |
| Fuse MIDI
60A |
8 | Passenger compartment fuse box |
| Fuse MIDI 60A |
9 | Integrated systems interface |
| Fuse MIDI
40A |
10 | Passenger compartment fuse box |
