Peugeot 308 (2014 – 2018) Fuse Box Diagrams & Location
The Peugeot 308 fuse box protects the vehicle’s electrical systems and helps prevent damage from electrical faults. This blog covers the fuse box location and diagrams for Peugeot 308 models from 2014 to 2018, making it easier to identify fuse positions, ratings, and protected components.
Fuse Box Location

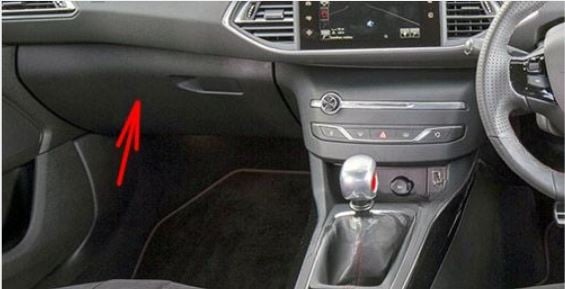

Passenger Compartment Fuse Box

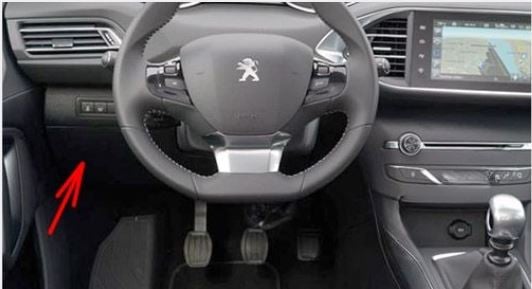

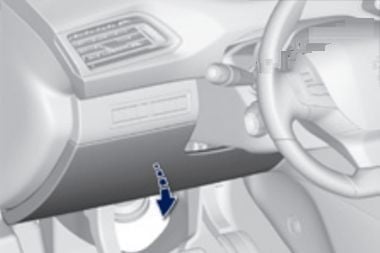

Left-hand drive vehicles: the fuse box is placed in the lower dashboard (left-hand side).
Unclip the cover by pulling at the top left, then right.

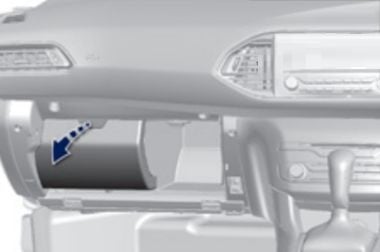

Right-hand drive vehicles: it is placed in the glove box (left-hand side).

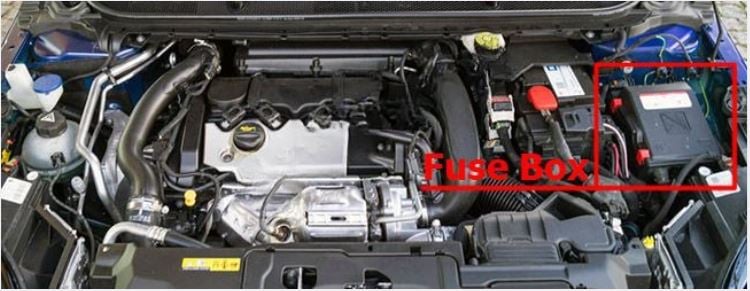

Engine Compartment Fuse Box
The fuse box is placed in the engine compartment near the battery.
Fuse Box Diagrams
Passenger Compartment Fuse Box

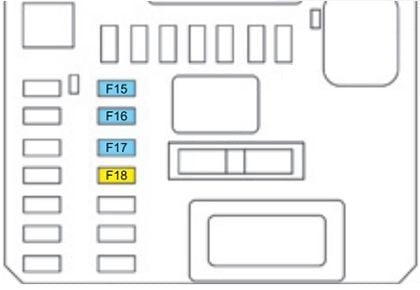

Peugeot 308 (2014 & 2015)
Version 1 Full
| N° | Rating (A) | Functions |
|---|---|---|
| F15 | 15 | 12 V accessory socket. |
| F16 | 15 | Cigarette lighter. |
| F17 | 15 | Audio system. |
| F18 | 20 | Audio system (battery +). |

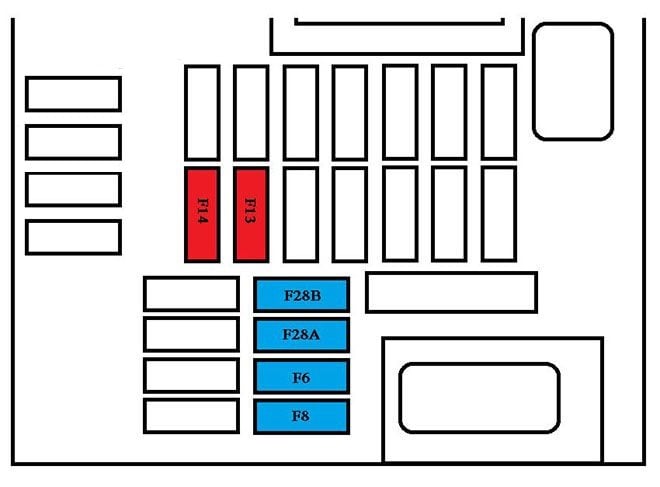

Version 2 ECO
| N° | Rating (A) | Functions |
|---|---|---|
| F6 A or B | 15 | Audio system. |
| F13 | 10 | Cigarette lighter. |
| F14 | 10 | 12 V accessory socket. |
| F28 A or B | 15 | Audio system (battery +). |

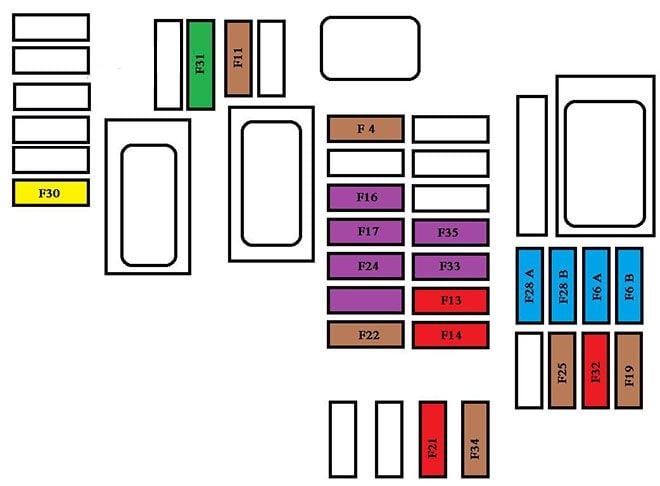

Peugeot 308 (2016 – 2018)
Version 1 Full
| N° | Rating (A) | Functions |
|---|---|---|
| F4 | 5 | Emergency and assistance calls. |
| F6 A or B | 15 | Audio system, touch screen, CD player, navigation. |
| F11 | 5 | “Keyless Entry and starting” system |
| F13 | 10 | Front 12 V accessory socket. |
| F14 | 10 | 12 V accessory socket in the boot. |
| F16 | 3 | Glove box lamp, rear courtesy lamp. |
| F17 | 3 | Vanity mirror lamp, front courtesy lamp. |
| F19 | 5 | Instrument panel. |
| F21 | 10 | Multifunction screen, air conditioning. |
| F22 | 5 | Reversing camera, parking sensors. |
| F24 | 3 | Rain and sunshine sensor |
| F25 | 5 | Airbags. |
| F28A or B | 15 | Audio system (battery +). |
| F30 | 20 | Rear wiper. |
| F31 | 30 | Locks. |
| F32 | 10 | Hi-Fi amplifier. |
| F33 | 3 | Memorisation of driving positions. |
| F34 | 5 | Electric power steering. |
| F35 | 3 | Seat belts not fastened display. |

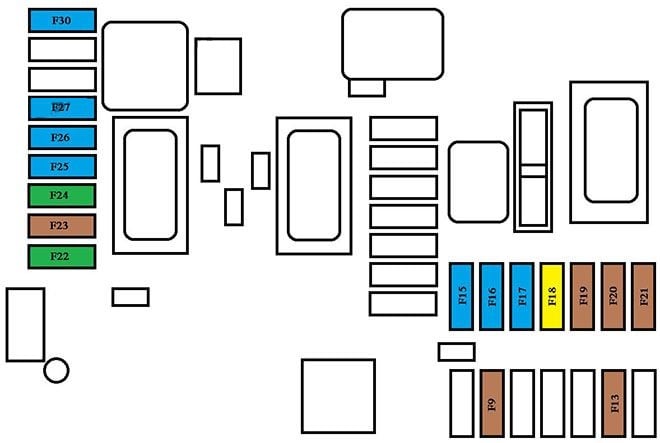

Version 2 ECO
| N° | Rating (A) | Functions |
|---|---|---|
| F9 | 5 | Emergency and assistance calls. |
| F13 | 5 | Reversing camera and parking sensors |
| F15 | 15 | 12 V accessory socket. |
| F16 | 15 | Cigarette lighter. |
| F17 | 15 | Audio system. |
| F18 | 20 | Touch screen, CD player, audio and navigation system. |
| F19 | 5 | Rain, sunshine sensor. |
| F20 | 5 | Airbags. |
| F21 | 5 | Instrument panel. |
| F22/F24 | 30 | Interior, exterior, front and rear locks. |
| F23 | 5 | Glove box lamp, vanity mirror, front and rear courtesy lamps. |
| F25/F27 | 15 | Front/rear screenwash pump. |
| F26 | 15 | Horn. |
| F30 | 15 | Rear wiper. |
Engine Compartment Fuse Box

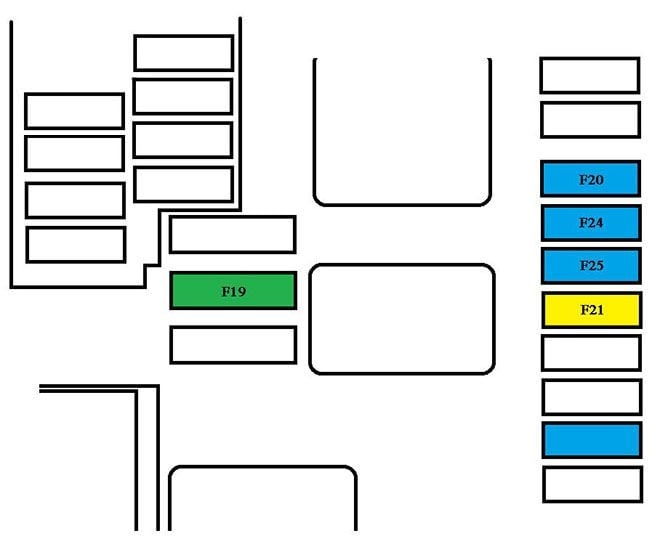

Peugeot 308 (2014 & 2015)
Version 1 Full
| N° | Rating (A) | Functions |
|---|---|---|
| F19 | 30 | Front wiper motor. |
| F20 | 15 | Front and rear screenwash pumps. |
| F21 | 20 | Headlamp wash. |
| F22 | 15 | Horn. |
| F23 | 15 | Right hand main beam headlamp. |
| F24 | 15 | Left hand main beam headlamp. |
Version 2 ECO
| N° | Rating (A) | Functions |
|---|---|---|
| F16 | 15 | Front foglamps. |
| F18 | 10 | Right hand main beam headlamp. |
| F19 | 10 | Left hand main beam headlamp. |
| F25 | 40 | Headlamp wash relay (aftermarket fitment). |
| F29 | 30 | Front wiper motor. |
| F30 | 80 | Pre-heater plugs (Diesel), additional programmable heating (aftermarket fitment), headlamp wash pump. |

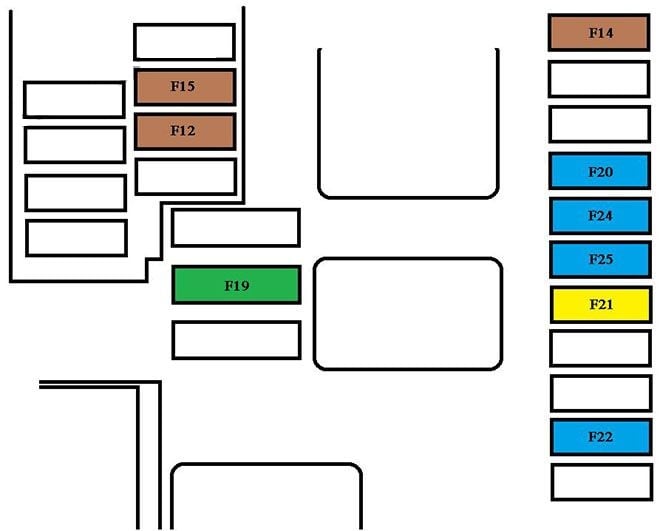

Peugeot 308 (2016 – 2018)
Version 1 Full
| N° | Rating (A) | Functions |
|---|---|---|
| F12 | 5 | Park Assist control unit. |
| F14 | 25 | Front and rear screenwash pump |
| F15 | 5 | Power steering. |
| F19 | 30 | Front wiper motor. |
| F20 | 15 | Front and rear screenwash motors. |
| F21 | 20 | Headlamp wash. |
| F22 | 15 | Horn. |
| F23 | 15 | Right hand main beam headlamp. |
| F24 | 15 | Left hand main beam headlamp. |
| – | – | – |
| Fuesbox 2: | ||
| F8 | 30 | Diesel emissions control system (AdBlue*). |
| F10 | 5 | Automatic gearbox. |
| F12 | 15 | Automatic gearbox. |

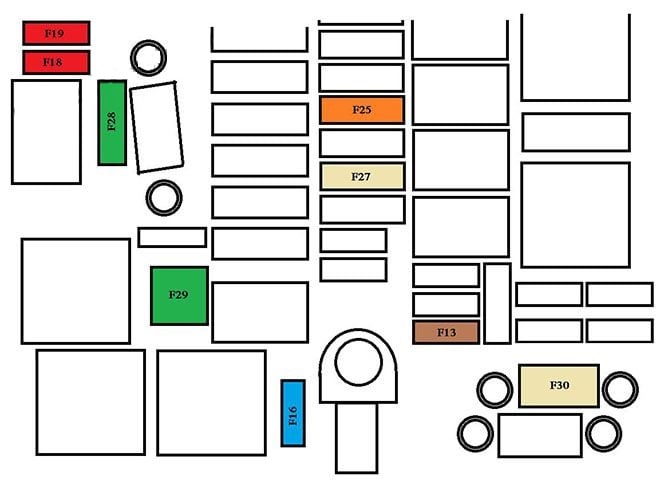

Version 2 ECO
| N° | Rating (A) | Functions |
|---|---|---|
| F13 | 5 | Built-in systems interface. |
| F16 | 15 | Front foglamps. |
| F18 | 10 | Right hand main beam headlamp. |
| F19 | 10 | Left hand main beam headlamp. |
| F25 | 40 | Headlamp wash relay (aftermarket fitment). |
| F27 | 25 | Built-in systems interface. |
| F28 | 30 | Diesel emissions control system (AdBlue®). |
| F29 | 30 | Front wiper motor. |
| F30 | 80 | Pre-heater plugs (Diesel), additional programmable heating (aftermarket fitment), headlamp wash pump. |
