Saab 9-2x (2005 & 2006) Fuse Box Diagrams & Location
The Saab 9-2X, produced for the 2005 and 2006 model years, features fuse panels that protect essential electrical systems. Knowing the fuse box locations and diagrams makes it easier to identify the correct fuse, check electrical faults, and replace damaged fuses safely during routine maintenance or troubleshooting.
Fuse Box Location
Passenger Compartment Fuse Box

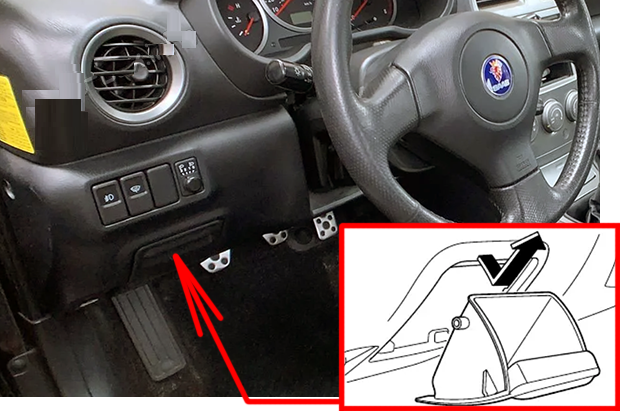

The fuses are located under the instrument panel behind the coin tray on the driver’s seat side. To remove the coin tray, open the cover and pull the coin tray out.

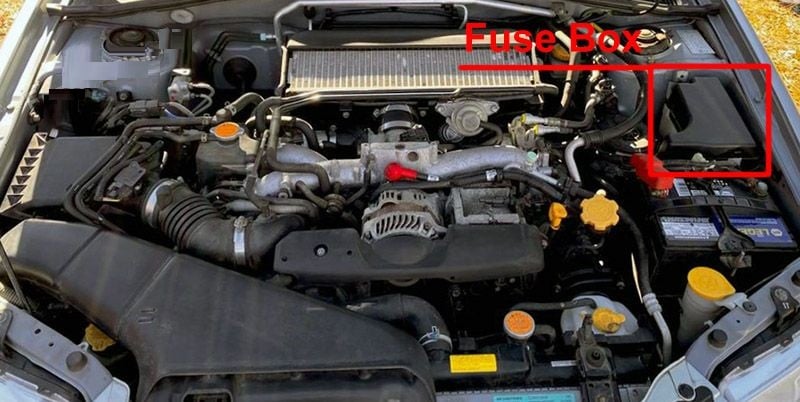

Engine Compartment Fuse Box
Fuse Box Diagrams

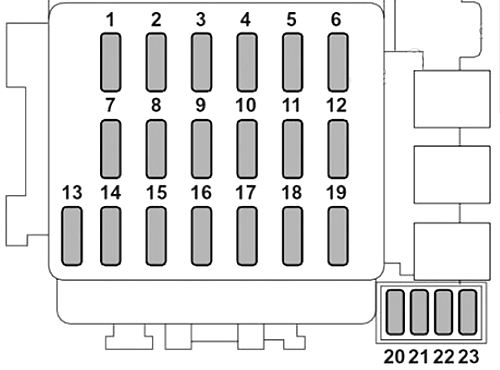

Passenger Compartment Fuse Box
| № | Amp. rating | Circuit |
|---|---|---|
| 1 | 15A | Heater fan |
| 2 | 15A | Heater fan |
| 3 | 15A | Power door lock; Remote keyless entry |
| 4 | 20A | Cigarette lighter; Remote controlled rear view mirrors |
| 5 | 10A | Tail light; Parking light |
| 6 | 15A | SRS airbag |
| 7 | 15A | Fog light |
| 8 | 20A | ABS solenoid |
| 9 | 15A | Radio |
| 10 | – | – |
| 11 | 15A | Engine ignition system; SRS airbag; AT control system |
| 12 | 10A | Illumination brightness control |
| 13 | 10A | Instrument cluster; SRS lamp |
| 14 | 10A | Rear window wiper and washer |
| 15 | 30A | Windshield wiper and washer |
| 16 | 20A | Brake light |
| 17 | 15A | Air conditioner |
| 18 | 15A | Backup light; Cruise control |
| 19 | 20A | Mirror heater |
| 20 | – | – |
| 21 | 15A | Ignition coil (Non-turbo models only) |
| 22 | 10A | ABS ignition |
| 23 | 20A | Seat heater |

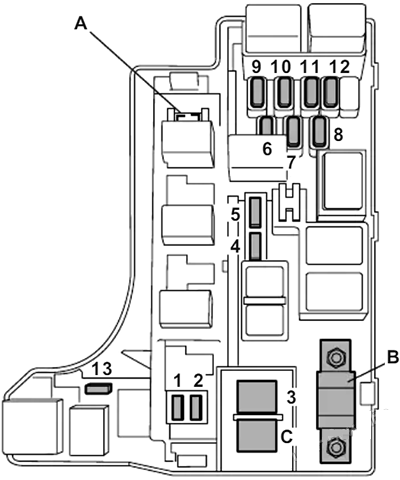

Engine Compartment Fuse Box
| № | Amp rating | Circuit |
|---|---|---|
| A | FWD socket (AT models except Turbo) | |
| B | Main fuse | |
| C | Engine sensor (Non-turbo models) | |
| 1 | 20A | Radiator cooling fan (Main) |
| 2 | 20A | Radiator cooling fan (Sub) |
| 3 | 30A | ABS motor |
| 4 | 20A | Rear window defogger |
| 5 | 15A | Hazard warning flasher; Horn |
| 6 | 15A | Turn signal lights |
| 7 | 10A | Automatic transmission control unit |
| 8 | 10A | Alternator |
| 9 | 15A | Headlight (right side) |
| 10 | 15A | Headlight (left side) |
| 11 | 20A | Lighting switch |
| 12 | 20A | Clock; Interior light |
| 13 | 10A | Secondary air combination valve (Turbo models only) |
