Saab 9-3 NG (2003 – 2011) Fuse Box Diagrams & Location
The Saab 9-3 NG (2003–2011) features several fuse boxes that protect essential electrical systems throughout the vehicle. This blog provides clear fuse box locations and diagrams, helping you identify fuse positions, ratings, and protected components for easier troubleshooting and maintenance.
Fuse Box Location

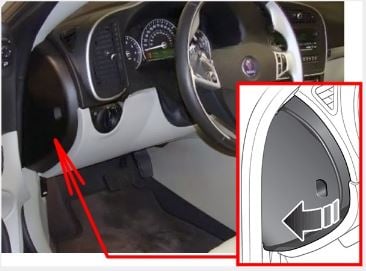

Passenger Compartment Fuse Box
It is located behind the cover on the driver’s side of the instrument panel.

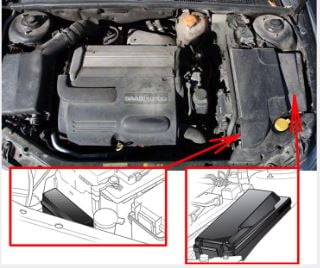

Engine Compartment Fuse Box
Two fuse boxes are located near the battery.
Luggage Compartment Fuse Box
The fuse box is located behind the cover on the left side of the trunk.
Sport Sedan

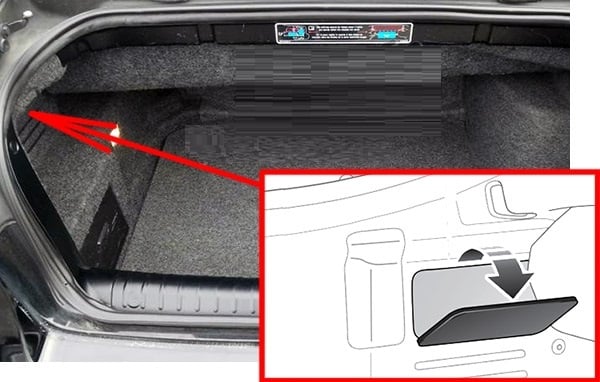

Convertible
Fuse Box Diagrams

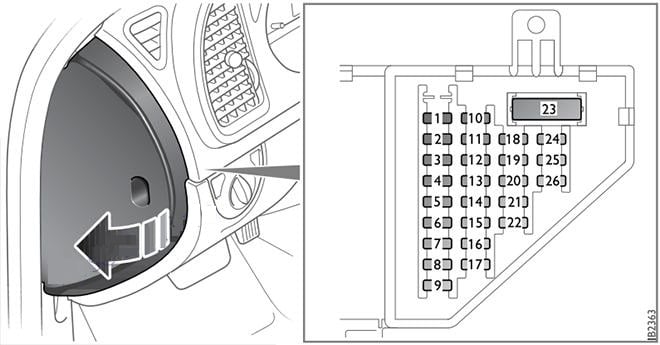

Passenger Compartment Fuse Box
| No. | Amp. | Function |
|---|---|---|
| 1 | 15 | Steering wheel lock |
| 2 | 5 | Steering column unit; ignition switch |
| 3 | 10 | Hands-free; CD-player/CD-changer in cabin; SID |
| 4 | 10 | Main instrument unit; manual climate control; automatic climate control (ACC) |
| 5 | 7.5 | Control module in front doors; Park Brake Shift Lock (automatic transmission) |
| 6 | 7.5 | Brake light switch |
| 7 | 20 | Dash fuse panel; fuel filler door |
| 8 | 30 | Control module in passenger front door |
| 9 | 10 | Dash fuse panel |
| 10 | 30 | Trailer socket; electrical socket in storage compartment between seats |
| 11 | 10 | Data link connection (diagnostics) |
| 12 | 15 | Interior lighting incl. glove compartment |
| 13 | 10 | Accessories |
| 14 | 20 | Radio, sound system I; control panel, Infotainment System
2007-2011: Amplifier 2, Sound System 3 |
| 15 | 30 | Control module in driver’s door |
| 16 | –
5A |
– 2006-2011: Passenger Sensing System |
| 17 | – | – |
| 18 | 7.5 | Manual climate control; fan
2007-2011: – |
| 19 | – | – |
| 20 | 7.5 | Headlight levelling switch |
| 21 | 7.5 | Hands-free; brake light switch; manual climate control; clutch pedal switch |
| 22 | 30 | Cigarette lighter |
| 23 | 40 | Cabin fan |
| 24 | 7.5 | Airbag control module |
| 25 | – | – |
| 26 | 5 | Yaw sensor (cars with ESP) |
| 27 | – | – |
Engine Compartment Fuse Box
Fuse Box
| No. | Amp. | Function |
|---|---|---|
| 1 | – | – |
| 2 | 10 | Engine control module; automatic transmission control module |
| 3 | 20 | Horn |
| 4 | 10 | Engine control module; battery disconnect switch |
| 5 | – | – |
| 6 | 10 | Selector lever, automatic transmission
2007-2011: Selector lever, automatic transmission; clutch pedal switch |
| 7 | – 10A |
–
2007-2011: Xenon Cornering Headlights, left |
| 8 | –
5A |
– 2006-2011: Relay for vacuum pump (brake system) |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | –
10A |
–
2006-2011: Washer fluid pump, rear window |
| 13 | – | – |
| 14 | – | – |
| 15 | 30 | Washer fluid pump, headlights |
| 16 | 30 | Front right parking light; front right turn signal; left and right side turn signal; right high beam; left low beam; front left fog light |
| 17 | 30 | Windshield wiper motor, low speed |
| 18 | 30 | Windshield wiper motor, high speed |
| 19 | 20 | Parking heater; auxiliary heater |
| 20 | 10 | Headlight levelling 2007-2011: Headlight levelling xenon cornering headlights, right |
| 21 | – | – |
| 22 | 30 | Washer fluid pump, windshield |
| 23 | – | – |
| 24 | 20 | Extra lights
2006: Flash-to-pass 2007-2011: Flash-to-pass; high beam, right and left (cars with Daytime Running Lights only) |
| 25 | 20 | Amplifier, sound system II |
| 26 | 30 | Front left turn signal; front left parking light; front right fog light; right low beam; left high beam |
| 27 -37 | MAXI | – |
Relays
| R1 | Washer fluid pump, windshield |
| R2 | – |
| R3 | – |
| R4 | – |
| R5 | Extra lights
2006-2011: Flash-to-pass |
| R6 | Horn |
| R7 | – |
| R8 | Starter motor |
| R9 | Windshield wipers ON/OFF |
| R10 | –
2006-2011: Washer fluid pump, rear window |
| R11 | Ignition +15 |
| R12 | Windshield wipers, high/low speed |
| R13 | – |
| R14 | Washer fluid pump, headlights |
| R15 | – |
| R16 | – |

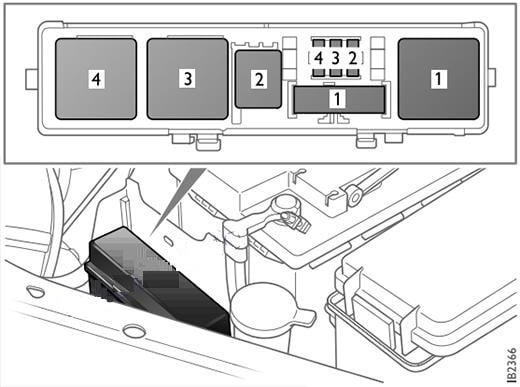

Battery Fuse Box
| No. | Amp. | Function |
| 1 | 60 (MAXI) – |
Secondary air injection pump (certain models)
2005: – 2006-2011: Air pump, secondary air |
| 2 | 20 | Fuel pump; preheated oxygen sensors (lambda probe) |
| 3 | 10 | A/C compressor |
| 4 | 30 | Main relay |
| Relays: | ||
| 1 – Secondary air injection pump 2005 -2011: – |
||
| 2 – A/C-com pressor | ||
| 3 – Preheated oxygen sensors (lambda probe) | ||
| 4 – Main relay, engine (ECM/EVAP/injectors) | ||
Luggage Compartment Fuse Box

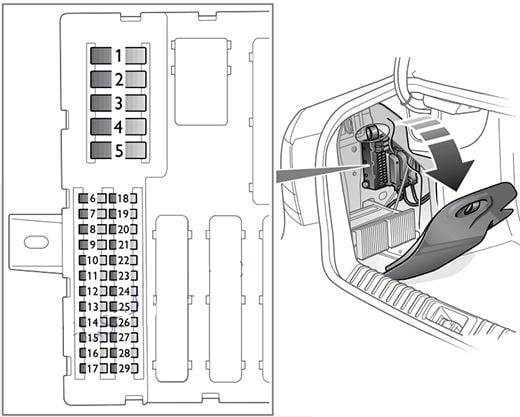

Trunk fuse box, Sport Sedan

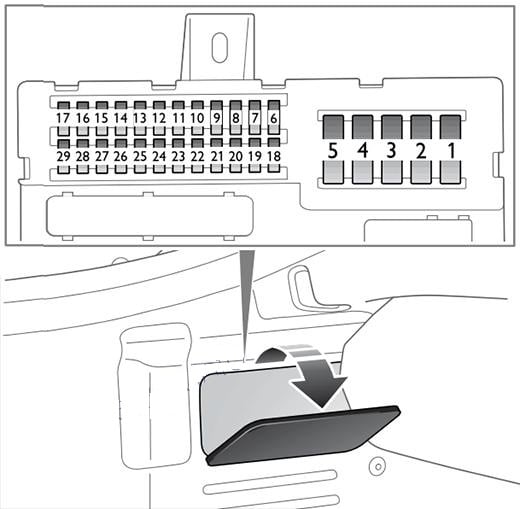

Trunk fuse box, Convertible
| No. | Amp. | Function |
|---|---|---|
| 1-5 | MAXI | – |
| 6 | 30 | Control module in left rear door |
| 7 | 30 | Control module in right rear door |
| 8 | 20 | Trailer |
| 9 | – | – |
| 10 | 30 | Left-hand brake light; rear right turn signal; right tail-light; right reversing light; high-mounted brake light; trailer lights |
| 11 | – 10 |
–
2007-2011: XWD |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15 | Seat heating, left seat |
| 16 | 15 | Seat heating, right seat |
| 17 | 7.5 | Autodimming rearview mirror; rain sensor; tyre pressure monitoring |
| 18 | 15 | Sunroof/Moonroof |
| 19 | 7.5 | Telematics (OnStar)
2007-2011: – |
| 20 | 7.5 | DVD player (navigation system) 2007-2011: XM-radio, TMC-tuner |
| 21 | 7.5 | Saab Parking Assistance (SPA); control module in rear doors
2007-2011: Saab Parking Assistance (SPA) control module in rear doors; dome light (Convertible) |
| 22 | 30 | Amplifier, sound system III
2007-2011: Radio; navigation |
| 23 | – 7.5 |
–
2007-2011: TPMS (automatic tyre pressure monitoring system) |
| 24 | 10 | Movement sensor; CD changer in trunk (accessory)
2007-2011: Movement sensor; tilt sensor; dome light (Convertible) |
| 25 | 30 | Electrically adjustable driver’s seat with memory |
| 26 | 30 | Right-hand stoplight; rear left turn signal; left taillight; rear fog light; left reversing light; license plate lighting; trunk lighting; trailer lights |
| 27 | 10 | Convertible: Lumbar support, electrically adjustable front seat |
| 28 | – 5A |
–
2006-2011: Telematics |
| 29 | – | – |
