Hyundai Azera TG (2006 – 2011) Fuse Box Diagrams & Location
The Hyundai Azera TG (2006–2011) fuse box location and diagrams help quickly identify fuse and relay positions for electrical troubleshooting. This blog includes interior and engine compartment fuse box layouts, fuse functions, and diagram details to simplify maintenance and resolve common electrical issues with confidence.
Fuse Box Location
Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel, behind the cover.

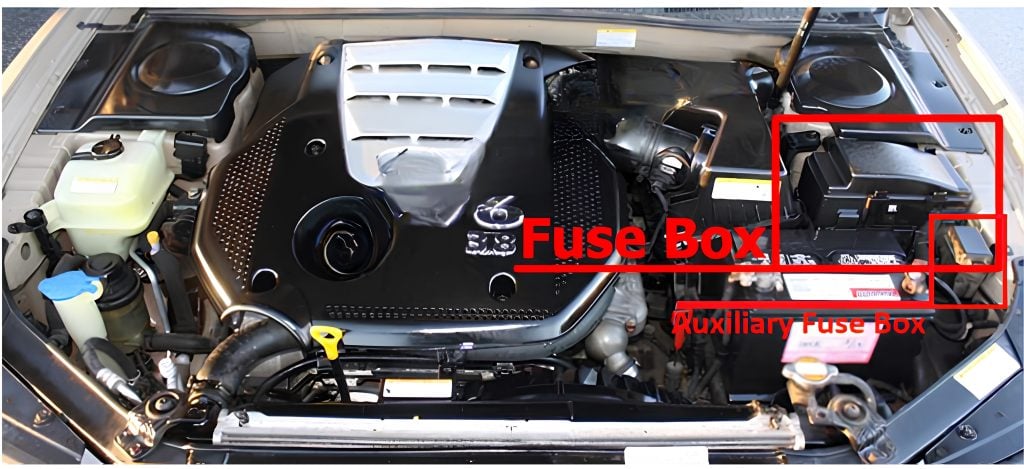

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams

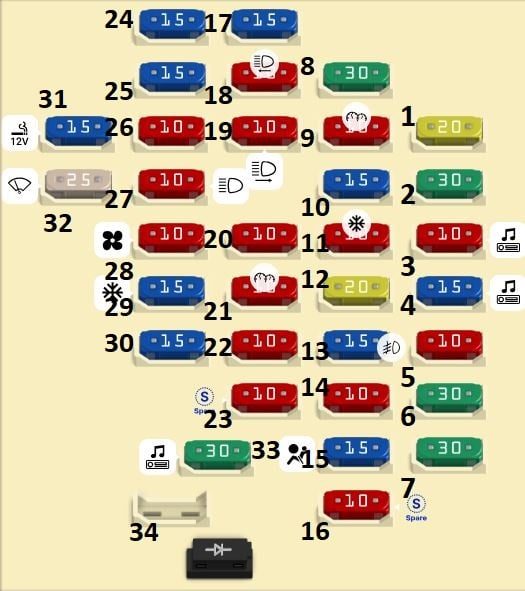

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI
20A |
1 | (T/LID) Fuel lid opener & trunk lid switch |
| Fuse MINI 30A |
2 | (FR P/SEAT) Front lumbar support switch, IMS control module, driver/passenger seat manual switch |
| Fuse MINI
10A |
3 | (AUDIO-2) ATM key lock control module, audio, IMS switch, accessory relay, seat/power outlet relay, digital clock & passenger seat belt IND. |
| Fuse MINI
15A |
4 | (AUDIO-1) Audio |
| Fuse MINI 10A |
5 | (START) Transaxle range switch, burglar alarm relay |
| Fuse MINI
30A |
6 | (P/WDW LH) Left front safety window module, left rear power window switch |
| Fuse MINI
30A |
7 | (P/WDW RH) Right front safety window module, right rear power window switch |
| Fuse MINI 30A |
8 | (RR P/SEAT) Right rear ICM relay box |
| Fuse MINI
10A |
9 | (MODULE-1) Instrument cluster, BCM, rear curtain module, rain sensor, IMS control module, power window main switch |
| Fuse MINI
15A |
10 | (PEDAL ADJ) Back warning buzzer |
| Fuse MINI 10A |
11 | (MIRR HTD) Left/right outside mirror & mirror folding motor, A/C control module |
| Fuse MINI
20A |
12 | (KEY SOL) Key solenoid, power window main switch |
| Fuse MINI
15A |
13 | (RR FOG) Rear fog light relay |
| Fuse MINI 10A |
14 | (A/BAG IND) Instrument cluster |
| Fuse MINI
15A |
15 | (A/BAG) Air bag cut off switch, SRS control module |
| Fuse MINI
15A |
17 | (TILT) Tilt & telescopic module, sport mode switch |
| Fuse MINI 10A |
18 | (TAIL LH) Front fog light relay, left rear combination light, license plate light, left headlight |
| Fuse MINI
10A |
19 | (TAIL RH) Right rear combination light, license plate light, right headlight |
| Fuse MINI
10A |
20 | (S/HTR) Driver seat warmer switch |
| Fuse MINI 10A |
21 | (MODULE-2) Instrument cluster, ESC switch, BCM, ATM key lock control module, YAW rate sensor, multi-function switch |
| Fuse MINI
10A |
22 | (A/CON) A/C control module, tilt & telescopic module, rheostat, electric chromic mirror, overhead console lamp |
| Fuse MINI
10A |
23 | (DIESEL) Spare |
| Fuse MINI 15A |
24 | (C/LIGHTER) Cigarette lighter |
| Fuse MINI
15A |
25 | (T/SIG) BCM |
| Fuse MINI
10A |
26 | (RR CURTAIN) Rear curtain module |
| Fuse MINI 10A |
27 | (H/LP) Headlight relay, AQS & ambient sensor, HID relay, headlight leveling actuator |
| Fuse MINI
10A |
28 | (A/CON SW) A/C control module, blower relay, A/C control module (AUTO) |
| Fuse MINI
15A |
29 | (MEMORY) Data link connector, A/C control module, instrument cluster, multi-function switch, tilt & telescopic module, BCM, door warning switch, room lamp, left/right foot lamp, door lamp |
| Fuse MINI 15A |
30 | (PIC) Spare |
| Fuse MINI
25A |
32 | (WIPER) Washer relay, wiper relay (High), wiper relay |
| Fuse MINI
30A |
33 | (POWER CONN) Fuse (MEMORY, AUDIO-1) |
| Fuse MINI 10A |
16 | (SPARE-2) Spare |
| Fuse MINI
15A |
31 | (ACC SOCKET) Rear power outlet |
Engine Compartment Fuse Box

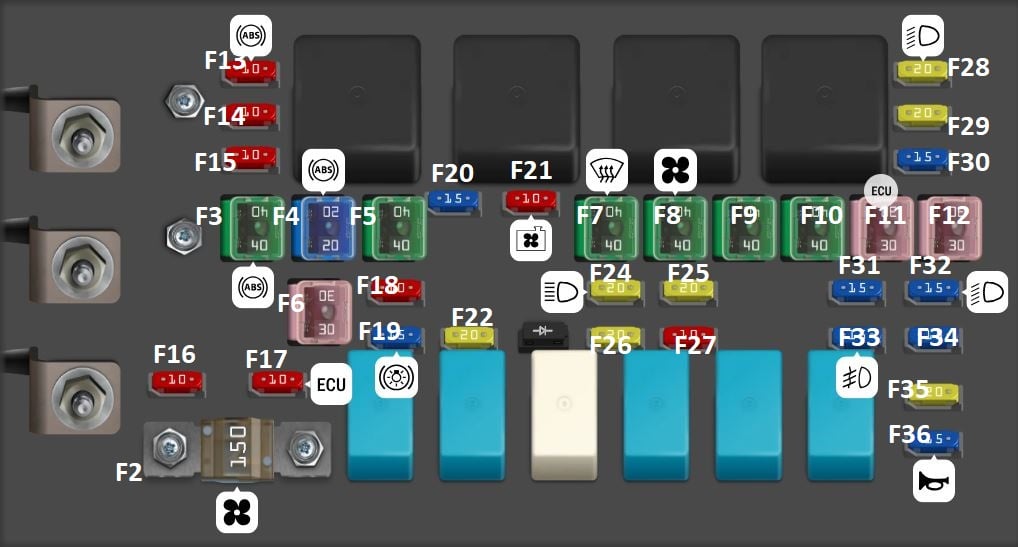

Main Fuse Box
| Type | No. | Description |
| Fuse MIDI
150A |
F2 | Fusible link(ABS1, ABS2, RR HTD, BLOWER) |
| Fuse FMX/JCase 40A |
F3 | ABS/ESC Control module, Multipurpose check connector |
| Fuse FMX/JCase
20A |
F4 | ABS/ESC Control module, Multipurpose check connector |
| Fuse FMX/JCase
40A |
F5 | Fuse(FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN) |
| Fuse FMX/JCase 30A |
F6 | Ignition switch(ACC, IG1) |
| Fuse FMX/JCase
40A |
F7 | Defogger relay |
| Fuse FMX/JCase
40A |
F8 | Blower relay |
| Fuse FMX/JCase 40A |
F9 | Fuse(P/WDW LH, P/WDW RH) |
| Fuse FMX/JCase
40A |
F10 | Start relay, Ignition switch(IG2, START) |
| Fuse FMX/JCase
30A |
F11 | Engine control unit relay |
| Fuse FMX/JCase 30A |
F12 | Fuse(KEY SOL, ECS/RR FOG), Power connector |
| Fuse MINI
10A |
F13 | (ABS) ABS/ESC Control module, Multipurpose check connector |
| Fuse MINI
10A |
F14 | (ECU (IG1)) PCM |
| Fuse MINI 10A |
F15 | (B/UP) Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor |
| Fuse MINI
10A |
F16 | (IG1) (Spare) |
| Fuse MINI
10A |
F17 | (ECU) PCM |
| Fuse MINI 10A |
F18 | (ECU (B+)) PCM |
| Fuse MINI
15A |
F19 | (STOP) Stop light switch |
| Fuse MINI
15A |
F20 | (SNSR1) Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2 Variable intake manifold valve |
| Fuse MINI 10A |
F21 | (SNSR3) Injector#1-#6 A/C Relay, Cooling fan relay |
| Fuse MINI
20A |
F22 | (ATM) ATM Control relay |
| Fuse MINI
20A |
F24 | (H/LP HI) Headlight relay (HIGH) |
| Fuse MINI 20A |
F25 | (H/LP WASHER) Headlight washer motor |
| Fuse MINI
20A |
F26 | (F/PUMP) Fuel pump relay |
| Fuse MINI
10A |
F27 | (A/CON) A/C Relay |
| Fuse MINI 20A |
F28 | (H/LP LO) Headlight relay(LOW) |
| Fuse MINI
20A |
F29 | (IGN COIL) Ignition coil#1-#6. Condenser |
| Fuse MINI
15A |
F30 | (SNSR2) Oxygen Sensor#1-# |
| Fuse MINI 15A |
F31 | (S/ROOF) Overhead console lamp |
| Fuse MINI
15A |
F32 | (H/LP LO RH) HID Relay |
| Fuse MINI
15A |
F33 | (FR FOG) Front fog light relay |
| Fuse MINI 15A |
F34 | (DRL) Burglar alarm horn relay |
| Fuse MINI
20A |
F35 | (TAIL) Tail light relay |
| Fuse MINI
15A |
F36 | (HORN) Horn relay |

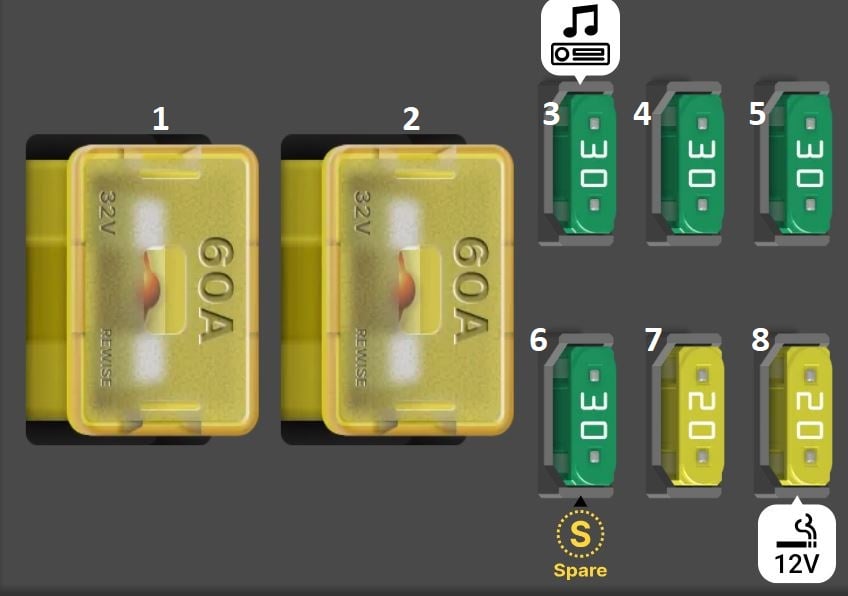

Auxiliary Fuse Box
| Type | No. | Description |
| Fuse FLF/PAL 293 60A |
1 | AGCS |
| Fuse FLF/PAL 293
60A |
2 | COOLING |
| Fuse MINI
30A |
3 | P/AMP |
| Fuse MINI 30A |
4 | FR S/HTR |
| Fuse MINI
30A |
5 | RR S/HTR |
| Fuse MINI
30A |
6 | SPARE |
| Fuse MINI 20A |
7 | SEAT P/OUTLET |
| Fuse MINI
20A |
8 | P/OUTLET |
