Vauxhall Combo C (2001–2011) Fuse Box Diagrams & Location
The Vauxhall Combo C (2001–2011) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Combo C.
Fuse Box Location

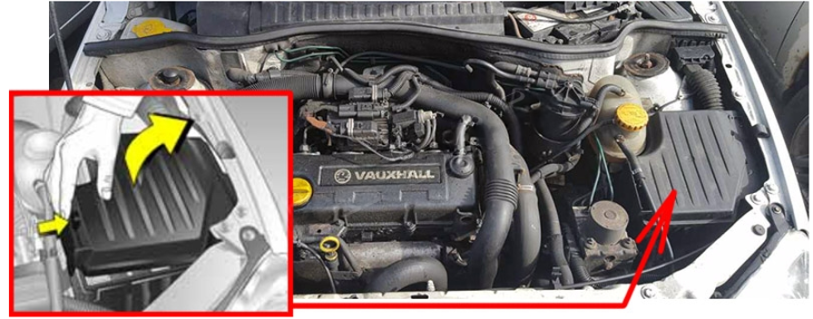

Engine Compartment Fuse Box
The fuse box is located in the engine compartment next to the coolant expansion tank.
Fuse Box Diagrams
Engine Compartment Fuse Box

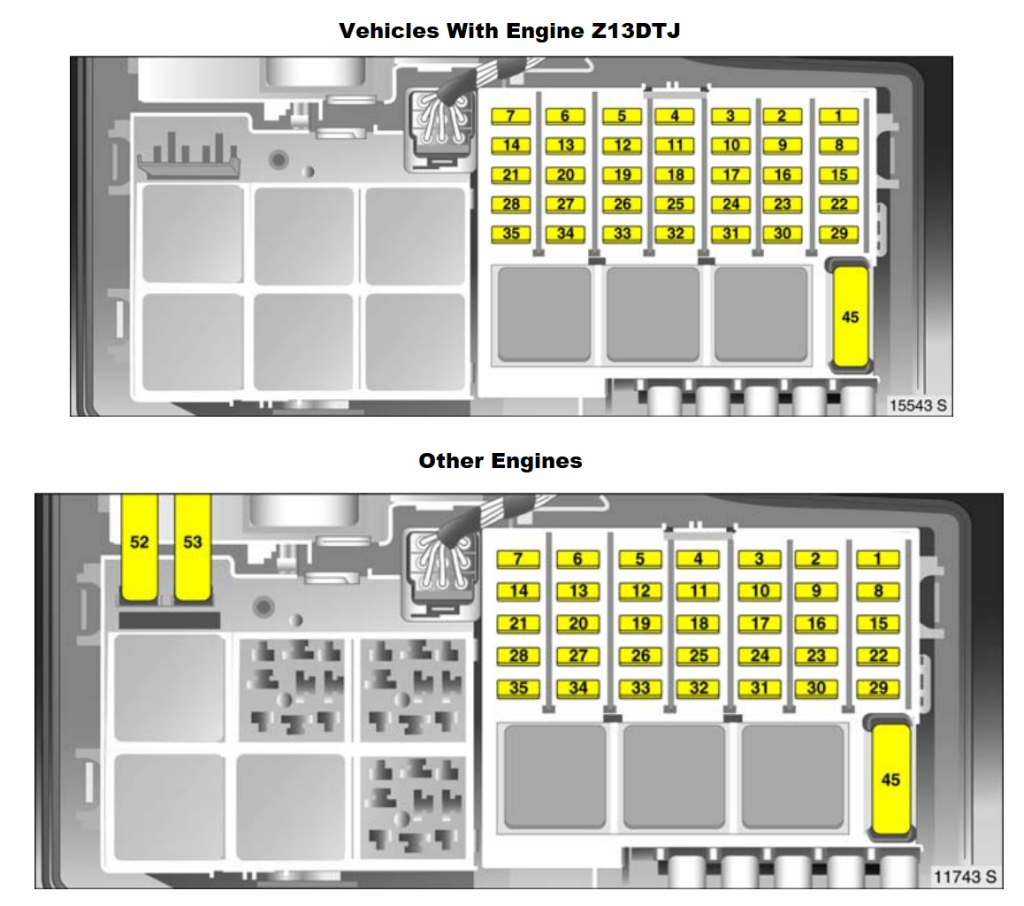

Fuse Box (1)
| № | Amp | Function |
|---|---|---|
| 1 | 7.5A | Central control unit |
| 2 | 7.5A | Engine control unit |
| 3 | 7.5A | Instruments, information display, light switch, horn, hazard warning lights, immobilizer |
| 4 | 20A | Towing equipment, number plate lights |
| 5 | 20A | Electric window (left) |
| 8 | 10A | Starter |
| 9 | 20A | Fuel injection system, fuel pump, stationary heater |
| 10 | 10A | Horn |
| 11 | 15A | Central control unit |
| 12 | 20A / 10A | Information display, infotainment system — engines Z13DTJ, Z17DTH |
| 13 | 7.5A | Vauxhall alarm system |
| 14 | 7.5A | Exterior mirrors |
| 15 | 15A | Windscreen wash system |
| 16 | 7.5A | Courtesy light |
| 17 | 20A | Central control unit |
| 19 | 20A | Electric window (right) |
| 22 | 5A | Central control unit, immobilizer |
| 23 | 30A | Windscreen wiper |
| 24 | 5A | Infotainment system, information display, light switch, courtesy light, instruments, EPS |
| 25 | 20A | Reversing lights, cigarette lighter, accessory socket |
| 26 | 15A | Seat heater (right) |
| 27 | 15A | Seat heater (left) |
| 28 | 25A | ABS |
| 29 | 20A | Rear window wiper |
| 30 | 15A | Engine control unit |
| 31 | 15A | Air conditioning system |
| 32 | 5A | ABS, Easytronic, airbag |
| 33 | 15A | Engine control unit — petrol and diesel engines |
| 34 | 30A | Diesel filter heater |
| 35 | 5A | Electric windows, infotainment system |
| 45 | 30A | Ventilation fan |
| 52 | 30A | Radiator fan — engine Z14XEP with air conditioning |
| 52 | 40A | Radiator fan — engine Z14XEP without air conditioning; diesel engine |
| 53 | 30A | Air conditioning system — petrol engine |
| 53 | 40A | Air conditioning system — diesel engine |

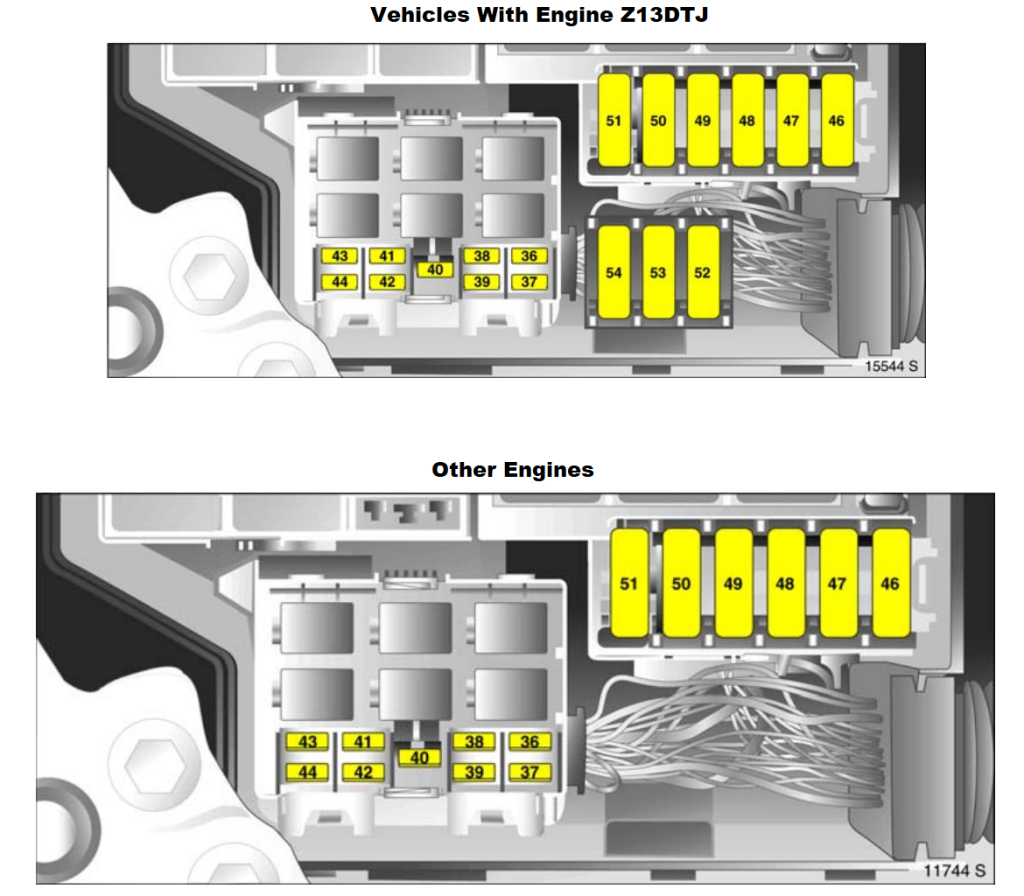

Fuse Box (2)
| № | Amp | Function |
|---|---|---|
| 36 | 10A | Dipped beam (left) |
| 37 | 10A | Dipped beam (right) |
| 38 | 5A | Tail light (left), parking light (left) |
| 39 | 5A | Tail light (right), parking light (right) |
| 40 | 10A | Brake lights |
| 41 | 15A | Front fog lights |
| 42 | 10A | Fog tail light |
| 43 | 10A | Main beam (left) |
| 44 | 10A | Main beam (right) |
| 46 | 20A | Engine control unit |
| 47 | 30A | Heated rear window |
| 48 | 30A | Starter |
| 49 | 50A | EPS |
| 50 | 40A | ABS |
| 51 | 60A | Easytronic — petrol engine |
| 51 | 80A | Engine control unit — diesel engine |
| 52 | 30A | Radiator fan — engine Z14XEP with air conditioning |
| 52 | 40A | Radiator fan — engine Z14XEP without air conditioning; radiator fan — diesel engine |
| 53 | 30A | Air conditioning system — petrol engine |
| 53 | 40A | Air conditioning system — diesel engine |
| 54 | 60A | Easytronic |
