Volvo S80 (2007 – 2016) Fuse Box Diagrams & Location
The Volvo S80 (2007–2016) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and infotainment systems.

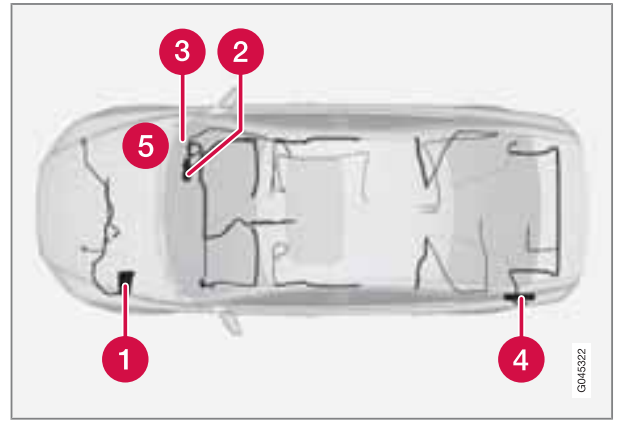

Fuse Box Location
- Engine compartment
- Under the glove compartment
- Under the glove compartment
- Trunk
- Not in use

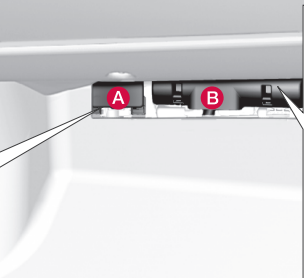

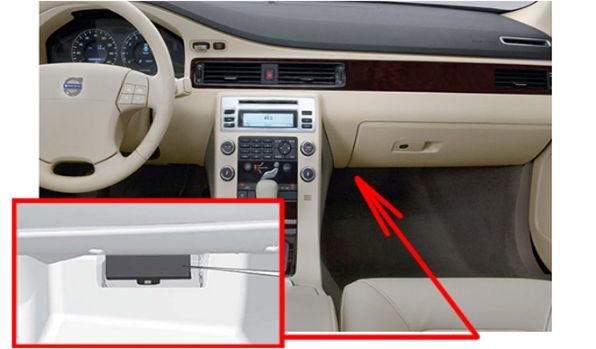

Passanger Compartment Fuse Box
Edge of the dashboard

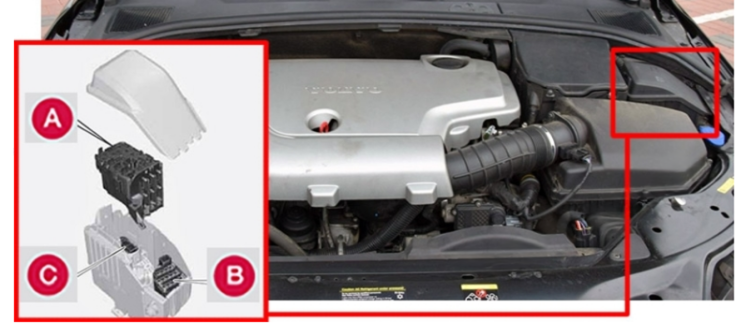

Engine Compartment Fuse Box
Engine compartment cold zone

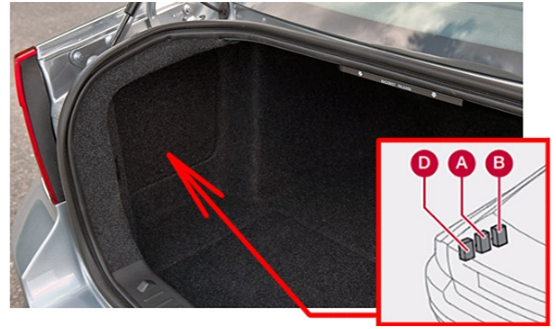

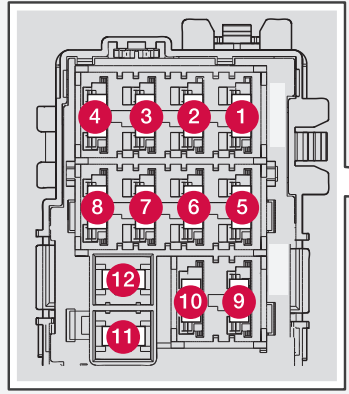

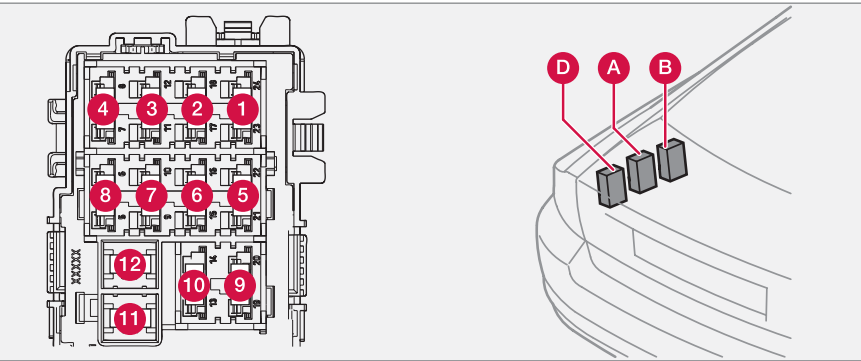

Luggage Compartment Fuse Box
Fuse Box Diagram

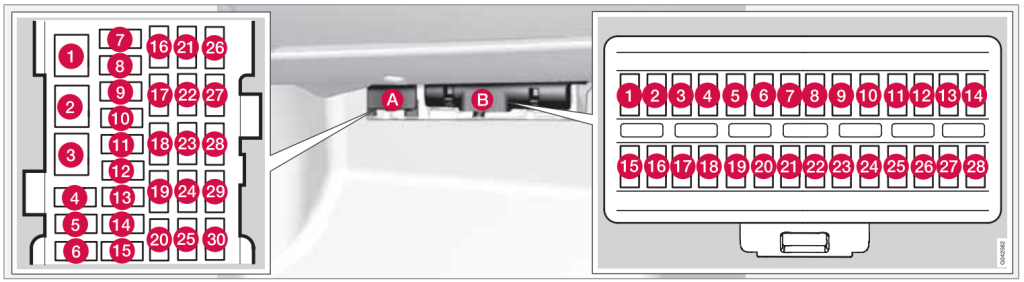

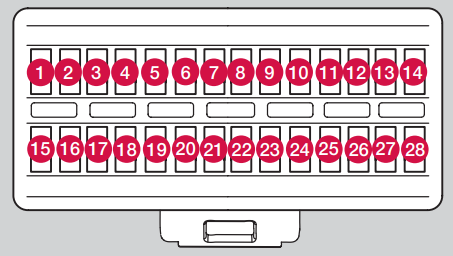

Passanger Compartment Fuse Box
Volvo S80 (2007–2010)
| No. | Function | Amp (A) |
|---|---|---|
| 1 | Rain sensor (2007); Rain sensor (option) (2008–2010) | 5 |
| 2 | SRS system (2007–2010) | 10 |
| 3 | ABS brakes, Electric parking brake (2007–2010) | 5 |
| 4 | Accelerator pedal, Heated seats (option) (2007–2010) | 7.5 |
| 5 | Not used (2007–2010) | — |
| 6 | ICM display, CD & Radio (2007–2010) | 15 |
| 7 | Steering wheel module (2007–2010) | 7.5 |
| 8 | Not used (2007–2010) | — |
| 9 | High beam (2007–2010) | 15 |
| 10 | Moonroof (option) (2007–2009); Moonroof (2010) | 20 |
| 11 | Backup lights (2007–2010) | 7.5 |
| 12 | Not used (2007–2010) | — |
| 13 | Front fog light (option) (2007–2009); Front fog light (2010) | 15 |
| 14 | Windshield washers (2007–2010) | 15 |
| 15 | Adaptive Cruise Control (ACC) (option) (2007–2010) | 10 |
| 16 | Not used (2007–2010) | — |
| 17 | Overhead courtesy lighting, Control panel driver’s door, Power passenger seat (option) (2007–2010) | 7.5 |
| 18 | Information display (2007–2010) | 5 |
| 19 | Power driver’s seat (option) (2007–2010) | 5 |
| 20 | Folding head restraint, rear (option) (2007); Not used (2008–2010) | 15 |
| 21 | Remote key receiver, Alarm sensors (2007–2010) | 5 |
| 22 | Fuel pump (2007–2010) | 20 |
| 23 | Electric steering column lock (2007–2010) | 20 |
| 24 | Not used (2007–2009); Not used / No fuse (2010) | — |
| 25 | Lock, tank/trunk lid (2007); Lock, tank/trunk (2008–2010) | 10–15 |
| 26 | Alarm siren, ECC (2007–2010) | 5 |
| 27 | Start/Stop button (2007–2009); START/STOP ENGINE button (2010) | 5 |
| 28 | Brake light switch (2007–2010) | 5 |
Volvo S80 (2011)
Fuse box A
| Position | Function | A |
|---|---|---|
| 1 | Circuit breaker – audio system, subwoofer* | 40 |
| 2 | – | – |
| 3 | – | – |
| 4 | – | – |
| 5 | – | – |
| 6 | – | – |
| 7 | 12-volt socket (trunk) | 15 |
| 8 | Controls in driver’s door | 20 |
| 9 | Controls in front passenger’s door | 20 |
| 10 | Controls in right rear passenger’s door | 20 |
| 11 | Controls in left rear passenger’s door | 20 |
| 12 | Keyless drive* | 20 |
| 13 | Power driver’s seat* | 20 |
| 14 | Power front passenger’s seat* | 20 |
| 15 | Folding rear seat head restraints | 15 |
| 16 | – | – |
| 17 | Audio system, Navigation system display* | 10 |
| 18 | Audio system | 15 |
| 19 | Bluetooth hands-free system | 5 |
| 20 | – | – |
| 21 | Power moonroof*, Courtesy lighting, climate system sensor | 5 |
| 22 | 12-volt sockets | 15 |
| 23 | Heated front passenger’s seat* | 15 |
| 24 | Heated driver’s seat* | 15 |
| 25 | Electric sun curtain*, S80 Executive only: Front seat massage and armrest lighting, refrigerator* | 10 |
| 26 | Heated rear passenger’s seat (right)* | 15 |
| 27 | Heated rear passenger’s seat (left)* | 15 |
| 28 | Park assist*, Volvo Navigation System*, Park assist camera* | 5 |
| 29 | All Wheel Drive* control module | 5 |
| 30 | Active chassis system* | 10 |
Fuse Box B
| Position | Function | A |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | Front courtesy lighting, power seat(s)* | 7.5 |
| 4 | Instrument panel information display | 5 |
| 5 | Adaptive cruise control/collision warning* | 10 |
| 6 | Courtesy lighting, rain sensor* | 7.5 |
| 7 | Steering wheel module | 7.5 |
| 8 | Rear central locking and fuel filler door | 10 |
| 9 | Washers | 15 |
| 10 | Windshield washer | 15 |
| 11 | Trunk unlock | 10 |
| 12 | Trunk lock | 10 |
| 13 | Fuel pump | 20 |
| 14 | Remote key receiver, Alarm, Climate system | 5 |
| 15 | Steering wheel lock | 15 |
| 16 | Alarm, On-board diagnostic system | 5 |
| 17 | – | – |
| 18 | Airbag system, Occupant weight system | 10 |
| 19 | Adaptive cruise control front radar* | 5 |
| 20 | Accelerator pedal, power door mirrors, heated rear seats* | 7.5 |
| 21 | Audio system, CD and radio | 15 |
| 22 | Brake lights | 5 |
| 23 | Power moonroof* | 20 |
| 24 | Immobilizer | 5 |

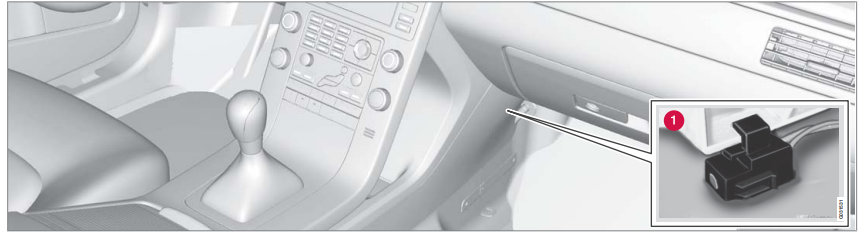

Edge of the dashboard (S80 Executive only) (2009-2011)
| Pos | Function | A |
|---|---|---|
| 1 | Analogue clock | 5 |
Volvo S80 (2012-2016)

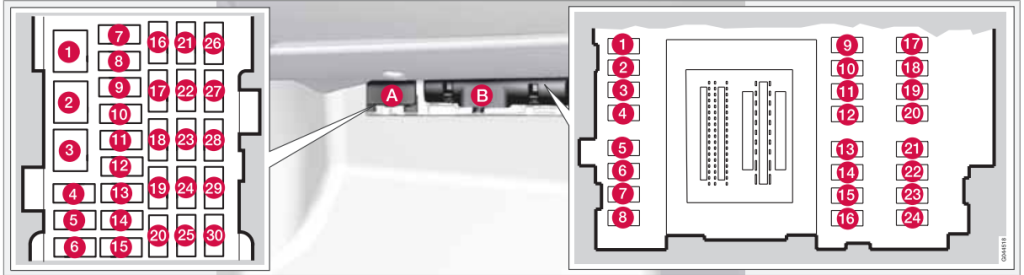

Fuse Box A
| Position | Function | Amp (A) |
|---|---|---|
| 1 | Circuit breaker for infotainment system and fuses 16–20 (2012–2014); Primary fuse for audio control module and infotainment fuses 16–20 (2015–2016) | 40 |
| 2 | Not used (2012–2016) | — |
| 3 | Not used (2012–2016) | — |
| 4 | Not used (2012–2013); Electrically heated steering wheel (2014); Heated steering wheel (2015–2016) | 10 |
| 5 | Not used (2012–2014); Analog clock (Executive) (2015); Not used (2016) | 5 |
| 6 | Not used (2012–2016) | — |
| 7 | 12-volt socket (trunk) (2012–2014); 12-volt socket (trunk), refrigerator (S80 Executive only) (2015); 12 V socket, cargo area (2016) | 15 |
| 8 | Controls in driver’s door (2012–2014); Control panel, driver’s door (2015–2016) | 20 |
| 9 | Controls in front passenger’s door (2012–2014); Control panel, front passenger door (2015–2016) | 20 |
| 10 | Controls in right rear passenger’s door (2012–2014); Control panel, rear passenger door right (2015–2016) | 20 |
| 11 | Controls in left rear passenger’s door (2012–2014); Control panel, rear passenger door left (2015–2016) | 20 |
| 12 | Keyless drive (2012–2014); Keyless (2015–2016) | 20 |
| 13 | Power driver’s seat (2012–2014); Power seat, driver’s side (2015–2016) | 20 |
| 14 | Power front passenger’s seat (2012–2014); Power seat, passenger side (2015–2016) | 20 |
| 15 | Folding rear seat head restraints (2012–2013); Not used (2014–2016) | 15 |
| 16 | Infotainment control module (2012–2014); Infotainment system control module (2015); Infotainment Control Module or Screen (2016) | 5 |
| 17 | Infotainment system, Sirius satellite radio (2012); Infotainment system, SiriusXM satellite radio (2013–2014); Infotainment system, amplifier, SiriusXM satellite radio (2015); Audio control unit (amplifier), TV, Digital radio (2016) | 10 |
| 18 | Infotainment system (2012–2014); Infotainment system (2015); Audio control module or Control module Sensus (2016) | 15 |
| 19 | Bluetooth hands-free system (2012–2014); Bluetooth hands-free system (2015); Telematics, Bluetooth (2016) | 5 |
| 20 | Rear Seat Entertainment system (RSE) (2012–2014); Not used (2015–2016) | 7.5 |
| 21 | Power moonroof, Courtesy lighting, Climate system sensor (2012–2015); Sunroof, Interior lighting roof, Climate sensor, Damper motors air intake (2016) | 5 |
| 22 | 12-volt sockets (2012–2014); 12-volt sockets in tunnel console (2015); 12 V socket, tunnel console (2016) | 15 |
| 23 | Heated rear seat passenger side (2012–2016) | 15 |
| 24 | Heated rear seat driver’s side (2012–2016) | 15 |
| 25 | Not used (2012–2016) | — |
| 26 | Heated front passenger’s seat (2012–2015); Seat heating and seat ventilation front passenger side (2016) | 15 |
| 27 | Heated driver’s seat (2012–2015); Seat heating and seat ventilation front driver’s side (2016) | 15 |
| 28 | Park assist, Trailer hitch control module, Park assist camera (2012–2015); Parking assistance (2016) | 5 |
| 29 | All Wheel Drive control module (2012–2016) | 5–15 |
| 30 | Active chassis system (2012–2015); Active chassis Four-C (2016) | 10 |
Fuse Box B
| Pos. | Function | Amp (A) |
|---|---|---|
| 1 | Not used (2012–2016) | — |
| 2 | Not used (2012–2016) | — |
| 3 | Front courtesy lighting, driver’s door power window controls, power seat(s), HomeLink® Wireless Control System (2012–2015); Interior lighting, driver’s door control panel, power windows, power seats (2016) | 7.5 |
| 4 | Instrument panel information display (2012–2014); Instrument panel (2015); Combined instrument panel (2016) | 5 |
| 5 | Adaptive Cruise Control / Collision warning (2012–2016) | 10 |
| 6 | Courtesy lighting, rain sensor (2012–2016); Interior lighting, rain sensor (2016) | 7.5 |
| 7 | Steering wheel module (2012–2016) | 7.5 |
| 8 | Central locking, fuel filler door / fuel filler flap (2012–2016) | 10 |
| 9 | Not used (2012–2016) | — |
| 10 | Windshield washer / Windscreen washers (2012–2016) | 15 |
| 11 | Trunk open (2012–2015); Unlocking boot lid (2016) | 10 |
| 12 | Not used (2012); Electrical folding rear seat outboard head restraints (2013–2015); Folding head restraint (2016) | 10 |
| 13 | Fuel pump (2012–2016) | 20 |
| 14 | Climate system control panel (2012–2015); Movement detector alarm, Climate panel (2016) | 5 |
| 15 | Not used (2012–2015); Steering lock (2016) | 15 |
| 16 | Alarm, On-board diagnostic system (OBD) (2012–2015); Siren, Data link connector OBDII (2016) | 5 |
| 17 | Not used (2012–2016) | — |
| 18 | Airbag system, Occupant weight sensor (2012–2015); Airbags (2016) | 10 |
| 19 | Collision warning system (2012–2016) | 5 |
| 20 | Accelerator pedal, Auto-dim mirror function, Heated rear seats (2012–2015); Accelerator pedal sensor, Dimming interior rearview mirror, Rear seat heating, Electric additional heater (2016) | 7.5 |
| 21 | Not used (2012–2015); Infotainment control module (Performance), Audio (Performance) (2016) | 15 |
| 22 | Brake lights / Brake light (2012–2016) | 5 |
| 23 | Power moonroof / Sunroof (2012–2016) | 20 |
| 24 | Immobilizer / Immobiliser (2012–2016) | 5 |

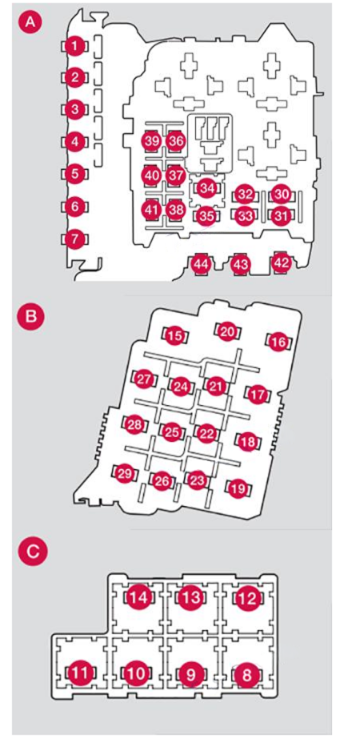

Engine Compartment Fuse Box
| Pos. | Function | Amp (A) |
|---|---|---|
| 1 | Circuit breaker (2007–2014); Primary fuse for Central Electronic Module (CEM) under glovebox (2015–2016) | 50 |
| 2 | Circuit breaker (2007–2014); Primary fuse for Central Electronic Module (CEM) under glovebox (2015–2016) | 50 |
| 3 | Circuit breaker (2007–2014); Primary fuse for central electrical unit in cargo area (2015–2016) | 60 |
| 4 | Circuit breaker (2007–2014); Primary fuse for relay/fuse box under glovebox (2015–2016) | 60 |
| 5 | Circuit breaker (2007–2014); Primary fuse for relay/fuse box under glovebox (2015–2016) | 50–60 |
| 6 | Not used (2007–2016) | — |
| 7 | Not used (2007–2015); Electric additional heater (2016) | 100 |
| 8 | Heated windshield, driver’s side (2014–2016) | 40 |
| 9 | Windshield wipers / Windscreen wipers (2007–2016) | 30 |
| 10 | Not used (2007–2014); Parking heater (2015–2016) | 25 |
| 11 | Climate system blower (2007–2014); Ventilation fan (2015–2016) | 40 |
| 12 | Heated windshield, passenger side (2014–2016) | 40 |
| 13 | ABS pump (2007–2016) | 30–40 |
| 14 | ABS valves (2007–2016) | 20 |
| 15 | Not used (2007–2013); Headlight washers (2014–2016) | 15–20 |
| 16 | Active Bi-Xenon Lights, headlight leveling (2007–2013); Active Bending Lights, headlight leveling (2014–2016) | 10 |
| 17 | Central electrical module (2007–2014); Primary fuse for CEM under glovebox (2015–2016) | 20 |
| 18 | Radar ACC control module (2007–2010); ABS supply (2011–2016) | 5 |
| 19 | Speed-related power steering (2007–2014); Adjustable steering force (2015–2016) | 5 |
| 20 | Engine Control Module (ECM), transmission, SRS (2007–2014); Engine control module, transmission control module, airbags (2015–2016) | 10 |
| 21 | Heated washer nozzles (2007–2016) | 10 |
| 22 | Vacuum pump 1.5T (2007–2014); Not used (2015–2016) | 5–20 |
| 23 | Lighting panel (2007–2014); Headlamp control (2015–2016) | 5 |
| 24 | Headlight washers (2007–2014); Not used (2015–2016) | 15 |
| 25 | 12V socket front/rear seat (2007–2014); Relay coils (2015–2016) | 5–15 |
| 26 | Moonroof, ceiling console/ECC (2007–2014); Relay-related circuits (2015–2016) | 5–10 |
| 27 | Engine compartment box (2007–2014); Auxiliary lamps (2015–2016) | 5–20 |
| 28 | Horn (2007–2014); Engine management relay coil and ECM (4-cylinder) (2015–2016) | 5–15 |
| 29 | Engine Control Module (ECM) (2007–2014); Engine management relay coil and ECM (5/6-cylinder) (2015–2016) | 10 |
| 30 | Automatic transmission control module (2007–2014); Transmission control module (2015–2016) | 15 |
| 31 | A/C compressor (2007–2014); A/C solenoid clutch and coolant pump circuits (2015–2016) | 15 |
| 32 | Relay coils (2007–2014); A/C relay coils and Start/Stop relay coils (2015–2016) | 5 |
| 33 | Starter motor relay (2007–2014); Start relay (5/6-cylinder petrol) (2015–2016) | 30 |
| 34 | Ignition coils (2007–2014); Glow control module (5-cylinder diesel) (2015–2016) | 10–20 |
| 35 | Ignition coils (2007–2014); ECM, ignition coils, capacitor circuits depending on engine type (2015–2016) | 20 |
| 36 | Engine Control Module (ECM) (2007–2014); ECM (5/6-cylinder petrol) (2015–2016) | 10 |
| 37 | Injection system, mass air meter (2007–2014); ECM (5-cylinder diesel) (2015–2016) | 15 |
| 38 | Engine valves (2007–2014); ECM (4-cylinder) (2015–2016) | 10–20 |
| 39 | EVAP, heated oxygen sensor, injection system (2007–2014); MAF sensor, thermostat, EVAP valve, EGR cooling pump (2015–2016) | 10–15 |
| 40 | Water pump V8, crankcase ventilation heater (2007–2014); MAF sensor, control valves, injectors, ECM (2015–2016) | 10–20 |
| 41 | Fuel leakage detection (2007–2014); A/C clutch, valves, ECM, oil level sensor (2015–2016) | 5–10 |
| 42 | Cooling fan (2007–2014); Valves, oil pump, lambda sensors (2015–2016) | 15–80 |
| 43 | Cooling fan (2007–2014); Lambda sensors, EVAP valve, radiator shutter control module (2015–2016) | 15–80 |
| 44 | Cooling fan (2007–2010); Electro-hydraulic power steering (2011–2014); Coolant pump, crankcase ventilation heater, oil pump automatic gearbox (2015–2016) | 10–100 |

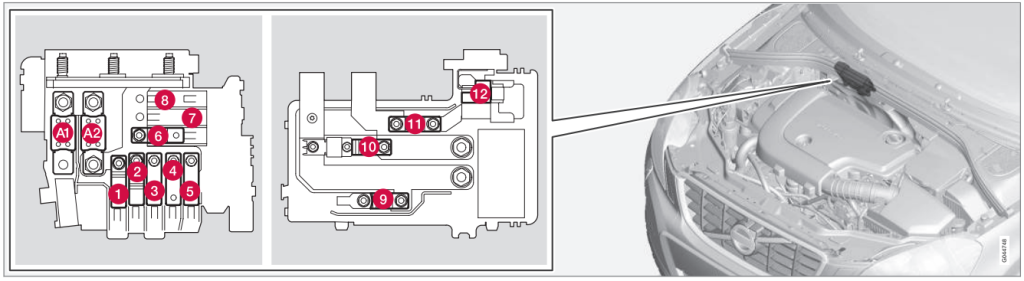

Engine compartment cold zone (Start/Stop only) (2015-2016)
| Pos. | Function | Amp (A) |
|---|---|---|
| A1 | Circuit breaker / Main fuse for Central electrical unit in engine compartment (2015–2016) | 175 |
| A2 | Circuit breaker / Main fuse for fuseboxes under glove compartment, Central Electronic Module (CEM), and cargo area electrical unit (2015–2016) | 175 |
| 1 | Not used (2015); Electric additional heater* (2016) | — / 100 |
| 2 | Circuit breaker: Fusebox B under glove compartment (2015); Primary fuse for Central Electronic Module (CEM) under glove compartment (2016) | 50 |
| 3 | Circuit breaker: Fusebox A under glove compartment (2015); Primary fuse for relay/fuse box under glove compartment (2016) | 60 |
| 4 | Circuit breaker: Fusebox A under glove compartment (2015); Heated windscreen* (2016) | 60 |
| 5 | Circuit breaker: Central electrical module in trunk (2015); Primary fuse for Central electrical unit in cargo area (2016) | 60 |
| 6 | Climate system blower (2015); Ventilation fan (2016) | 40 |
| 7 | Not used (2015–2016) | — |
| 8 | Not used (2015–2016) | — |
| 9 | Starter motor relay (2015); Start relay (2016) | 30 |
| 10 | Internal diode (2015); Not used (2016) | 50 / — |
| 11 | Auxiliary battery (2015); Support battery (2016) | 70 |
| 12 | Central electrical module: Auxiliary battery reference voltage, auxiliary battery charging point (2015); Central Electronic Module (CEM) reference voltage support battery (2016) | 15 / 5 |
Luggage Compartment Fuse Box
Volvo S80 (2007-2010)
| Module | Pos. | Function | Amp (A) |
|---|---|---|---|
| Module A (Black) | 1 | Switches in driver’s door (2007–2010) | 25 |
| Module A (Black) | 2 | Switches in passenger’s door (2007–2010) | 25 |
| Module A (Black) | 3 | Switches in rear door, driver’s side (2007–2010) | 25 |
| Module A (Black) | 4 | Switches in rear door, passenger’s side (2007–2010) | 25 |
| Module A (Black) | 5 | Not used (2007–2010) | — |
| Module A (Black) | 6 | 12 V socket in trunk, cooler option (2007–2008); 12-V socket in cargo area, refrigerator (S80 Executive only) (2009–2010) | 15 |
| Module A (Black) | 7 | Rear window defroster (2007–2010) | 30 |
| Module A (Black) | 8 | Not used (2007); Folding head restraints / Folding rear head restraints (2008–2010) | 15 |
| Module A (Black) | 9 | Trailer socket 2 (option) (2007–2010) | 15 |
| Module A (Black) | 10 | Power driver’s seat (option) (2007–2010) | 25 |
| Module A (Black) | 11 | Trailer socket 1 (option) (2007–2010) | 40 |
| Module A (Black) | 12 | Not used (2007–2010) | — |
| Module B (White) | 1 | Park assist (option) (2007); Not used (2008); Front seat massage, arm rest lights, refrigerator (option) (2009–2010) | 5 |
| Module B (White) | 2 | Control module C (option) (2007); Control module Four C (option) (2008–2009); Active chassis system control module (option) (2010) | 15 |
| Module B (White) | 3 | Heated driver’s seat (option) (2007–2010) | 15 |
| Module B (White) | 4 | Heated passenger’s seat (option) (2007–2010) | 15 |
| Module B (White) | 5 | Rear seat heater, passenger’s side (option) (2007–2010) | 15 |
| Module B (White) | 6 | AWD control module (2007–2010) | 10 |
| Module B (White) | 7 | Rear seat heater, driver’s side (option) (2007–2010) | 15 |
| Module B (White) | 8 | Not used (2007–2008); Folding head restraints (2009–2010) | 15 |
| Module B (White) | 9 | Power passenger’s seat (option) (2007–2010) | 25 |
| Module B (White) | 10 | Keyless drive (option) (2007–2010) | 20 |
| Module B (White) | 11 | Electric parking brake – driver’s side (option) (2007–2010) | 30 |
| Module B (White) | 12 | Electric parking brake – passenger’s side (option) (2007–2010) | 30 |
| Module D (Blue) | 1 | Navigation system display (option) (2007–2010) | 10 |
| Module D (Blue) | 2 | Not used (2007–2010) | — |
| Module D (Blue) | 3 | Not used (2007–2010) | — |
| Module D (Blue) | 4 | SIRIUS satellite radio (option) (2007–2010) | 5 |
| Module D (Blue) | 5 | Audio amplifier (2007–2010) | 25 |
| Module D (Blue) | 6 | Audio system (2007–2010) | 15 |
| Module D (Blue) | 7 | Bluetooth hands-free (option) (2007–2009); Not used (2010) | 5 |
| Module D (Blue) | 8–12 | Reserve (2007–2010) | — |
Volvo S80 (2011-2016)
| Module | Pos. | Function | Amp (A) |
|---|---|---|---|
| Rear Fuse Box | 1 | Electric parking brake, left side (2011–2015); Electric parking brake, left (2016) | 30 |
| Rear Fuse Box | 2 | Electric parking brake, right side (2011–2015); Electric parking brake, right (2016) | 30 |
| Rear Fuse Box | 3 | Heated rear window (2011–2015); Rear window defroster (2016) | 30 |
| Rear Fuse Box | 4 | Trailer socket 2* (2011–2016) | 15 |
| Rear Fuse Box | 5 | Not used (2011–2016) | — |
| Rear Fuse Box | 6 | Not used (2011–2016) | — |
| Rear Fuse Box | 7 | Not used (2011–2016) | — |
| Rear Fuse Box | 8 | Not used (2011–2016) | — |
| Rear Fuse Box | 9 | Not used (2011–2016) | — |
| Rear Fuse Box | 10 | Not used (2011–2016) | — |
| Rear Fuse Box | 11 | Trailer socket 1* (2011–2016) | 40 |
| Rear Fuse Box | 12 | Not used (2011–2016) | — |
Related Posts:
