Volvo S90 (2017 – 2024) Fuse Box Diagrams & Location
The Volvo S90 (2017–2024) features several fuse boxes that protect essential electrical systems and components. Knowing their locations and fuse assignments makes it easier to troubleshoot electrical issues. This blog provides clear fuse box locations, diagrams, fuse ratings, and descriptions to help you quickly identify the correct fuse.
Fuse Box Location

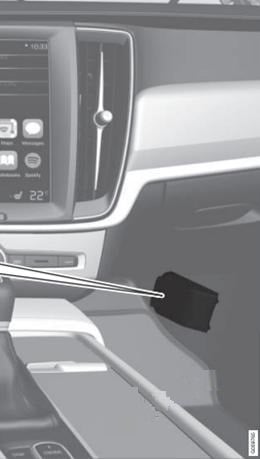

Passenger Compartment Fuse Box
The fuse box is located behind the floor mat/side panel.
Engine Compartment Fuse Box

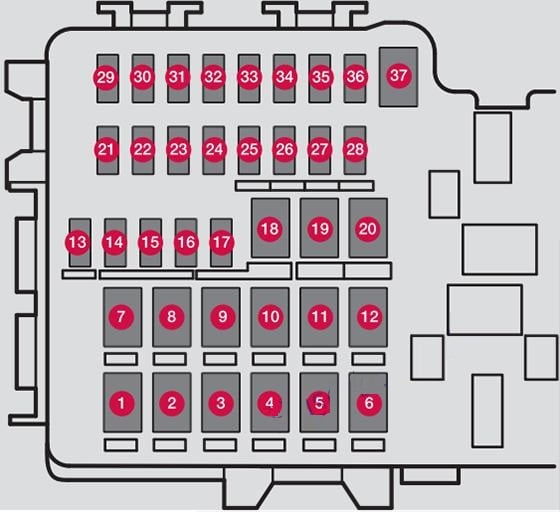

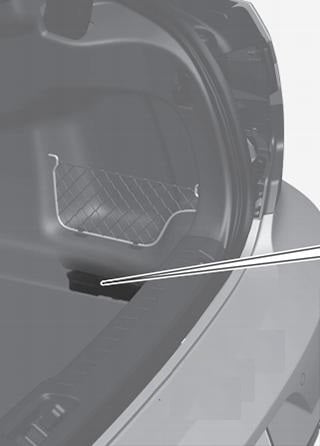

Luggage Compartment Fuse Box
The central electrical unit is located behind the panel on the right-hand side.
Fuse Box Diagrams
Passenger Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| 1 | 10 | Control module, 48 V battery 2017-2019: – 2020-2022: Intermediate voltage module |
| 2 | –
30 |
– 2017: 120-volt socket on the rear side of the tunnel console (option) 2019: Electrical outlet in tunnel console between rear seats 2020: Electrical socket in tunnel console, by legroom for rear seat |
| 3 | – | – |
| 4 | 5 | Movement detector/Sensor 2017-2018: Alarm system movement sensor (Certain markets only) |
| 5 | –
5 |
–
2017,2020: Media player |
| 6 | 5 | Driver display 2017-2019: Instrument panel |
| 7 | 5 | Keypad, centre console
2017-2019: Centre console buttons |
| 8 | 5 | Sun sensor Toll collection transponder |
| 9 | –
20 |
– 2019: Sensus control module |
| 10 | 15 | Infotainment system
2017-2019, 2021-2022: – |
| 11 | 5 | Steering wheel module |
| 12 | 5 | Control module, start knob and parking brake
2017-2022: Module for start knob and parking brake |
| 13 | 15 | Heated steering wheel* 2017-2019: Heated steering wheel module (option) 2020-2022: Steering wheel module for heated steering wheel |
| 14 | 5 | Airborne Particulate Matter Sensor (APMS)
2017-2022: – |
| 15 | – | – |
| 16 | – | – |
| 17 | 15 | Control module, rear lighting 2017-2020: – 2021-2022: Rear lamp housing control unit |
| 18 | 10 | Control module, climate control
2017-2019: Climate system control module 2020-2022: Control module for climate control system |
| 19 | 7,5 | Steering lock
2017-2019: – |
| 20 | 10 | Diagnostic port OBD-ll
2017-2018: On-board diagnostics (OBDII) 2019: Data link connector OBD-II |
| 21 | 5 | Centre display |
| 22 | 40 | Fan module, climate control, front
2017-2019: Climate system blower module (front) 2020-2022: Fan module for climate control system, front |
| 23 | 5 | USB hub 2017: – |
| 24 | 7,5 | Controls lighting Passenger compartment lighting Dimming, interior rearview mirror* Rain and light sensors* Power front seats* Control panels, rear doors Fan module, climate control Ioniser Keypad, tunnel console at legroom rear seat*
2017: Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad (option); Power front seats (option) 2018: Instrument lighting; Courtesy lighting; Rearview mirror auto-dim function; Rain and light sensor; Rear tunnel console keypad (option); Power front seats (option); Rear door control panels 2019: Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right 2020-2022: Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensor; Keypad in tunnel console, by legroom for rear seat; Power front seats; Control panels in rear doors; Fan module for climate control left/right |
| 25 | 5 | Camera, front*
2017-2022: Control module for driver support functions |
| 26 | 20 | Roof console 2017-2018: Moon roof and sun shade (option) 2019: Panoramic roof with sun curtain 2020-2022: Sunroof |
| 27 | 5 | Head-up display |
| 28 | 5 | Passenger compartment lighting 2017-2018: Courtesy lighting |
| 29 | 5 | Wireless charging plate*
2017-2019: – |
| 30 | 5 | 2023: Display roof console 2024: Display roof console, Control module – camera wide-angle2017-2018: Ceiling console display (seat belt reminder, front passenger side airbag indicator)2019: Ceiling console display (seat belt reminder/front passenger side airbag indicator)2020-2022: Display in roof console (Seatbelt reminder/lndicator for airbag on the front passenger seat) |
| 31 | – | – |
| 32 | –
5 |
– 2017-2019: Humidity sensor |
| 33 | –
20 |
–
2017-2018: Rear passenger-side door module 2019: Door module in right-side rear door 2020: Door module in right-hand rear door |
| 34 | 10 | Fuse box, cargo area
2017-2018: Fuses in the trunk 2019: Fuses in the trunk/cargo compartment 2020-2022: Fuses in cargo area |
| 35 | 5 | Control module, online car Control module, Volvo Services
2017-2018: Internet connection control module; Volvo On Call control module 2019: Control module for Internet-connected vehicle; Control module for Volvo On Call 2020-2022: Control module for online car; Control module for Volvo On Call |
| 36 | –
20 |
– 2017-2018: Rear driver-side door module 2019-2022: Door module in left-side rear door |
| 37 | 40 | Audio control device (amplifier)
2017-2018: Infotainment control module (amplifier) 2019: Audio control module (amplifier) (certain models only) |
| 38 | – | – |
| 39 | 5 | Antenna module (TCAM)
2017-2019: Multi-band antenna module 2020-2022: Module for multi-band antenna |
| 40 | 5 | Control module, seat comfort, front* 2017-2019: Front seat massage function 2020-2022: Modules for seat comfort (massage) front* |
| 41 | 5 | Alcohol lock
2017-2019: – |
| 42 | – 15 |
–
2018: Rear door sun curtains 2019: Rear door sun curtain modules |
| 43 | 15 | Control module, fuel pump 2017-2019: Fuel pump control module |
| 44 | 5 | Converter 48 V Engine start module
2017-2018: – 2018 Twin Engine: Relay coils for engine compartment electrical module; Relay coil for transmission oil pump 2019: Twin-engine: Relay windings for distribution box in engine compartment; Relay windings for transmission oil pump 2020: Twin Engine: Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Integrated dynamo 2021-2022: Relay coil for transmission oil pump; Converter medium voltage; Integrated starter motor |
| 45 | 5 | Control module, driver support functions (active safety) 2017-2019: – 2020-2022: Opening the boot lid/tailgate with foot motion |
| 46 | 15 | Seat heating, driver’s side front
2017-2019: Driver side front seat heating (option) 2020-2022: Seat heating, driver’s side front |
| 47 | 15 | Seat heating, passenger side front
2017-2019: Passenger side front seat heating |
| 48 | 7,5/10 | Coolant pump |
| 49 | 5 | Air cleaner
2017-2019, 2021-2022: – |
| 50 | 20 | Power driver’s seat* 2017-2018: Front driver-side front door module 2019: Door module in left-side front door 2020: Door module in left-hand front door Twin Engine: Power driver’s seat 2021-2022: Door module in left-hand front door Recharge PHEV: Power driver’s seat |
| 51 | 20 | Module, active damping*
2017-2019: Active chassis control module (option) 2020-2022: Control module for suspension (active chassis) |
| 52 | 5 | Opening the boot lid/tailgate with foot motion* 2017-2022: – |
| 53 | 10 | Infotainment system
2017-2022: Sensus control module |
| 54 | – | – |
| 55 | –
10 |
– 2018 Twin Engine: Rear climate system blower 2019: Twin-engine: Climate system blower module (rear |
| 56 | 20 | Electrically operated front passenger seat*
2017-2018: Front passenger-side front door module 2019: Door module in right-side front door 2020-2022: Door module in right-hand front door Twin Engine: Electrically operated front passenger seat |
| 57 | – | –
2018 Twin Engine: Display for rear seat convenience functions; On-board diagnostics (OBDII); Extra movement sensor (certain markets only) 2019: Twin-engine: Display for rear seat convenience functions; On-board diagnostics (OBD II) in tunnel console between rear seats; Extra movement sensor |
| 58 | –
5 |
–
2019-2022: TV (certain markets only) |
| 59 | 15 | 2023: Primary fuse infotainment 2017-2018: Circuit breaker for fuses 53 and 58 2019: Primary fuse for fuses 9, 53 and 58 2020-2022: Primary fuse for fuses 52, 53, 57 and 58 |
| * Option/accessory. | ||

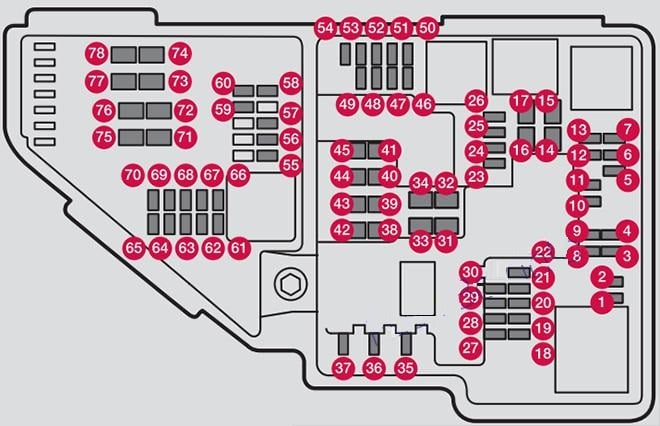

Engine Compartment Fuse Box

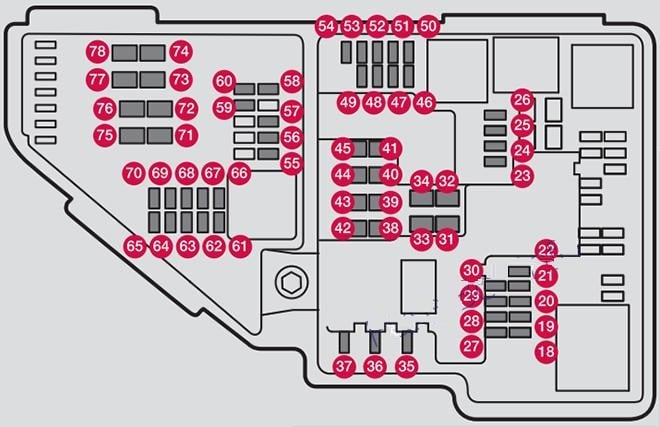

Volvo S90 (2017)
| № | Function | Amp |
|---|---|---|
| 18 | ||
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | Front USB socket (option) | 5 |
| 24 | 12-volt socket in the front tunnel console | 15 |
| 25 | 12-volt socket on the rear side of the tunnel console, 12-volt socket in the tunnel console between the rear seats | 15 |
| 26 | 12-volt socket in the cargo compartment | 15 |
| 27 | – | – |
| 28 | – | – |
| 29 | – | – |
| 30 | – | – |
| 31 | Heated windshield, driver side (option) | Shunt |
| 32 | Heated windshield, driver side (option) | 40 |
| 33 | Headlight washers (option) | 25 |
| 34 | Windshield washer | 25 |
| 35 | – | – |
| 36 | Horn | 20 |
| 37 | Alarm siren (option) | 5 |
| 38 | Brake system control module (valves, parking brake) | 40 |
| 39 | Windshield wipers | 30 |
| 40 | Rear window washer | 25 |
| 41 | Heated windshield, passenger side (option) | 40 |
| 42 | ||
| 43 | Brake system control module (ABS pump) | 40 |
| 44 | ||
| 45 | Heated windshield, passenger side (option) | Shunt |
| 46 | Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module; Brake system control module | 5 |
| 47 | – | – |
| 48 | Passenger side headlight | 7.5 |
| 49 | – | – |
| 50 | – | – |
| 51 | Battery connections control module | 5 |
| 52 | Air bags; Occupant Weight Sensor (OWS) | 5 |
| 53 | Driver side headlight | 7.5 |
| 54 | Accelerator pedal sensor | 5 |
| 55 | Transmission control module | 15 |
| 56 | Engine control module | 5 |
| 57 | – | – |
| 58 | – | – |
| 59 | – | – |
| 60 | – | – |
| 61 | Engine control module; actuator; Turbocharger valve | 20 |
| 62 | Solenoids; Valves; Engine cooling system thermostat | 10 |
| 63 | Vacuum regulators; Valve | 7.5 |
| 64 | Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection | 5 |
| 65 | – | – |
| 66 | Heated oxygen sensors (front and rear) | 15 |
| 67 | Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center) | 15 |
| 68 | – | – |
| 69 | Engine control module | 20 |
| 70 | Ignition coil; Spark plugs | 15 |
| 71 | – | – |
| 72 | – | – |
| 73 | – | – |
| 74 | – | – |
| 75 | – | – |
| 76 | – | – |
| 77 | Starter motor | Shunt |
| 78 | Starter motor | 40 |

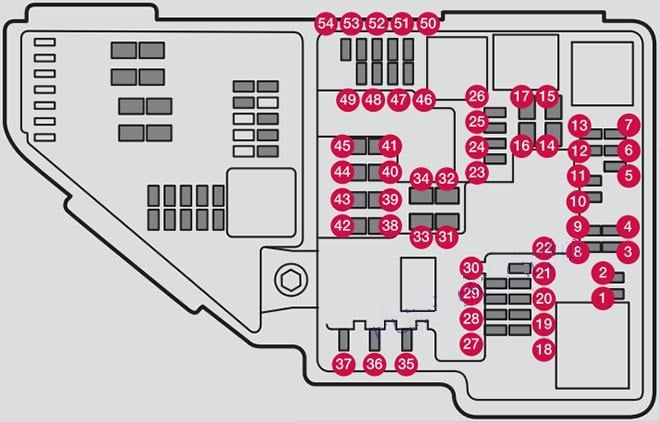

Volvo S90 (2018 – 2024)
Gasoline Engine (2018-2024)
| № | Function | Amp |
|---|---|---|
| 1 | 2018: Heated rear window 2019-2024: – |
30 |
| 2 | 2019-2024: – | |
| 3 | 2018: Pneumatic suspension compressor (option)
2019-2020: – 2021-2022: Lambda sensors; Electric charge pressure module 2023-2024: Charge pressure module, turbo Lambda probe group |
40/15 |
| 4 | Ignition coils, spark plugs
2018: Lock motor, rear seat backrest -passenger’s side 2020-2022: Ignition coils (petrol); Spark plugs (petrol); Exhaust sensor; Diesel particle sensor 2023-2024: Spark plugs/ignition coils (petrol) Exhaust sensor group, diesel particulate/nitrous oxides (diesel) |
15 |
| 5 | Oil pump solenoid, electromagnetic relay, A/C, Center oxygen sensor
2018: – 2019: Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel) 2020-2022: Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, centre (petrol); Lambda probe, rear (diesel); Lambda probe, front (petrol/diesel) 2023-2024: Solenoid engine oil pump Lambda probe group Solenoid air conditioning compressor |
15 |
| 6 | Vacuum regulators, Valve
2018: Lock motor, rear seat backrest -driver’s side 2019: Vacuum regulators; valve; valve for power pulse (diesel) 2020-2022: Vacuum regulators; Valve; Valve for output pulse (diesel); Oil level/temperature sensor (diesel); Glow plugs (GCU) (diesel) 2023-2024: Oil level and temperature sensors Glow plug module (diesel) Engine component group 1 (components related to engine function, including turbo/compressor. Contents depend on engine alternative.) |
7.5/30 |
| 7 | Engine control module, Actuator, throttle unit, Turbocharger valve 2018: – 2019: Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline) 2020-2022: Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol) 2023-2024: Engine Control Module (ECM) Throttle control module Engine component group 2 (components related to engine function, including turbo/compressor. Contents depend on engine alternative.) |
20 |
| 8 | Engine control module
2018: – |
5 |
| 9 | 2018: Power trunk release (option)
2019-2022: – 2023: Fuel evaporation pump (EVAP) |
25 |
| 10 | Solenoids, Valve, Coolant thermostat
2018: Power front seat (passenger side) module 2019: Solenoids (gasoline); valve; Engine cooling system thermostat (gasoline); EGR cooling pump (diesel); glow control module (diesel) 2020-2022: Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); Cooling pump for EGR (diesel); Glow control unit (diesel); Supercharger clutch (petrol); Crankshaft ventilation heater (diesel); Valve, gearbox oil cooler (diesel) 2023-2024: Glow plug module (diesel) Engine component group 3 (components related to engine function, including turbo/compressor and cooling/temperature control of driv-etrain. Contents depend on engine alternative.) |
10/20 |
| 11 | Spoiler shutter control module, Radiator shutter control module
2018: Trailer hitch control module (option) 2019: Spoiler shutter control module; Radiator shutter control module; Relay windings for power pulse (diesel) 2020: Control module for spoiler damper; Control module for radiator damper; Relay coils for output pulse (diesel) 2021-2022: Control module for spoiler damper; Control module for radiator damper; Relay coils for output pulse (diesel); Coolant valve 2023-2024: Control module, spoiler damper Control module, radiator damper Relay coils power pulse (PowerPulse) (diesel) Switching valve, coolant |
5/40 |
| 12 | Front/rear oxygen sensors
2018: Seat belt tensioner module (passenger side) 2019: – 2020-2024: Coolant pump |
15/40 |
| 13 | Engine control module
2018: Internal relay windings 2020: Engine Control Module (ECM) |
20/5 |
| 14 | Starter motor | 40 |
| 15 | Starter motor 2018: Foot movement detection module for opening the power trunk release (option) |
Shunt/5 |
| 16 | 2019,2021-2022: Fuel filter heater (diesel)
2023-2024: Fuel filter heater (diesel) Oil pump (petrol, 2024) Transmission control module (petrol, 2024) |
30 |
| 17 | –
2023: Connection actuator 1 |
25 |
| 18 | 2018: Trailer hitch control module (option) 2019: – 2020-2024: Calculation unit |
25 |
| 19 | 2018: Power front seat (driver seat) module (option)
2019-2024: – |
20/7.5 |
| 20 | 2018: Seat belt tensioner module (driver side) 2019-2024: – |
40/10 |
| 21 | 2018: Parking camera (option)
2019-2020: – 2021-2022: ECM camera 2023-2024: – |
5/15 |
| 22 | 2019-2022: –
2023: Transmission control module |
20 |
| 23 | Front USB socket (option)
2018,2020: – 2019: Front USB port in tunnel console, rear 2021-2024: USB port in tunnel console, rear |
5/7.5 |
| 24 | 12-volt socket in the front tunnel console
2018: – 2020-2024: 12 V socket in tunnel console, front |
15 |
| 25 | 12-volt socket on the rear side of the tunnel console
2018,2023-2024: – 2019: 12 V outlet in tunnel console between rear seats 2020: 12 V socket in tunnel console, by legroom for second seat row |
15 |
| 26 | 12-volt socket in the trunk
2018: Airbag and seat belt tensioner modules 2019: 12 V outlet in trunk/cargo compartment 2020-2024: 12 V socket in cargo area |
15/5 |
| 27 | ||
| 28 | 2018: Heated rear seat (driver side) (option)
2019: – 2020-2024: Left-hand headlamp, LED |
15 |
| 29 | 2020-2024: Right-hand headlamp, LED | 15 |
| 30 | 2018: Blind Spot Information (BLIS) (option), Control module for exterior audible reverse warning (certain markets only) (option) 2019-2022: – 2023-2024: Transmission control module |
5/20 |
| 31 | Heated windshield, driver side (option)
2018: – 2019: Heated windshield, left side 2020-2024: Heated windscreen, left-hand side |
Shunt |
| 32 | Heated windshield, driver side (option)
2018: Seat belt tensioner modules 2019: Heated windshield, left side 2020-2024: Heated windscreen, left-hand side |
40/5 |
| 33 | Headlight washers (option)
2018: Emission system actuator 2020-2024: Headlamp washers |
25/5 |
| 34 | Windshield washer
2018: – 2020-2024: Washer fluid pump |
25 |
| 35 | Transmission control module 2018: – 2020-2024: Transmission control unit; Electric gear selector |
15 |
| 36 | Horn
2018: Heated rear seat (passenger side) (option) |
20/15 |
| 37 | Alarm siren 2018: – |
5 |
| 38 | Brake system control module (valves, parking brake)
2020, 2023-2024: Control module for brake system (valves, parking brake) 2020: Brake control with 48V battery |
40/30 |
| 39 | Windshield wipers 2020-2024: Windscreen wipers |
30 |
| 40 | ||
| 41 | Heated windshield, passenger side (option)
2019: Heated windshield, right side 2020-2024: Heated windscreen, right-hand side |
40 |
| 42 | 2020-2024: Parking heater | 20 |
| 43 | Brake system control module (ABS pump) 2020-2022: Control unit for brake system (ABS pump) 2024: Central electronic module CEM |
40/30 |
| 44 | 2023: Connection actuator 2 | 25 |
| 45 | Heated windshield, passenger side (option)
2019: Heated windshield, right side 2020-2024: Heated windscreen, right-hand side |
Shunt |
| 46 | Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module; Brake system control module
2019: Feed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module 2020-2024: Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module; Control module for brake system |
5 |
| 47 | 2023-2024: Radar, front | 5 |
| 48 | Passenger side headlight 2019: Right-side headlight 2020-2022: Right-hand headlamp, LED 2023-2024: Headlamp, right |
7.5/15 |
| 49 | 2020-2023: Alcohol lock | 5 |
| 50 | 2020-2024: Transmission control module | 10 |
| 51 | Battery connection module 2020-2022: Module for controlling battery engagement 2023-2024: Control module, battery engagement |
5 |
| 52 | Airbags; Occupant Weight Sensor (OWS)
2020-2022: Airbags; Passenger weight sensor 2023-2024: Collision module (SRS) |
5 |
| 53 | Driver side headlight
2019: Left-side headlight 2020-2022: Left-hand headlamp, LED 2023-2024: Headlamp, left |
7.5/15 |
| 54 | Accelerator pedal sensor | 5 |
Twin Engine PHEV (2018-2022)
| № | Function | Amp |
|---|---|---|
| 1 | ||
| 2 | ||
| 3 | ||
| 4 | Control module for actuator for engaging/changing gears
2020-2022: Control module for actuator for engagement/change of automatic gearbox gear positions |
5 |
| 5 | High Voltage Coolant Heater control module
2020-2022: Control module for the high-voltage heater of the internal combustion engine’s coolant |
5 |
| 6 | Control module for: A/C, charge module, heat exchanger cut-off valve, cut-off valve for coolant through the climate system 2020-2022: Control module for air conditioning; Shut-off valve for heat exchanger; Shut-off valve for coolant that passes through the climate control system |
5 |
| 7 | Hybrid battery control module; high-voltage converter for combined high-voltage generator/ starter motor with 500 V-12 V voltage converter
2020-2022: Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500V-12V |
5 |
| 8 | ||
| 9 | Converter for controlling feed to the rear axle electric motor
2020-2022: Converter for control of the supply to the rear axle’s electric motor |
10 |
| 10 | Hybrid battery control module for high-voltage converter for combined high-voltage genera-tor/starter motor with 500 V-12V voltage converter 2020-2022: Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500V-12V |
10 |
| 11 | Charging module
2020-2022: Charging unit |
5 |
| 12 | Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
2020-2022: Shut-off valve for the hybrid battery’s coolant; Coolant pump 1 for hybrid battery |
10/15 |
| 13 | Coolant pump for electric drive system 2020-2022: Coolant pump for electric drive system |
10/15 |
| 14 | Hybrid component cooling fan
2020-2022: Cooling fan for hybrid components |
25 |
| 15 | ||
| 16 | ||
| 17 | ||
| 18 | 2020-2022: Calculation unit | 5 |
| 19 | ||
| 20 | ||
| 21 | ||
| 22 | ||
| 23 | Front USB socket (option)
2020: – |
5 |
| 24 | 12-volt socket in the front tunnel console 2020-2022: 12 V socket in tunnel console, front |
15 |
| 25 | 12-volt socket in the rear seat near the on the rear side of the tunnel console (Not Excellence) ; 12-volt socket/USB sockets in the tunnel console between the rear seats (Excellence)
2020: 12 V socket in tunnel console, by legroom for second seat row 2021-2022: – |
15 |
| 26 | 12-volt socket in the trunk; USB sockets for iPad holders (option) 2020: 12 V socket in cargo area, USB ports in head restraints right/left 2021-2022: 12 V socket in cargo area |
15 |
| 27 | ||
| 28 | 2020-2022: Left-hand headlamp, LED | 15 |
| 29 | 2020-2022: Right-hand headlamp, LED | 15 |
| 30 | ||
| 31 | Heated windshield driver side (option)
2019: Heated windshield, left side 2020-2022: Heated windscreen, left-hand side |
Shunt |
| 32 | Heated windshield driver side (option)
2019: Heated windshield, left side 2020-2022: Heated windscreen, left-hand side |
40 |
| 33 | Headlight washers (option) 2020-2022: Headlamp washers |
25 |
| 34 | Windshield washer
2020-2022: Windscreen washers |
25 |
| 35 | ||
| 36 | Horn | 20 |
| 37 | Alarm siren (option) | 5 |
| 38 | Brake system control module (valves, parking brake)
2020-2022: Control module for brake system (valves, parking brake) |
40 |
| 39 | Windshield wipers 2020-2022: Windscreen wipers |
30 |
| 40 | ||
| 41 | Heated windshield, passenger side (option)
2020-2022: Heated windscreen, right-hand side |
40 |
| 42 | 2020-2022: Parking heater | 20 |
| 43 | Brake system control module (ABS pump)
2020: Control unit for brake system (ABS pump) 2021-2022: – |
40 |
| 44 | 2021-2022: – | |
| 45 | Heated windshield, passenger side (option)
2020-2022: Heated windscreen, right-hand side |
Shunt |
| 46 | Feed when ignition is switched on to: engine control module, transmission components, electrical power steering, central electrical module
2020-2022: Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module |
5 |
| 47 | Exterior vehicle sound (certain markets) 2020-2022: Exterior car noise (certain markets) |
5 |
| 48 | Passenger side headlight
2019: Right-side headlight |
7.5 |
| 48 | Driver’s side headlight, certain LED models
2019: Right-side headlight, some models with LED 2020-2022: Right-hand headlamp, LED |
15/1.5 |
| 49 | 2020-2022: Alcohol lock | 5 |
| 50 | ||
| 51 | ||
| 52 | Airbags; Occupant Weight Sensor (OWS)
2020-2022: Airbags; Passenger weight sensor |
5 |
| 53 | Driver side headlight
2019: Left-side headlight |
7.5/15 |
| 53 | Driver’s side headlight, certain LED models 2019: Left-side headlight, some models with LED 2020-2022: Left-hand headlamp, LED |
15 |
| 54 | Accelerator pedal sensor | 5 |
| 55 | Transmission control module; Gear selector control module
2020-2022: Transmission control module; Control module for gear selector |
15 |
| 56 | Engine control module | 5 |
| 57 | ||
| 58 | ||
| 59 | ||
| 60 | ||
| 61 | Engine control module; Actuator, Turbo-charger valve 2020-2022: Engine control module; Actuator; Throttle unit; Valve for turbocharger |
20 |
| 62 | Solenoids; Valves; Engine cooling system thermostat
2020: Solenoids; Valves; Overpressure connection 2021-2022: Solenoid valves, Valve for fuel leakage monitoring; Overpressure coupling |
10 |
| 63 | Vacuum regulators; Valve 2020: Vacuum regulators; Valve for electric bypass: Valve for ventilation |
7.5 |
| 64 | Spoiler shutter control module; Radiator shutter control module; Fuel leakage detection
2020-2022: Control unit, spoiler damper; Control unit, radiator damper |
5 |
| 65 | ||
| 66 | Heated oxygen sensors (front and rear)
2019: Heated oxygen sensor, front; heated oxygen sensor, rear 2020-2022: Lambda probe, front and rear |
15 |
| 67 | Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)
2020-2022: Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, front, centre and rear |
15 |
| 68 | ||
| 69 | Engine control module | 20 |
| 70 | Ignition coils; Spark plugs | 15 |
| 71 | ||
| 72 | ||
| 73 | Transmission oil pump control module
2020-2022: Control module for transmission fluid pump |
30 |
| 74 | Vacuum pump control module 2021-2022: – |
40 |
| 75 | Transmission actuator
2020: Actuator for transmission 2021-2022: – |
25 |
| 76 | ||
| 77 | ||
| 78 |
Luggage Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| 1 | 30 | Rear window defroster 2017-2019: Heated rear window |
| 2 | 40/20 | Central electronic module
2017:- 2018 Twin Engine: Power rear seat, driver’s side (Excellence models only) 2020: Twin Engine: Central electronic module 2021-2022: Central electronic module |
| 3 | 40 | Compressor, air suspension*
2017-2019: Pneumatic suspension compressor (option) |
| 4 | 15 | Lock motor backrest, right rear 2017-2018: Lock motor, rear seat backrest -passenger’s side 2019: Lock motor for rear seat backrest, right side 2020-2022: Lock motor for backrest on rear right-hand side |
| 5 | – 30 |
–
2018 Twin Engine: 12-volt socket in the tunnel console (Excellence models only) 2019: Twin-engine: Electrical outlets in the tunnel consol (Excellence) |
| 6 | 15 | Lock motor backrest, left rear 2017-2018: Lock motor, rear seat backrest -driver’s side 2019: Lock motor for rear seat backrest, left side 2020-2022: Lock motor for backrest on rear left-hand side |
| 7 | 20 | Door module, right rear 2017: – 2018 Twin Engine: Power rear seat, passenger’s side (Excellence models only) 2019: Twin-engine: Door module right side, rear 2020-2022: Door module right-hand side rear |
| 8 | 30 | Control module for reduction of nitrous oxides (diesel)
2017-2019: – |
| 9 | 25 | Power operated boot lid*
2017-2019: Power trunk release (option) |
| 10 | 20 | Door module, right front 2017-2018: Power front seat (passenger side) module 2020-2022: Electrically operated front passenger seat Door module right-hand side front |
| 11 | 40 | Towbar control module
2017-2018: Trailer hitch control module (option) |
| 12 | 40 | Seatbelt pretensioner, right 2017-2018: Seat belt tensioner module (passenger side) 2019: Seat belt tensioner module (right side) 2020-2022: Seatbelt pretensioner module, right-hand side |
| 13 | 5 | Internal relay coils 2017-2019: Internal relay windings |
| 14 | 15 | Control module for reduction of nitrous oxides (diesel)
2017-2018: – 2019: Door module left side, rear |
| 15 | 20/5 | Door module, left rear 2017-2019: Foot movement detection module for opening the power trunk release (option) 2020-2022: Door module left-hand side rear |
| 16 | 5 | 2023: Alcohol lock
2017-2018: – 2019: USB hub/accessory port 2020-2022: Alcohol lock, USB hub/accessory port |
| 17 | –
5 |
– 2020: Enhanced accessory module |
| 18 | 25 | Towbar control module
2017-2018: Trailer hitch control module (option) |
| 40 | Accessory module | |
| 19 | 20 | Door module, left front
2017-2018: Power front seat (driver seat) module (option) 2020-2022: Power driver seat* Door module left-hand side front |
| 20 | 40 | Seatbelt pretensioner, left
2017-2018: Seat belt tensioner module (driver side) 2019: Seat belt tensioner module (left side) 2020-2022: Seatbelt pretensioner module, left-hand side |
| 21 | 5 | 2023: Parking camera*
2017-2022: Parking camera (option) |
| 22 | 10 | Rear lighting (backup)
2017-2020: – 2021-2022: Rear light module back-up power supply |
| 23 | – | – |
| 24 | 5 | Position prepared for special vehicle
2017-2022: – |
| 25 | –
10 |
– 2018-2019: Twin Engine: Feed when ignition is on 2020: Twin Engine: Supply when the ignition is switched on 2021-2022: Recharge PHEV: Supply when the ignition is switched on |
| 26 | – 5 |
–
2017-2018: Airbag and seat belt tensioner modules 2019: Control module for airbags and seat belt tensioners |
| 27 | – 10 |
–
2019: Twin-engine: Cooled; Heated/cooled cup holder (rear) (Excellence) |
| 28 | 15 | Seat heating, left rear*
2017-2018: Heated rear seat (driver side) (option) 2019: Heated rear seat (left side) 2020-2022: Seat heating left-hand side rear |
| 29 | 5 | 2024: Actuator, exhaust system (petrol)
2017-2019, 2021-2022: – |
| 30 | 5 | Blind Spot Information (BLIS)* 2017-2018: Blind Spot Information (BUS) (option) 2019: Blind Spot Information (BUS); Exterior reverse signal control module 2020-2022: Blind Spot Information (BLIS): control module, exterior reversing sound |
| 31 | – | – |
| 32 | 5 | 2023: Seatbelt pretensioner, left 2017-2019: Seat belt tensioner modules 2020-2022: Seatbelt pretensioner modules |
| 33 | 5 | 2023: Actuator, exhaust system (petrol)
2017-2018: Emission system actuator 2019: Emissions system actuator (gasoline, certain engine variants) 2020-2022: Actuator for exhaust gases (petrol, certain engine variants) |
| 34 | – | – |
| 35 | 15 | Control module All Wheel Drive (AWD)*
2017,2020-2022: All Wheel Drive control module (option) 2018 Twin Turbo:- 2019: – |
| 36 | 15 | Seat heating, right rear*
2017-2018: Heated rear seat (passenger side) (option) 2019: Heated rear seat (right side) 2020-2022: Seat heating right-hand side rear |
| 37 | – | – |
| * Option/accessory | ||
Related Posts:
