BAIC BJ60 (B60) 2024 Fuse Box Diagrams & Location
The BAIC BJ60 (B60) 2024 uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the BAIC BJ60.
Fuse Box Location
Passenger Compartment Fuse Box

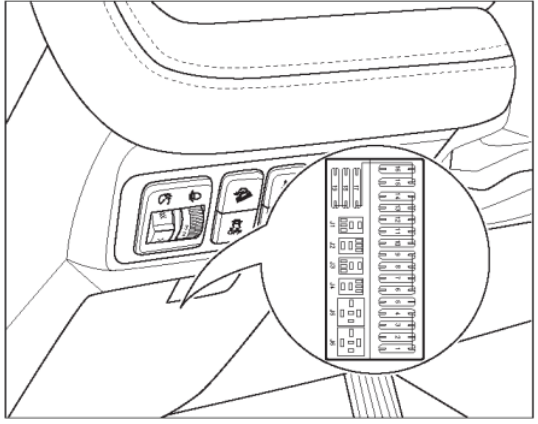

The dashboard fuse box is located on the left side of the turning column under the dashboard, behind the left storage box of the dashboard. The left storage box of the dashboard shall be removed for inspection or repair.
Engine Compartment Fuse Box

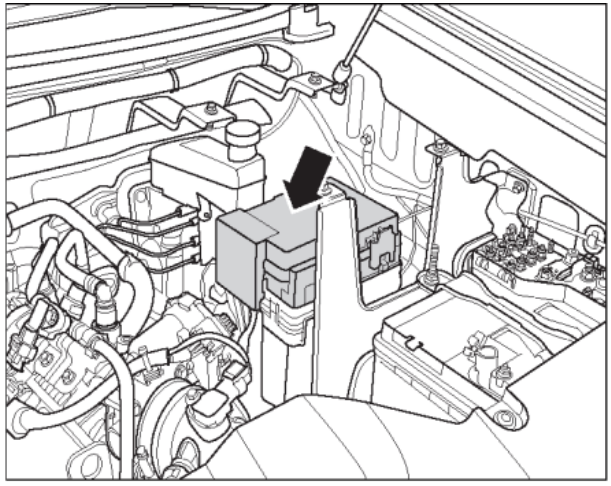

The electrical box in engine compartment is installed on the left front wheel cover assembly, and the upper cover of the electrical box in engine compartment shall be removed for easy viewing during inspection or repair.
(Gasoline model)

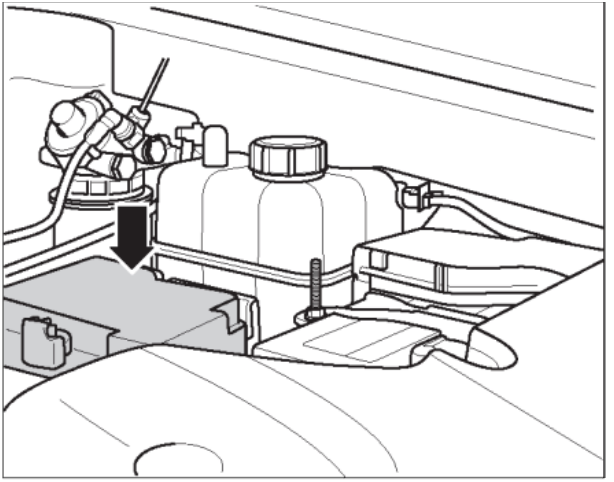

(Diesel models)
Battery positive fuse box
The positive fuse box of the battery is located on the positive pole of the battery. The cover of the fuse box should be removed for inspection or repair.

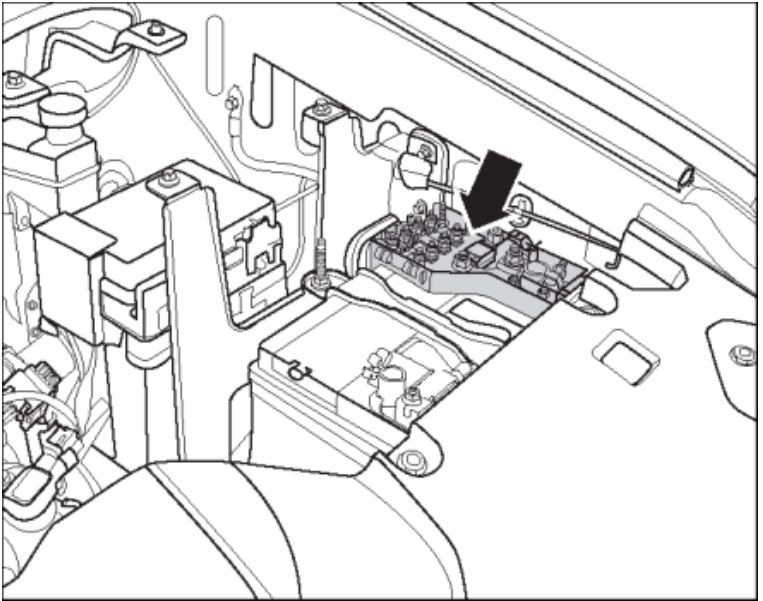

(Gasoline model)

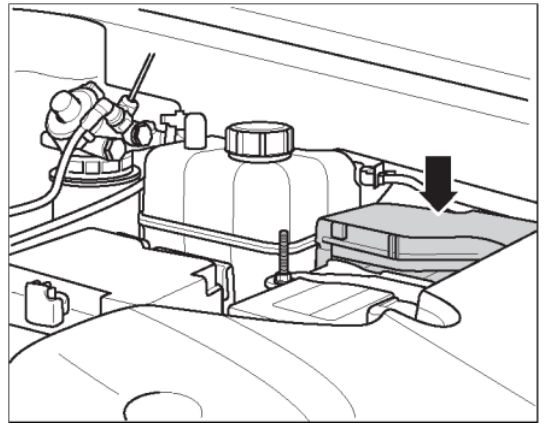

(Diesel models)
Luggage Compartment Fuse Box
Body fuse box

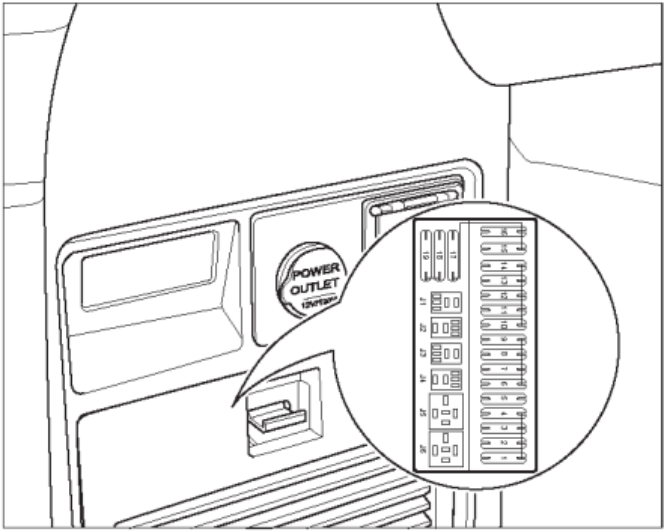

The body fuse box is located on the left side of the trunk and behind the access cover plate. The access cover plate needs to be removed for inspection or repair.
Fuse Box Diagrams

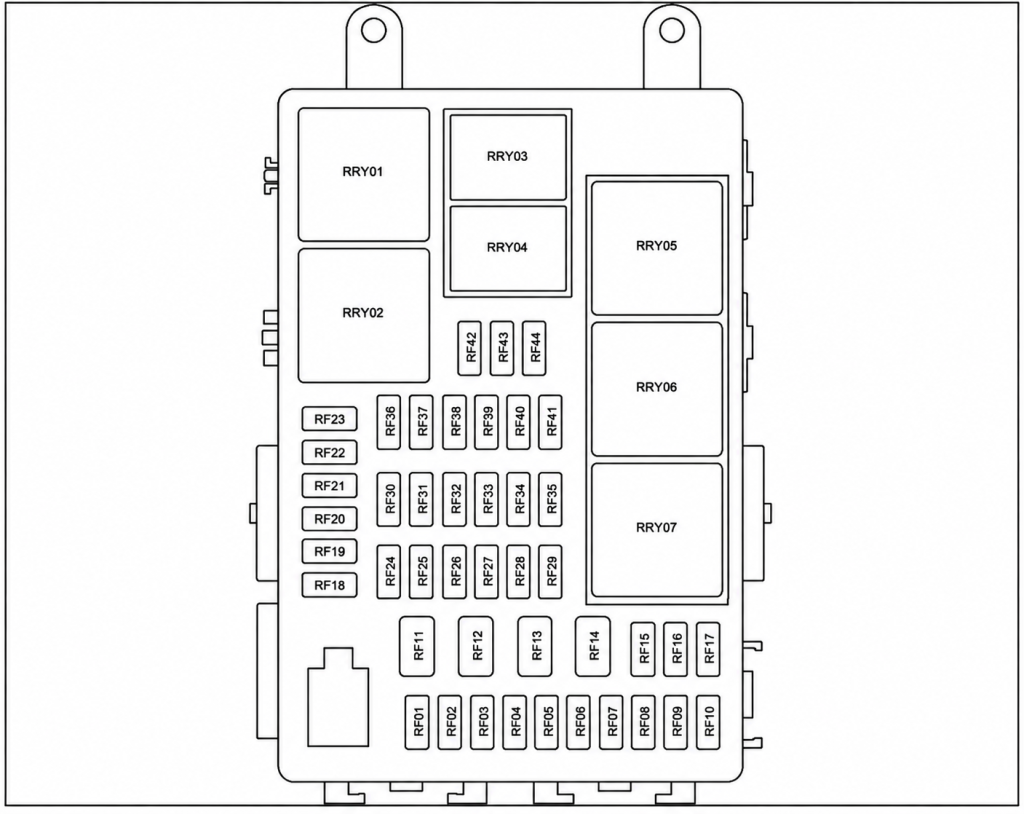

Passenger Compartment Fuse Box
| Position | Specification | Function |
|---|---|---|
| RF01 | 30A | Electric sunroof |
| RF02 | 30A | IG1 relay |
| RF03 | 30A | Constant power |
| RF04 | 10A | Left front door control module |
| RF05 | 10A | Right front door control module |
| RF06 | 10A | Auxiliary instrument harness constant electric |
| RF07 | 20A | Electronic differential lock |
| RF08 | Reserved | — |
| RF09 | 15A | Auxiliary instrument harness ACC |
| RF10 | 15A | Second row 12V power supply ACC |
| RF11 | 30A | Left side window motor |
| RF12 | 30A | Right side window motor |
| RF13 | 30A | Front passenger seat adjustment |
| RF14 | 40A | ACC relay |
| RF15 | Reserved | — |
| RF16 | Reserved | — |
| RF17 | Reserved | — |
| RF18 | 10A | BDC (Body Domain Control system) |
| RF19 | 5A | BDC (Body Domain Control system) |
| RF20 | 15A | BDC (Body Domain Control system) |
| RF21 | 25A | BDC (Body Domain Control system) |
| RF22 | 25A | BDC (Body Domain Control system) |
| RF23 | 10A | BDC (Body Domain Control system) |
| RF24 | 10A | Engine compartment IG / brake lamp switch IG / yaw rate sensor IG / BDC IG |
| RF25 | 15A | Turning wheel heating IG |
| RF26 | 10A | Body line ACC / turning wheel switch ACC |
| RF27 | 10A | Host ACC / APA ACC / assistant instrument Type-C charging port ACC / BDC ACC |
| RF28 | 10A | Front 220V power supply ACC / rear 220V power supply ACC |
| RF29 | 15A | Rear 12V power supply ACC |
| RF30 | 10A | Body line IG |
| RF31 | 10A | Instrument IG |
| RF32 | 5A | Airbag controller IG |
| RF33 | 5A | Gateway IG |
| RF34 | 10A | Auxiliary instrument IG / off-road information module IG |
| RF35 | 10A | Engine compartment sensor IG / corner IG |
| RF36 | 10A | Brake lamp switch / HUD / turning wheel switch / front A/C switch / off-road information / one-key start constant power |
| RF37 | 15A | OBD / host BATT |
| RF38 | 10A | Gateway normal current |
| RF39 | 10A | Instrument cluster / TBOX BATT |
| RF40 | 10A | DVR / streaming media side mirror / ETC / rain sensor / ambient light / A/C controller normally ON |
| RF41 | Reserved | — |
| RF42 | Reserved | — |
| RF43 | Reserved | — |
| RF44 | Reserved | — |
| RRY01 | Reserved | — |
| RRY02 | Reserved | — |
| RRY03 | Reserved | — |
| RRY04 | Reserved | — |
| RRY05 | Reserved | — |
| RRY06 | Small relay | IG1 relay |
| RRY07 | Small relay | ACC relay |

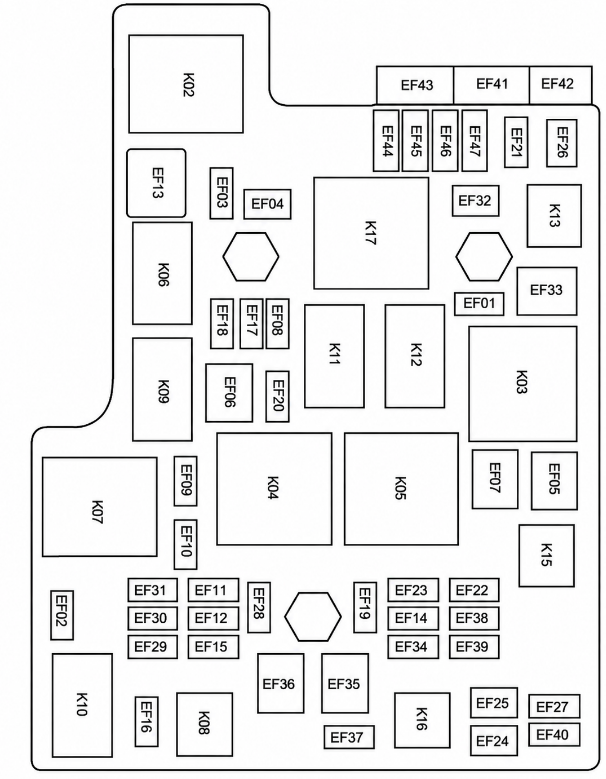

Engine Compartment Fuse Box
(Gasoline model)
| Position | Specification | Function |
|---|---|---|
| EF01 | 10A | EMS B+ |
| EF02 | 15A | Compressor |
| EF03 | 5A | Start Feedback |
| EF04 | 30A | Starter |
| EF05 | — | Reserved |
| EF06 | — | Reserved |
| EF07 | — | Reserved |
| EF08 | 20A | Oil Pump |
| EF09 | 10A | 87 Electrical Signal Fuse |
| EF10 | 15A | ECU-K |
| EF11 | 15A | EMS Load |
| EF12 | 15A | Ignition Coil |
| EF13 | 30A | Main Relay |
| EF14 | 5A | DCDC Sensor |
| EF15 | 5A | IBS |
| EF16 | — | Reserved |
| EF17 | 15A | Left Low Beam Fuse |
| EF18 | 15A | Right Low Beam Fuse |
| EF19 | 20A | High Beam Relay |
| EF20 | 25A | Front Wiper |
| EF21 | 10A | Left Front Fog Lamp |
| EF22 | 10A | Right Front Fog Lamp |
| EF23 | 15A | Horn Relay |
| EF24 | — | Reserved |
| EF25 | — | Reserved |
| EF26 | — | Reserved |
| EF27 | — | Reserved |
| EF28 | 10A | Constant Electric of BSG Motor |
| EF29 | — | Reserved |
| EF30 | — | Reserved |
| EF31 | — | Reserved |
| EF32 | — | Reserved |
| EF33 | 40A | Front Blower |
| EF34 | 10A | TCU B+ |
| EF35 | 40A | WCBS B+ |
| EF36 | — | Reserved |
| EF37 | — | Reserved |
| EF38 | — | Reserved |
| EF39 | — | Reserved |
| EF40 | — | Reserved |
| EF41 | 80A | IEC |
| EF42 | 60A | Body Fuse Box |
| EF43 | 60A | WCBS |
| K01 | — | Built-in Relay Compressor |
| K02 | — | Starter |
| K03 | — | Reserved |
| K04 | — | Reserved |
| K05 | — | Reserved |
| K06 | — | Oil Pump |
| K07 | — | Main Relay |
| K08 | — | Reserved |
| K09 | — | Low Beam Relay |
| K10 | — | High Beam Relay |
| K11 | — | Front Low Speed Wiper |
| K12 | — | Front Wiper |
| K13 | — | Left Front Fog Lamp |
| K14 | — | Built-in Relay Right Front Fog Lamp |
| K15 | — | Horn Relay |
| K16 | — | Reserved |
| K18 | — | Built-in Relay Reserved |
| K19 | — | Built-in Relay Reserved |
(Diesel models)
| Position | Specification | Function |
|---|---|---|
| EF01 | 10A | EMS B+ |
| EF02 | 15A | Compressor |
| EF03 | 5A | Start Feedback |
| EF04 | 30A | Starter |
| EF05 | 40A | Reserved |
| EF06 | – | Reserved |
| EF07 | – | Reserved |
| EF08 | 30A | Oil Pump |
| EF09 | 10A | 87 Electrical Signal Fuse |
| EF10 | 20A | ECU-K |
| EF11 | 15A | EMS Load |
| EF12 | 15A | EMS Load 1 |
| EF13 | 40A | Main Relay |
| EF14 | 5A | DCDC Sensor |
| EF15 | 5A | IBS |
| EF16 | 15A | Reserved |
| EF17 | 15A | Left Low Beam Fuse |
| EF18 | 15A | Right Low Beam Fuse |
| EF19 | 20A | High Beam Relay |
| EF20 | 25A | Front Wiper |
| EF21 | 10A | Left Front Fog Lamp |
| EF22 | 10A | Right Front Fog Lamp |
| EF23 | 15A | Horn Relay |
| EF24 | – | Reserved |
| EF25 | – | Reserved |
| EF26 | – | Reserved |
| EF27 | – | Reserved |
| EF28 | 10A | Constant Electric of BSG Motor |
| EF29 | – | Reserved |
| EF30 | – | Reserved |
| EF31 | – | Reserved |
| EF32 | – | Reserved |
| EF33 | 40A | Front Blower |
| EF34 | 10A | TCU B+ |
| EF35 | 40A | WCBS B+ |
| EF36 | 60A | Reserved |
| EF37 | – | Reserved |
| EF38 | – | Reserved |
| EF39 | – | Reserved |
| EF40 | – | Reserved |
| EF41 | 80A | IEC |
| EF42 | 60A | Body Fuse Box |
| EF43 | 60A | WCBS |
| K01 | Built-in Relay | Compressor |
| K02 | – | Starter |
| K03 | – | Reserved |
| K04 | – | Reserved |
| K05 | – | Reserved |
| K06 | – | Oil Pump |
| K07 | – | Main Relay |
| K08 | – | Reserved |
| K09 | – | Low Beam Relay |
| K10 | – | High Beam Relay |
| K11 | – | Front Low Speed Wiper |
| K12 | – | Front Wiper |
| K13 | – | Left Front Fog Lamp |
| K14 | Built-in Relay | Right Front Fog Lamp |
| K15 | – | Horn Relay |
| K16 | – | Reserved |
| K18 | Built-in Relay | Reserved |
| K19 | Built-in Relay | Reserved |

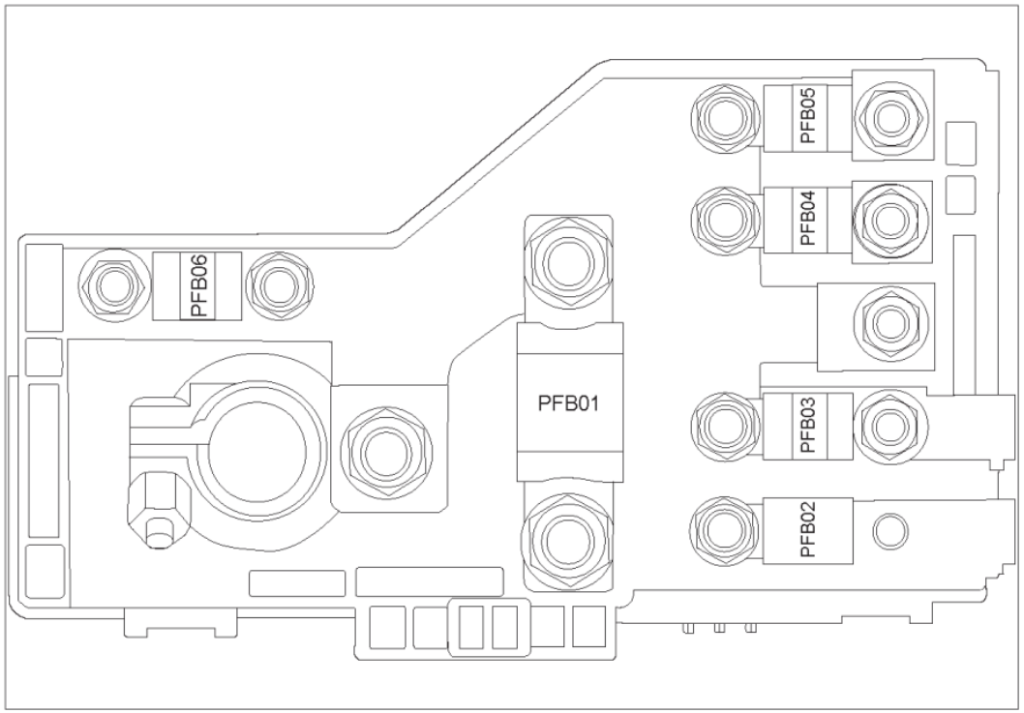

Battery positive fuse box
| Position | Specification | Function |
|---|---|---|
| PFB01 | 200A | Alternator |
| PFB02 | – | Reserved |
| PFB03 | 125A | Engine Compartment Fuse Box Power Supply |
| PFB04 | 60A | Right Fan |
| PFB05 | 100A | EPS (Electronic Power Steering) |
| PFB06 | 80A | Left Fan |
Luggage Compartment Fuse Box

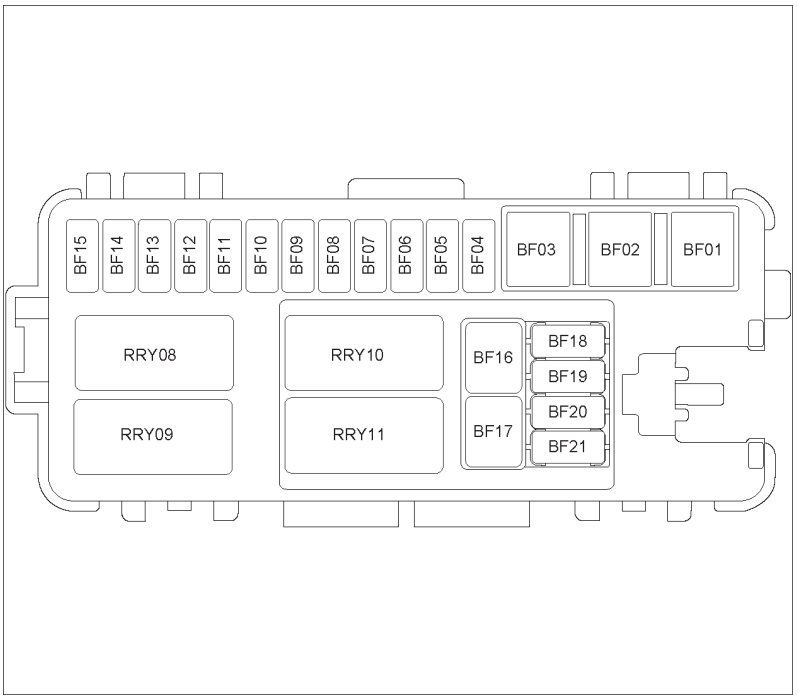

Body fuse box
| Position | Specification | Function |
|---|---|---|
| BF01 | 30A | Driver’s seat power supply |
| BF02 | 30A | Driver’s seat power supply |
| BF03 | 30A | Rear A/C box |
| BF04 | 20A | Second row seat power supply |
| BF05 | 30A | Rear defrosting |
| BF06 | 10A | Driver’s lumbar support / Front passenger’s lumbar support |
| BF07 | 30A | Rear 220V power supply |
| BF08 | 10A | 48V battery / ACC camera |
| BF09 | 25A | Power amplifier controller A |
| BF10 | 15A | Rear wiper |
| BF11 | 30A | Front 220V power supply |
| BF12 | 5A | Rear left corner sensor / RF receiving antenna |
| BF13 | 30A | 4WD controller |
| BF14 | 25A | Power amplifier controller A |
| BF15 | 10A | Automatic parking controller |
| BF16 | 30A | Driver’s seat power supply |
| BF17 | – | Reserved |
| BF18 | – | Reserved |
| BF19 | – | Reserved |
| BF20 | – | Reserved |
| BF21 | – | Reserved |
| RRY08 | Small Relay | Rear wiper relay |
| RRY09 | Small Relay | Rear A/C box relay |
| RRY10 | Small Relay | Rear defroster relay / Accessories relay |
| RRY11 | – | Reserved |
