Dacia Logan MCV (2013-2020) Fuse Box Diagrams & Location

The Dacia Logan MCV (2013–2020) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Logan MCV.

Fuse Box Location

Passenger Compartment Fuse Box

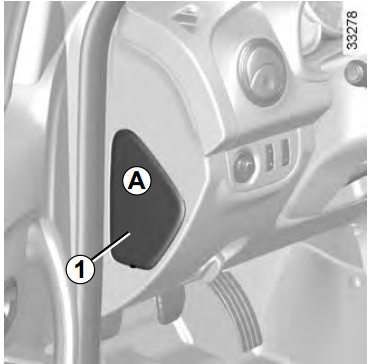

If any electrical component does not work, check the condition of the fuses. Unclip flap A using notch 1 to help you.

Passenger-Compartment-Fuse-Box-Location-75

Clip 1

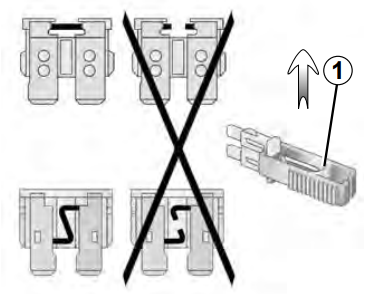

Remove the fuse using tweezers 1, located at the back of flap A. To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.

Passenger-Compartment-Fuse-Box-Clip-1-1

Engine Compartment Fuse Box

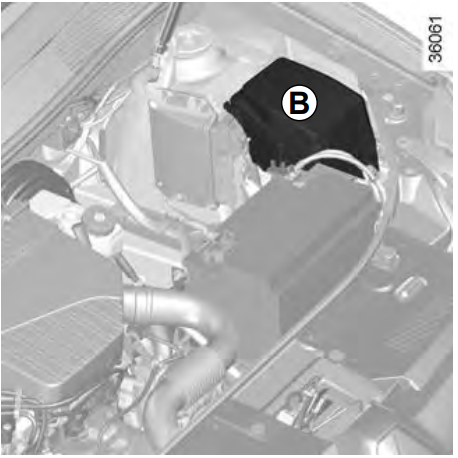

Some functions are protected by fuses located in the engine compartment (unit B). However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer.

Engine-Compartment-Fuse-Box-Location-

Fuse Box Diagrams

Passenger Compartment Fuse Box

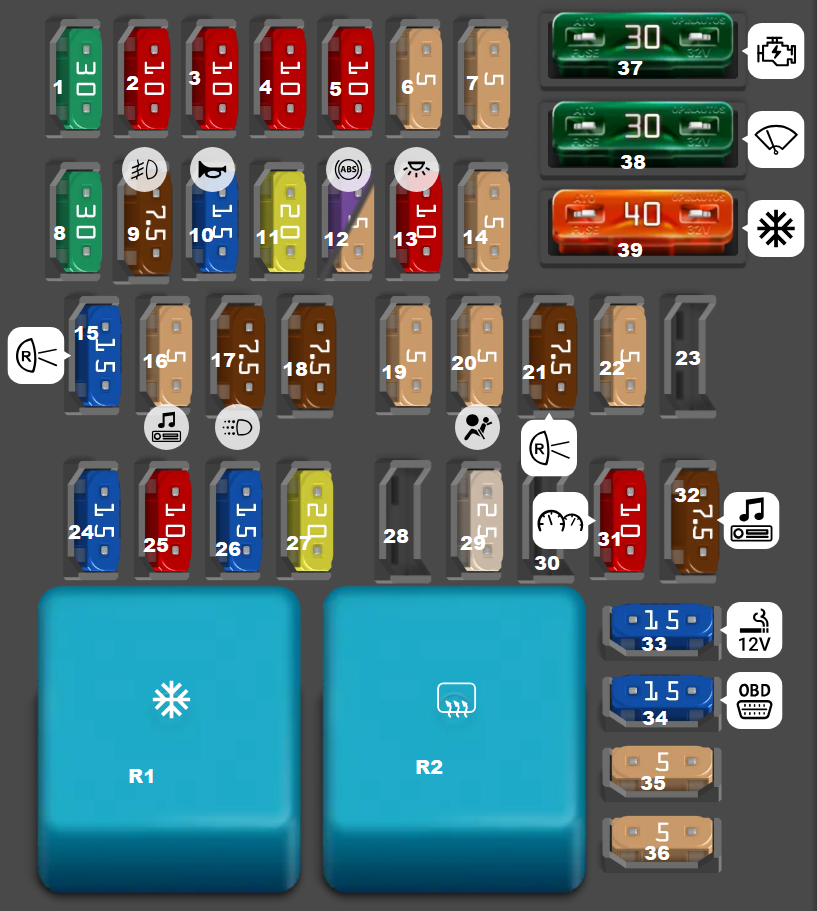

Passenger-Compartment-Fuse-Box-Diagrams-25

Type No. Description Fuse Rating
Fuse MINI 1 Electric glass front lifts 30A
Fuse MINI 2 High beam left headlight 10A
Fuse MINI 3 High beam right headlight 10A
Fuse MINI 4 Low beam left headlight 10A
Fuse MINI 5 High beam right headlight 10A
Fuse MINI 6 Rear dimensions, number illumination, illumination 5A
Fuse MINI 7 Front dimensions 5A
Fuse MINI 8 Electric glass rear lifts 30A
Fuse MINI 9 Rear fog lamp 7.5A
Fuse MINI 10 Horn 15A
Fuse MINI 11 Central locking 20A
Fuse MINI 12 ABS/ESP 3A
Fuse MINI 12 ABS/ESP 5A
Fuse MINI 13 Interior lighting, air conditioning 10A
Fuse MINI 14 Steering angle sensor 5A
Fuse MINI 15 Glass washer, parking radar, reversing light 15A
Fuse MINI 16 Audio system, heated glass, speed limiter 5A
Fuse MINI 17 DRL 7.5A
Fuse MINI 18 Brake light 7.5A
Fuse MINI 19 Control system 5A
Fuse MINI 20 Airbags 5A
Fuse MINI 21 Reversing lamp, AMT control unit 7.5A
Fuse MINI 22 Electric power steering pump 5A
Fuse MINI 24 Direction indicator 15A
Fuse MINI 25 Anti-theft system 10A
Fuse MINI 26 Electrical control unit 15A
Fuse MINI 27 Steering column switches (low beam input) 20A
Fuse MINI 29 Steering column switches (high beam input) 25A
Fuse MINI 31 Instrument cluster 10A
Fuse MINI 32 Audio system 7.5A
Fuse MINI 33 Cigarette lighter 15A
Fuse MINI 34 Diagnostic connector 15A
Fuse MINI 35 Heated exterior mirrors 5A
Fuse MINI 36 Mirror drive 5A
Fuse ATO 37 Starter 30A
Fuse ATO 38 Wiper 30A
Fuse ATO 39 Air conditioner 40A
Relay R1 Air conditioner relay —
Relay R2 Rear defogger relay —

Engine Compartment Fuse Box

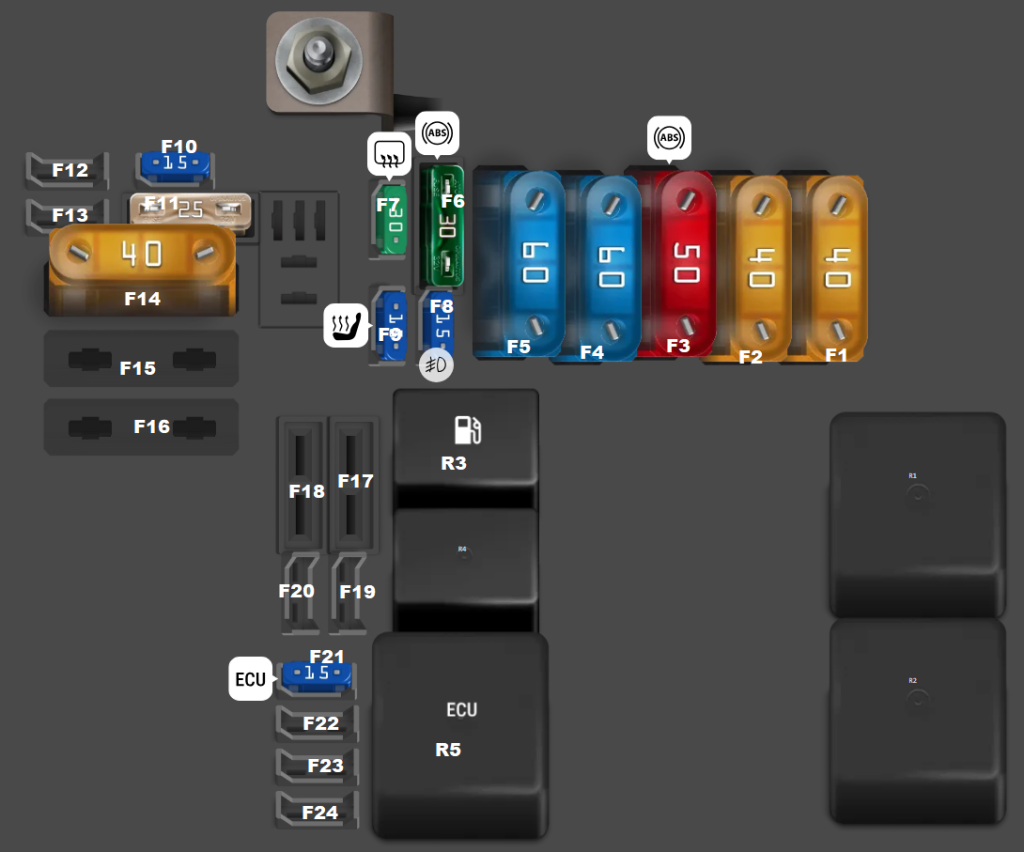

Engine-Compartment-Fuse-Box-Diagrams-27-1024x852

Type No. Description Fuse Rating
Fuse MAXI F1 Right windscreen heating element 40A
Fuse MAXI F2 Left windshield heating element 40A
Fuse MAXI F3 ABS/ESP 50A
Fuse MAXI F4 Immobilizer, passenger compartment fuse supply circuit F28-F31 60A
Fuse MAXI F5 Power supply for passenger compartment fuses F11, F23-F27, F34 and F39 60A
Fuse ATO F6 ABS/ESP 30A
Fuse MINI F7 Heated rear window and mirrors 30A
Fuse MINI F8 Front fog lights 15A
Fuse MINI F9 Heated seats 15A
Fuse MINI F10 Air conditioner clutch (equipment with air conditioning) / First speed of electric fan (equipment without air conditioning) 15A
Fuse ATO F11 Fuse for the relay of the engine management system 25A
Fuse MAXI F14 Electro cooling fan 40A
Fuse MINI F21 Engine management system 15A
Relay R1 Relay for left glass heating —
Relay R2 Relay for the right glass heating —
Relay R3 Fuel pump relay —
Relay R4 Relay for the air conditioner compressor or the first speed of the electric fan (depending on the configuration) —
Relay R5 Engine control relay —
