Dacia Sandero (2012–2020) Fuse Box Diagrams & Location
The Dacia Sandero (2012–2020) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Sandero.
Fuse Box Location

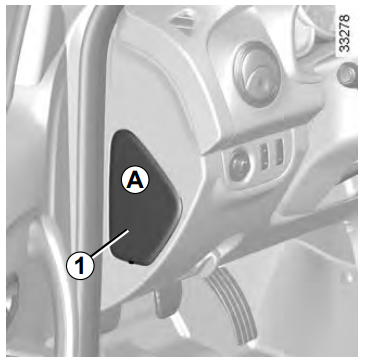

Passenger Compartment Fuse Box
If any electrical component does not work, check the condition of the fuses. Unclip flap A using notch 1 to help you.

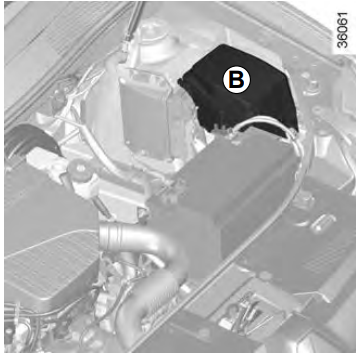

Engine Compartment Fuse Box
Some functions are protected by fuses located in the engine compartment (unit B).
Fuse Box Diagrams
Passenger Compartment Fuse Box

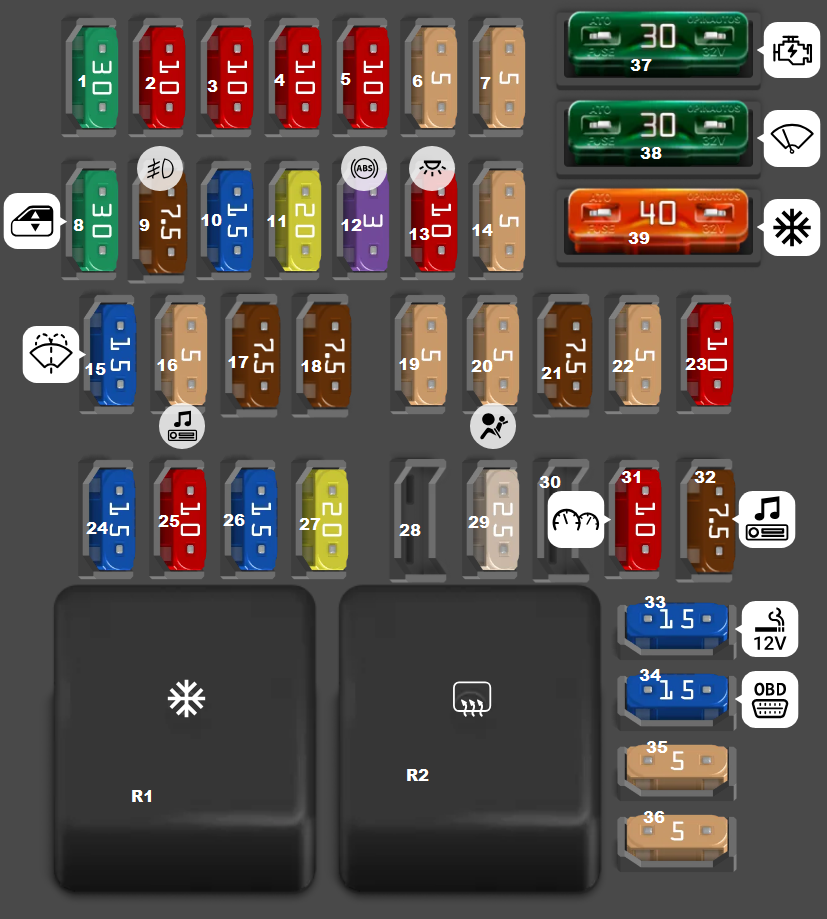

Dacia Sandero (2012-2015)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 30A | 1 | Electric front windows |
| Fuse MINI 10A | 2 | Left high beam headlight |
| Fuse MINI 10A | 3 | Right high beam headlight |
| Fuse MINI 10A | 4 | Left low beam headlight |
| Fuse MINI 10A | 5 | Right low beam headlight |
| Fuse MINI 5A | 6 | Rear dimensions, number plate illumination, interior illumination |
| Fuse MINI 5A | 7 | Front dimensions |
| Fuse MINI 30A | 8 | Rear electric windows |
| Fuse MINI 7.5A | 9 | Rear fog lamp |
| Fuse MINI 15A | 10 | Horn |
| Fuse MINI 20A | 11 | Central locking system |
| Fuse MINI 3A | 12 | ABS/ESP system |
| Fuse MINI 10A | 13 | Interior lighting and air conditioning |
| Fuse MINI 5A | 14 | Steering angle sensor |
| Fuse MINI 15A | 15 | Windscreen washer, parking radar, reversing light |
| Fuse MINI 5A | 16 | Audio system, heated rear glass, speed limiter |
| Fuse MINI 7.5A | 17 | Daytime running lights (DRL) |
| Fuse MINI 7.5A | 18 | Brake lights |
| Fuse MINI 5A | 19 | Control system |
| Fuse MINI 5A | 20 | Airbag system |
| Fuse MINI 7.5A | 21 | Spare fuse |
| Fuse MINI 5A | 22 | Spare fuse |
| Fuse MINI 10A | 23 | Spare fuse |
| Fuse MINI 15A | 24 | Direction indicators |
| Fuse MINI 10A | 25 | Anti-theft system |
| Fuse MINI 15A | 26 | Electrical control unit |
| Fuse MINI 20A | 27 | Steering column switches (low beam input) |
| Fuse MINI 25A | 29 | Steering column switches (high beam input) |
| Fuse MINI 10A | 31 | Instrument cluster |
| Fuse MINI 7.5A | 32 | Audio system |
| Fuse MINI 15A | 33 | Cigarette lighter / power outlet |
| Fuse MINI 15A | 34 | Diagnostic connector |
| Fuse MINI 5A | 35 | Heated exterior mirrors |
| Fuse MINI 5A | 36 | Mirror adjustment system |
| Fuse ATO 30A | 37 | Starter motor |
| Fuse ATO 30A | 38 | Windshield wiper system |
| Fuse ATO 40A | 39 | Air conditioning system |
| Relay | R1 | Air conditioning relay |
| Relay | R2 | Rear defogger relay |

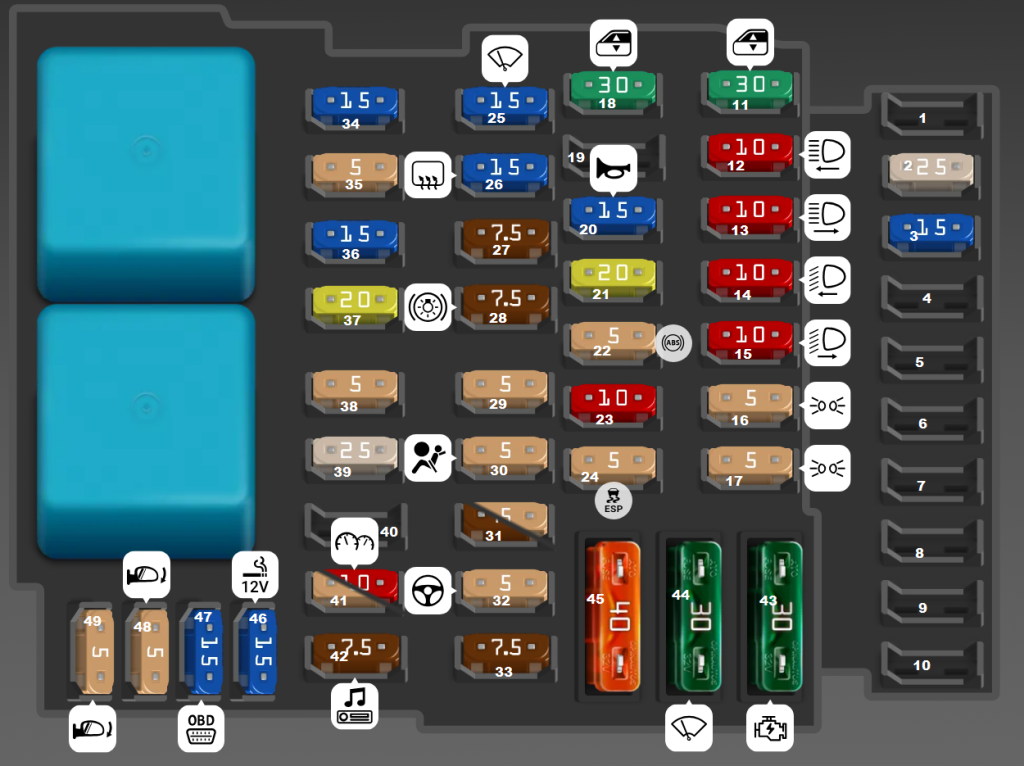

Dacia Sandero (2016-2019)
| Type | No. | Description |
|---|---|---|
| Fuse MINI 25A | 2 | One-touch driver’s electric window |
| Fuse MINI 15A | 3 | Alarm system (optional) |
| Fuse MINI 30A | 11 | Front electric windows |
| Fuse MINI 10A | 12 | Left-hand main beam headlight |
| Fuse MINI 10A | 13 | Right-hand main beam headlight |
| Fuse MINI 10A | 14 | Left-hand dipped beam headlight |
| Fuse MINI 10A | 15 | Right-hand dipped beam headlight |
| Fuse MINI 5A | 16 | Left-hand side lights |
| Fuse MINI 5A | 17 | Right-hand side lights |
| Fuse MINI 30A | 18 | Rear electric windows |
| Fuse MINI 15A | 20 | Horn |
| Fuse MINI 20A | 21 | Automatic door locking system |
| Fuse MINI 5A | 22 | ABS system |
| Fuse MINI 10A | 23 | Interior light, one-touch driver’s electric window, air conditioning |
| Fuse MINI 5A | 24 | ESC, parking distance control, rear demister |
| Fuse MINI 15A | 25 | Reverse gear, windshield wiper |
| Fuse MINI 15A | 26 | Cruise control/speed limiter, heated door mirror, rear screen, seat belt warning, parking distance control, multimedia system |
| Fuse MINI 7.5A | 27 | Not used |
| Fuse MINI 7.5A | 28 | Stop lights |
| Fuse MINI 5A | 29 | Injection system, reserved location for additional equipment |
| Fuse MINI 5A | 30 | Airbag system |
| Fuse MINI 7.5A | 31 | Petrol fuel circuit fault (depending on vehicle version) |
| Fuse MINI 5A | 31 | Petrol fuel circuit fault (depending on vehicle version) |
| Fuse MINI 5A | 32 | Power steering system |
| Fuse MINI 7.5A | 33 | Reserved location for additional equipment |
| Fuse MINI 15A | 34 | Direction indicators |
| Fuse MINI 5A | 35 | Passenger compartment central control unit |
| Fuse MINI 15A | 36 | Passenger compartment central control unit |
| Fuse MINI 20A | 37 | Steering column control |
| Fuse MINI 5A | 38 | Reserved location for additional equipment |
| Fuse MINI 25A | 39 | Steering column control |
| Fuse MINI 5A | 41 | Instrument panel |
| Fuse MINI 10A | 41 | Instrument panel |
| Fuse MINI 7.5A | 42 | Radio system |
| Fuse ATO 30A | 43 | Starter motor |
| Fuse ATO 30A | 44 | Windshield wiper system |
| Fuse ATO 40A | 45 | Passenger compartment ventilation |
| Fuse MINI 15A | 46 | Cigarette lighter / power outlet |
| Fuse MINI 15A | 47 | Diagnostic socket and radio |
| Fuse MINI 5A | 48 | Heated door mirror |
| Fuse MINI 5A | 49 | Electric door mirrors |
Engine Compartment Fuse Box
Dacia Sandero (2012-2015)

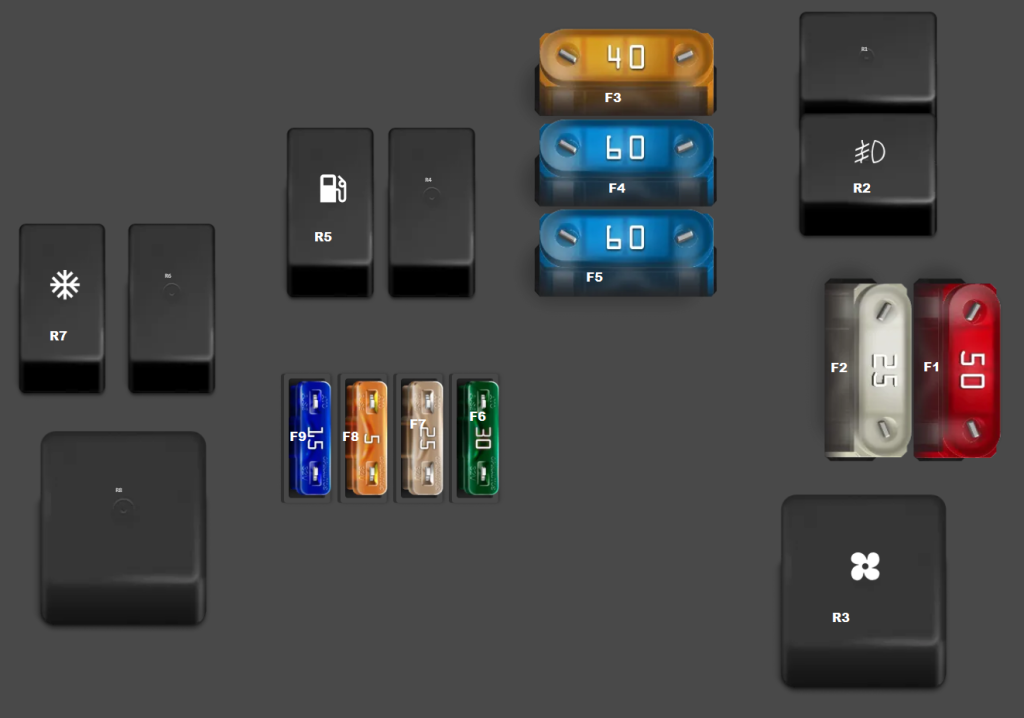

TYPE 1
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 50A | F1 | ABS ECU circuits |
| Fuse MAXI 25A | F2 | ABS ECU circuits |
| Fuse MAXI 40A | F3 | Power supply circuits |
| Fuse MAXI 60A | F4 | Passenger compartment fuse box power supply |
| Fuse MAXI 60A | F5 | Main electrical circuits |
| Fuse ATO 30A | F6 | Power circuit |
| Fuse ATO 25A | F7 | Power supply circuits |
| Fuse ATO 5A | F8 | Electrical circuits |
| Fuse ATO 15A | F9 | Not used |
| Relay | R1 | Headlight washer pump relay |
| Relay | R2 | Fog lamp relay |
| Relay | R3 | Heater blower fan relay / heater fan motor relay |
| Relay | R4 | Main engine control system relay, oxygen sensor, speed sensor, fuel injectors, purge valve, and relay coils K2, K3, K4 |
| Relay | R5 | Fuel pump relay and ignition coil |
| Relay | R6 | Low-speed cooling fan relay (with air conditioning) or radiator cooling fan relay (without air conditioning); cooling fan motor through resistor (with air conditioning) |
| Relay | R7 | Air conditioning relay and compressor electromagnetic clutch |
| Relay | R8 | High-speed cooling fan relay (with air conditioning) and radiator cooling fan motor |

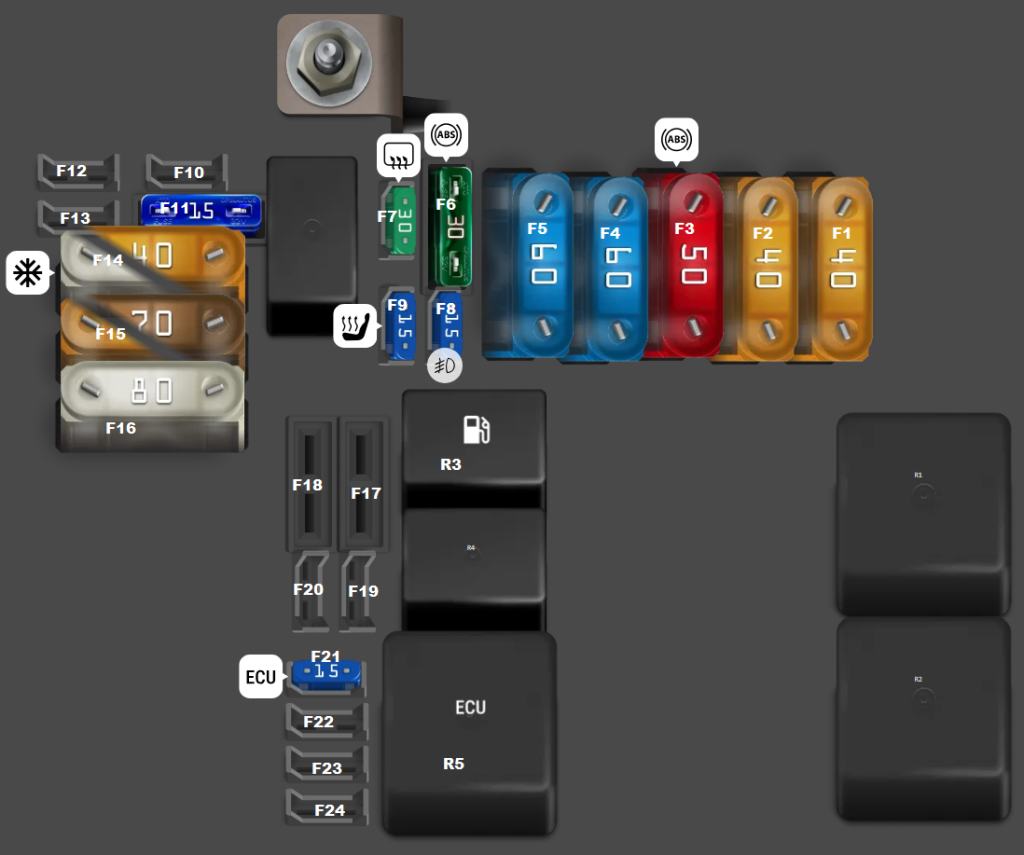

TYPE 2
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 40A | F1 | Right windshield heating element |
| Fuse MAXI 40A | F2 | Left windshield heating element |
| Fuse MAXI 50A | F3 | ABS/ESP system |
| Fuse MAXI 60A | F4 | Immobilizer and passenger compartment fuse supply circuit F28-F31 |
| Fuse MAXI 60A | F5 | Power supply for passenger compartment fuses F11, F23-F27, F34, and F39 |
| Fuse ATO 30A | F6 | ABS/ESP system |
| Fuse MINI 30A | F7 | Heated rear window and exterior mirrors |
| Fuse MINI 15A | F8 | Front fog lights |
| Fuse MINI 15A | F9 | Heated seats |
| Fuse ATO 15A | F11 | Air conditioner clutch (with A/C) / First-speed electric fan (without A/C) |
| Fuse MAXI 25A | F14 | Engine management system relay fuse |
| Fuse MAXI 40A | F14 | Engine coolant blower motor / A/C compressor clutch (with air conditioning) |
| Fuse MAXI 40A | F15 | Cooling system electric fan |
| Fuse MAXI 70A | F15 | Auxiliary heater control module / PTC heater elements (Diesel models) |
| Fuse MAXI 80A | F16 | Glow plug control module (Diesel) / Power steering control module (EHPS) |
| Fuse MINI 15A | F21 | Engine management system |
| Relay | R1 | Left windshield heating relay |
| Relay | R2 | Right windshield heating relay |
| Relay | R3 | Fuel pump relay |
| Relay | R4 | Air conditioner compressor relay or first-speed electric fan relay (depending on equipment) |
| Relay | R5 | Engine control relay |

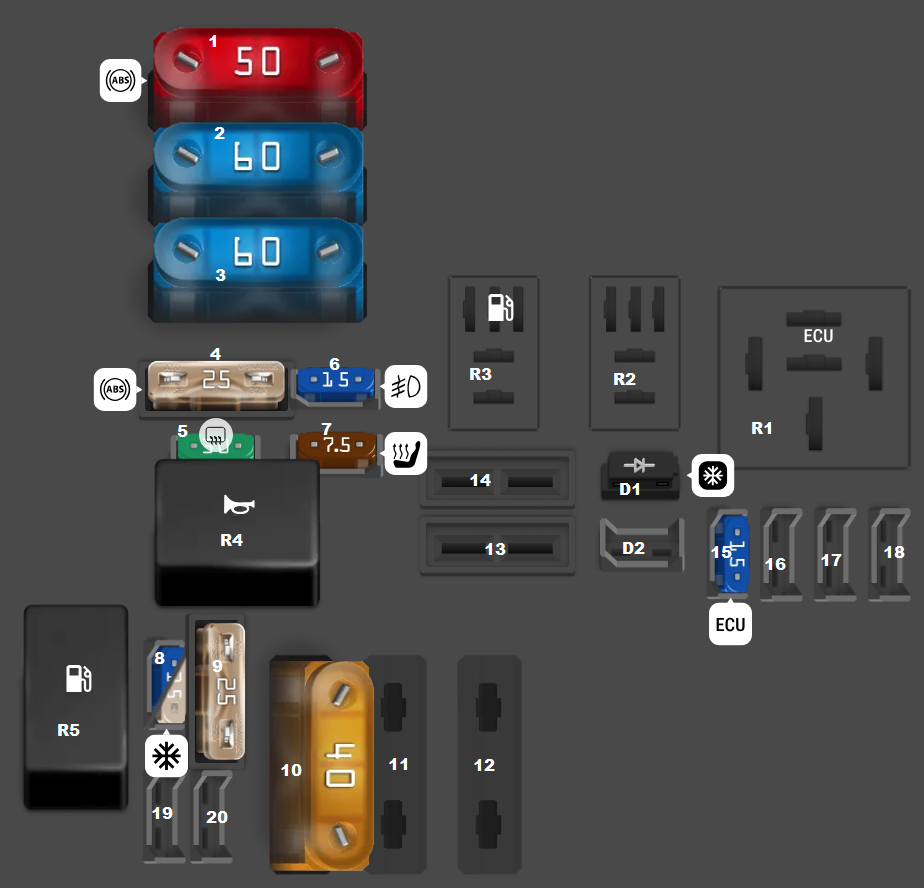

Dacia Sandero (2016-2019)
| Type | No. | Description |
|---|---|---|
| Fuse MAXI 50A | 1 | ABS/ESP system |
| Fuse MAXI 60A | 2 | Immobilizer and passenger compartment fuse supply circuit F28-F31 |
| Fuse MAXI 60A | 3 | Power supply for passenger compartment fuses F11, F23-F27, F34, and F39 |
| Fuse ATO 25A | 4 | ABS/ESP system |
| Fuse MINI 30A | 5 | Heated rear window and exterior mirrors |
| Fuse MINI 15A | 6 | Front fog lights |
| Fuse MINI 7.5A | 7 | Heated seats |
| Fuse MINI 15A | 8 | Air conditioner clutch (vehicles with air conditioning) |
| Fuse MINI 25A | 8 | First-speed electric fan (vehicles without air conditioning) |
| Fuse ATO 25A | 9 | Engine management system relay fuse |
| Fuse MAXI 40A | 10 | Cooling system electric fan |
| Fuse MAXI – | 11 | Empty |
| Fuse MAXI – | 12 | Empty |
| Fuse ATO – | 13 | Empty |
| Fuse ATO – | 14 | Empty |
| Fuse MINI 15A | 15 | Engine management system |
| Fuse MINI – | 16 | Empty |
| Fuse MINI – | 17 | Empty |
| Fuse MINI – | 18 | Empty |
| Diode MINI | D1 | Air conditioning compressor diode |
| Diode MINI | D2 | Empty |
| Relay | R1 | Engine control relay |
| Relay | R2 | Air conditioner compressor relay or first-speed electric fan relay (depending on equipment) |
| Relay | R3 | Fuel pump relay |
| Relay | R4 | Horn relay |
| Relay | R5 | Starter relay / fuel pump relay |
