The Dacia Jogger (2021–2027) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Dacia Jogger.

Fuse Box Location

Passenger Compartment Fuse Box

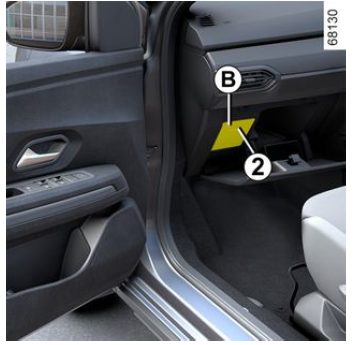

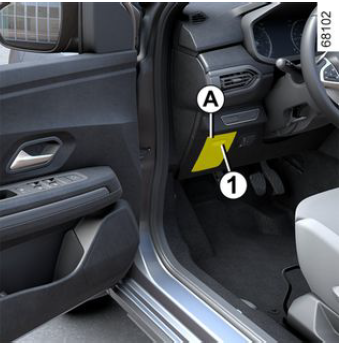

If any electrical component does not work, check the condition of the fuses. Unclip the A flap using the 1 notch or, depending on the vehicle, unclip the B flap using the 2 notch. Depending on the vehicle, to identify the fuses, refer to the fuse allocation label located at the back of the A or B flap and shown on the following pages.

Tweezers 3
Remove the fuse using the tweezers 3 located on the back of flap A or B. To remove the fuse from the tweezers, slide the fuse to the side. It is not advisable to use the free fuse locations.

The LPG fuse in the fuse box A or B
LPG fuse: LPG circuit shut-off or LPG circuit and petrol circuit shut-off.

Engine Compartment Fuse Box

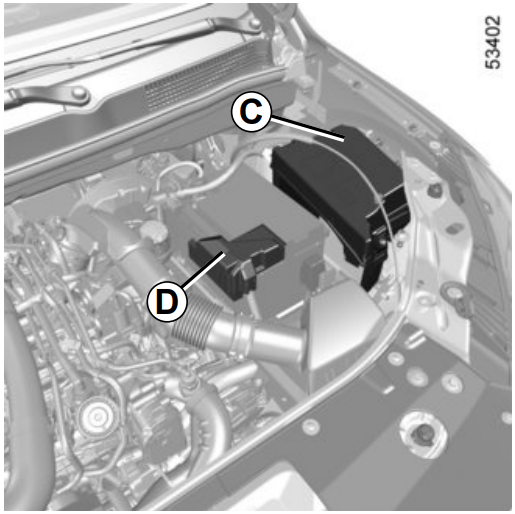

Fuses in the engine compartment C and D
Some functions are protected by fuses located in the engine compartment in units C and D.

Fuse Box Diagrams

Passenger Compartment Fuse Box

Allocation of fuses
(The presence of certain fuse depends on the vehicle equipment level)

Icon	Function
	Horn
	Front window winder, electric front windows
	Rear electric windows
	Brake lights, UCH
	Courtesy light, luggage compartment light
	Multimedia socket
	Towbar socket
	Windscreen washer pump, steering column controls
	Direction indicator lights, UCH
	Cigarette lighter, accessories socket
	Heated rear view mirrors
	Rear view electric mirrors control
	LPG
