Holden Barina Spark (2011 – 2015) Fuse Box Diagrams & Location
The Holden Barina Spark (2011–2015) fuse box protects essential electrical systems from overloads and short circuits. Knowing the fuse box locations and diagrams makes it easier to identify blown fuses, understand their functions, and replace them correctly when troubleshooting electrical problems.
Fuse Box Location

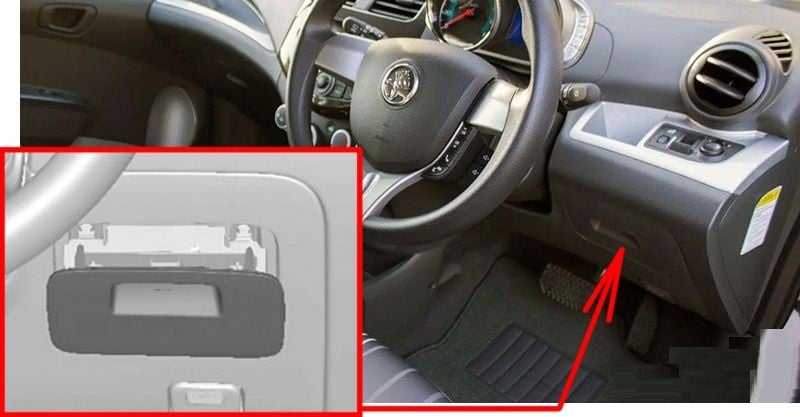

Passenger Compartment Fuse Box
The interior fuse box is located on the underside of the driver’s side of the instrument panel (there may be a lid or not).

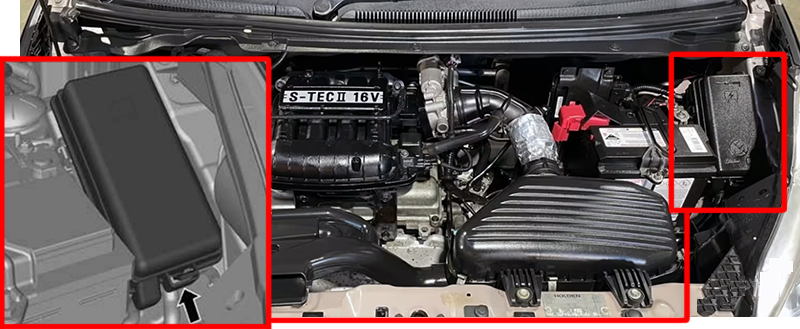

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

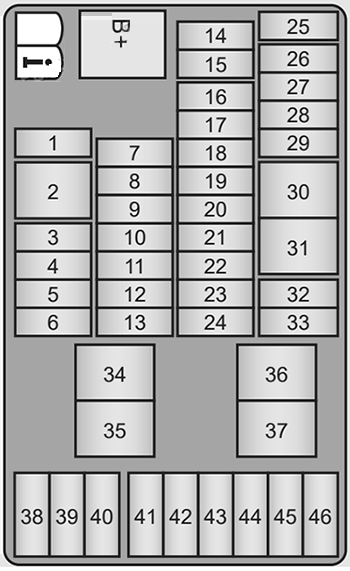

Version 1 (Automatic Transmission)
| № | Function |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Heating ventilation and air conditioning switch |
| 4 | – |
| 5 | – |
| 6 | Blower |
| 7 | Body control module 4 |
| 8 | Body control module 5 |
| 9 | Body control module 7 |
| 10 | Instrument panel cluster |
| 11 | – |
| 12 | Air bag power |
| 13 | – |
| 14 | SWC BKLT |
| 15 | |
| 16 | Body control module 1 |
| 17 | Body control module 2 |
| 18 | Body control module 3 |
| 19 | Body control module 6 |
| 20 | Body control module 8 |
| 21 | – |
| 22 | Data link connection |
| 23 | Discrete logic ignition sensor |
| 24 | Outside rear view mirror |
| 25 | – |
| 26 | – |
| 27 | – |
| 28 | Instrument panel cluster |
| 29 | Air bag ignition |
| 30 | – |
| 31 | Front window |
| 32 | Auxiliary power outlet |
| 33 | – |
| 34 | Run relay |
| 35 | Logic mode relay |
| 36 | Accessory/retained accessory power relay |
| 37 | – |
| 38 | Radio |
| 39 | Heating ventilation and air conditioning |
| 40 | – |
| 41 | Spare fuse |
| 42 | Spare fuse |
| 43 | Spare fuse |
| 44 | Spare fuse |
| 45 | Spare fuse |
| 46 | Spare fuse |

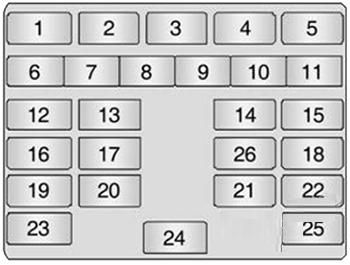

Version 2 (Manual Transmission)
| № | Function |
|---|---|
| 1 | Rear wiper |
| 2 | Mirror / outside rear view mirror |
| 3 | Headlamp |
| 4 | Electric outside rear view mirror |
| 5 | Door lock |
| 6 | Front wiper |
| 7 | Spare fuse |
| 8 | Reverse lamps |
| 9 | Turn signals |
| 10 | Rear demister |
| 11 | 2014-2015: Rear lamps |
| 12 | Instrument panel |
| 13 | Blower |
| 14 | Airbag |
| 15 | Theft deterrent / data link connector |
| 16 | – |
| 17 | 2011-2013: Rear power windows |
| 18 | Radio / remote keyless entry / remote entry |
| 19 | Engine control module (ECM) / theft deterrent |
| 20 | 2011-2013: Front power windows 2014-2015: Heat mat |
| 21 | Power socket / Cigarette lighter |
| 22 | Stop lamps |
| 23 | Starter |
| 24 | Radio / clock / remote keyless entry |
| 25 | 2011-2013: Instrument panel / interior lamps 2014-2015: Airbag |
| 26 | 2014-2015: Interior lamps |
Engine Compartment Fuse Box

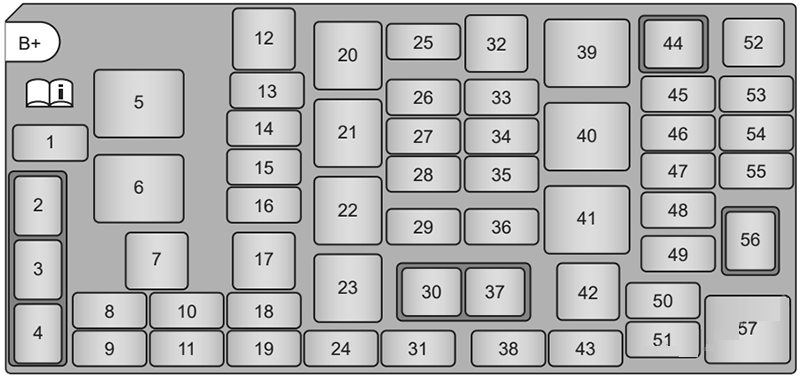

Version 1 (Automatic Transmission)
| № | Function |
|---|---|
| 1 | Windscreen washer |
| 2 | Rear Windscreen washer relay |
| 3 | Front Windscreen washer relay |
| 4 | Horn relay |
| 5 | Fan high relay |
| 6 | Fan low relay |
| 7 | ABS1 |
| 8 | Horn |
| 9 | – |
| 10 | – |
| 11 | Spare fuse |
| 12 | Fan high |
| 13 | Front fog |
| 14 | Headlamp high left |
| 15 | Headlamp high right |
| 16 | Fan low |
| 17 | ABS2 |
| 18 | TCM |
| 19 | Spare fuse |
| 20 | Front fog relay |
| 21 | Headlamp high relay |
| 22 | Fuel pump relay |
| 23 | TCM relay |
| 24 | Spare fuse |
| 25 | ABS3 |
| 26 | EMIS2 |
| 27 | Canister |
| 28 | Fuel pump |
| 29 | Front wiper |
| 30 | Front wiper control relay |
| 31 | Spare fuse |
| 32 | Starter |
| 33 | Ignition |
| 34 | EMIS1 |
| 35 | – |
| 36 | – |
| 37 | Front wiper speed relay |
| 38 | – |
| 39 | Starter relay |
| 40 | Engine relay |
| 41 | Run/crank relay |
| 42 | Interior electrical centre |
| 43 | – |
| 44 | Air conditioner relay |
| 45 | Air conditioner |
| 46 | ECM/TCM1 |
| 47 | ECM/TCM2 |
| 48 | Low vacuum switch |
| 49 | AOS |
| 50 | Mirror heater |
| 51 | Rear defog |
| 52 | Fuse puller |
| 53 | TCM relay coil |
| 54 | Voltage sensing |
| 55 | Rear wiper |
| 56 | Rear wiper relay |
| 57 | Rear defog relay |

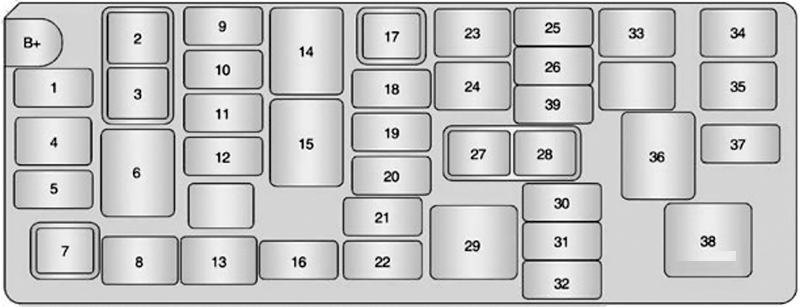

Version 2 (Manual Transmission)
| № | Function |
|---|---|
| 1 | Fuel pump |
| 2 | Park relay |
| 3 | Fan low relay |
| 4 | Fan high |
| 5 | Air conditioning |
| 6 | Fan high relay |
| 7 | Air conditioning relay |
| 8 | ABS2 |
| 9 | Park LH |
| 10 | Park RH |
| 11 | Front foq |
| 12 | Fan low |
| 13 | ABS1 |
| 14 | Front fog relay |
| 15 | Fuel pump relay |
| 16 | Spare fuse |
| 17 | Headlamp high relay |
| 18 | Headlamp high |
| 19 | Headlamp low LH |
| 20 | Headlamp low RH |
| 21 | Spare fuse |
| 22 | Spare fuse |
| 23 | lgnition2/starter |
| 24 | Ignition 1 /accessory |
| 25 | Hazard lamps |
| 26 | Horn |
| 27 | Headlamp low relay |
| 28 | Horn relay |
| 29 | Engine main relay |
| 30 | Ignition |
| 31 | EMIS1 |
| 32 | EMIS2 |
| 33 | Instrument panel battery |
| 34 | – |
| 35 | 2014-2015: Front window |
| 36 | 2014-2015: Front window relay |
| 37 | Engine control unit |
| 38 | 2014-2015: Evap relay |

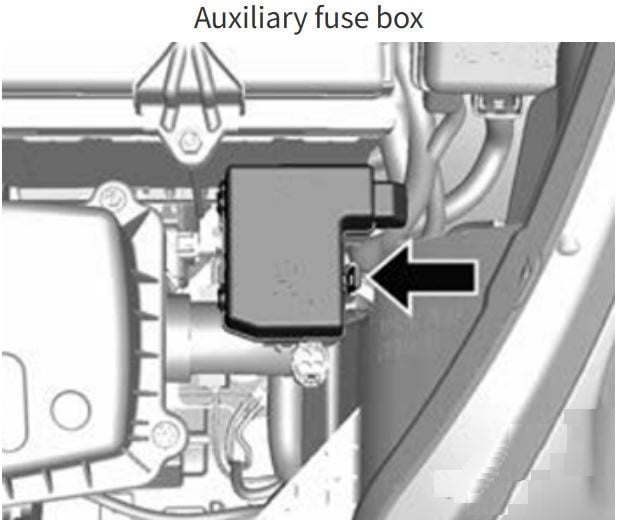

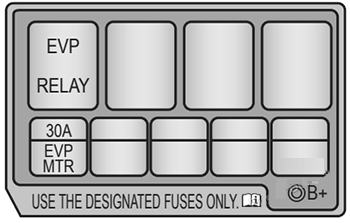

Auxiliary Fuse Box
| № | Function |
|---|---|
| 1 | EVP relay |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | EVP motor |
| 6 | – |
| 7 | – |
| 8 | – |
