Holden Statesman (2000 – 2006) Fuse Box Diagrams & Location
This guide covers the Holden Statesman (2000–2006) fuse box locations and diagrams, helping you quickly identify fuse panels, fuse positions, and circuit functions. Whether you need to check a blown fuse or understand the electrical system, these diagrams make troubleshooting easier.
Fuse Box Location

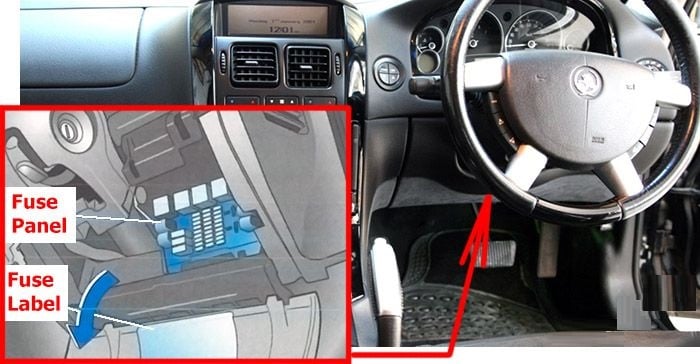

Passenger Compartment Fuse Box

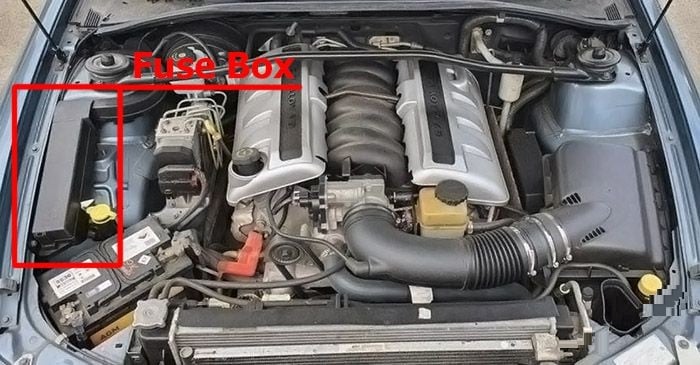

Engine Compartment Fuse Box
Fuse Box Diagrams

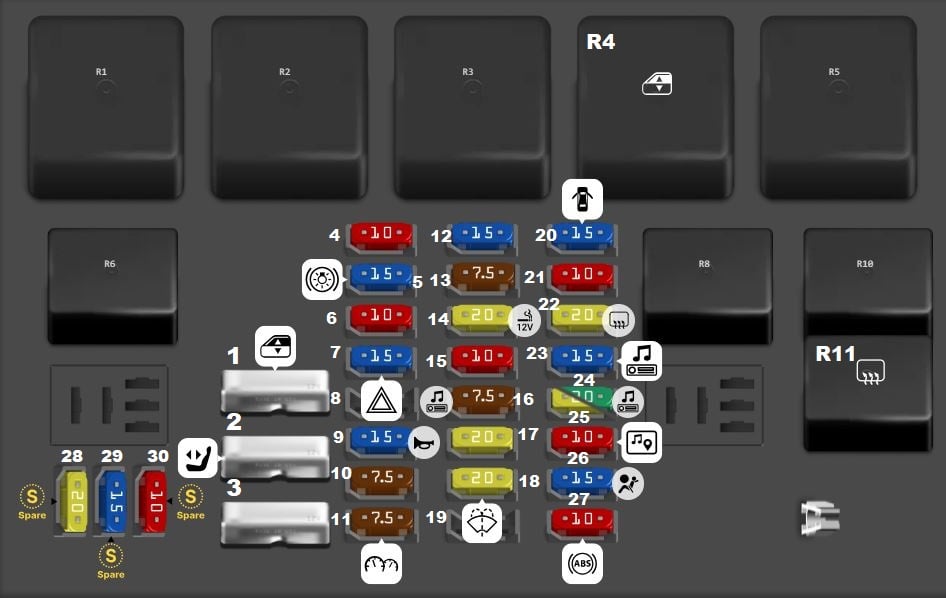

Passenger Compartment Fuse Box
| Type | Description |
| Circuit breaker ATO | 1
POWER WINDOWS |
| Circuit breaker ATO | 2 POWER SEATS |
| Circuit breaker ATO | 3
SUNROOF |
| Fuse MINI 10A |
4 PARK LAMPS |
| Fuse MINI
15A |
5
STOP LAMPS |
| Fuse MINI 10A |
6
INTERIOR ILLUMINATION |
| Fuse MINI
15A |
7 HAZARD LAMPS / ANTENNA DRIVE VIA BCM |
| Fuse MINI
15A |
9
HORN |
| Fuse MINI 7.5A |
10
IGNITION SWITCH |
| Fuse MINI
7.5A |
11 INSTRUMENT ILLUMINATION |
| Fuse MINI
15A |
12
TURN SIGNALS & BACK UP LAMPS |
| Fuse MINI 7.5A |
13
ECC, TRIP COMPUTER INSTRUMENTS & TELEMATICS |
| Fuse MINI
20A |
14 CIGAR LIGHTER |
| Fuse MINI
10A |
15
CRUISE, POWER MIRRORS & LEVEL RIDE |
| Fuse MINI 7.5A |
16
RADIO, MDF, NAVIGATION & CELL PHONE |
| Fuse MINI
20A |
17 ACCESSORY SOCKET |
| Fuse MINI
20A |
18
FRONT WIPER WASHER |
| Fuse MINI 15A |
20
POWER LOCKS, POWER WINDOWS & THEFT HORN |
| Fuse MINI
10A |
21 INSTRUMENTS & CLIMATE CONTROL |
| Fuse MINI
20A |
22
HEATED REAR WINDOW |
| Fuse MINI 15A |
23
RADIO, CELL PHONE & NAVIGATION |
| Fuse MINI
20A |
24 SUB WOOFER |
| Fuse MINI
30A |
24
AMPLIFIER |
| Fuse MINI 10A |
25
ENTERTAINMENT SYSTEM |
| Fuse MINI
15A |
26 SRS |
| Fuse MINI
10A |
27
ANTI LOCK BRAKES |
| Fuse MINI 20A |
28
SPARE |
| Fuse MINI
15A |
29 SPARE |
| Fuse MINI
10A |
30
SPARE |
| Fuse puller | FUSE PULLER Extraction tool for fuse replacement. |
| Relay | R1
FLASHER UNIT |
| Relay | R2
ACCESORY CONTROL RELAY |
| Relay | R3 IGNITION CONTROL RELAY |
| Relay | R4
POWER WINDOW RELAY |
| Relay | R5
BLOWER INHIBIT RELAY |
| Relay | R6 PARK LAMPS RELAY |
| Relay | R8
Hazard illumination Relay |
| Relay | R10
INTERIOR ILLUMINATION RELAY |
| Relay | R11 DEFOG RELAY |
Engine Compartment Fuse Box

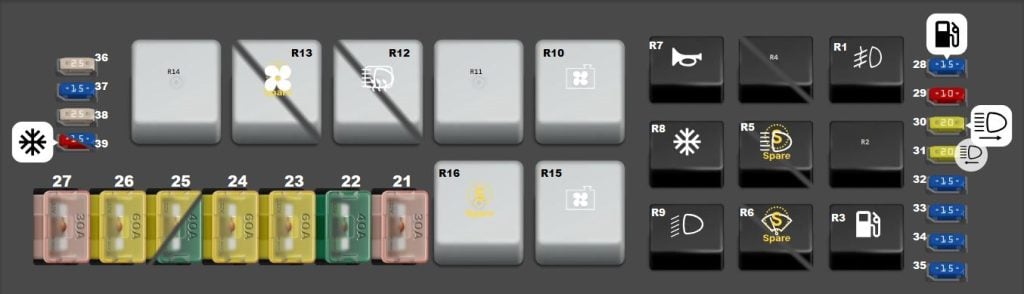

Type 1
| Type | No. | Description |
| Fuse FLF/PAL 293
30A |
21 | RAD FAN 1 F/L |
| Fuse FLF/PAL 293
40A |
22 | BLOWER F/L |
| Fuse FLF/PAL 293 60A |
23 | MAIN F/L |
| Fuse FLF/PAL 293
60A |
24 | ENGINE F/L |
| Fuse FLF/PAL 293
60A |
25 | ABS F/L [V8] |
| Fuse FLF/PAL 293 40A |
25 | ABS F/L [V6] |
| Fuse FLF/PAL 293
60A |
26 | LIGHTING F/L |
| Fuse FLF/PAL 293
30A |
27 | RAD FAN 2 F/L |
| Fuse MINI 15A |
28 | FUEL PUMP |
| Fuse MINI
10A |
29 | ENG CONT BCM |
| Fuse MINI
20A |
30 | RH HEADLAMP |
| Fuse MINI 20A |
31 | LH HEADLAMP |
| Fuse MINI
15A |
32 | AUTO TRANS |
| Fuse MINI
15A |
33 | ENG SENSOR |
| Fuse MINI 15A |
34 | INJ IGN |
| Fuse MINI
15A |
35 | INJ IGN |
| Fuse MINI
25A |
36 | T. RELAY |
| Fuse MINI 15A |
37 | ENG SSR 2 [Morano] |
| Fuse MINI
25A |
38 | Level Ride [Morano] |
| Fuse MINI
10A |
39 | AC Clutch [V6 Morano] |
| Fuse MINI 15A |
39 | TAC CM [V8 Morano] |
| Relay | R1 | FOG LAMP RELAY |
| Relay | R2 | LEVEL RIDE RELAY |
| Relay | R3 | FUEL PUMP RELAY |
| Relay | R4 | LEFT HORN RELAY |
| Relay | R4 | BTSI / BRAKE LP RELAY [Morano] |
| Relay | R5 | SPARE |
| Relay | R5 | HEADLAMP HI [Morano] |
| Relay | R6 | FRONT WIPER RELAY |
| Relay | R6 | SPARE [Morano] |
| Relay | R7 | HORN RELAY |
| Relay | R8 | A/C RELAY |
| Relay | R9 | LOW BEAM RELAY |
| Relay | R10 | RAD FAN HIGH SPEED RELAY |
| Relay | R11 | ENGINE CONT. RELAY |
| Relay | R12 | HIGH BEAM RELAY |
| Relay | R12 | HEATED REAR WINDOW [Morano] |
| Relay | R13 | SPARE |
| Relay | R13 | BLOWER FAN RELAY [Morano] |
| Relay | R14 | START RELAY |
| Relay | R15 | RAD FAN LOW SPEED RELAY |
| Relay | R16 | SPARE |

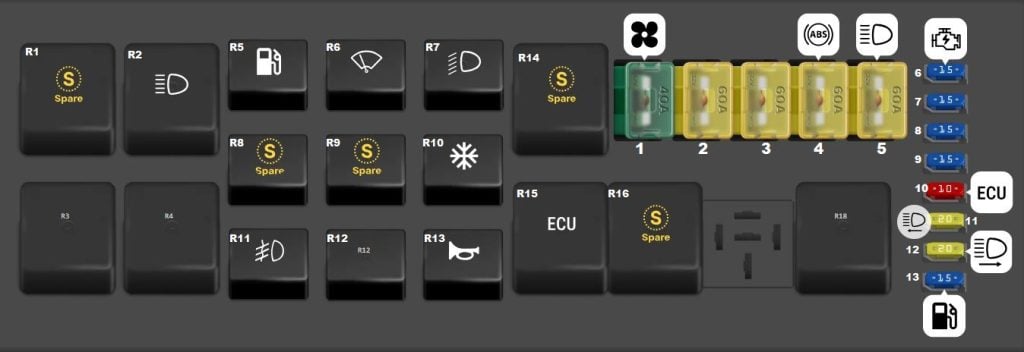

Type 2
| Type | No. | Description |
| Fuse FLF/PAL 293
40A |
1 | Blower |
| Fuse FLF/PAL 293
60A |
2 | Main |
| Fuse FLF/PAL 293 60A |
3 | Engine |
| Fuse FLF/PAL 293
60A |
4 | ABS |
| Fuse FLF/PAL 293
60A |
5 | Lighting |
| Fuse MINI 15A |
6 | Ignition |
| Fuse MINI
15A |
7 | Injectors |
| Fuse MINI
15A |
8 | Engine Sensors |
| Fuse MINI 15A |
9 | Atuomatic Transmission |
| Fuse MINI
10A |
10 | Engine Control |
| Fuse MINI
20A |
11 | LH Headlamps |
| Fuse MINI 20A |
12 | RH Headlamps |
| Fuse MINI
15A |
13 | Fuel Pump |
| Relay | R1 | Spare |
| Relay | R2 | High Beam |
| Relay | R3 | Start |
| Relay | R4 | Engine Fan High Speed |
| Relay | R5 | Fuel Pump |
| Relay | R6 | Front Wiper |
| Relay | R7 | Low Beam |
| Relay | R8 | Spare |
| Relay | R9 | Spare |
| Relay | R10 | Air Conditioner |
| Relay | R11 | Fog Lamp |
| Relay | R12 | Theft Horn |
| Relay | R13 | Horn |
| Relay | R14 | Spare |
| Relay | R15 | Engine Control |
| Relay | R16 | Spare |
| Relay | R18 | Engine Fan Low Speed |
