Holden Calibra (1994 – 1997) Fuse Box Diagrams & Location
The Holden Calibra (1994–1997) features several fuse boxes that protect essential electrical systems from overloads and short circuits. This blog covers the fuse box locations, fuse assignments, and diagrams, helping owners quickly identify the correct fuse when troubleshooting electrical problems or replacing a blown fuse.
Fuse Box Location
Passenger Compartment Fuse Box

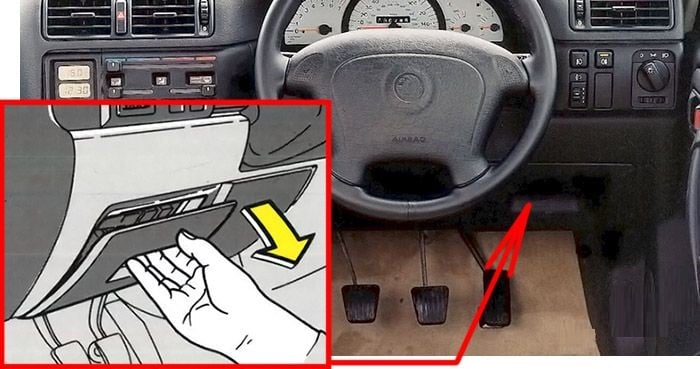

The fuses are located to the right of the steering column, under a cover. The layout for the fuses is shown on the inside of this cover.

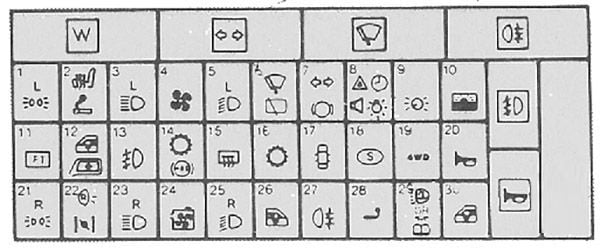

Fuse Box Diagrams
Passenger Compartment Fuse Box
| № | Amps | Function |
|---|---|---|
| 1 | 10A | Left park and left tail lamps |
| 2 | 20A | Heated seats, cigarette lighter |
| 3 | 10A | Left high beam |
| 4 | 30A | Heater fan (or alternatively, relay located inside engine compartment) |
| 5 | 10A | Left low beam, headlight range adjustment |
| 6 | 30A | Windscreen wipers |
| 7 | 15A | Turn signals, brake lights, ABS |
| 8 | 15A | Interior light, luggage compartment light, hazard warning flasher, dual info display, radio, trip computer |
| 9 | 10A | Instrument illumination, licence place light |
| 10 | 30A | Sun roof |
| 11 | 20A | Fuel pump |
| 12 | 10A | Electrical exterior mirror, electric windows |
| 13 | 20A | Fog lights |
| 14 | 10A | ABS, automatic transmission |
| 15 | 30A | Rear window demister |
| 16 | 10A | Automatic transmission |
| 17 | 20A | Central locking |
| 18 | – | – |
| 19 | 10A | Four wheel drive |
| 20 | 20A | Horn |
| 21 | 10A | Right park and right tail lights |
| 22 | 10A | Reverse lights, dual info display, trip computer |
| 23 | 10A | Right high beam |
| 24 | 30A | Cooling fan (or alternatively, fuse located inside engine compartment) |
| 25 | 10A | Right low beam, headlight range adjustment |
| 26 | – | – |
| 27 | 10A | Rear fog lights |
| 28 | – | – |
| 29 | – | – |
| 30 | 30A | Electric windows |
