Hyundai Getz (2002 – 2005) Fuse Box Diagrams & Location
Finding the correct fuse box in your Hyundai Getz (2002–2005) is essential for diagnosing and fixing electrical issues. This blog provides fuse box locations, detailed fuse diagrams, and fuse assignments, making it easier to identify the correct fuse for maintenance, troubleshooting, and safe vehicle repairs.
Fuse Box Location

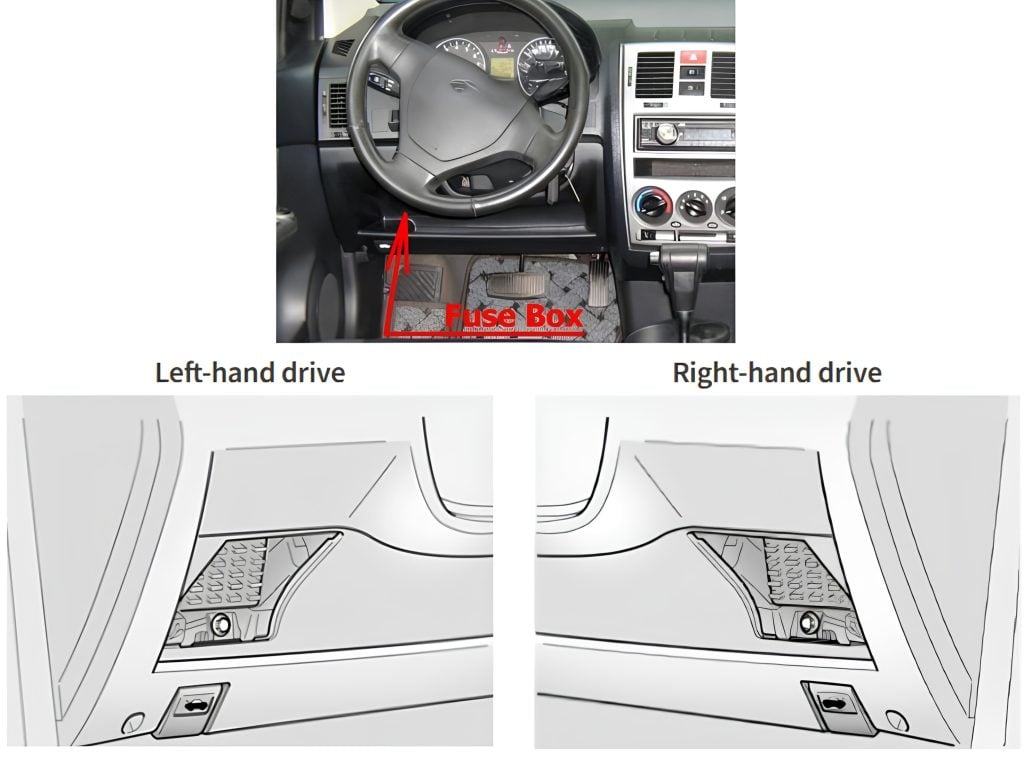

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

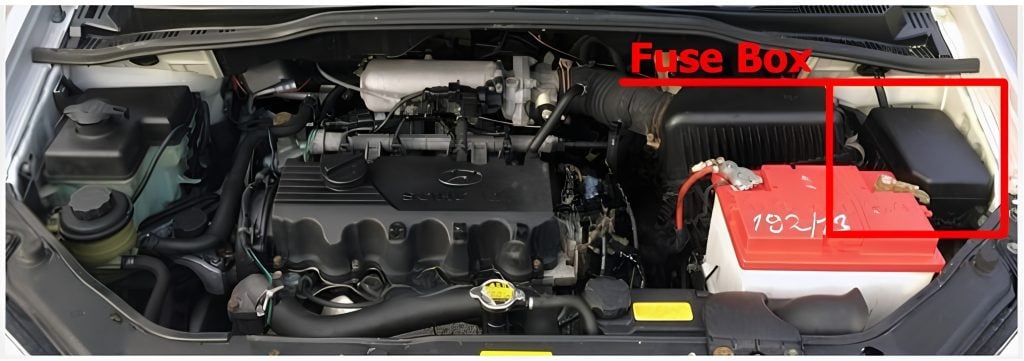

Engine Compartment Fuse Box
The fuse box is located in the engine compartment, on the left.
Fuse Box Diagrams

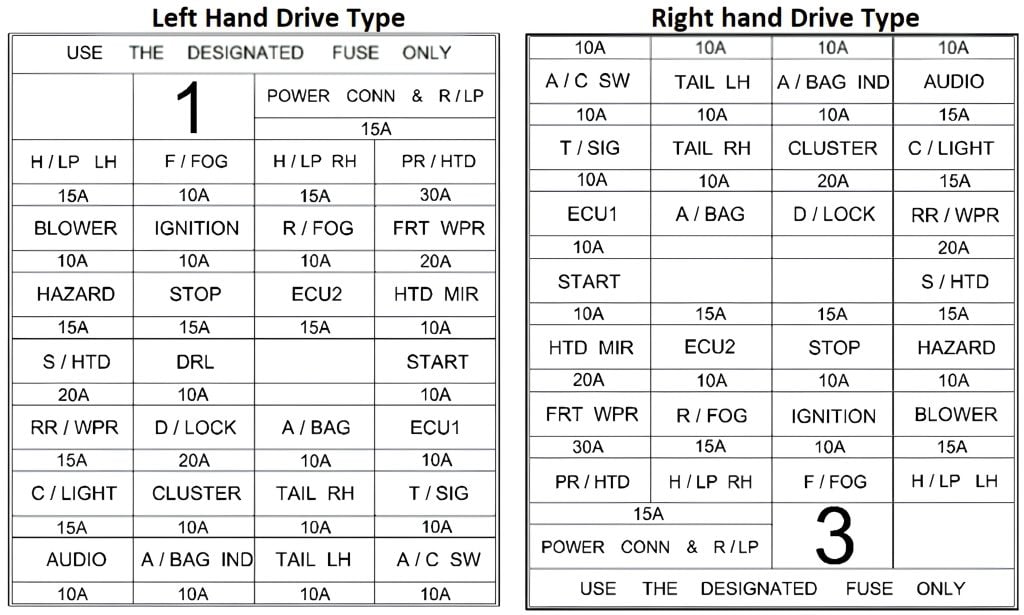

Passenger Compartment Fuse Box
| NAME | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| POWER CONN & R/LP | 15A | Room Lamp. Audio, Cluster |
| H/LP LH | 15A | High Beam Light Indicator, Headlight (LH) |
| F/FOG | 10A | Front Fog Light |
| H/LP RH | 15A | Headlight (RH) |
| PR/HTD | 30A | Rear window Defroster |
| BLOWER | 10A | Blower, Sunroof |
| IGNITION | 10A | Fog light, ETACM, Power Window,Headlight leveling Device |
| R/FOG | 10A | Rear Fog Light |
| FRTWPR | 20A | Front Wiper Motor |
| HAZARD | 15A | Hazard Warning Light, ETACM |
| STOP | 15A | Stop Light, Power Window |
| ECU2 | 15A | ECM |
| HTDMIR | 10A | Rear window Defroster |
| S/HTD | 20A | Seat Warmer |
| DRL | 10A | Daytime Running Light |
| START | 10A | Start Relay, Theft alarm system |
| RR/WPR | 15A | Rear Wiper Motor |
| D/LOCK | 20A | Door Lock System, Sunroof |
| A/BAG | 10A | Air Bag |
| ECU1 | 10A | PCM, ABS control |
| C/LIGHT | 15A | Cigarette Lighter |
| CLUSTER | 10A | Cluster |
| TAIL RH | 10A | STOP/Tail Ught (RH) |
| T/SIG | 10A | Turn Signal Light, Back-up Light |
| AUDIO | 10A | Audio, Electronic Outside Mirror |
| A/BAG IND | 10A | A/Bag, Indicator |
| TAIL LH | 10A | Stop/Tail Light (LH) |
| A/CSW | 10A | Air conditioner |

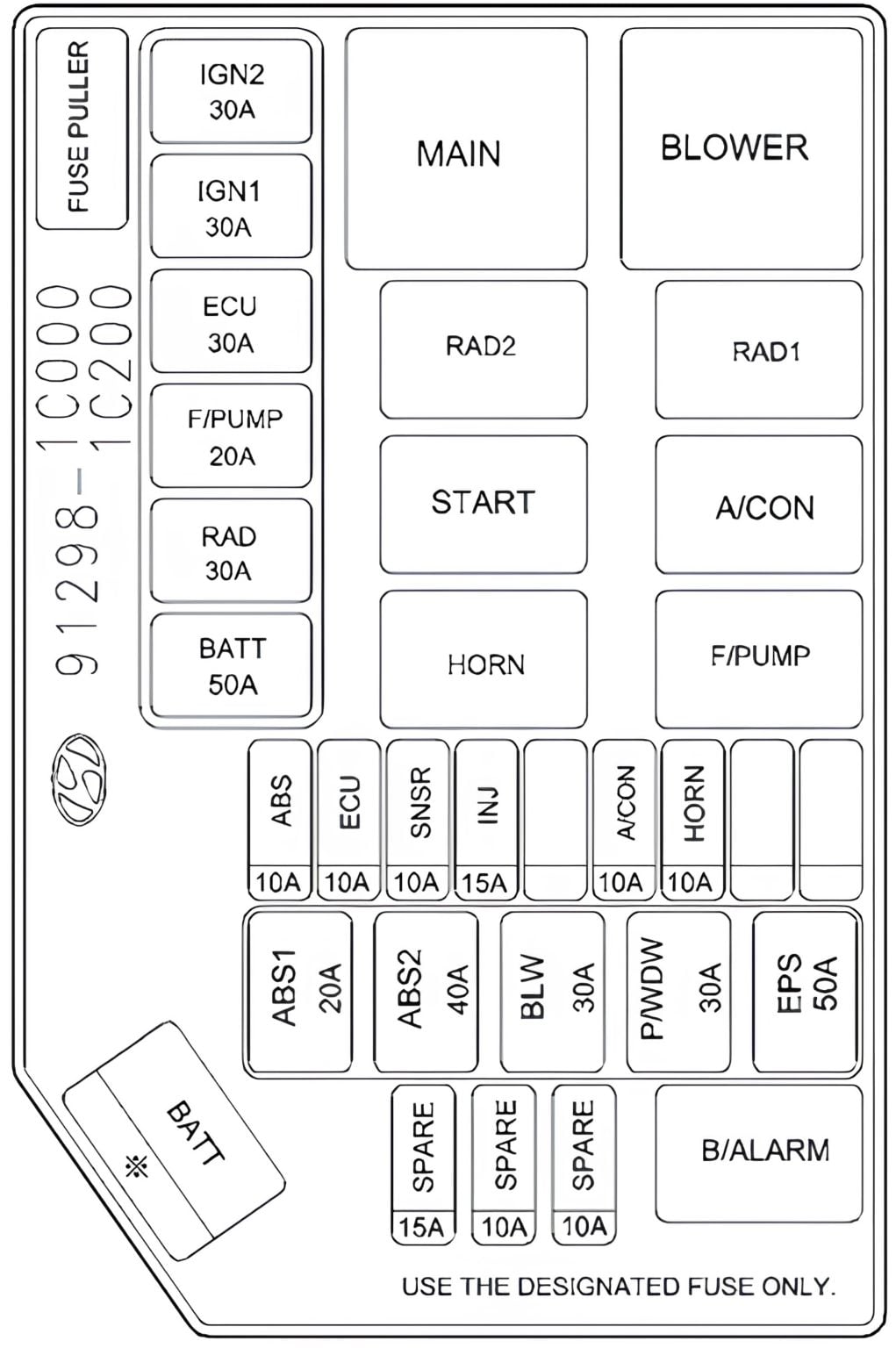

Engine Compartment Fuse Box
| NAME | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| IGN 2 | 30A | Ignition Switch |
| IGN 1 | 30A | Ignition Switch, Start Relay |
| ECU | 30A | Fuel pump. Alternator, ECM |
| F/PUMP | 20A | Auto Fuel Cut Switch |
| RAD | 30A | Radiator Fan |
| BATT | 50A | Headlight, Defogger Relay |
| ABS | 10A | ABS |
| ECU | 10A | ECM |
| SNSR | 10A | A/CON, Fuel Pump |
| INJ | 15A | Injector |
| A/CON | 10A | A/Conditioner |
| HORN | 10A | Horn |
| ABS1 | 20A | ABS |
| ABS2 | 40A | ABS |
| BLW | 30A | Blower, Blower Motor |
| PM/DW | 30A | Power Window |
| EPS | 50A | Electronic power steering |
| BATT | 100A (1.1L) / 120A (1.3/1,6L) | Alternator |
| SPARE | 15A | Spare Fuse |
| SPARE | 10A | Spare Fuse |
| SPARE | 10A | Spare Fuse |
