Hyundai i30 FD (2007 – 2012) Fuse Box Diagrams & Location
Find the fuse box locations and detailed fuse diagrams for the Hyundai i30 FD (2007–2012). This blog helps identify fuse assignments, relay positions, and electrical components, making it easier to troubleshoot blown fuses, replace faulty circuits, and maintain your vehicle’s electrical system with confidence.
Fuse Box Location

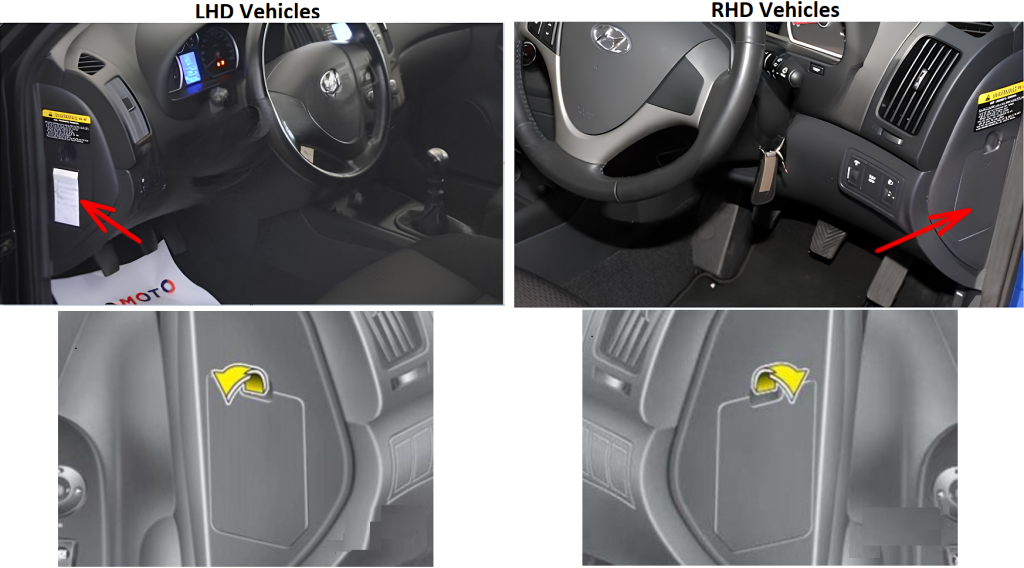

Passenger Compartment Fuse Box
The fuse box is located on the side of the instrument panel, on the driver’s side, behind the cover.

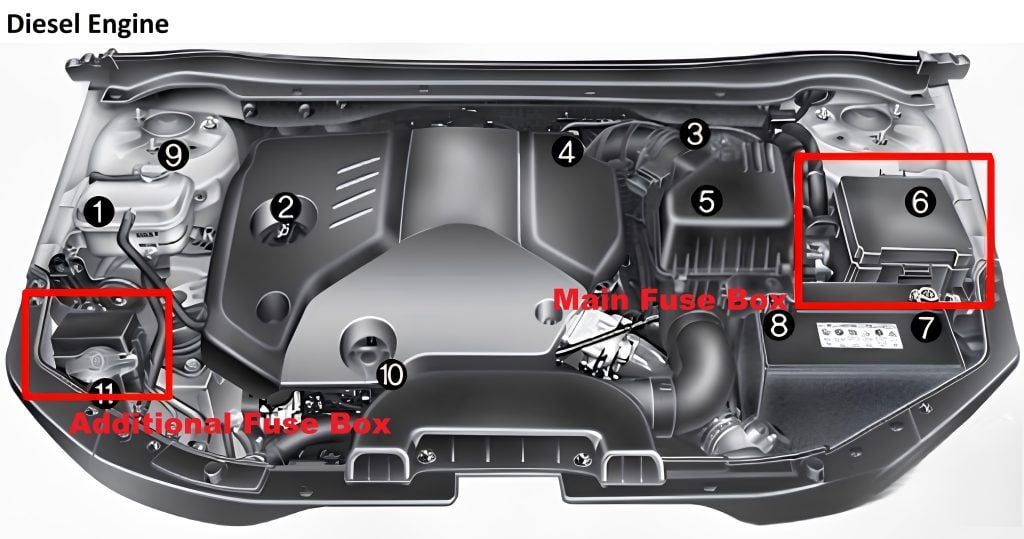

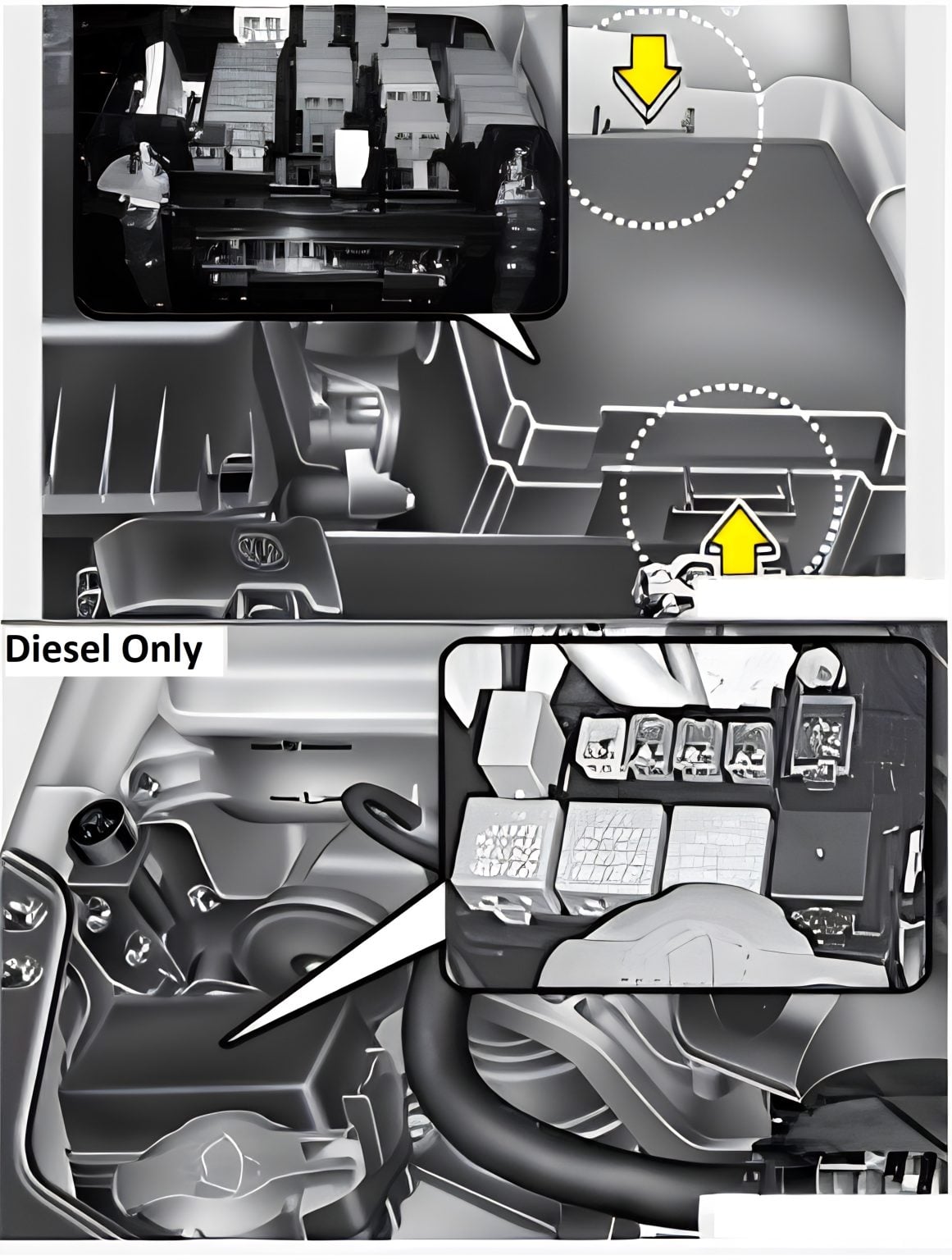

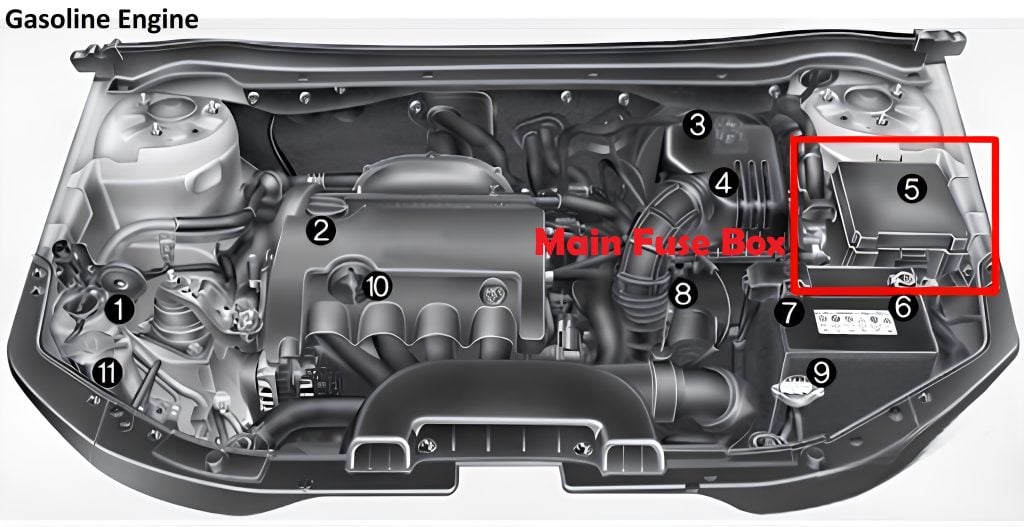

Engine Compartment Fuse Box
Fuse Box Diagrams

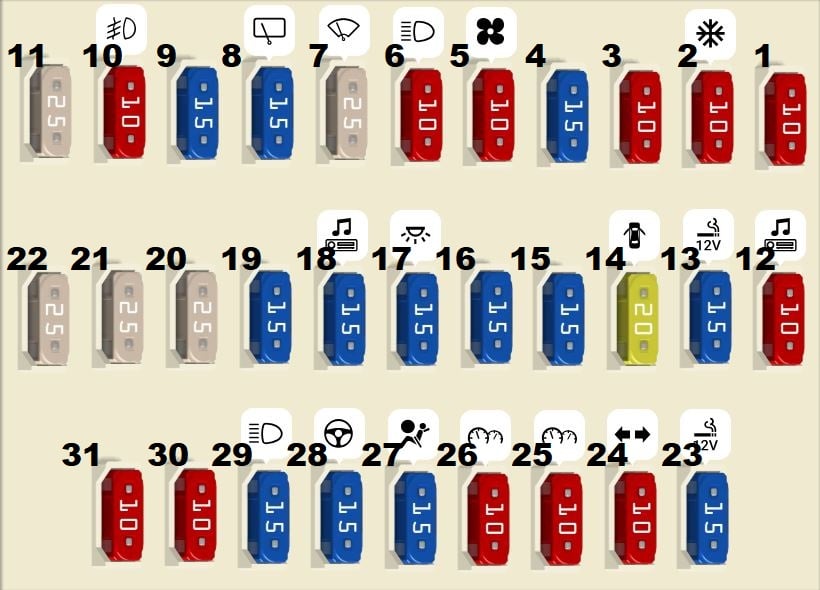

Passenger Compartment Fuse Box
Driver’s Side Fuse Panel
| Type | No. | Description |
| Fuse MINI
10A |
1 | Ignition lock switch. Antitheft alarm, Transaxle range switch |
| Fuse MINI 10A |
2 | A/C control module |
| Fuse MINI 10A |
3 | Outside heated mirror motor |
| Fuse MINI
15A |
4 | Seat warmer (switch, power) |
| Fuse MINI 10A |
5 | Blower relay. A/C control module, Sunroof control module, Rain sensor |
| Fuse MINI
10A |
6 | Head lamp relay |
| Fuse MINI
25A |
7 | Front wiper relay |
| Fuse MINI 15A |
8 | Rear wiper relay |
| Fuse MINI
15A |
9 | Daytime running lamp unit |
| Fuse MINI
10A |
10 | Rear fog lamp relay |
| Fuse MINI 25A |
11 | Front and rear power window switch (LH) |
| Fuse MINI
10A |
12 | Digital clock, Audio |
| Fuse MINI
15A |
13 | Power outlet |
| Fuse MINI 20A |
14 | Sunroof control module, Door unlock/lock relay |
| Fuse MINI
15A |
15 | Front windshield deicer |
| Fuse MINI
15A |
16 | Stop lamp switch |
| Fuse MINI 15A |
17 | Trunk room lamp, Dome lamp, Map lamp, Digital clock |
| Fuse MINI
15A |
18 | Audio |
| Fuse MINI
15A |
19 | Tail gate unlock relay |
| Fuse MINI 25A |
20 | Front and rear safety power window switch (RH) |
| Fuse MINI
25A |
21 | Front and rear safety power window switch (LH) |
| Fuse MINI
25A |
22 | Front & rear power window switch (RH) |
| Fuse MINI 15A |
23 | Power outlet |
| Fuse MINI
10A |
24 | Hazard switch. Turn signal |
| Fuse MINI
10A |
25 | Airbag indicator (instrument cluster), SBR (passenger, rear) |
| Fuse MINI 10A |
26 | Instrument cluster, TPMS |
| Fuse MINI
15A |
27 | SRS control module |
| Fuse MINI
15A |
28 | EPS module. ESP switch |
| Fuse MINI 15A |
29 | Head lamp relay |
| Fuse MINI
10A |
30 | Head lamp (RH), Glove box lamp, Rear combination lamp(RH), License lamp |
| Fuse MINI
10A |
31 | Head lamp (LH), Power window main switch, Rear combination lamp(LH), License lamp |

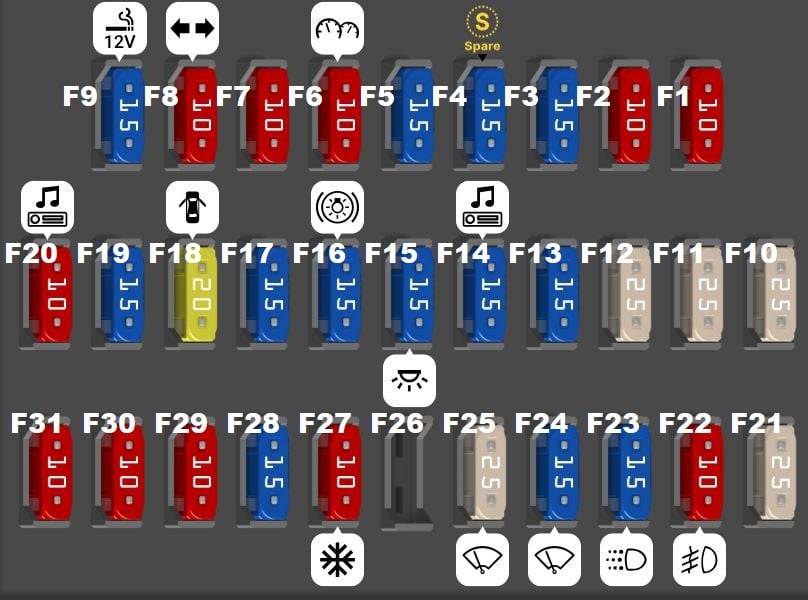

I/P Junction Box
| Type | No. | Description |
| Fuse MINI 10A |
F1 | (TAIL LH) Head lamp (LH), Power window main switch, Rear combination lamp(LH), License lamp |
| Fuse MINI
10A |
F2 | (TAIL RH) Head lamp (RH), Glove box lamp, Rear combination lamp(RH), License lamp |
| Fuse MINI
15A |
F3 | RR F/OUTLET |
| Fuse MINI 15A |
F4 | SPARE |
| Fuse MINI
15A |
F5 | (A/BAG) SRS control module |
| Fuse MINI
10A |
F6 | (CLUSTER) Instrument cluster, TPMS |
| Fuse MINI 10A |
F7 | (A/BAG IND) Airbag indicator (instrument cluster), SBR (passenger, rear) |
| Fuse MINI
10A |
F8 | (T/SIG) Hazard switch. Turn signal |
| Fuse MINI
15A |
F9 | (FR P/OUTLET) Power outlet |
| Fuse MINI 25A |
F10 | (P/WDW RH) Front & rear power window switch (RH) |
| Fuse MINI
25A |
F11 | (SAFETY P/WDW LH) Front and rear safety power window switch (LH) |
| Fuse MINI
25A |
F12 | (SAFETY P/WDW RH) Front and rear safety power window switch (RH) |
| Fuse MINI 15A |
F13 | (T/GATE) Tail gate unlock relay |
| Fuse MINI
15A |
F14 | (AUDIO) Audio |
| Fuse MINI
15A |
F15 | (ROOM LP) Trunk room lamp, Dome lamp, Map lamp, Digital clock |
| Fuse MINI 15A |
F16 | (STOP) Stop lamp switch |
| Fuse MINI
15A |
F17 | (DEICER) Front windshield deicer |
| Fuse MINI
20A |
F18 | (DR LOCK) Sunroof control module, Door unlock/lock relay |
| Fuse MINI 15A |
F19 | (C/LIGHTER) Power outlet |
| Fuse MINI
10A |
F20 | (CLOCK) Digital clock, Audio |
| Fuse MINI
25A |
F21 | (P/WDW LH) Front and rear power window switch (LH) |
| Fuse MINI 10A |
F22 | (RR FOG) Rear fog lamp relay |
| Fuse MINI
15A |
F23 | (DRL) Daytime running lamp unit |
| Fuse MINI
15A |
F24 | (REAR WIPER) Rear wiper relay |
| Fuse MINI 25A |
F25 | (FR WIPER) Front wiper relay |
| Fuse MINI
10A |
F27 | (A/CON) Blower relay. A/C control module, Sunroof control module, Rain sensor |
| Fuse MINI
15A |
F28 | (SEAT HTR) Seat warmer (switch, power) |
| Fuse MINI 10A |
F29 | (HTD MIRR) Outside heated mirror motor |
| Fuse MINI
10A |
F30 | (A/CON SW) A/C control module |
| Fuse MINI
10A |
F31 | (START) Ignition lock switch. Antitheft alarm, Transaxle range switch |
Engine Compartment Fuse Box

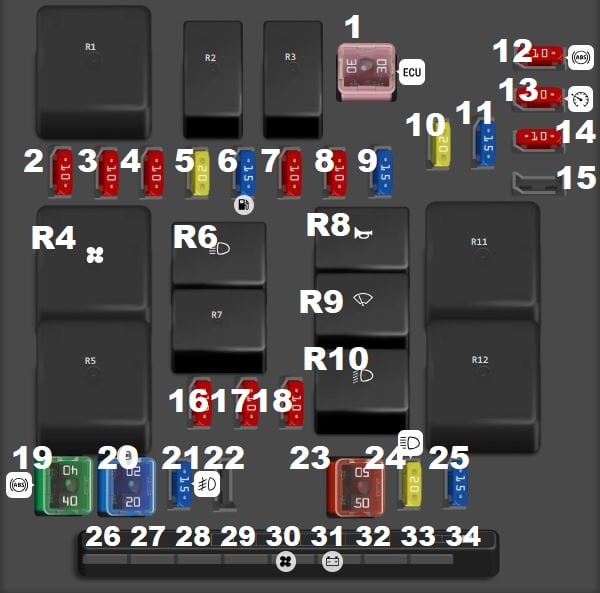

Gasoline
| Type | No. | Description |
| Fuse FMX/JCase 30A |
1 | (ECU) Main relay. Powertrain control module(G4GC) |
| Fuse MINI
10A |
2 | (SNSR.2) Pulse generator ‘A’. B. TCM(D4FB). Stop lamp switch(G4FC/G4GC), Vehicle speed sensor etc. |
| Fuse MINI
10A |
3 | (ECU.2) Ignition coil #1,2,3,4(G4FC). PCM(G4GC) |
| Fuse MINI 10A |
4 | (SNSR.1) Immobilizer module(G4FC/G4GC). Stop lamp switch(D4FB), Lambda sensor (D4FB) etc. |
| Fuse MINI
20A |
5 | (ECU.4) ECM(D4FB/D4EA) |
| Fuse MINI
15A |
6 | (INJ) A/C relay, Fuel pump relay. Injector #1,2,3,4(G4FC/G4GC). PCM(G4FC/G4GC). Idle speed actuator(G4FC/G4GC). Immobilizer module(D4FB) etc. |
| Fuse MINI 10A |
7 | (A/CON) A/C relay |
| Fuse MINI
10A |
8 | (ECU.3) ECM(D4FB/D4EA) |
| Fuse MINI
15A |
9 | (F/PUMP) Fuel pump relay |
| Fuse MINI 20A |
10 | (SPARE. 1) (Spare) |
| Fuse MINI
15A |
11 | (SPARE) (Spare) |
| Fuse MINI
10A |
12 | (ABS) ESP control module. ABS control module, Multi purpose check connector |
| Fuse MINI 10A |
13 | (B/UP) Back up lamp switch, Transaxle range switch. Cruise control module |
| Fuse MINI
10A |
14 | (ECU.1) ECM(G4FC). PCM(G4FC), TCM(D4FB). Generator (D4EA) |
| Fuse MINI
10A |
16 | (H/LP LO LH) Head lamp (LH), Head lamp leveling actuator (LH). Head lamp leveling switch |
| Fuse MINI 10A |
17 | (H/LP LO RH) Head lamp (RH). Head lamp leveling actuator (RH) |
| Fuse MINI
10A |
18 | (SPARE) (Spare) |
| Fuse FMX/JCase
40A |
19 | (ABS.1) ESP control module, ABS control module. Multi purpose check connector |
| Fuse FMX/JCase 20A |
20 | (ABS.2) ESP control module, ABS control module, Multi purpose check connector |
| Fuse MINI
15A |
21 | (FR FOG) Front fog lamp relay |
| Fuse FMX/JCase
50A |
23 | (B+.2) Instrument panel junction box |
| Fuse MINI 20A |
24 | (H/LP HI) Head lamp Hi relay |
| Fuse MINI
15A |
25 | (HORN) Hom relay |
| Multi fuse block MUSB | 26 | (MDPS) EPS control module |
| Multi fuse block MUSB | 27 | (IGN.2) Ignition switch, Start relay |
| Multi fuse block MUSB | 28 | (RR HTD) Instrument panel junction box |
| Multi fuse block MUSB | 29 | (C/FAN) Condenser fan #1. 2 relay |
| Multi fuse block MUSB | 30 | (BLOWER) Blower relay |
| Multi fuse block MUSB | 31 | (ALTERNATOR) Generator, Fusible link box(D4FB/D4EA) |
| Multi fuse block MUSB | 32 | (IGN.1) Ignition switch |
| Multi fuse block MUSB | 33 | (B+.1) Instrument panel junction box |
| Multi fuse block MUSB | 34 | (SPARE) (Spare) |
| Relay | R1 | Main |
| Relay | R2 | A/CON |
| Relay | R3 | F/Pump |
| Relay | R4 | Blower |
| Relay | R5 | Start |
| Relay | R6 | H/Lp Hi |
| Relay | R7 | Fog Lp |
| Relay | R8 | Horn |
| Relay | R9 | Wiper |
| Relay | R10 | H/Lp Lo |
| Relay | R11 | C/Fan Hi |
| Relay | R12 | C/Fan Lo |

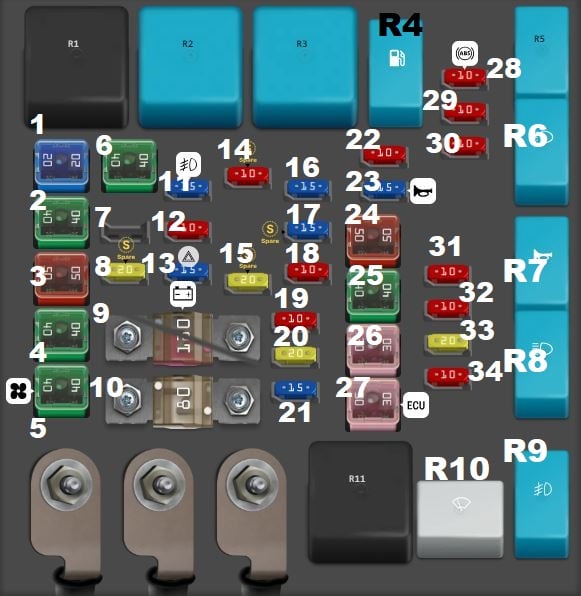

Diesel
| Type | No. | Description |
| Fuse FMX/JCase
20A |
1 | (ABS.2) Anti-lock braking system |
| Fuse FMX/JCase 40A |
2 | (ABS.1) Anti-lock braking system |
| Fuse FMX/JCase
50A |
3 | B+1 |
| Fuse FMX/JCase
40A |
4 | (RR HTD) Rear window defogger |
| Fuse FMX/JCase 40A |
5 | (BLOWER) AC blower motor |
| Fuse FMX/JCase
40A |
6 | (C/FAN) Electric cooling fan |
| Fuse MINI
20A |
8 | (SPARE 1) Spare fuse |
| Fuse MIDI 125A |
9 | (ALTERNATOR) Battery and charging system |
| Fuse MIDI
150A |
9 | (ALTERNATOR) Battery and charging system |
| Fuse MIDI
80A |
10 | (MDPS) Motor Driven Power Steering or EPS |
| Fuse MINI 15A |
11 | (FR FOG) Front fog lights |
| Fuse MINI
10A |
12 | (A/CON) Air conditioning |
| Fuse MINI
15A |
13 | (HAZARD) Hazard light |
| Fuse MINI 10A |
14 | (SPARE) Spare fuse |
| Fuse MINI
20A |
15 | (SPARE) Spare fuse |
| Fuse MINI
15A |
16 | (F/PUMP) Fuel pump |
| Fuse MINI 15A |
17 | (SPARE) Spare fuse |
| Fuse MINI
10A |
18 | (ECU.1) Engine control unit |
| Fuse MINI
10A |
19 | (ECU.3) Engine control unit |
| Fuse MINI 20A |
20 | (ECU.4) Engine control unit |
| Fuse MINI
15A |
21 | (INJ) Fuel injectors |
| Fuse MINI
10A |
22 | (SNSR.2) Sensors |
| Fuse MINI 15A |
23 | (HORN) Horn |
| Fuse FMX/JCase
50A |
24 | B+2 |
| Fuse FMX/JCase
40A |
25 | (IGN.2) Ignition |
| Fuse FMX/JCase 30A |
26 | (IGN.1) Ignition |
| Fuse FMX/JCase
30A |
27 | (ECU) Engine control unit |
| Fuse MINI
10A |
28 | (ABS) Anti-lock braking system |
| Fuse MINI 10A |
29 | (ECU.2) Engine control unit |
| Fuse MINI
10A |
30 | (B/UP) Backup lights |
| Fuse MINI
10A |
31 | HIPPLORH |
| Fuse MINI 10A |
32 | HIPPOLH |
| Fuse MINI
20A |
33 | H/LPHI |
| Fuse MINI
10A |
34 | (SNSR.1) Sensors |
| Relay | R1 | CONDEN- SER FAN #2 RELAY (HIGH] |
| Relay | R2 | CONDEN- SER FAN #1 RELAY |
| Relay | R3 | (START RELAY) Starter system |
| Relay | R4 | (FUEL PUMP RELAY) Fuel pump |
| Relay | R5 | (A/CON RELAY) Air conditioning |
| Relay | R6 | HEAD LAMP LO RELAY |
| Relay | R7 | (HORN RELAY) Horn |
| Relay | R8 | (HEAD LAMP RELAY) Headlights |
| Relay | R9 | (FRONT FOG LAMP RELAY) Front fog lights |
| Relay | R10 | (FRONT WIPER RELAY) Front wipers |
| Relay | R11 | (MAIN RELAY) Main fuse |

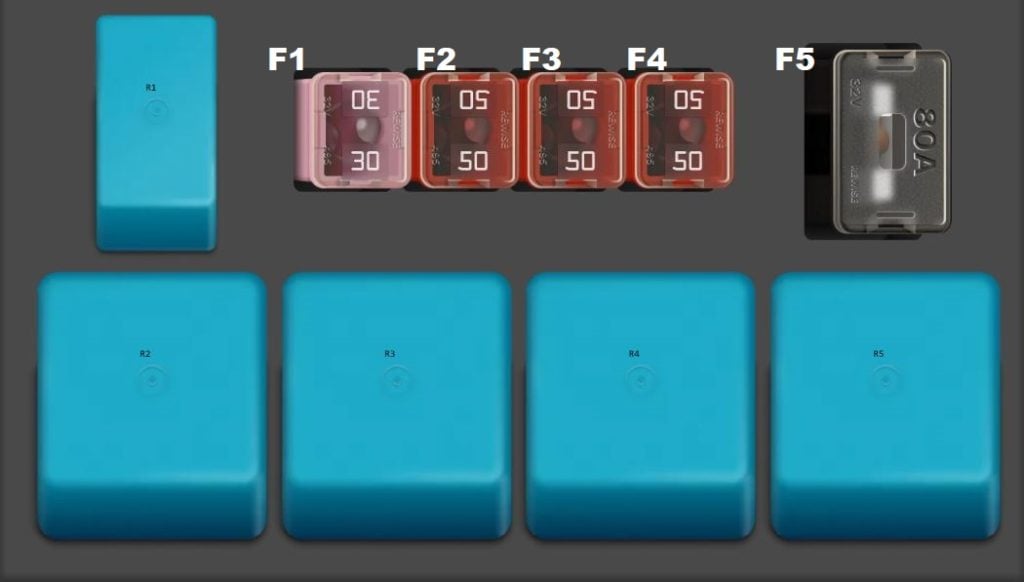

Additional Fuse Box
| Type | No. | Description |
| Fuse FMX/JCase 30A |
F1 | (FUEL FILTER HEATER FUSIBLE LINK) Fuel filter heater |
| Fuse FMX/JCase
50A |
F2 | (PTC HEATER #3 FUSIBLE LINK) PTC heater 3 |
| Fuse FMX/JCase
50A |
F3 | (PTC HEATER #2 FUSIBLE LINK) PTC heater 2 |
| Fuse FMX/JCase 50A |
F4 | (PTC HEATER #1 FUSIBLE LINK) PTC heater 1 |
| Fuse FLF/PAL 293
80A |
F5 | (GLOW PLUG FUSIBLE LINK) Glow plug, Air heater |
| Relay | R1 | (FUEL FILTER HEATER RELAY) Fuel filter heater relay |
| Relay | R2 | (PTC HEATER RELAY #3) PTC heater relay 3 |
| Relay | R3 | (PTC HEATER RELAY #2) PTC heater relay 2 |
| Relay | R4 | (PTC HEATER RELAY #1) PTC heater relay 1 |
| Relay | R5 | (GLOW PLUG RELAY) Glow plug relay |
