Hyundai i30 GD (2012 – 2016) Fuse Box Diagrams & Location
The Hyundai i30 GD (2012–2016) fuse box blog provides fuse box locations, detailed diagrams, and fuse assignments for every major electrical system. Easily identify the correct fuse to diagnose electrical issues, replace blown fuses safely, and keep your Hyundai i30 operating reliably with accurate information.
Fuse Box Location

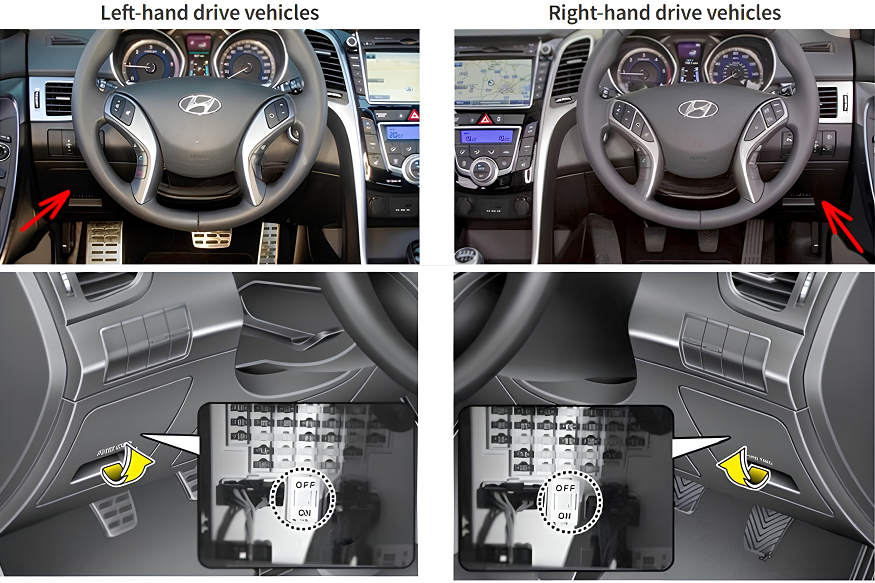

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

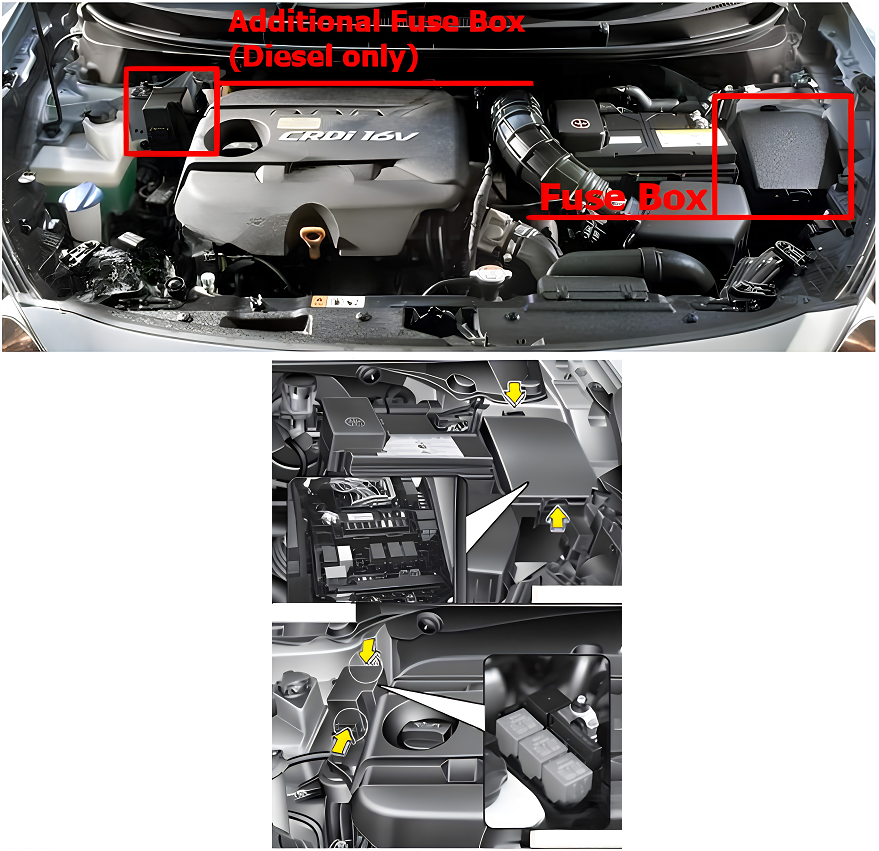

Engine Compartment Fuse Box
Fuse Box Diagrams

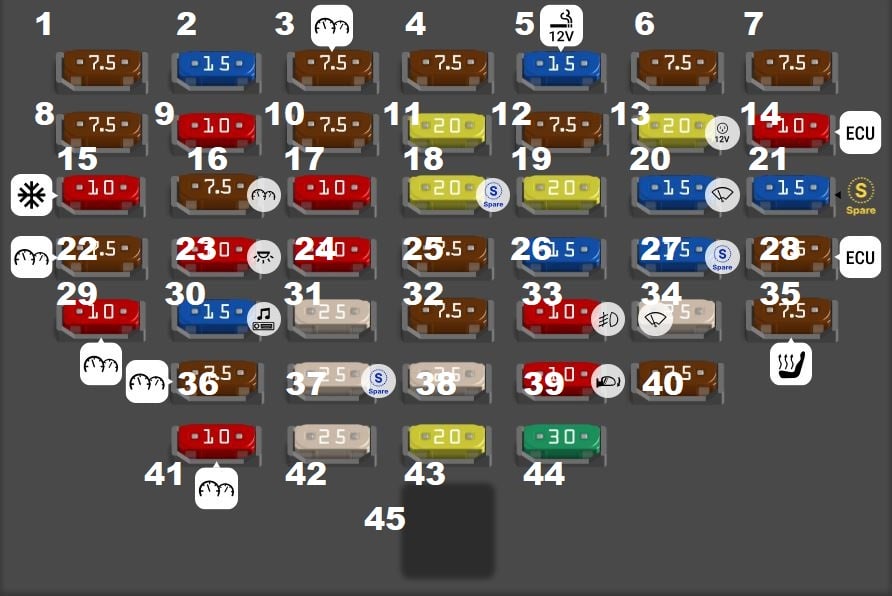

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI 7.5A |
1 | (START) W/O Button Start : E/R Fuse & Relay Box (RLY.) Ignition Lock Switch, Transaxle Range Switch With Button Start : ECM/PCM, Transaxle Range Switch |
| Fuse MINI
7.5A |
8 | (MODULE2) Lane Keeping Assist Module, ICM Relay Box (HAC Relay), Electric Parking Brake Module, Rear Camera Module |
| Fuse MINI 10A |
15 | (HTD MIRR) Driver/Passenger Power Outside Mirror, A/C Control Module, ECU |
| Fuse MINI 10A 7.5A |
22 | Blower
2016: (MEMORY 1) Instrument panel |
| Fuse MINI 10A |
29 | Spare
2016: (MEMORY 2) Exterior mirror switch, tire pressure control module, BCM, automatic light and photosensor, instrument panel, OBD, digital clock, A/C control module |
| Fuse MINI
15A |
2 | (A/BAG) SRS Control Module |
| Fuse MINI 10A |
9 | Spare
2016: (AFLS) Adaptive front lighting system module |
| Fuse MINI
7.5A |
16 | (MODULE 3) Instrument Cluster, BCM, Tire Pressure Monitoring Module, Audio, Driver/Passenger Seat Warmer Module 2016: (MODULE 3) Instrument panel, AT lever, BCM, TPMS, audio, seat heater/fan |
| Fuse MINI
10A |
23 | (INTERIOR LAMP) Glove Box Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp, DR Warning Switch |
| Fuse MINI
15A |
30 | (MULTI MEDIA) Audio, Navigation Head Unit, DC-DC Converter (Audio) 2016: (MULTI MEDIA) Audio, navigation head unit, DC-DC converter (Audio) |
| Fuse MINI
7.5A |
36 | (MEMORY 1) Ultrasonic instruction Protection Sensor |
| Fuse MINI
10A |
41 | (MEMORY 2) Outside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor, Instrument Cluster, OBD, Digital Clock, A/C Control Module 2015: (MEMORY 2) Outside Mirror Switch, Tire Pressure Monitoring Module BCM. Auto Light & Photo Sensor, OBD. Digital Clock, A/C Control Module 2016: (MEMORY 2) Exterior mirror switch, tire pressure control module, BCM, automatic light and photosensor, instrument panel, OBD, digital clock, A/C control module |
| Fuse MINI
7.5A |
3 | (A/BAG IND) Instrument Cluster |
| Fuse MINI 7.5A |
10 | (MODULE 4) ATM Shift Lever IND., Multipurpose Check Connector, Electro Chromic Mirror, A/C Control Module, Head Lamp Leveling Device Actuator LH/RH, Fuel Filter Warning Sensor(D4FD)
2015: (MODULE 4) A/C Control Module, Head Lamp Leveling Device Actuator LH/RH, Fuel Filter Warning Sensor(D4FD), Rear Parking Assist System 2016: (MODULE 4) INT. LEFT/RIGHT HLLD, A/CON, RPAS, SPAS |
| Fuse MINI 10A |
17 | Spare
2016: (H/LAMP HI) High beam headlamp relay (EJB) |
| Fuse MINI
10A |
24 | (TAIL GATE) Tail Gate, Rear Camera Open Actuator |
| Fuse MINI 25A |
31 | (P/WDW RH) P/WDW RH Relay, Driver Safety Power Window Module (RHD)
2016: (P/WDW RH) Right power window relay, driver safety power window module (RIGHT) |
| Fuse MINI
25A |
37 | Spare |
| Fuse MINI 25A |
42 | (P/WDW LH) P/WDW LH Relay, Driver Safety Power Window Module (LHD) |
| Fuse MINI
7.5A |
4 | (MDPS) EPS Control Module |
| Fuse MINI
20A |
11 | (IG1) E/R Fuse & Relay Box (Fuse – F) |
| Fuse MINI 20A |
18 | Spare |
| Fuse MINI
7.5A |
25 | (MODULE 1) Sport Mode Switch, Power Outside Mirror Switch |
| Fuse MINI
7.5A |
32 | (PDM 2) Smart Key Control Module, Start/Stop Button Switch 2016: (PDM 3) SMK unit, Smartra immobilizer |
| Fuse MINI
25A |
38 | (PDM 1) Smart Key Control Module |
| Fuse MINI
20A |
43 | (DR LOCK) Door Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH |
| Fuse MINI 15A |
5 | (POWER OUTLET) Front Power Outlet |
| Fuse MINI
7.5A |
12 | (PDM 3) Smart Key Control Module, Ultrasonic instrusion Protection Sensor |
| Fuse MINI
20A |
19 | (SUNROOF) Panorama Sunroof |
| Fuse MINI 15A |
26 | (STOP LAMP) Stop Lamp Switch, ICM Relay Box (HAC Relay)
2016: (STOP LP) SSEM |
| Fuse MINI
10A |
33 | (FOG LAMP RR) Rear Fog Lamp |
| Fuse MINI 10A |
39 | (PUDDLE LAMP) Driver/Passenger Power Outside Mirror |
| Fuse MINI
30A |
44 | (P/SEAT DRV) Driver Manual Switch |
| Fuse MINI
7.5A |
6 | (BCM) BCM, Smart Key Control Module |
| Fuse MINI 20A |
13 | (CIGAR LIGHT) Console Cigar Light, Rear Power Outlet |
| Fuse MINI
15A |
20 | (WIPER RR) Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch |
| Fuse MINI
15A |
27 | Spare |
| Fuse MINI 25A |
34 | (WIPER FRT) ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor |
| Fuse MINI
7.5A |
40 | (A/CON) A/C Control Module, E/R Fuse & Relay Box (RLY. 4)
2016: (IG2) A/CON, EJB (RELAY 4), HTD nozzle |
| Fuse MINI 7.5A |
7 | (A/CON SW) A/C Control Module |
| Fuse MINI
10A |
14 | (MODULE 6) Outside Mirror Switch, Audio, Navigation Head Unit, Digital Clock, DC-DC Converter |
| Fuse MINI
15A |
21 | Spare |
| Fuse MINI 7.5A |
28 | (MODULE 7) BCM, Smart Key Control Module |
| Fuse MINI
7.5A |
35 | (MODULE 5) EMS BOX (Head Lamp Washer Relay), lonizer Unit, Panorama Sunroof, DC-DC Converter, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY. ), Driver/Passenger Seat Warmer Module
2016: (MODULE 5) EMS box (headlamp washer relay), ionizer unit, panoramic sunroof, DC-DC converter, DSL box (PTC relay), E/R relay and fuse box (relay), SEAT FAN, driver/passenger seat heater module |

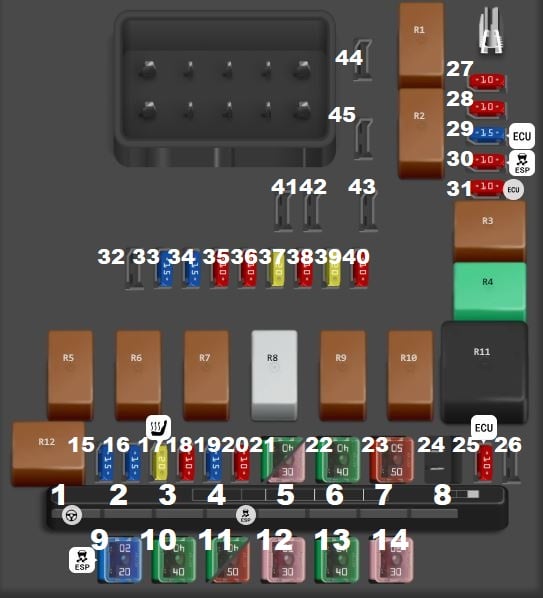

Engine Compartment Fuse Box

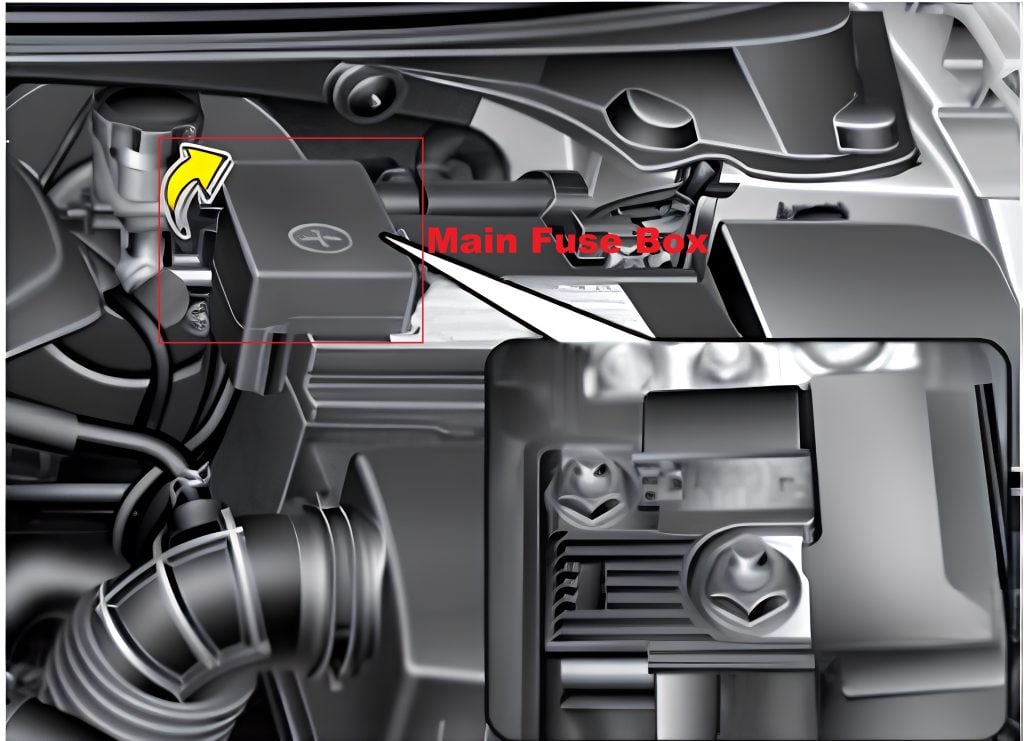

Main Fuse Box
| Type | Description |
| Multi fuse block MUSB | F1 EPS Control Module |
| Multi fuse block MUSB | F2
I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – F13/F14/F19/F20/F21/F26/ F36) |
| Multi fuse block MUSB | F3
RLY. 4 (Blower Relay) |
| Multi fuse block MUSB | F4 ESC Control Module, Multipurpose Check Connector |
| Multi fuse block MUSB | F5
EMS Box |
| Multi fuse block MUSB | F7
RLY. 12 (GASOLINE PTC Relay) |
| Multi fuse block MUSB | F8 I/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse – F2/F7/F9/F15) |
| Fuse FMX/JCase
20A |
F9
ESC Control Module, Multipurpose Check Connector |
| Fuse FMX/JCase 40A |
F10
W/O Button Start : Ignition Switch, With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay |
| Fuse FMX/JCase
30A 40A/50A |
F11
Electric Parking Brake Module 2016: [Gasoline Engine (MPI/GDI)] Relay 1 (Low Fan Relay), Relay 2 (High Fan Relay) 2016: [Gasoline Engine (T-GDI)] T-GDI PTC [Diesel Engine] Relay 1 (Low Fan Relay), Relay 2 (High Fan Relay) |
| Fuse FMX/JCase
40A
30A |
F12 RLY. 9 (Start Relay), Ignition Switch (W/O Button Start), RLY. 6 (PDM 4 (IG2) Relay, With Button Start) 2016: Electric Parking Brake Module |
| Fuse FMX/JCase
30A
40A |
F13
Electric Parking Brake Module 2016: Relay 9 (Start Relay), Ignition Switch [without Start Button], Relay 6 (PDM 4 (IG2) Relay, [with Start Button] |
| Fuse FMX/JCase 40A 30A |
F14
[Gasoline engine] RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay) 2016: Electric Parking Brake Module |
| Fuse FMX/JCase
50A |
F14
[Diesel engine] RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay) |
| Fuse MINI 15A |
F15
Spare 2015: G4NA/G4NC : PCM (A/T), ECM (M/T) |
| Fuse MINI 15A |
F16
RLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay) |
| Fuse MINI
20A |
F17 Driver/Passenger Seat Warmer Module 2016: Driver/Passenger Seat Heater Module |
| Fuse MINI
10A |
F18 Smart Key Control Module, Stop Signal Relay |
| Fuse MINI
15A |
F19
ICM Relay Box (Front Deicer Relay) 2016: ICM Relay Box (Front Defroster Relay) |
| Fuse MINI
20A
40A |
F20 D4FD & A/T : TCM F21 2015: Dual Clutch Transmission F22 2015: EMS Box |
| Fuse FMX/JCase
50A |
F23 I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38) |
| Fuse FMX/JCase
50A 40A |
F24 RLY. 12 (Fuel Filter Relay) 2015: PTC Heater/Fuel Filter 2016: No Data |
| Fuse MINI 10A |
F25
PCM/ECM F26 2015: Dual Clutch Transmission 2016: No Data |
| Fuse MINI
10A |
F27 M/T – Back-Up Lamp Switch, A/T – Rear – Combination Lamp (IN) LH/RH, Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module |
| Fuse MINI
15A |
F28
A/T – TCM (D4FD), Transaxle Range Switch |
| Fuse MINI 15A |
F29
G4NA/G4NC PCM (A/T), ECM (M/T) 2015: RLY. 9 (D4FD, Start Relay), ECM/PCM |
| Fuse MINI 10A |
F30
ESC Control Module, Multipurpose Check Connector |
| Fuse MINI
10A |
F31 RLY. 9 (D4FD, Start Relay), ECM/PCM 2015: ECM/PCM, Air Flow Sensor, Stop Lamp Switch |
| Fuse MINI
30A |
F32 EMS Box (Head Lamp Washer Relay) 2016: No Data |
| Fuse MINI
15A |
F33 G4NA/G4NC PCM (A/T), ECM (M/T) |
| Fuse MINI
15A |
F34
EMS Box (Fuel Pump Relay) |
| Fuse MINI 10A |
F35
G4NA – Injector #1/#2/#3/#4 |
| Fuse MINI
10A |
F36 G4FD ECM G4NA : Fuel Pump Relay G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T) D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve |
| Fuse MINI
20A |
F37
G4NA Ignition Coil #1/#2/#3/#4 Condenser |
| Fuse MINI 10A |
F38
ECM/PCM, Air Flow Sensor, Stop Lamp Switch |
| Fuse MINI
20A |
F39 G4FD/D4FD : ECM G4NA/G4NC PCM (A/T), ECM (M/T) |
| Fuse MINI
10A |
F40
G4FD : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve Purge Control Solenoid Valve G4NA/G4NC : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve D4FD : Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow Relay) |
| Fuse MINI 10A |
F41
Spare 2016: No Data |
| Fuse MINI 15A |
F42
Spare 2016: No Data |
| Fuse MINI 20A |
F43
Spare 2016: No Data |
| Fuse MINI 25A |
F44
Spare 2016: No Data |
| Fuse MINI 7.5A |
F45
Spare 2016: No Data |
| Relay | R1 C/FAN LO RELAY 2016: Relay 12 (Fuel Filter Relay) |
| Relay | R2
C/FAN HI RELAY 2016: No Data |
| Relay | R3
BLOWER a RELAY 2016: No Data |
| Relay | R4 HORN RELAY 2016: No Data |
| Relay | R5
RR HTD RELAY 2015: PTC Heater/Fuel Filter [Diesel engine]. PTC Heater/Fuel Filter [Gasoline engine] 2016: HTD TD RELAY |
| Relay | R6
ESS RELAY 2016: EMS Box (Headlamp Washer Relay) |
| Relay | R7
PDM 3 (IG1) RELAY 2015: PTC Heater/Fuel Filter [Diesel engine] 2016: PDM 3 (ENC1) RELAY |
| Relay | R8
FRONT WIPER RELAY 2016: No Data |
| Relay | R9 START RELAY 2016: No Data |
| Relay | R10
PDM 4 (IG2) RELAY 2016: No Data |
| Relay | R11
PTC Heater/Fuel Filter 2016: PWM Fan/Fuel Filter/PTC Heater |
| Relay | R12 2016: PDM 2 (ACC) RELAY |
| Fuse puller | Fuse puller
Extraction tool for fuse replacement. |

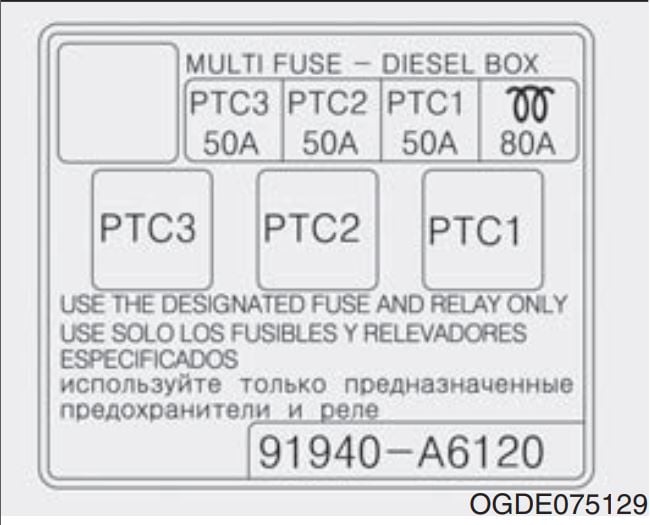

Additional Fuse Box (Diesel Only)
| Description | Fuse Rating | Protected Component |
|---|---|---|
| Glow Relay | 80A | Glow Relay |
| PTC 1 | 50A | PTC 1 Relay |
| PTC 2 | 50A | PTC 2 Relay |
| PTC 3 | 50A | PTC 3 Relay |
