Hyundai i40 (2011 – 2015) Fuse Box Diagrams & Location
Locate the fuse boxes and explore detailed fuse diagrams for the Hyundai i40 (2011–2015). This blog helps you identify fuse locations, understand each fuse and relay assignment, and troubleshoot common electrical issues, making maintenance and fuse replacement easier for owners and DIY enthusiasts.
Fuse Box Location

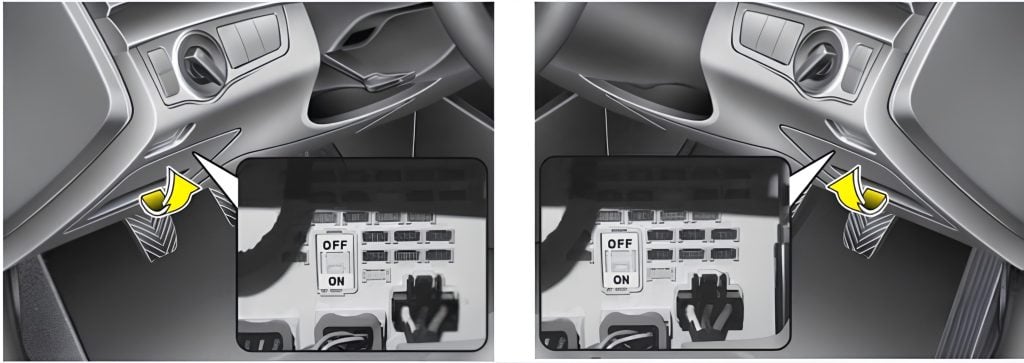

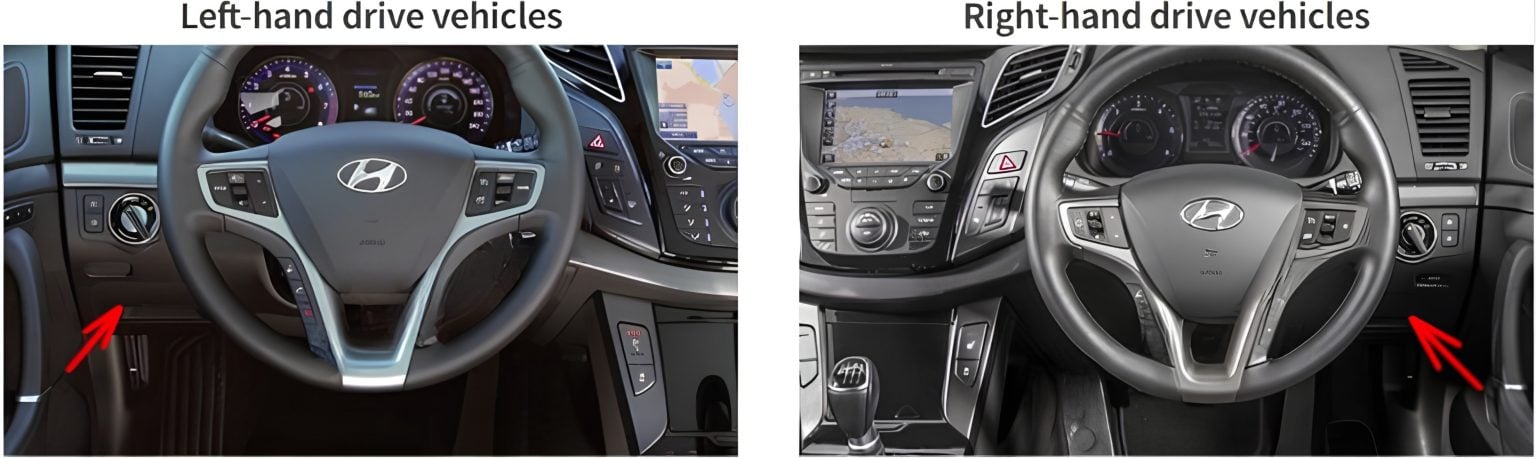

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

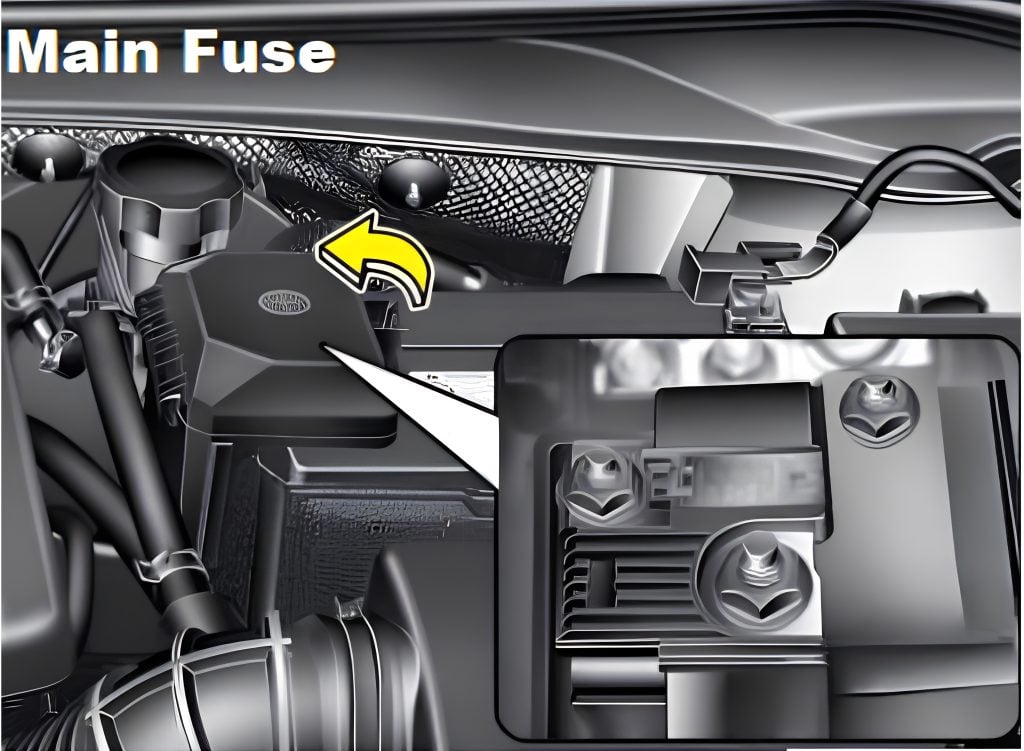

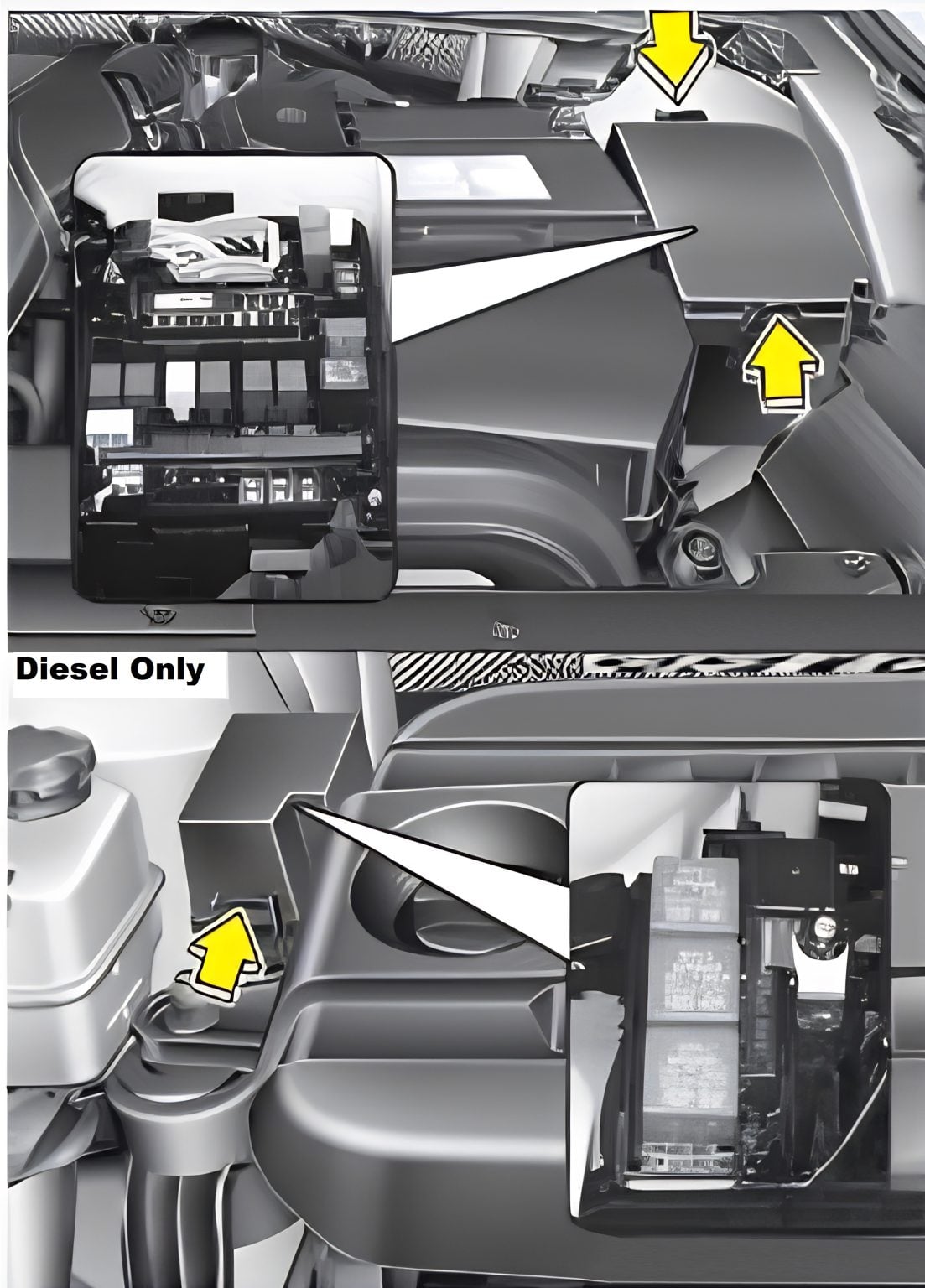

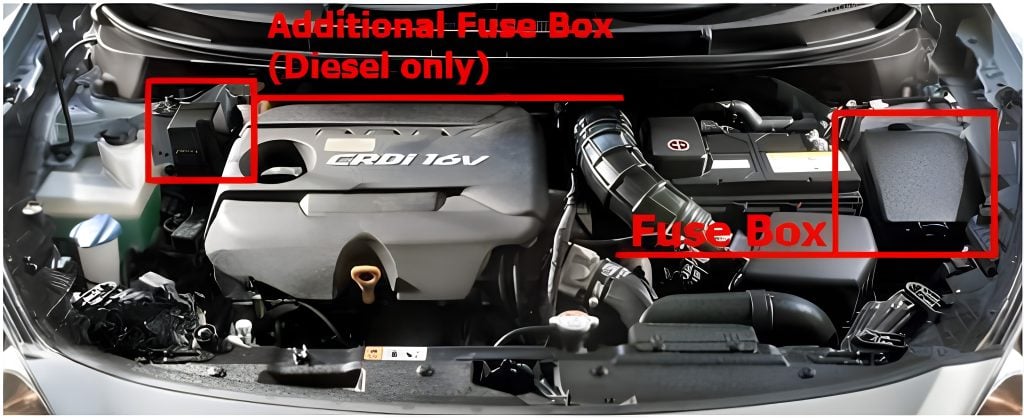

Engine Compartment Fuse Box
The fuse box is located in the engine compartment (left side).
Fuse Box Diagrams

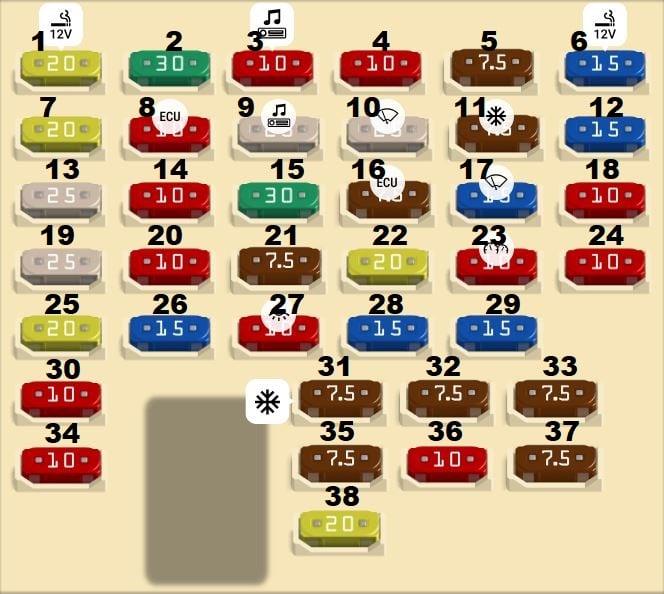

Passenger Compartment Fuse Box
| Type | Description |
| Fuse MINI
20A |
1 (POWER OUTLET 2) Console Power Outlet, Rear Power Outlet |
| Fuse MINI 30A |
2
(POWER TAIL GATE) Power Tail Gate |
| Fuse MINI
10A |
3 (MODULE 1) Smart Key Control Module, BCM, Audio, AMP, J BL AMP, A/V & Navigation Head Unit, DC-DC Converter (Audio/AMP), Over Head Console Lamp, Parking Guide System, Power Outside Mirror Switch |
| Fuse MINI
10A |
4
(MODULE 4) E/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Multipurpose Check Connector, Active Air Flap Unit, Fuel Filter Warning Sensor (D4FD) |
| Fuse MINI 7.5A |
5
(MODULE 3) Smart Key Control Module, BCM, Panorama Sunroof, Rain Sensor, Driver/Passenger CCS Control Module, ICM Relay Box (Headlamp Washer Relay) |
| Fuse MINI
15A |
6 (POWER OUTLET 1) Front Power Outlet |
| Fuse MINI
20A |
7
(P/SEAT PASS) Passenger Manual Switch |
| Fuse MINI 10A |
8
(HTD MIRR) Driver/Passenger Power Outside Mirror, ECM/PCM, A/C Control Module |
| Fuse MINI
25A |
9 (AMP) AMP, J BL AMP, DC-DC Converter (AMP) |
| Fuse MINI
25A |
10
(WIPER FRT) ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7), Front Wiper Motor |
| Fuse MINI 7.5A |
11
(A/CON) E/R Fuse & Relay Box (RLY. 4), EMS Box (Fuel Heater Relay), Diesel Box (PTC Heater Relay #2/#3), A/C Control Module |
| Fuse MINI
15A |
12 (STEERING WHEEL HEATER) Steering Wheel Heater |
| Fuse MINI
25A |
13
(P/WDW LH) Power Window LH Relay, Power Window Main Switch, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module LH, Rear Power Window Switch LH |
| Fuse MINI 10A |
14
(PDM 1) Tail Gate Open Relay, Trunk Lid Latch (SEDAN), Power Tail Gate Latch/Tail Gate Latch (WAGON), ICM Relay Box (Fuel Filler Lock/Unlock Relay) |
| Fuse MINI
30A |
15 (P/SEAT DRV) Driver IMS Module, Driver Manual Switch |
| Fuse MINI
7.5A |
16
(MODULE 2) BCM, Immobilizer Module, DC-DC Converter (Audio/AMP), Audio, Electro Chromic Mirror, Lane Keeping Assist Module, A/C Control Module, Head Lamp LH/RH, Driver IMS Module, Auto Head Lamp Leveling Device Module, Portable Lamp, Head Lamp Leveling Device Actuator LH/RH, Rear Seat Warmer LH/RH, Tire Pressure Monitoring Module, Driver/Passenger CCS Control Module, ATM Shift Lever IND., Console Switch, Driver/Passenger Seat Warmer Modul |
| Fuse MINI 15A |
17
(WIPER RR) Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch, Rear Curtain Module |
| Fuse MINI
10A |
18 (STOP LP) Stop Lamp Switch |
| Fuse MINI
25A |
19
(P/WDW RH) Power Window RH Relay, Power Window Main Switch, Passenger Power Window Switch, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH, Rear Power Window Switch RH |
| Fuse MINI 10A |
20
(PDM 2) Smart Key Control Module, Start/Stop Button Switch, Immobilizer Module |
| Fuse MINI
7.5A |
21 (MODULE 5) Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror, Active Air Flap Unit, Rear Seat Warmer Switch LH/RH, Auto Light & Photo Sensor, Sport Mode Switch, Key Solenoid |
| Fuse MINI
20A |
22
(IG1) E/R Fuse & Relay Box (Fuse – F27, F28, F29, F30, F31) |
| Fuse MINI 10A |
23
(MODULE 6) Instrument Cluster, Front Seat Warmer Switch LH/RH, Adaptive Front Lighting Module, Electric Parking Brake Module |
| Fuse MINI
10A |
24 (MDPS) EPS Control Module |
| Fuse MINI
20A |
25
(DR LOCK) Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Rear Door Lock Actuator LH/RH |
| Fuse MINI 15A |
26
(S/HEATER FRT) Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Modul |
| Fuse MINI
10A |
27 (INTERIOR LAMP) Driver/Passenger Door Lamp, Overhead Console Lamp, Portable Lamp, Room Lamp, Glove Box Lamp, Luggage Lamp, Driver/Passenger Foot Lamp, Trunk Room Lamp, Rear Personal Lamp LH/RH, Vanity Lamp LH/RH |
| Fuse MINI
15A |
28
(MULTIMEDIA) Audio, A/V & Navigation Head Unit, DC-DC Converter (Audio) |
| Fuse MINI 15A |
29
(A/BAG) SRS Control Module |
| Fuse MINI
10A |
30 (CURTAIN) Rear Curtain Module |
| Fuse MINI
7.5A |
31
(MEMORY 1) Instrument Cluster, Tire Pressure Monitoring Module, Rear Curtain Module, Tilt Sensor, A/C Control Module, BCM, Ultrasonic Instrusion Protection Sensor, Siren, Driver IMS Module, Power Outside Mirror Switch |
| Fuse MINI 7.5A |
32
(A/BAG IND) Instrument Cluster |
| Fuse MINI
7.5A |
33 (PDM 3) Smart Key Control Module |
| Fuse MINI
10A |
34
(S/HEATER RR) Rear Seat Warmer Module LH/RH |
| Fuse MINI 7.5A |
35
(MEMORY 2) RF Receiver |
| Fuse MINI
10A |
36 (PDM 1) Smart Key Control Module |
| Fuse MINI
7.5A |
37
(START) W/O Button Start: E/R Fuse & Relay Box (RLY. 8), Ignition Lock Switch, Transaxle Range Switch With Button Start: ECM/PCM, Transaxle Range Switch |
| Fuse MINI 20A |
38
(SUNROOF) Panorama Sunroof |
| Other | Fuse switch
FUSE SW(LEAK CURRENT AUTO-CUT DEVICE SWITCH) |

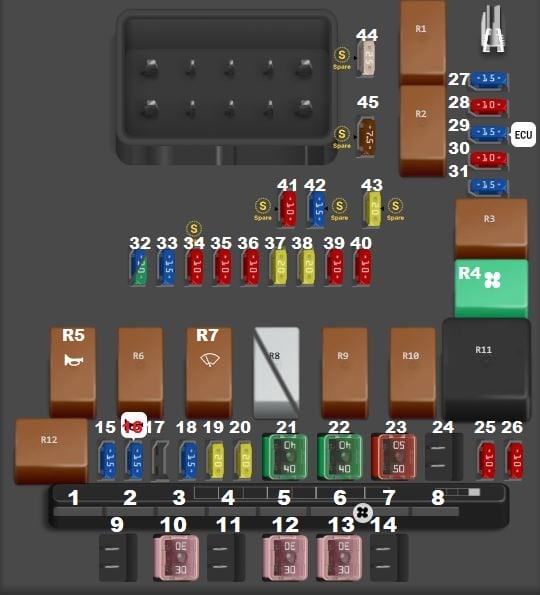

Engine Compartment Fuse Box
Main Fuse Box
| Type | Description |
| Multi fuse block MUSB | F1 (MDPS) EPS Control Module |
| Multi fuse block MUSB | F2
(B+1) I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – 13/F14/F19/F20/F21/F26/F36) |
| Multi fuse block MUSB | F3
(ABS1) ESP Control Module, Multipurpose Check Connector |
| Multi fuse block MUSB | F4 (ABS2) ESP Control Module, Multipurpose Check Connector |
| Multi fuse block MUSB | F5
(IG2) RLY. 9 (Start Relay), Ignition Switch (W/O Button Start), RLY. 6 (PDM 4 (IG2) Relay, With Button Start) |
| Multi fuse block MUSB | F6
(BLOWER) RLY. 4 (Blower Relay) |
| Multi fuse block MUSB | F7 (RR HTD) RLY. 11 (Rear Defogger Relay) |
| Multi fuse block MUSB | F8
(B+2) I/P Junction Box (IPS 3 (4CH). IPS 4 (4CH). Fuse – F2/F7/F9/F15) |
| Fuse FMX/JCase
30A |
F10 (AMP) DC-DC Converter (AMP) |
| Fuse FMX/JCase
30A |
F12
(EPB1) Electric Parking Brake Module |
| Fuse FMX/JCase 30A |
F13
(EPB2) Electric Parking Brake Module |
| Fuse FMX/JCase | F14
(C/FAN) RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay) |
| Fuse MINI 15A |
F15
(DEICER) ICM Relay Box (Front Deicer Relay) |
| Fuse MINI
15A |
F16 (HORN) RLY. 5 (Horn Relay), ICM Relay Box (Front Deicer Relay) |
| Fuse MINI
15A |
F18
(STOP LP) RLY. 12 (HAC Relay), Stop Signal Relay |
| Fuse MINI 20A |
F19
(H/LP WASHER) ICM Relay Box (Head Lamp Washer Relay) |
| Fuse MINI
20A |
F20 (TCU2) D4FD & A/T TCM |
| Fuse FMX/JCase
40A |
F21
(IG1) W/O Button Start: Ignition Switch, With Button Start: RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay |
| Fuse FMX/JCase 40A |
F22
(EMS) EMS Box |
| Fuse FMX/JCase
50A |
F23 (B+3) I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38) |
| Fuse MINI
10A |
F25
(A/CON SW) A/C Control Module |
| Fuse MINI 10A |
F26
(WIPER FRT) PCM/ECM |
| Fuse MINI
15A |
F27 (TCU1) A/T – TCM (D4FD), Transaxle Range Switch |
| Fuse MINI
10A |
F28
(B/UP LP) M/T – Back-Up Lamp Switch. A/T – Rear Combination Lamp (IN) LH/RH, Rear Curtain Module Electro Chromic Mirror, IPS Control Module, A/V & Navigation Head Unit |
| Fuse MINI 15A |
F29
(ECU3) RLY. 9 (D4FD, Start Relay), ECM/PCM, Air Flow Sensor (D4FD) |
| Fuse MINI
10A |
F30 (ABS3) ESP Control Module |
| Fuse MINI
15A |
F31
(IGN COIL2) G4FD/G4NC – Ignition Coil #1/#2/#3/#4 Condenser |
| Fuse MINI 15A |
F32
(F/PUMP) Fuel Pump Relay [Gasoline] |
| Fuse MINI
30A |
F32 (F/PUIMP) Fuel Pump Relay [Diesel] |
| Fuse MINI
15A |
F33
(ECU4) [G4FD]: ECM G4NA/G4NC : PCM (A/T), ECM (M/T) |
| Fuse MINI 10A |
F34
(SPARE) SPARE |
| Fuse MINI
10A |
F35 (INJECTOR) G4NA-Injector – #1/#2/#3/#4 |
| Fuse MINI
10A |
F36
(ECU2) [G4FD]: ECM ,[G4NA]; Fuel Pump Relay [G4NC]: Fuel Pump Relay, PCM (A/T), ECM (M/T), [D4FD]: Oil Level Sensor, Fuel Pressure Regulating Valve |
| Fuse MINI 20A |
F37
(IGN COIL1) G4NA Ignition Coil #1/#2/#3/#4, Condenser |
| Fuse MINI
20A |
F38 (ECU1) G4FD/D4FD ECM G4NA/G4NC PCM (A/T), ECM (M/T) |
| Fuse MINI
10A |
F39
(SENSOR2) [G4FD]: Oil Control Valve #1/#2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1), [G4NA/G4NC] : Oil Control Valve #1/#2, Camshaft Position Sensor (Intake/Exhaust), E/R Fuse & Relay Box (RLY. 1), [D4FD]: E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1), Lambda Sensor, VGT Control Solenoid Valve |
| Fuse MINI 10A |
F40
(SENSOR1) [G4FD]: Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve [G4NA/G4NC ]: Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve, [D4FD]: Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow Relay) |
| Fuse MINI
10A |
F41 Spare |
| Fuse MINI
15A |
F42
Spare |
| Fuse MINI 20A |
F43
Spare |
| Fuse MINI
25A |
F44 Spare |
| Fuse MINI
7.5A |
F45
Spare |
| Relay | R1 C/FAN LO RELAY |
| Relay | R2
C/FAN HI RELAY |
| Relay | R3
ESS RELAY |
| Relay | R4 BLOWER RELAY |
| Relay | R5
HORN RELAY |
| Relay | R6
PDM 4 (IG2) RELAY |
| Relay | R7 FRONT WIPER RELAY |
| Relay | R8
PDM 2 (ACC) RELAY |
| Relay | R8
BURGLAR ALARM HORN RELAY |
| Relay | R9 START RELAY |
| Relay | R10
PDM 3 (IG1) RELAY |
| Relay | R11
RR HTD RELAY |
| Relay | R12 HAC RELAY |
| Fuse puller | Fuse puller
Extraction tool for fuse replacement. |

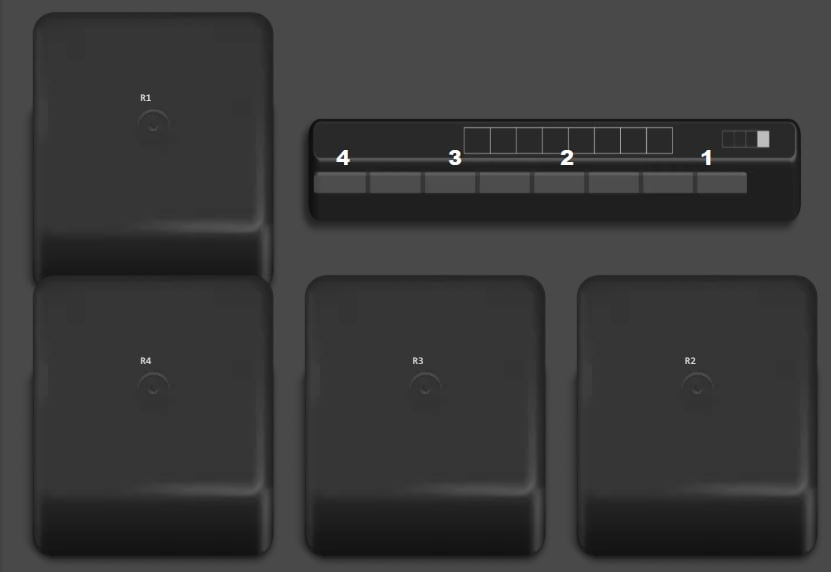

Additional Fuse Box (Diesel Only)
| Type | No. | Description |
| Multi fuse block MUSB | 1 | Glow Relay |
| Multi fuse block MUSB | 2 | PTC Heater Relay #1 |
| Multi fuse block MUSB | 3 | PTC Heater Relay #2 |
| Multi fuse block MUSB | 4 | PTC Heater Relay #3 |
| Relay | R1 | Glow Relay |
| Relay | R2 | PTC Heater Relay #1 |
| Relay | R3 | PTC Heater Relay #2 |
| Relay | R4 | PTC Heater Relay #3 |
