Land Rover Freelander 2 (2006 – 2014) Fuse Box Diagrams & Location
The Land Rover Freelander 2 / LR2 (2006–2014) fuse box protects essential electrical systems throughout the vehicle. Knowing its location and fuse diagram helps identify the correct fuse for lighting, accessories, engine controls, and other electrical components when diagnosing common electrical problems.
Fuse Box Location

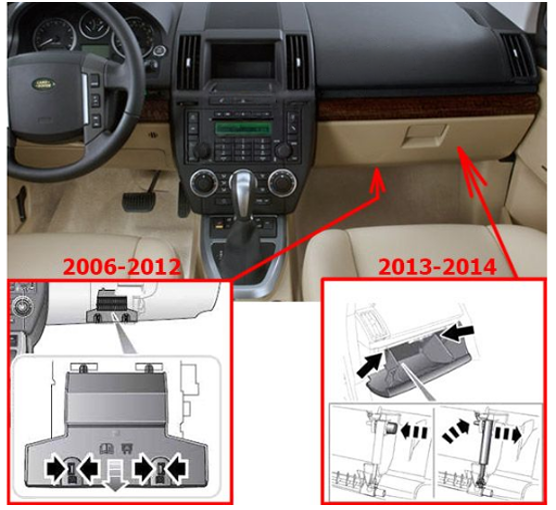

Passenger Compartment Fuse Box

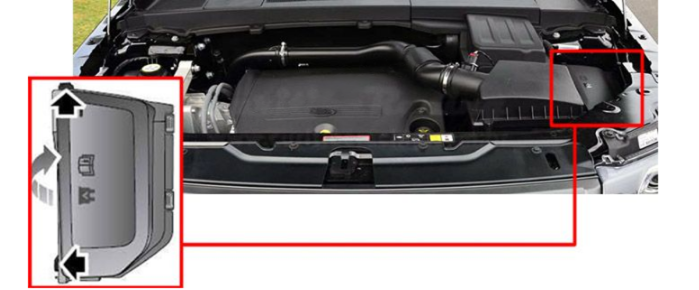

Engine Compartment Fuse Box

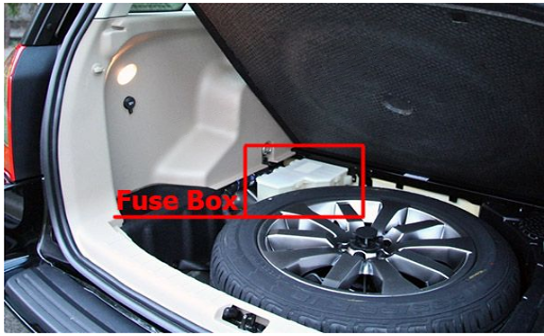

Luggage Compartment Fuse Box
Fuse Box Diagrams

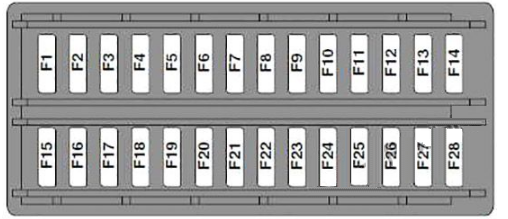

Passenger Compartment Fuse Box
Land Rover Freelander 2 (2006-2012)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5 | Rain sensor |
| F2 | 10 | SRS |
| F3 | 5 | ABS |
| F4 | 5 | Instrument pack – Accelerator pedal – Light Switch Module |
| F5 | 5 | – |
| F6 | 15 | Audio unit |
| F7 | 7.5 | Steering wheel controls |
| F8 | 5 | Instrument pack |
| F9 | 15 | Headlamp main beam |
| F10 | 15 | Sunroof |
| F11 | 7.5 | Reverse lights and interior mirror dip |
| F12 | – | – |
| F13 | 15 | Front fog lamps |
| F14 | 15 | Screen wash |
| F15 | – | – |
| F16 | – | – |
| F17 | 7.5 | Interior lighting |
| F18 | – | – |
| F19 | 5 | Electric seat adjustment |
| F20 | 15 | Rear wiper |
| F21 | 5 | Alarm |
| F22 | 20 | Fuel pump |
| F23 | 20 | Steering column lock |
| F24 | – | – |
| F25 | 10 | Tailgate – Fuel filler flap |
| F26 | 5 | Diagnostic socket and alarm |
| F27 | 5 | Start button and climate control |
| F28 | 5 | Brake lights |
| F29 | 15 | Voltage module |

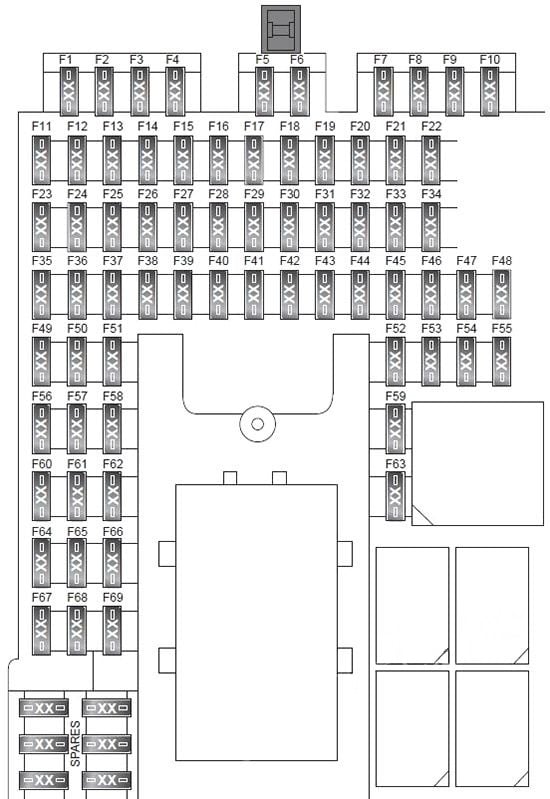

Land Rover Freelander 2 (2013 & 2014)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5 | RF receiver. Interior motion sensor. Tyre Pressure Monitoring System (TPMS) |
| F2 | – | – |
| F3 | 15 | Front fog lamps |
| F4 | – | – |
| F5 | 5 | Slip control module |
| F6 | 5 | Ignition supply for engine compartment fuse box and luggage compartment fuse box relays. |
| F7 | – | – |
| F8 | 25 | Front passenger door module |
| F9 | 5 | EPB |
| F10 | 5 | Heated washer jets |
| F11 | 10 | Reverse light trailer |
| F12 | 10 | Reverse lights. Mirror control |
| F13 | – | – |
| F14 | 5 | Brake pedal switch |
| F15 | 30 | Heated rear screen |
| F16 | – | – |
| F17 | 5 | Keyless Vehicle Module (KVM) |
| F18 | – | – |
| F19 | 5 | Power-train Control Module (PCM) |
| F20 | 5 | Accelerator pedal |
| F21 | 5 | Instrument panel. Centre console. Electric booster heater |
| F22 | 5 | Transmission Control Module (TCM) |
| F23 | – | – |
| F24 | 5 | Rear fog lamp (right side) |
| F25 | 5 | Rear fog lamp (left side) |
| F26 | – | – |
| F27 | – | – |
| F28 | – | – |
| F29 | – | – |
| F30 | – | – |
| F31 | 5 | Voltage module. Rain sensor. Passenger Airbag Deactivation (PAD) lamp |
| F32 | 25 | Driver door module |
| F33 | – | – |
| F34 | 10 | Fuel flap |
| F35 | – | – |
| F36 | 5 | Battery backed sounder |
| F37 | 5 | Road pricing (Singapore only) |
| F38 | 15 | Front screen washer |
| F39 | 25 | Rear door module (left side) |
| F40 | 5 | Clock. Door memory switch |
| F41 | – | – |
| F42 | 30 | Driver seat |
| F43 | 15 | Rear screen washer |
| F44 | 25 | Rear door module (right side) |
| F45 | 30 | Front passenger seat |
| F46 | – | – |
| F47 | 20 | Sunroof and sunblind module |
| F48 | 15 | Trailer connector |
| F49 | – | – |
| F50 | – | – |
| F51 | 5 | Steering wheel switches |
| F52 | 20 | Cigar lighter (front) |
| F53 | – | – |
| F54 | – | – |
| F55 | 20 | Auxiliary socket (rear console) |
| F56 | 10 | Restraints Control Module (RCM) |
| F57 | 10 | Battery saver circuits. Vanity mirror lamp. Glove box lamp. Upper console lamp |
| F58 | – | – |
| F59 | – | – |
| F60 | 5 | Occupant Classification Sensor Control Module (OCSCM) |
| F61 | 5 | Immobiliser Antenna Unit (IAU) |
| F62 | 10 | Climate control module |
| F63 | 20 | Auxiliary socket (luggage compartment) |
| F64 | – | – |
| F65 | – | – |
| F66 | 5 | On Board Diagnostic (OBD) connector |
| F67 | – | – |

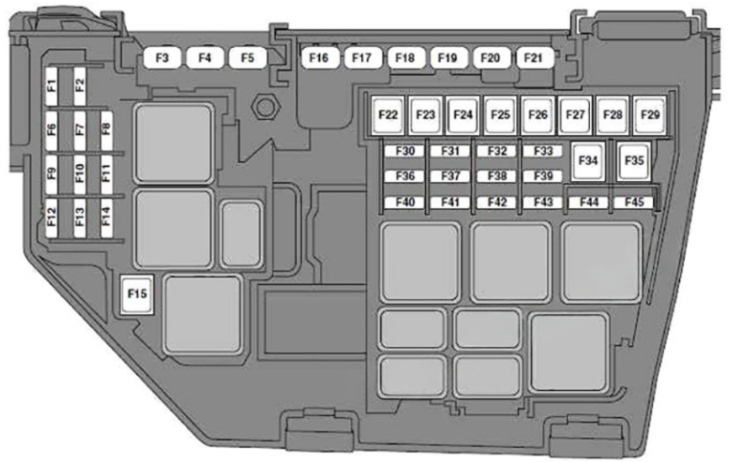

Engine Compartment Fuse Box
Land Rover Freelander 2 (2006-2012)
| № | A | Circuits protected |
|---|---|---|
| F1 | 5 | 2006-2011: Glow plugs 2012: Auxiliary water pump |
| F2 | 15 | Automatic transmission |
| F3 | 80 | Cooling fans |
| F4 | 60 | Glow plugs |
| F5 | – | Not Used |
| F6 | 10 | diesel: Engine management |
| F6 | 15 | petrol: Engine management |
| F7 | 5 | Relays |
| F8 | 10 | diesel: Engine management |
| F8 | 15 | petrol: Engine management |
| F9 | 10 | diesel: Engine management |
| F9 | 15 | petrol: Engine management |
| F10 | 10 | petrol: Engine management |
| F11 | 10 | Engine management |
| F12 | 10 | diesel: Engine management |
| F12 | 20 | petrol: Engine management |
| F13 | 15 | Air Conditioning |
| F14 | 15 | diesel: Engine management |
| F15 | 40 | Starter motor |
| F16 | 100 | Diesel PTC heater |
| F17 | 60 | Passenger compartment fuse box supply |
| F18 | 60 | Passenger compartment fuse box supply |
| F19 | 60 | Luggage compartment fuse box supply |
| F20 | 60 | Luggage compartment fuse box supply |
| F21 | 60 | Luggage compartment fuse box supply – Audio unit |
| F22 | 30 | Windscreen wipers |
| F23 | 40 | Not Used |
| F24 | 30 | Headlamp washers |
| F25 | 30 | ABS |
| F26 | 40 | ABS |
| F27 | 40 | Not Used |
| F28 | 40 | Heater blower |
| F29 | – | – |
| F30 | 15 | Not Used |
| F31 | 15 | Horns |
| F32 | 20 | Diesel auxiliary heater |
| F33 | 5 | Relays |
| F34 | 40 | Heated windscreen(LH) |
| F35 | 40 | Heated windscreen (RH) |
| F36 | 5 | Not Used |
| F37 | 10 | Heated washer jets |
| F38 | 10 | AFS (RH lamp motors) |
| F39 | 10 | Climate control |
| F40 | 10 | 2006-2010: Not Used 2011-2012: Auxiliary water pump |
| F41 | 20 | Passenger compartment fuse box supply |
| F42 | 15 | Engine management |
| F43 | 5 | Headlamp levelling control -AFS |
| F44 | 10 | AFS (LH lamp motors) |
| F45 | 15 | Cigar lighter |
Land Rover Freelander 2 (2013 & 2014)
| № | A | Circuits protected |
|---|---|---|
| F1 | – | Not Used |
| F2 | 5 | Voltage module |
| F3 | 80 | Cooling fans |
| F4 | 60 | Glow plugs |
| F5 | – | Not Used |
| F6 | 15 | Engine management. Oxygen sensors |
| F7 | 5 | Relays |
| F8 | 20 | Engine management |
| F9 | 10 | Engine management |
| F10 | 15 | Automatic transmission |
| F11 | 10 | Engine management |
| F12 | 15 | Engine management |
| F13 | 10 | Air Conditioning |
| F14 | 15 | Engine management. Air conditioning |
| F15 | 40 | Starter motor |
| F16 | 100 | Diesel PTC heater |
| F17 | 60 | Passenger compartment fuse box supply |
| F18 | 60 | Passenger compartment fuse box supply |
| F19 | 60 | Luggage compartment fuse box supply. Audio system |
| F20 | 60 | Luggage compartment fuse box supply |
| F21 | 60 | Luggage compartment fuse box supply |
| F22 | 30 | Windscreen wipers |
| F23 | 40 | Passenger compartment fuse box supply |
| F24 | – | Not Used |
| F25 | 30 | ABS |
| F26 | 40 | ABS |
| F27 | 40 | Passenger compartment fuse box supply |
| F28 | 40 | Heater blower |
| F29 | – | Not Used |
| F30 | 15 | Headlamp washer |
| F31 | 15 | Horns |
| F32 | 20 | Diesel auxiliary heater |
| F33 | 5 | Relays |
| F34 | 40 | Heated windscreen(LH) |
| F35 | 40 | Heated windscreen (RH) |
| F36 | 5 | Auxiliary heater water pump (diesel only) |
| F37 | 20 | Fuel pump |
| F38 | 10 | Parking aid module |
| F39 | – | Not Used |
| F40 | – | Not Used |
| F41 | – | Not Used |
| F42 | 5 | Headlamp levelling control |
| F43 | 5 | Automatic high beam. Rear view camera |
| F44 | 10 | Heated steering wheel |
| F45 | 5 | Auxiliary heater water pump (diesel only) |

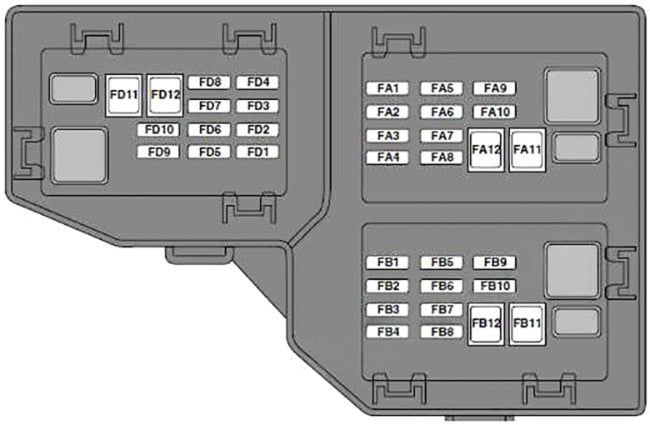

Luggage Compartment Fuse Box
Land Rover Freelander 2 (2006-2012)
| № | A | Circuits protected |
|---|---|---|
| FA1 | 25 | Driver door controls |
| FA2 | 25 | Passenger door controls |
| FA3 | 25 | Rear left door controls |
| FA4 | 25 | Rear right door controls |
| FA5 | – | – |
| FA6 | 15 | Rear accessory socket |
| FA7 | 30 | Heated rear screen |
| FA8 | – | – |
| FA9 | 15 | Trailer power |
| FA10 | 30 | Driver electric seat |
| FA11 | 40 | Trailer power |
| FA12 | – | – |
| FB1 | 10 | Park distance control |
| FB2 | – | – |
| FB3 | 15 | Driver’s seat heater |
| FB4 | 15 | Front passenger’s seat heater |
| FB5 | 15 | Caravan fridge |
| FB6 | 15 | Electronic centre differential |
| FB7 | – | – |
| FB8 | – | – |
| FB9 | 30 | Passenger electric seat |
| FB10 | – | – |
| FB11 | – | – |
| FB12 | – | – |
| FD1 | 10 | Audio system and touch screen |
| FD2 | – | – |
| FD3 | 10 | DAB |
| FD4 | 5 | Bluetooth telephone |
| FD5 | – | – |
| FD6 | 10 | Audio unit |
| FD7 | – | – |
| FD8 | – | – |
| FD9 | 30 | Audio amplifier |
| FD10 | – | – |
| FD11 | – | – |
| FD12 | – | – |
Land Rover Freelander 2 (2013 & 2014)
| № | A | Circuits protected |
|---|---|---|
| FB1 | 15 | Electronic centre differential |
| FB2 | 15 | Caravan fridge |
| FB3 | 15 | Driver seat heater |
| FB4 | 15 | Front passenger seat heater |
| FB5 | 5 | Auxiliary heater control |
| FB6 | – | – |
| FB7 | – | – |
| FB8 | 10 | Instrument panel |
| FB9 | 5 | Heating and ventilation system |
| FB10 | – | – |
| FB11 | – | – |
| FB12 | – | – |
| FD1 | 10 | Audio system. Touch screen |
| FD2 | 15 | Audio system |
| FD3 | 10 | Digital radio |
| FD4 | – | – |
| FD5 | 5 | Electric seat switches |
| FD6 | 30 | Electric Park Brake (EPB) |
| FD7 | 15 | Rear wiper |
| FD8 | 30 | EPB |
| FD9 | – | – |
| FD10 | 5 | Audio amplifier |
| FD11 | 40 | Audio amplifier |
| FD12 | – | – |
