Land Rover Range Rover (2002 – 2012) Fuse Box Diagrams & Location

This blog covers the Land Rover Range Rover (2002–2012) fuse box locations and diagrams, helping you quickly identify the fuse panels and understand their layout. Find the relevant fuse box positions for different model years and use the diagrams to locate fuses efficiently when troubleshooting electrical issues.

Fuse Box Location

Passenger Compartment Fuse Box

To access the passenger compartment fuse box, open the lower glove box, push the retaining rod (1) to the right and lower the glove box to the service position. Push on the catches on the fuse box cover (2) and pull towards you. Put the lid in a safe place. The label on the back of the cover shows fuse and circuit information.

Luggage Compartment Fuse Box

The fuse box is situated on the right-hand side of the loadspace behind the rear loadspace access hatch. Lift the catch (upper inset) and pull the hatch away from the side of the vehicle.

Fuse Box Diagrams

Passenger Compartment Fuse Box

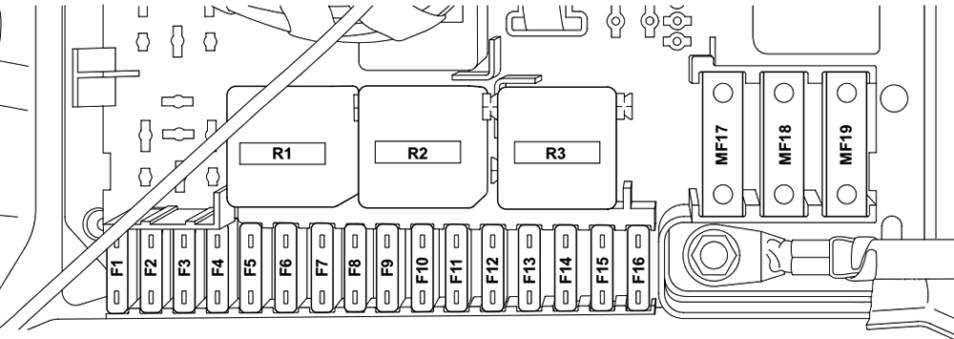

Land Rover Range Rover (2002 – 2005)

№	Amps	Function
FL1	80 A	Heated front screen relay.
FL2	60 A	Td6: Ignition switch. V8: Engine immobilisation ECU, header 499.
FL3	50 A	Light Check Module.
FL4	50 A	Light Check Module.
FL5	100 A	MF17, MF18, MF19, F1, F2, F3, F4, F6, F7, F9, F10, F11, F12, F13, F14, F15 and F16 of the rear fuse box.
F1	5 A	Instrument pack
F2	5 A	Heated rear screen relay, rear blower motor relay seat heat relay relay 2, F5 and F8 of the rear fuse box.
F3	7.5 A	Fuel cooling fan motor.
F4	5 A	Light Check Module, Door lamp module.
F5	7.5 A	Diagnostic socket, EAT ECU.
F6	5 A	Tyre Pressure Monitoring ECU, Interior mirror, Park Distance Control ECU.
F7	5 A	Not used.
F8	5 A	On-board computer, Audio system.
F9	5 A	Light Check Module, Brake pedal switch, Rotary coupler.
F10	15 A	Horn relay
F11	30 A	Drivers door module, Central locking, External mirrors, Electric windows – front
F12	10 A	Air conditioning, Heated seats – front
F13	5 A	Transmission selector indicator lamp, Steering angle sensor, Clock, ABS, Dynamic Stability Control.
F14	5 A	–
F15	5 A	Diagnostic socket, BCU, Central locking, Electric windows – front
F16	5 A	Tyre Pressure Monitoring ECU.
F17	5 A	Door lamp module, Exterior mirrors, Interior lights
F18	10 A	Engine immobilisation ECU, Steering column interlock ECU.
F19	–	–
F20	30 A	LH seat switch pack, Steering column
F21	30 A	RH seat switch pack.
F22	7.5 A	Telephone module.
F23	15 A	Steering wheel relay.
F24	30 A	Passenger door module, Central locking, Exterior mirrors Electric windows – front
F25	5 A	Ignition switch / Immobilisation.
F26	30 A	Windscreen wiper delay ECU.
F27	20 A	BCU, Glove box light, Interior lights, Windshield washers.
F28	30 A	Headlamp wash/wipe relay.
F29	10 A	Steering wheel heater ECU.
F30	15 A	Electronic damper control
F31	5 A	ECM, Steering column interlock ECU.
F32	5 A	LH Xenon headlamp, RH Xenon headlamp.
F33	5 A	Transfer box ECU.
F34	7.5 A	Air conditioning, Blower
F35	5 A	Centre console switch pack, Hill Descent Control switch, ABS, Dynamic Stability Control
F36	5 A	–
F37	5 A	Transfer box ECU – Only fitted for towing purposes.
F38	5 A	–
F39	5 A	Steering column lighting switch / Immobilisation.
F40	5 A	CD autochanger.
F41	5 A	BCU, Rain sensor, Rear screen wiper ECU.
F42	5 A	LH vanity mirror, RH vanity mirror.
F43	5 A	Tilt sensor, Alarm, Interior mirror, BBUS, Volumetric sensor.
F44	5 A	SRS DCU, occupancy detector, LH seat belt buckle, RH seat belt buckle. Airbag SRS – DO NOT REMOVE
F45	5 A	Instrument pack.
F46	5 A	Instrument pack.
F47	30 A	Heated washer jet relay.
F48	15 A	–
F49	30 A	Navigation system, On-board computer, On-board monitor, Audio system
F50	–	–
F51	10 A	Td6: Steering angle sensor, ABS ECU, fuel pump relay. V8: Steering angle sensor, Secondary Air Injection pump relay, Secondary Air Injection pump, ABS ECU, fuel pump relay.
F52	25 A	HeVAC control module / Heated seats – front.
F53	30 A	Ignition switch.
F54	15 A	EAT ECU.
F55	30 A	ABS ECU.
F56	7.5 A	Relay 6.
F57	15 A	Air suspension ECU.
F58	20 A	Sunroof ECU.
F59	20 A	Fuel burning heater, Fuel burning heater receiver.
F60	30 A	BCU, Central locking, Electric windows – rear.
MF61	50 A	Cooling fan control unit.
MF62	50 A	V8: Secondary Air Injection pump relay.
MF63	50 A	ABS ECU.
MF64	50 A	Front blower motor control unit.
		Upper side:
F1	80 A	Heated windscreen
F2	60 A	Ignition switch (Diesel), immobilizer (petrol)
F3	50 A	Bulb failure warning module
F4	50 A	Bulb failure warning module
F5	100 A	Fascia fuse box/relay plate (F1-F4/F6-F15), load area fuse box/relay plate

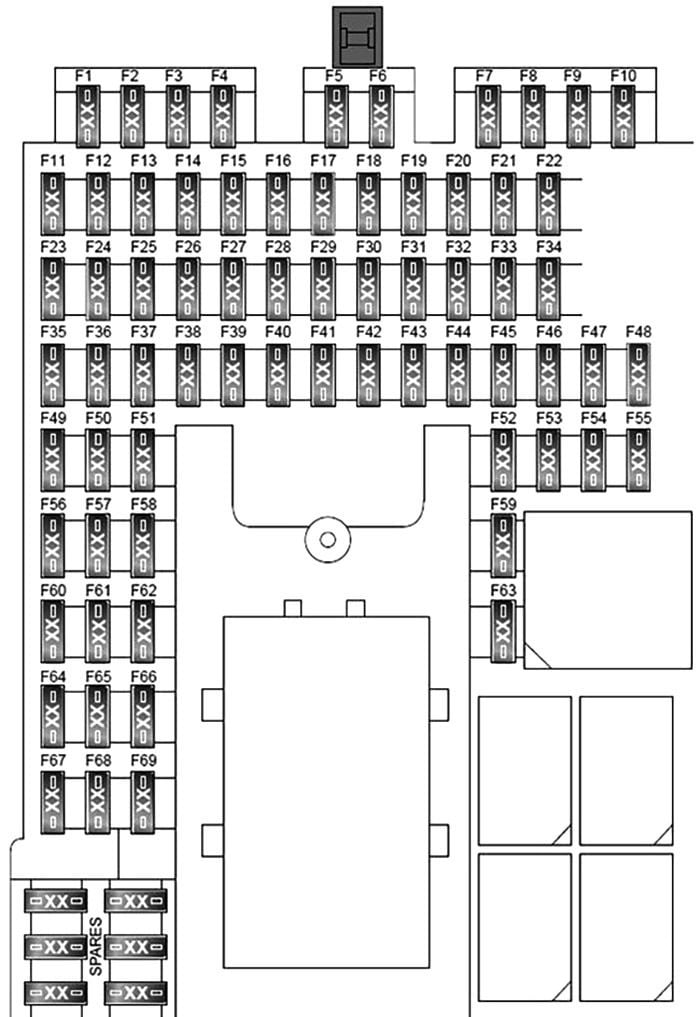

Land Rover Range Rover (2006 – 2012)

№	Amp
1	5A	Occupancy Sensor, RF Receiver, TPMS Receiver
2	–	–
3	10A	Fog lights
4	–	–
5	5A	Dynamic stability control, steering angle sensor
6	5A	Adaptive cruise control, brake light switch
7	20A	Rear seats ventilation
8	30A	Power passenger seat, rear power seats
9	5A	Electric parking brake
10	5A	Air suspension
11	10A	Trailer reversing lights
12	5A	Reversing lights
13	–	–
14	5A	Brake lights, Engine Management System (EMS) (diesel only)
15	30A	Heated rear window
16	5A	Spare fuse
17	5A	Keyless entry/start
18	–	–
19	5A	Engine control module
20	10A	Steering wheel heating
21	10A	Center console switches, rear climate control, heated seats
22	5A	Transmission, transfer case, rear differential, center console switches
23	5A	Adaptive front lighting system
24	10A	Side marker lights and taillights (right hand side)
25	10A	Side marker lights, taillights (left hand side), license plate lights
26	–	–
27	10A	Trailer marker lights
28	20A	Rear seats ventilation
29	20A	Heated/climatized seat, driver’s side
30	25A	Passenger door
31	5A	Rain sensor
32	25A	Driver’s door
33	20A	Heated/climatized seat, passenger side
34	10A	Electric fuel filler flap actuator
35	–	–
36	5A	Battery back-up sounder
37	20A	Spare fuse
38	15A	Windshield washer
39	25A	Left rear door
40	5A	Driver’s window switch group, seat switch groups, front seat lumbar support, clock
41	5A	Phone
42	30A	Driver’s power seat, rear power seats
43	15A	Rear window washer
44	25A	Right rear door
45	30A	Power passenger seat, rear power seats
46	30A	Driver’s power seat, rear power seats
47	20A	Sunroof
48	30A	Trailer connector (battery powered)
49	5A	Adaptive front lighting system (right headlight)
50	5A	Adaptive front lighting system (left headlight)
51	5A	Steering wheel switches
52	20A	Front cigarette lighter, center console auxiliary power socket
53	–	–
54	–	–
55	20A	Auxiliary power socket (rear)
56	10A	Airbag Supplemental Restraint System (SRS)
57	10A	Interior lights, battery saver circuits
58	30A	Drop down stirrup
59	–	–
60	–	–
61	10A	Instrument panel
62	10A	Electronic control unit of the climate control system
63	20A	Rear cigarette lighter, front auxiliary power socket
64	15A	Audio unit, DVD player, touch screen
65	5A	Peripheral camera system, VentureCam
66	5A	Diagnostic connector
67	15A	Rear multimedia system
68	10A	Touch screen, infotainment system
69	5A	CD changer

Luggage Compartment Fuse Box

Land Rover Range Rover (2002 – 2005)

№	Amps	Function
F1	20 A	Front cigar lighter, Rear cigar lighter, Front accessory socket.
F2	25 A	Relay 4.
F3	25 A	Relay 2.
F4	15 A	Trailer pick-up.
F5	–	–
F6	20 A	Trailer pick-up.
F7	20 A	Rear accessory socket.
F8	–	–
F9	30 A	Heated rear window relay.
F10	20 A	Rear screen wiper motor.
F11	20 A	Seat heat relay.
F12	15 A	Rear blower motor relay.
F13	–	–
F14	5 A	RF receiver.
F15	25 A	Fuel pump relay.
F16	10 A	Central locking system, tailgate
MF17	50 A	Trailer ECU.
MF18	50 A	Air suspension relay / Trailer socket.
MF19	50 A	Not used.

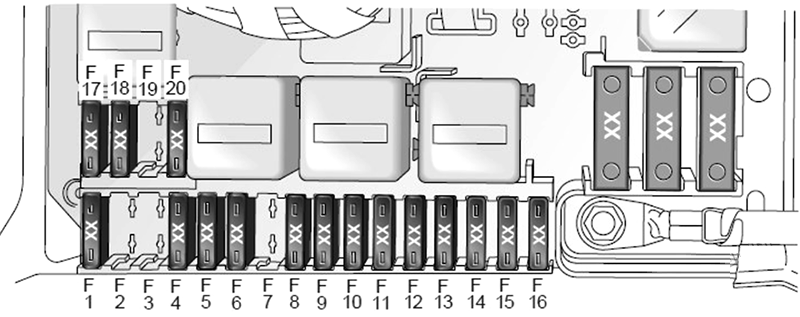

Land Rover Range Rover (2006 – 2012)

№	Amps	Description
1	30A	Amplifier
2	15A	Adaptive dynamics
3	5A	Parking aid system, blind spot control, rear view camera
4	10A	Air conditioner (rear)
5	20A	Air suspension
6	30A	Electric parking brake
7	40A	Heated rear seats
8	15A	Trailer
9	–	–
10	–	–
11	5A	Glove box
12	–	–
13	5A	Air Suspension Compressor
14	15A	Rear fan motor
15	15A	Rear window wiper
16	5A	–
17	–	–
18	–	–
19	–	–
20	30A	Rear seat heating
