Peugeot 108 (2014 – 2022) Fuse Box Diagrams & Location
The Peugeot 108 (2014–2019) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 108.
Fuse Box Location

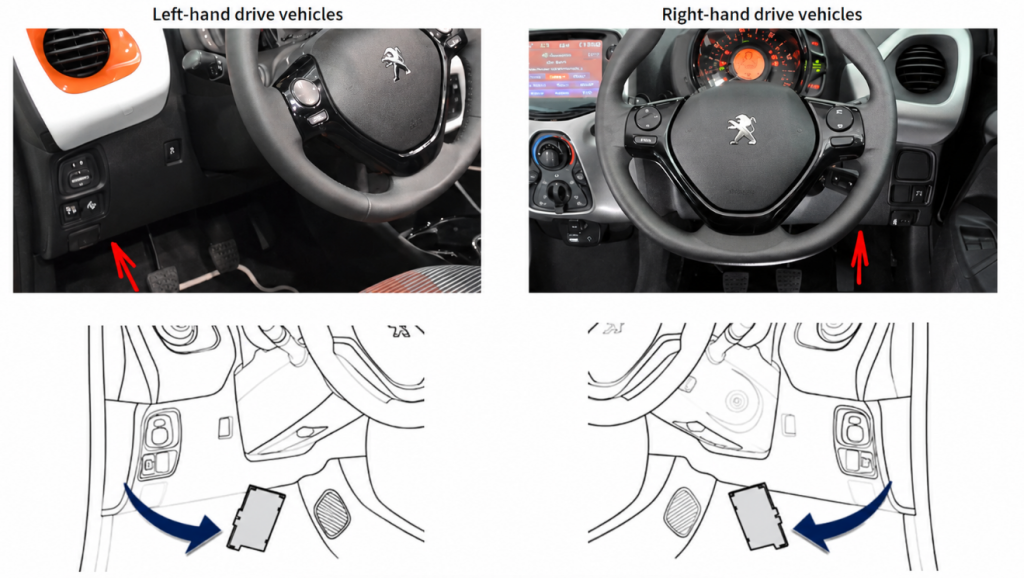

Passenger Compartment Fuse Box
The fuse box is located below the dashboard (driver’s side).
Unclip the plastic cover for access to the fuses.

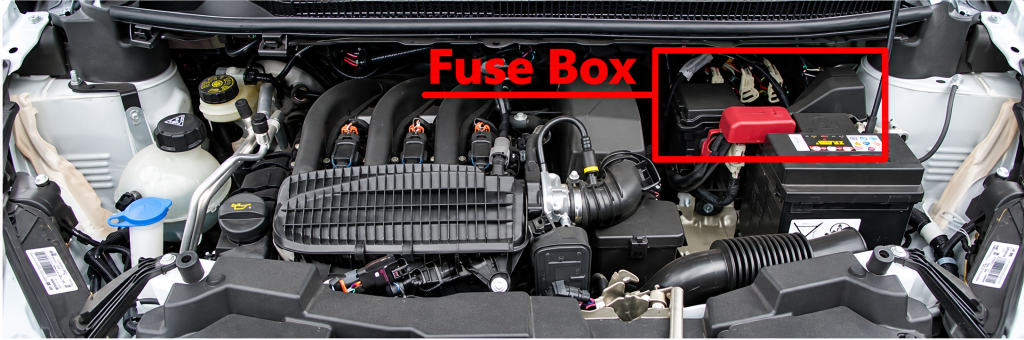

Engine Compartment Fuse Box

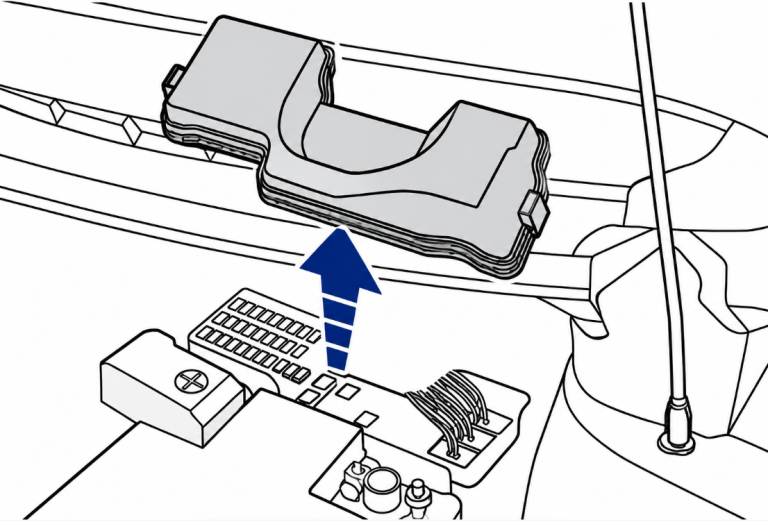

Unclip the plastic cover, located below the windscreen, by pressing on the two catches. Unclip the fuse box cover by pressing on the lug on the right for access to the fuses.
Fuse Box Diagram

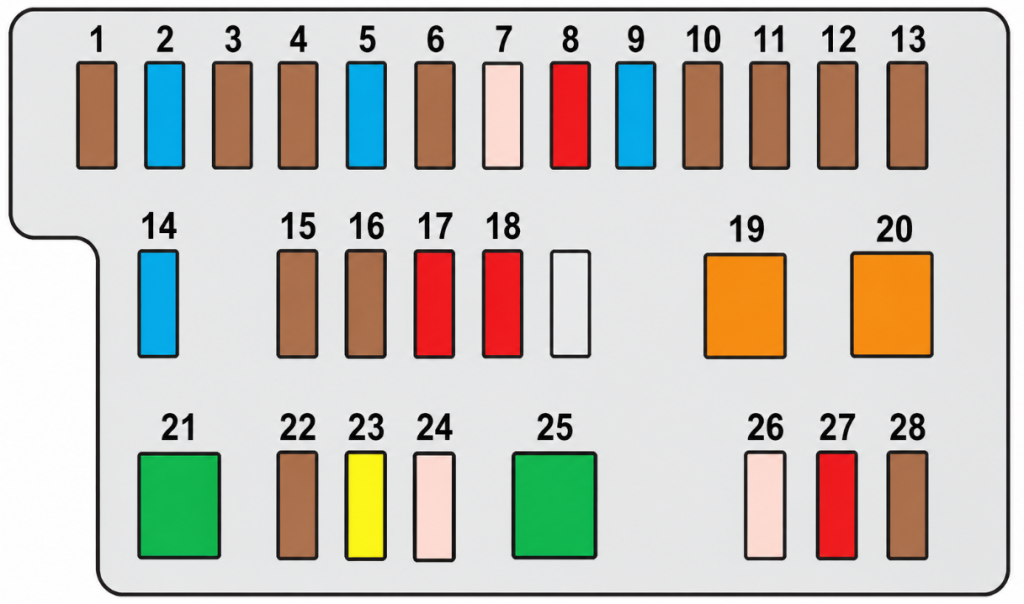

Passenger Compartment Fuse Box
| N° | Rating (A) | Functions |
|---|---|---|
| 1 | 5 | Reversing lamp (2016) – Fuel injection system – Audio system -VSC system |
| 2 | 15 | Front and rear screenwash |
| 3 | 5 | Main distribution unit – Instrument panel – Display screen -Air conditioning – Heated rear screen and door mirror heating -Heated seats – Electric fabric roof – Audio system |
| 4 | 5 | Electric power steering – Stop & Start |
| 5 | 15 | Rear wiper |
| 6 | 5 | Cooling fan – ABS system – VSC system |
| 7 | 25 | Front wiper |
| 8 | 10 | Heated door mirrors |
| 9 | 15 | 12 V socket (120 W max) |
| 10 | 7.5 | Door mirrors – Audio system – Stop & Start – Instrument panel -Display screen |
| 11 | 5 | Steering lock – Fuel injection system -Electronic gearbox |
| 12 | 7.5 | Airbags |
| 13 | 5 | Instrument panel – Display Screen – Stop & Start |
| 14 | 15 (VTi 68 engine) | Steering – Fuel injection system – Brake lamps |
| 14 | 7.5 (PureTech 82 engine) | Steering – Fuel injection system – Brake lamps |
| 15 | 7.5 (VTi 68 engine) | Fuel injection system – Stop & Start |
| 15 | 10 (PureTech 82 engine) | Fuel injection system – Stop & Start |
| 16 | 7.5 | Engine diagnosis |
| 17 | 10 | Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system |
| 18 | 10 | Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer |
| 19 | 40 | Air conditioning |
| 20 | 40 | Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps -Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system – Electric windows |
| 21 | 30 | Fuel injection system – Stop & Start – Main distribution unit |
| 22 (VTi 68 engine) | 7,5 | Fuel injection system |
| 23 (VTi 68 engine) | 20 | Fuel injection system – Stop & Start |
| 24 | 25 | Main distribution unit |
| 25 | 30 | Electric windows |
| 26 | 25 | Electric windows |
| 27 | 10 | Air conditioning |
| 28 | 5 | Rear foglamp |

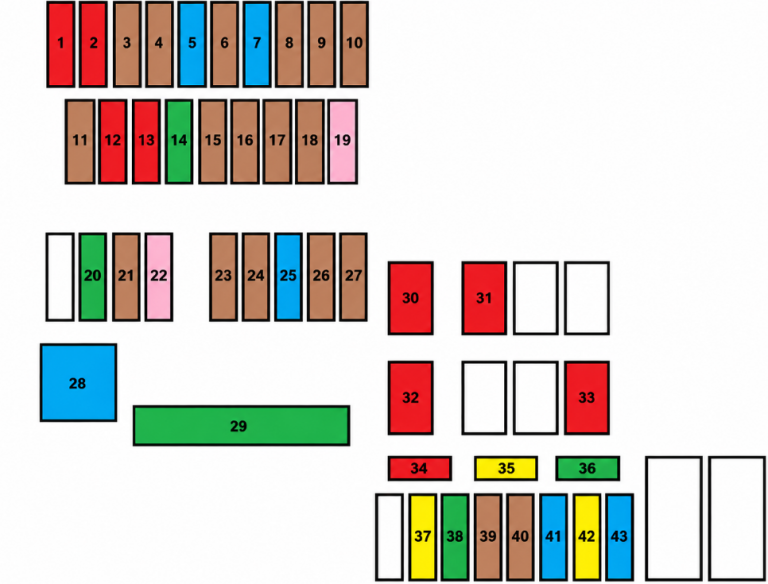

Engine Compartment Fuse Box
| N° | Rating (A) | Functions |
|---|---|---|
| 1 | 10 | Right-hand dipped beam |
| 2 | 10 | Left-hand dipped beam – Headlamp adjustment |
| 3 | 7.5 | Right-hand main beam |
| 4 | 7.5 | Left-hand main beam |
| 5 (PureTech 82 engine) | 15 | Fuel injection system |
| 6 (PureTech 82 engine) | 7.5 | Fuel injection system |
| 7 (PureTech 82 engine) | 15 | Fuel injection system |
| 8 (PureTech 82 engine) | 7.5 | Cooling fan |
| 9 | 7.5 | Air conditioning |
| 10 (VTi 68 engine) | 7.5 | Fuel injection system – Brake lamps -Third brake lamp |
| 11 | 5 | Courtesy lamp – Boot lamp |
| 12 | 10 | Direction indicators – Hazard warning lamps – Instrument panel – Display screen |
| 13 | 10 | Horn |
| 14 | 30 | Supply/Distribution units |
| 15 (VTi 68 engine) | 7.5 | Electronic gearbox |
| 16 | 7.5 | Fuel injection system |
| 17 | 7.0 | Keyless Entry and Starting system |
| 18 (VTi 68 engine) | 7.5 | Battery |
| 19 | 25 | Fuel injection system – Cooling fan |
| 20 | 30 | Starter motor |
| 21 | 7.5 | Steering lock |
| 22 | 25 | Front lamps |
| 23 | 7.5 | Fuel injection system |
| 24 | 7.5 | Fuel injection system – Starter motor – Electronic gearbox -Stop & Start |
| 25 | 15 | Audio system – “Keyless Entry and Starting” system |
| 26 | 7.5 | Instrument panel – Display screen |
| 27 | 7.5 | VSC system |
| 28 | 60 | Passenger compartment fusebox |
| 29 (VTi 68 engine) | 125 | Heated rear screen and door mirror heating – Heated seats -Electric fabric roof – ABS system – VSC system – Cooling fan -Front foglamps – LED daytime running lamps. *This fuse must be replaced only by a PEUGEOT dealer or a qualified workshop. |
| 30 | 50 | Electronic gearbox |
| 30 | 40 | Stop & Start |
| 31 | 50 | Power steering |
| 32 | 50 (PureTech 82 engine) | Cooling fan |
| 32 | 30 | Cooling fan |
| 32 | 40 | Cooling fan |
| 33 | 50 | ABS system – VSC system |
| 34 | 10 | Spare fuse |
| 35 | 20 | Spare fuse |
| 36 | 30 | Spare fuse |
| 37 | 20 | Heated rear screen and door mirror heating |
| 38 | 30 | ABS system – VSC system |
| 39 | 7.5 | Front fog lamps – Instrument panel – Display screen |
| 40 | 7.5 | LED daytime running lamps |
| 41 | 15 | Right-hand heated seat (except RHD) |
| 42 | 20 | Electric fabric roof |
| 43 | 15 | Left-hand heated seat (except RHD) |
