Peugeot 3008 (2009 – 2016) Fuse Box Diagrams & Location
The Peugeot 3008 fuse box protects the vehicle’s electrical systems from overloads and faults. This blog covers the fuse box locations and diagrams for Peugeot 3008 models from 2009 to 2016, making it easier to identify fuse positions, ratings, and the components they protect.
Fuse Box Location

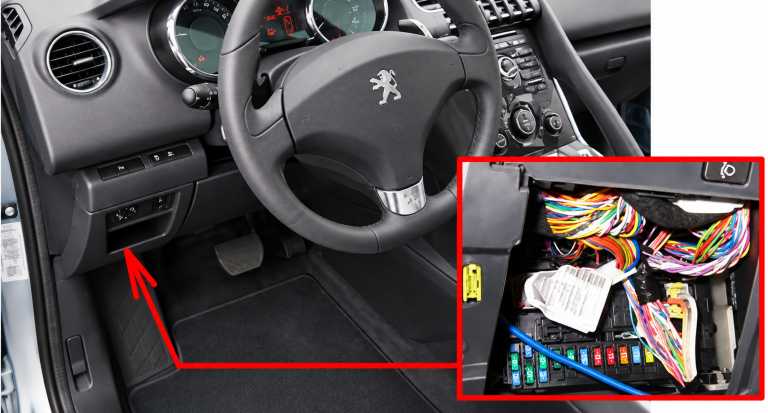

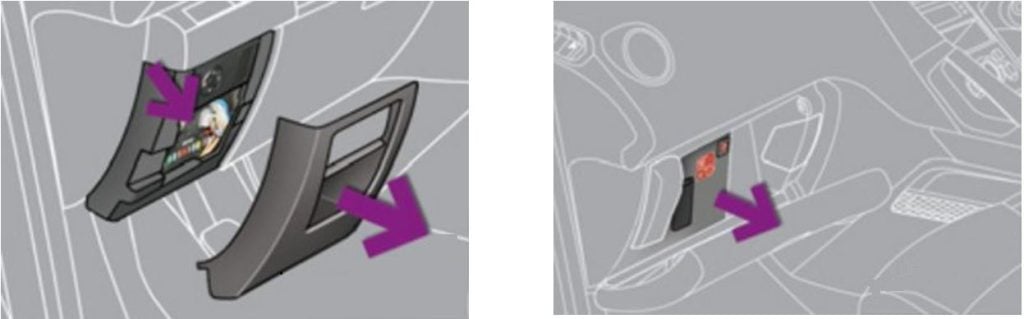

Passenger Compartment Fuse Box
Left-hand drive vehicles: the fusebox is located in the lower dashboard (left-hand side).
Right-hand drive vehicles: it is placed in the lower dashboard (left-hand side).

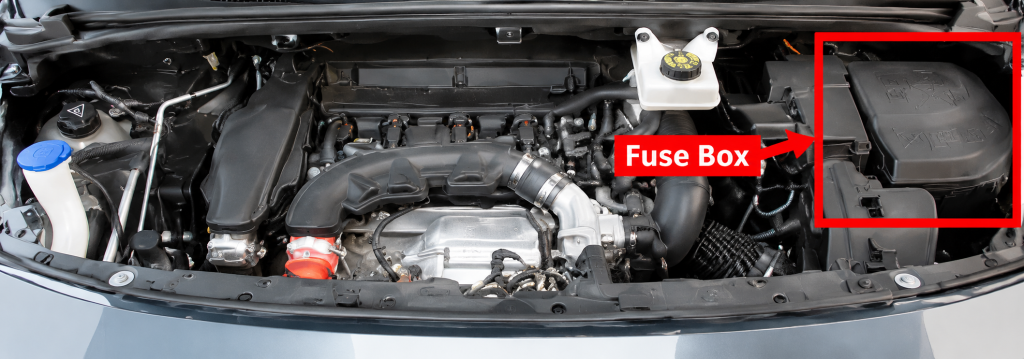

Engine Compartment Fuse Box
It is placed in the engine compartment near the battery (left-hand side).
Fuse Box Diagrams

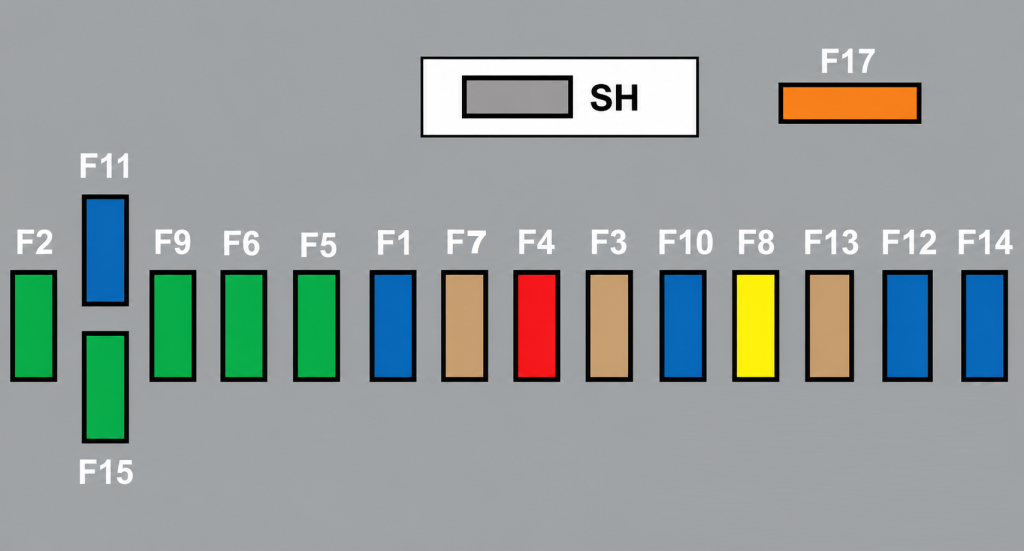

Passenger Compartment Fuse Box
| N° | Rating (A) | Functions |
|---|---|---|
| F1 | 15 | Rear wiper. |
| F2 | – | Not used. |
| F3 | 5 | Airbag control unit. |
| F4 | 10 | Electrochromatic rear view mirror, air conditioning, switching and protection unit, rear multimedia. |
| F5 | 30 | Front one-touch electric windows. |
| F6 | 30 | Rear one-touch electric windows. |
| F7 | 5 | Front and rear courtesy lamps, map reading lamps, rear reading lamps, sun visor lighting, glove box lighting, centre armrest lighting, boot 12 V relay control. |
| F8 | 20 | Audio equipment, audio/telephone, CD changer, multifunction scren, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit, service module (with Peugeot Connect Media). 2011-2013: Audio equipment, audio/telephone, CD changer, multifunction scren, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit, service module (with Peugeot Connect Media Navigation (RT5)). 2014-2016: Audio equipment, audio/telephone. CD changer, multifunction scren, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit. |
| F9 | 30 | Front 12 V socket, cigar lighter, rear 12 V socket. |
| F10 | 15 | Steering mounted controls. |
| F11 | 15 | Low current ignition switch. |
| F12 | 15 | Trailer presence, rain/brightness sensor, supply for fuses F32, F34, F35.
2011-2016: Trailer presence, rain/sunshine sensor, supply for fuses F32, F34, F35. |
| F13 | 5 | Engine fusebox, airbag control unit. |
| F14 | 15 | Instrument panel, instrument panel screen, supply for fuse F33. |
| F15 | 30 | Locking and deadlocking. |
| F17 | 40 | Heated rear screen, supply for fuse F30. |
| SH | – | 2009-2013: PARC shunt. |
| F29 | 30 | 2009-2010: Boot 12 V socket.
2011-2013: Not used. |
| F30 | 5 | Heated door mirrors. |
| F31 | 15/30 | Refrigerator socket. 2011-2016: Boot 12V socket. |
| F32 | 5 | Electronic gear control gearbox gear lever.
2014-2016: Electronic gearbox gear lever. |
| F33 | 10 | Head-up display, Bluetooth system, air conditioning. |
| F34 | 5 | Seat belt warning lamps display. |
| F35 | 10 | Parking sensors, Hi-Fi amplifier authorisation. |
| F36 | 10 | Trailer fusebox control unit, driver’s door control pad. |
| F37 | 20 | Hi-Fi amplifier. |
| F38 | 30 | Driver’s electric seat. |
| F39 | 20 | Panoramic sunroof blind. |
| F40 | – | Not used. |

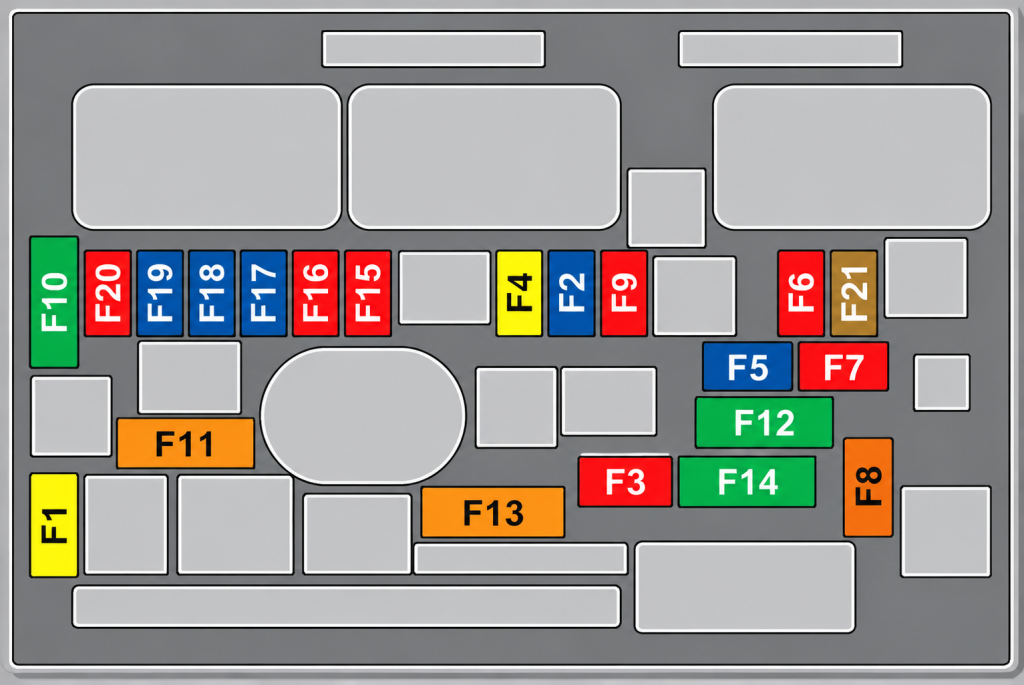

Engine Compartment Fuse Box
Fuses Box
| N° | Rating (A) | Functions |
|---|---|---|
| F1 | 20 | Engine control unit supply, injection pump and EGR electrovalves (2 I HDI 16V), injectors (2 I HDI 16V).
2014-2016: Not Used |
| F2 | 15 | Horn. |
| F3 | 10 | Front/rear wash-wipe. |
| F4 | 10 | Daytime running lamps. |
| F5 | 15 | Purge canister, turbine discharge and Turbo pressure regulation electrovalves (1.6 I THP 16V), oil vapour heater (1.6 I THP 16V), diesel heater (1.6 I HDI 16V). 2014-2016: Purge canister, turbine discharge and Turbo pressure regulation electrovalves (1.6 litre THP), oil vapour heater (1.6 litre THP), diesel heater (1.6 litre HDI). |
| F6 | 10 | Diagnostic socket, directional headlamps, particle emission filter pump (Diesel), Distance alert, engine coolant level detector, mirror adjustment control.
2014-2016: Diagnostic socket, directional headlamps, particle emission filter pump (Diesel), Distance alert, mirror adjustment control. |
| F7 | 10 | Power steering control unit, automatic gearbox, directional headlamps height adjustment motor. |
| F8 | 20 | Starter motor control. |
| F9 | 10 | Clutch and brake pedal switches. |
| F10 | 30 | 2009-2013: Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, fuel pump, electronic thermostat) (Diesel: electrovalves, heaters). |
| F11 | 40 | Air conditioning blower.
2014-2016: Air conditioning fan. |
| F12 | 30 | Windscreen wipers slow/fast speed. |
| F13 | 40 | Built-in systems interface supply (ignition positive). |
| F14 | 30 | Air pump. |
| F15 | 10 | Right-hand main beam headlamp. |
| F16 | 10 | Left-hand main beam headlamp. |
| F17 | 15 | Left-hand dipped headlamp. |
| F18 | 15 | Right-hand dipped headlamp. |
| F19 | 15 | 2009-2013: Oil vapour heater (1.6 I VTi 16V), Turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel). |
| F20 | 10 | 2009-2013: Electronic thermostat, variable timing electrovalves Turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel). |
| F21 | 5 | 2009-2013: Fan assembly relay supply, Valvetronic relay control (1.6 I VTi 16V), Turbo cooling (1.6 I THP 16V), air flow sensor (1.6 I HDI 16V). |

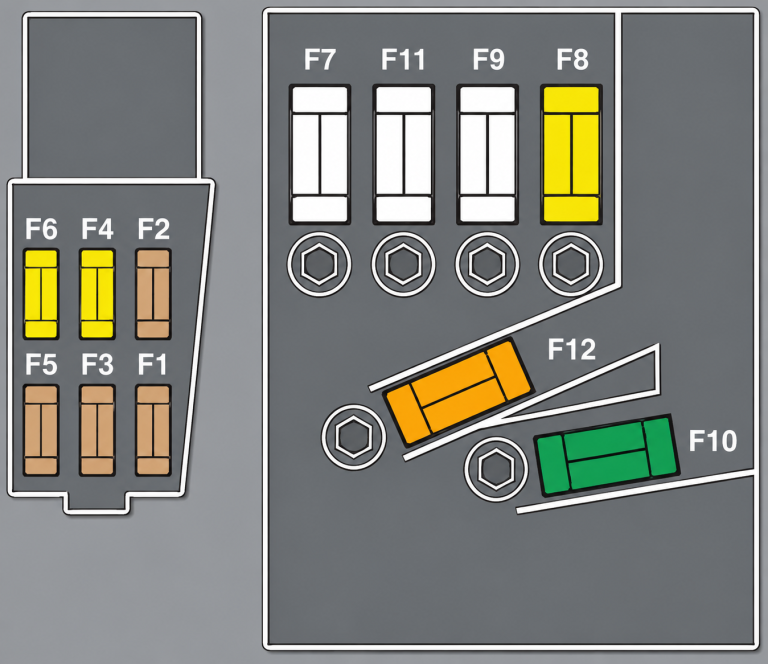

Battery Fuses
| N° | Rating (A) | Functions |
|---|---|---|
| F1 | – | 2009-2013: Not used. |
| F2 | 5 | Dual-function brake switch. |
| F3 | 5 | Battery charge unit. |
| F4 | 25 | ABS/ESP electrovalves. 2014-2016: ABS/DSC electrovalves. |
| F5 | 5 | 2009-2013: ABS/ESP control unit. |
| F6 | 15 | Automatic gearbox, electronic gear control gearbox.
2014-2016: Electronic/automatic gearbox. |
| F7* | 80 | 2009-2013: Power steering electropump assembly. |
| F8* | 60 | 2009-2013: Fan assembly. |
| F9* | 70/30 | 2009-2013: Pre-heat unit (Diesel), Valvetronic electric motor (1.6 I THP 16V). |
| F10* | 40 | 2009-2013: ABS/ESP electropump assembly. |
| F11* | 100 | 2009-2013: Switching and protection unit. |
| F12* | 30 | 2009-2013: Electronic gear control gearbox electropump assembly. |
| MF1* | – | 2009-2013: Not used. |
| MF2* | 30 | 2009-2013: Trailer fusebox. |
| MF3* | 50 | 2009-2013: Passenger compartment fuse box. |
| MF4* | 80 | 2009-2013: Built-in systems interface. |
| MF5* | 80 | 2009-2013: Built-in systems interface. |
| MF6* | 30 | 2009-2013: Electric parking brake. |
| MF7* | 30 | 2009-2013: Heated front seats. |
| MF8* | 20 | 2009-2013: Headlamp wash. |
| * The maxi-fuses provide additional protection for the electrical systems. A PEUGEOT dealer must carry out all work on the maxi-fuses. |
