Pontiac G5 (2007 – 2010) Fuse Box Diagrams & Location
The Pontiac G5 (2007–2010) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and audio systems.
Fuse Box Location
Passenger Compartment Fuse Box
The fuse box is located under the dashboard in the passenger’s side of the center console, behind the cover.
Engine Compartment Fuse Box
Fuse Box Diagram

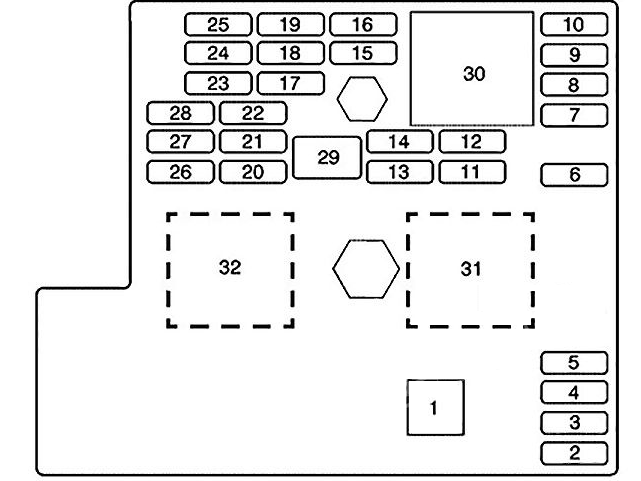

Passenger Compartment Fuse Box
| No. | Type | Usage |
|---|---|---|
| 1 | Fuse | Fuse Puller |
| 2 | Fuse | Empty |
| 3 | Fuse | Empty |
| 4 | Fuse | Empty |
| 5 | Fuse | Empty |
| 6 | Fuse | Amplifier |
| 7 | Fuse | Cluster |
| 8 | Fuse | Ignition Switch, PASS-Key® III+ |
| 9 | Fuse | Stoplamp |
| 10 | Fuse | Heating, Ventilation, Air Conditioning, PASS-Key® III+ |
| 11 | Fuse | Empty |
| 12 | Fuse | Spare |
| 13 | Fuse | Airbag |
| 14 | Fuse | Spare |
| 15 | Fuse | Windshield Wiper |
| 16 | Fuse | Climate Control System, Ignition |
| 17 | Fuse | Window Retained Accessory Power (2008-2010) |
| 18 | Fuse | Empty |
| 19 | Fuse | Electric Power Steering, Steering Wheel Control |
| 20 | Fuse | Sunroof |
| 21 | Fuse | Spare |
| 22 | Fuse | Empty |
| 23 | Fuse | Audio System |
| 24 | Fuse | Sensing and Diagnostic Module (Airbag)(2007) / XM Radio™, OnStar™(2008-2010) |
| 25 | Fuse | Engine Control Module, Transaxle Control Module |
| 26 | Fuse | Door Locks |
| 27 | Fuse | Interior Lights |
| 28 | Fuse | Steering Wheel Control Illumination |
| 29 | Fuse | Power Windows |
| 30 | Relay | Climate Control System |
| 31 | Relay | Empty |
| 32 | Relay | Retained Accessory Power (RAP) |

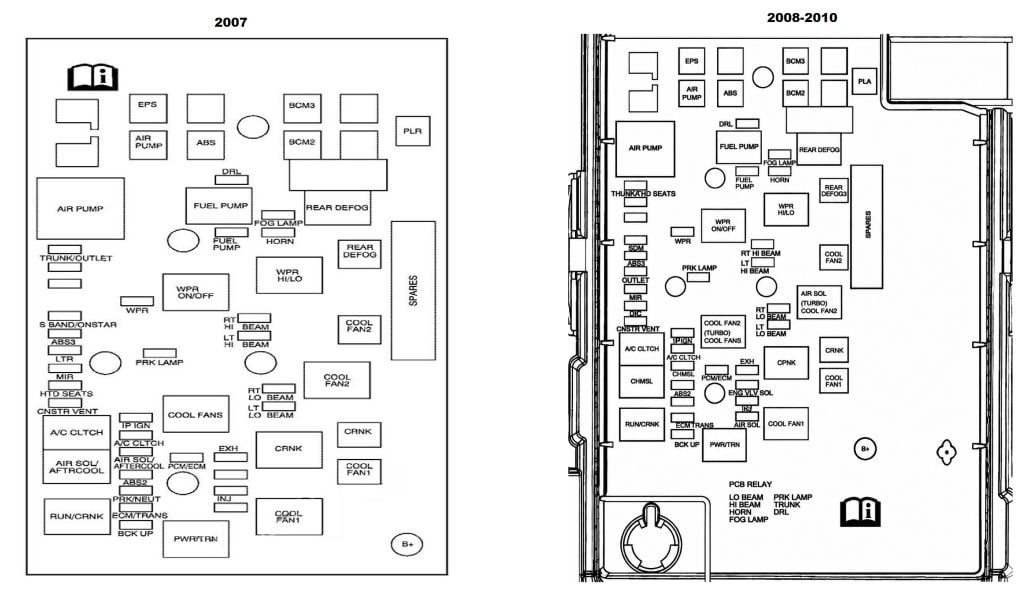

Engine Compartment Fuse Box
| Name | Description |
|---|---|
| SPARES | Spare fuses |
| ABS | Antilock Brake System |
| Blank | Not Used |
| REAR DEFOG | Rear Defogger |
| COOL FAN2 | Engine Cooling Fan High Speed |
| CRNK | Starter |
| COOL FAN 1 | Engine Cooling Fan Low Speed |
| BCM3 | Body Control Module 3 |
| BCM2 | Body Control Module 2 |
| FOG LAMP | Fog Lamps |
| HORN | Horn |
| RT HI BEAM | Passenger Side High Beam Lamp |
| LT HI BEAM | Driver Side High Beam Lamp |
| RT LO BEAM | Passenger Side Low Beam Lamp |
| LT LO BEAM | Driver Side Low Beam Lamp |
| DRL | Daytime Running Lamps |
| FUEL PUMP | Fuel Pump |
| EXH | Exhaust Emissions |
| ENG VLV SOL | Engine Valve Solenoid |
| INJ | Injectors |
| AIR SOL | AIR Solenoid |
| Blank | Blank |
| PCM/ECM | Powertrain Control Module/ Engine Control Module |
| EPS | Electric Power Steering |
| AIR PUMP | AIR Pump |
| PRK LAMP | Parking Lamps |
| WPR | Windshield Wiper |
| IP IGN | Ignition |
| A/C CLTCH | Air Conditioning Clutch |
| AIR SOL/ AFTERCOOL | AIR Solenoid (L61, LE5), Aftercooler (L4) |
| CHMSL | Center High Mount Stop Lamp |
| ABS2 | Antilock Brake System 2 |
| PRK/NEUT | Park, Neutral |
| ECM/TRANS | Engine Control Module, Transmission |
| BCK UP | Back-Up Lamps |
| TRUNK/ HTD SEATS | Trunk, Heated Seats |
| SDM | Sensing Diagnostic Module (Airbags) |
| S BAND/ ONSTAR | Audio, OnStar |
| ABS3 | Antilock Brake System 3 |
| OUTLET | Auxiliary Power Outlet |
| LTR | Cigarette Lighter |
| MIR | Mirrors |
| DLC | Data Link Connector |
| CNSTR VENT | Canister Vent |
| HTD SEATS | Heated Seats |
| PLR | Fuse Puller |
| Relays | |
| REAR DEFOG | Rear Defogger |
| AIR SOL (TURBO: COOL FAN 2) |
AIR Solenoid (L61)/Engine Cooling Fan 2 (LNF) |
| COOL FAN2 | Engine Cooling Fan 2 |
| WPR HI/LO | Windshield Wiper High/Low Speed |
| CRNK | Starter |
| COOL FAN 2 (TURBO: COOL FANS) |
Engine Cooling Fan (L61, LE5)/ Engine Cooling Fans (LNF) |
| COOL FAN 1 | Engine Cooling Fan 1 |
| FUEL PUMP | Fuel Pump |
| WPR ON/OFF | Windshield Wiper On/Off |
| COOL FANS | Engine Cooling Fans |
| PWR/TRN | Powertrain |
| AIR PUMP | AIR Pump |
| A/C CLTCH | Air Conditioning Clutch |
| CHMSL | Center High Mount Stop Lamp |
| AIR SOL/ AFTERCOOL | AIR Solenoid (L61, LE5), Aftercooler (L4) |
| RUN/CRNK | Run, Crank |
