Vauxhall Mokka (2012–2016) Fuse Box Diagrams & Location
The Vauxhall Mokka (2012–2016) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Mokka.
Fuse Box Location

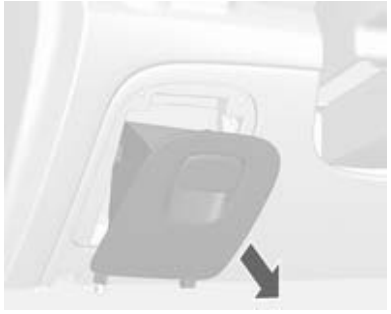

Passenger Compartment Fuse Box
Interior fuse block is located on the underside of the driver’s side instrument panel. To access the fuses, remove the storage. To remove the storage, open and pull it.

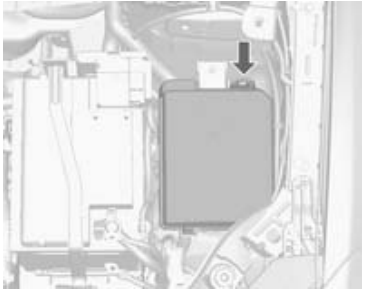

Engine Compartment Fuse Box
The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

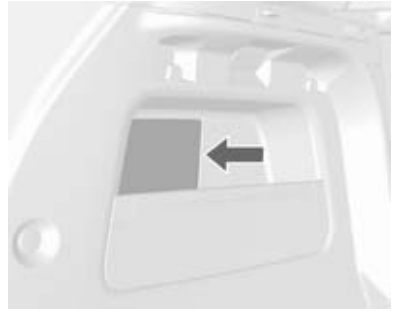

Load compartment fuse box
It is located in the left side of rear compartment. To access the fuses, remove the cover.
Fuse Box Diagrams

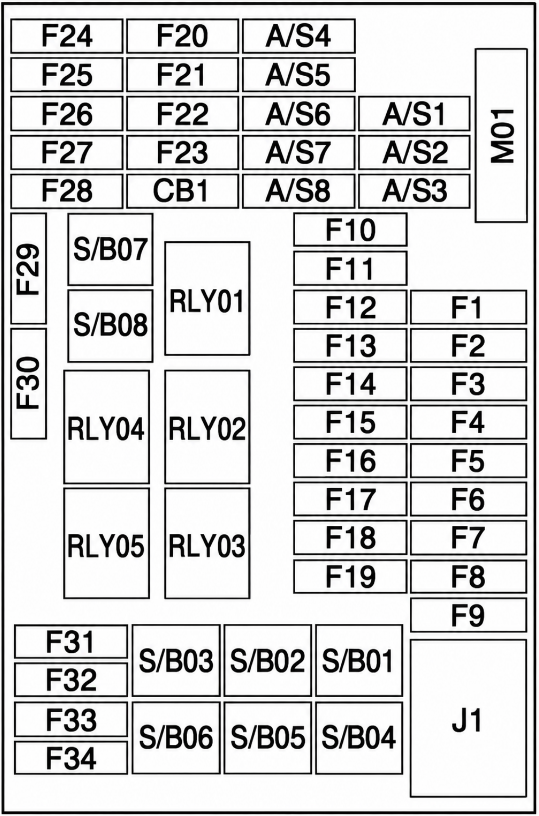

Passenger Compartment Fuse Box
| Fuse No. | Function |
|---|---|
| 1 | Body control module |
| 2 | Body control module |
| 3 | Body control module |
| 4 | Body control module |
| 5 | Body control module |
| 6 | Body control module |
| 7 | Body control module |
| 8 | Body control module |
| 9 | 2012–2014: Door locks; 2015–2016: Ignition switch |
| 10 | Safety diagnosis module |
| 11 | 2012–2014: Door locks; 2015–2016: Data link connector |
| 12 | Climate control |
| 13 | Tailgate |
| 14 | Park/Parking assist |
| 15 | Lane departure warning / Interior mirror |
| 16 | Adaptive forward lighting |
| 17 | Power window – driver |
| 18 | Rain sensor |
| 19 | 2012–2014: Spare; 2015–2016: Body control module / Regulated voltage control |
| 20 | Steering wheel |
| 21 | 2012–2014: Transmission control module; 2015–2016: AC accessory power outlet / Automatic transmission |
| 22 | 2012–2014: Cigarette lighter; 2015–2016: Cigarette lighter / DC accessory power outlet |
| 23 | Spare |
| 24 | Spare |
| 25 | Spare |
| 26 | 2012: Safety diagnosis module; 2013–2014: Display; 2015–2016: Spare |
| 27 | 2012–2014: Instrument panel cluster; 2015–2016: Instrument panel cluster / Auxiliary heater / Clutch switch |
| 28 | 2012–2014: Adaptive forward lighting; 2015–2016: Adaptive forward lighting / Voltage converter / Headlamp switch |
| 29 | Spare |
| 30 | Spare |
| 31 | Instrument panel cluster |
| 32 | 2012–2014: Infotainment / Auxiliary / Power outlet; 2015–2016: Infotainment system / Chime |
| 33 | Display / Infotainment system |
| 34 | OnStar UHP/DAB |
| S/B 01 | Spare |
| S/B 02 | Spare |
| S/B 03 | Power windows – front |
| S/B 04 | Power windows – rear |
| S/B 05 | Logistic mode |
| S/B 06 | Spare |
| S/B 07 | Spare |
| S/B 08 | Spare |

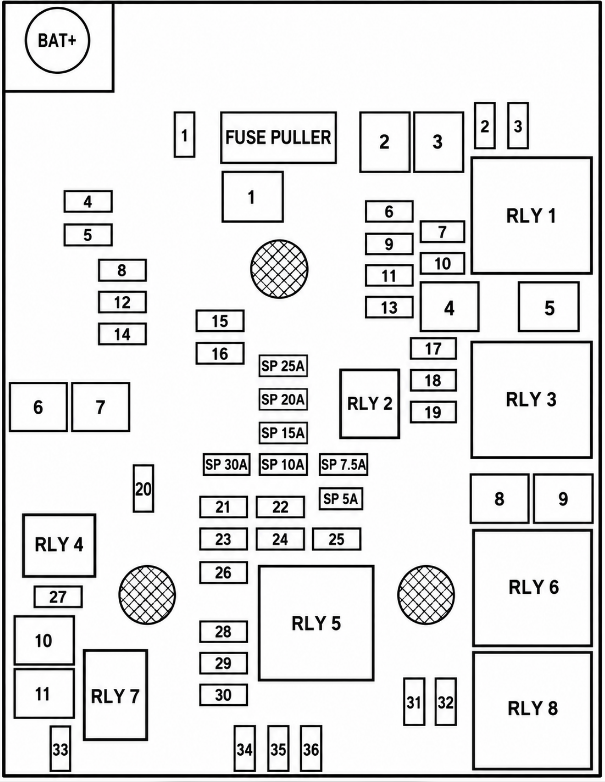

Engine Compartment Fuse Box
| Fuse No. | Function |
|---|---|
| Mini 1 | Sunroof |
| Mini 2 | Exterior mirrors |
| Mini 3 | – |
| Mini 4 | – |
| Mini 5 | Electrical brake control module |
| Mini 6 | Intelligent battery sensor |
| Mini 7 | – |
| Mini 8 | Transmission control module |
| Mini 9 | 2012–2014: Body control module; 2015–2016: – |
| Mini 10 | Headlight levelling |
| Mini 11 | Rear window wiper |
| Mini 12 | Heated rear window |
| Mini 13 | Headlight actuator (left hand) |
| Mini 14 | Heated exterior mirrors |
| Mini 15 | – |
| Mini 16 | Seat heating |
| Mini 17 | Transmission control module |
| Mini 18 | Engine control module |
| Mini 19 | Fuel pump |
| Mini 20 | – |
| Mini 21 | Cooling fan |
| Mini 22 | – |
| Mini 23 | Ignition coil / Engine control module |
| Mini 24 | Washer pump |
| Mini 25 | Headlamp actuator (right hand) |
| Mini 26 | 2012–2014: Engine control module; 2015–2016: Engine control sensors |
| Mini 27 | – |
| Mini 28 | 2012–2014: Engine control module; 2015–2016: Ignition |
| Mini 29 | 2012–2014: Engine control module; 2015–2016: Ignition |
| Mini 30 | Exhaust system |
| Mini 31 | Left-hand high beam |
| Mini 32 | Right-hand high beam |
| Mini 33 | Engine control module |
| Mini 34 | Horn |
| Mini 35 | 2012–2014: Climate control, air conditioning system; 2015–2016: Air conditioning system |
| Mini 36 | Front fog lamp |
| J-Case 1 | Electrical brake control module |
| J-Case 2 | Front wiper |
| J-Case 3 | 2012–2014: Engine control module; 2015–2016: Power module |
| J-Case 4 | 2012–2014: Engine control module; 2015–2016: Power terminal of instrument panel fuse box |
| J-Case 5 | – |
| J-Case 6 | Fuel heater |
| J-Case 7 | – |
| J-Case 8 | Cooling fan |
| J-Case 9 | Cooling fan |
| J-Case 10 | Engine control module / Glow plug |
| J-Case 11 | Starter |

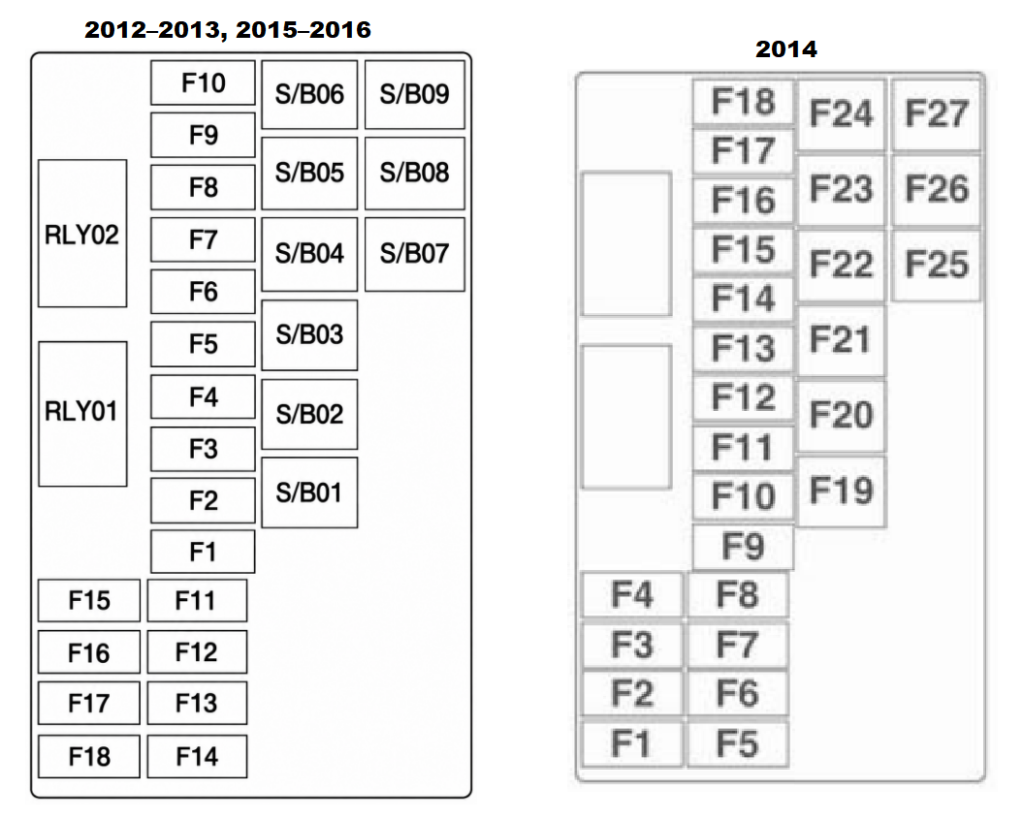

Load compartment fuse box
| Fuse No. | Function |
|---|---|
| 1 | Seat, lumbar support, driver (2012–2013, 2015–2016); LPG system (2014) |
| 2 | Seat, lumbar support, passenger (2012–2013, 2015–2016); Interior mirror / Rear view camera (2014) |
| 3 | Amplifier (2012–2013, 2015–2016); Water in fuel sensor (2014) |
| 4 | Trailer socket (2012–2013, 2015–2016); Spare (2014) |
| 5 | All-wheel drive (2012–2013, 2015–2016); Trailer socket (2014) |
| 6 | Display (2012–2013); Heated steering wheel (2014); Spare (2015–2016) |
| 7 | Spare (2012–2014); LPG system (2015–2016) |
| 8 | Trailer (2012–2013); Trailer control module (2014); Spare (2015–2016) |
| 9 | Spare (2012–2013, 2015–2016); Seat, lumbar support, driver (2014) |
| 10 | Spare (2012–2013, 2015–2016); Seat, lumbar support, passenger (2014) |
| 11 | Trailer (2012–2013); Amplifier (2014); Trailer control module (2015–2016) |
| 12 | Navigation (2012–2013); Trailer socket (2014); Spare (2015–2016) |
| 13 | Heated steering wheel (2012–2013, 2015–2016); All-wheel drive (2014) |
| 14 | Trailer socket (2012–2013, 2015–2016); Spare (2014) |
| 15 | Steering wheel (2012–2013); LPG system (2014); Spare (2015–2016) |
| 16 | Water in fuel sensor (2012–2012013, 2015–2016); Spare (2014) |
| 17 | Interior mirror (2012–2013); Spare (2014); Interior mirror / Rear view camera (2015–2016) |
| 18 | Spare (2012–2014); LPG system (2015–2016) |
| (S/B) 1 / 19 | Power seat, driver |
| (S/B)2 / 20 | Power seat, passenger |
| (S/B) 3 / 21 | Trailer control module |
| (S/B) 4 / 22 | Voltage converter |
| (S/B) 5 / 23 | Battery (2012–2013, 2015–2016); Ignition system (2014) |
| (S/B) 6 / 24 | Headlight washer |
| (S/B) 7 / 25 | Spare |
| (S/B)8 / 26 | Spare |
| (S/B) 9 / 27 | Spare |
