2026 Toyota Sequoia Instrument Cluster User Guide
The 2026 Toyota Sequoia comes with a modern instrument cluster that displays essential driving information. Understanding its layout and functions helps drivers monitor speed, fuel, warnings, and other key data, ensuring a safer, more informed, and enjoyable driving experience on every journey.
Video: 2026 Toyota Sequoia Dashboard Warning Indicators
Warning lights and indicators
The warning lights and indicators on the instrument cluster, over-head console and outside rear view mirrors inform the driver of the status of the vehicle’s various systems.
Instrument cluster
For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.
The units used on the meters and some indicators may differ depending on the target region.

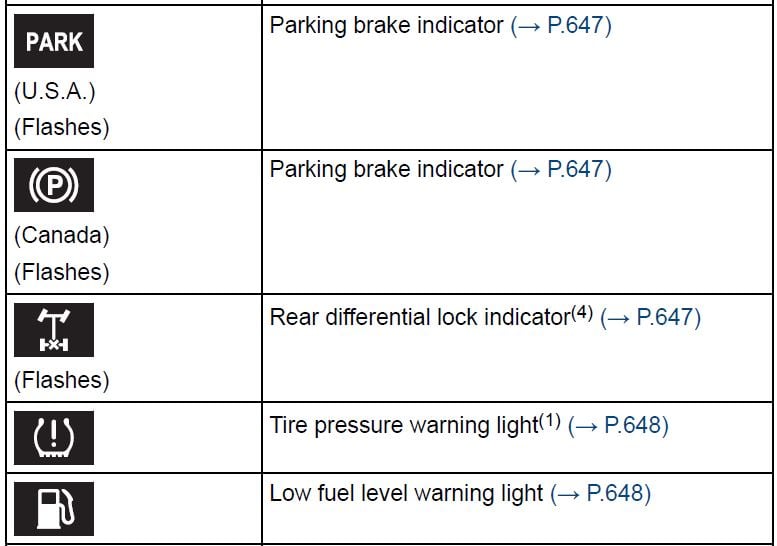

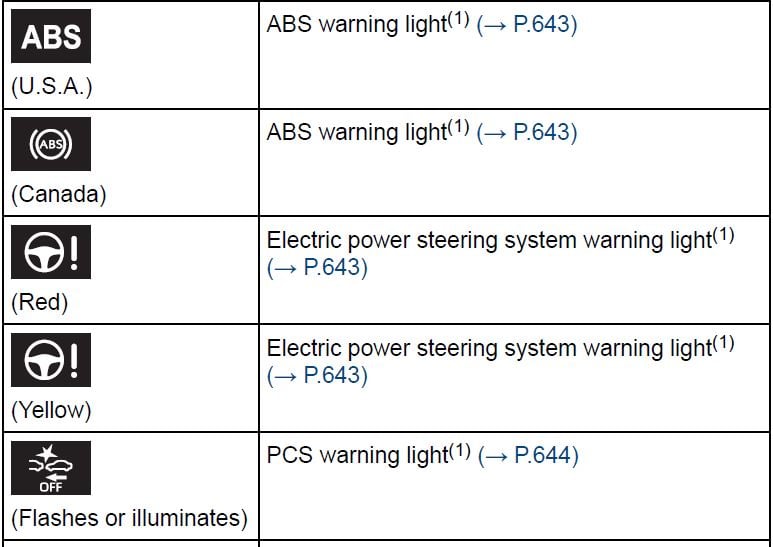

Warning lights
Warning lights inform the driver of malfunctions in the indicated vehi-cle’s systems.
- These lights turn on when the power switch is turned to ON to indicate that a system check is being performed. They will turn off after the hybrid system is started, or after a few seconds. There may be a malfunction in a system if the light does not come on, or turn off. Have the vehicle inspected by your Toyota dealer.
- This light illuminates on the multi-information display with a message.
- Intuitive parking assist OFF indicator turns on when the power switch is turned to ON while the Intuitive parking assist function is on. It will turn off after a few seconds.
- If equipped
WARNING
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid system, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.

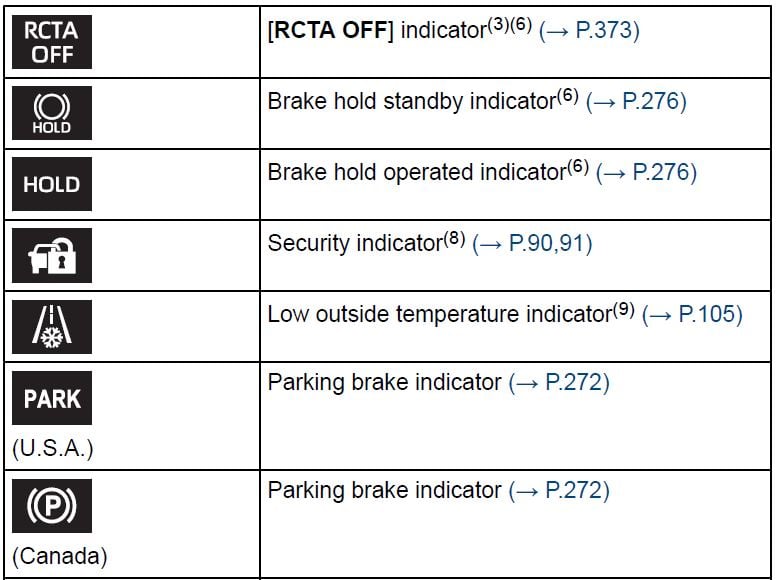

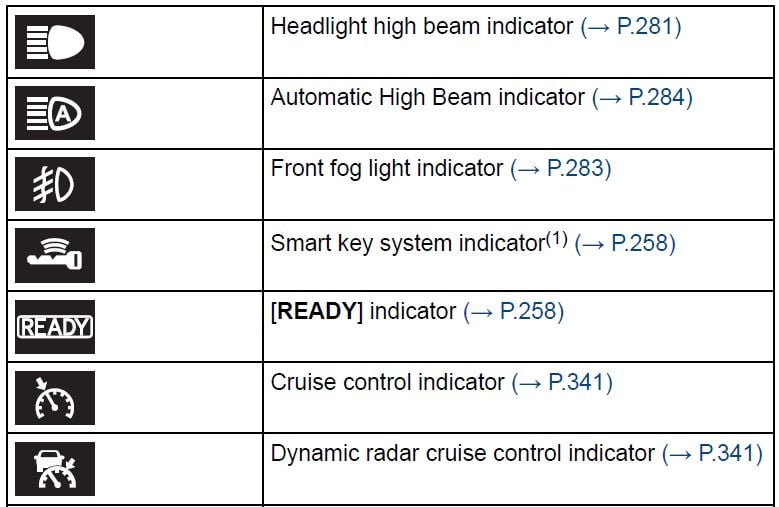

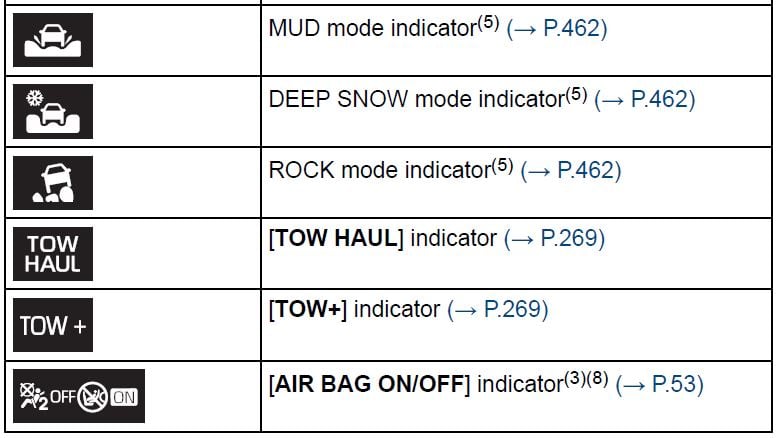

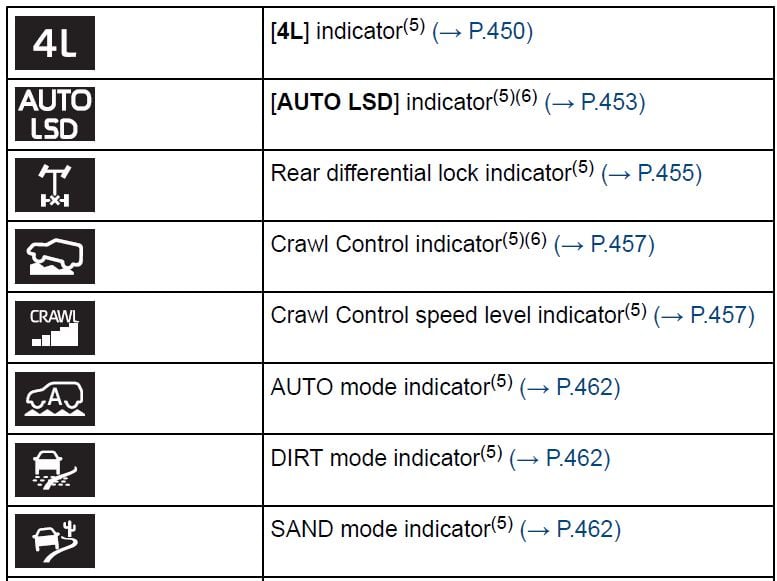

Indicators
The indicators inform the driver of the operating state of the vehicle’s various systems.
- This light illuminates on the multi-information display with a message.
- Depending on the operating conditions of the system, the color and state (illuminated/blinking) of the indicator change.
- The light comes on when the system is turned off.
- Intuitive parking assist OFF indicator turns on when the power switch is turned to ON while the Intuitive parking assist function is on. It will turn off after a few seconds.
- If equipped
- These lights turn on when the power switch is turned to ON to indicate that a system check is being performed. They will turn off after the hybrid system is started, or after a few seconds. There may be a malfunction in a system if the lights do not turn on, or turn off. Have the vehicle inspected by your Toyota dealer.
- This light illuminates on the outside rear view mirrors.
- This light illuminates on the overhead console.
- When the outside temperature is approximately 37°F (3°C) or lower, the indicator will flash for approximately 10 seconds, then stay on.
Gauges and meters
The meters display various drive information.
Meter display
The units used on the meter and display may differ depending on the target region.
- Multi-information display
Presents the driver with a variety of driving-related data Displays warning messages if a malfunction occurs - Outside temperature
- Tachometer
Displays the engine speed in revolutions per minute - Clock
Time displayed is linked to the multimedia system. For details, refer to “MULTIMEDIA OWNER’S MANUAL”.
Right Side Gauges
Presents the driver with a variety of vehicle states data - Shift position and shift range display
Displays the selected shift position or selected shift range - Fuel gauge
Displays the quantity of fuel remaining in the tank - Engine coolant temperature gauge
Displays the engine coolant temperature - Speedometer
Displays the vehicle speed - Voltmeter
Displays the charge state - Engine oil pressure gauge Displays the engine oil pressure
- Odometer and trip meter
INFORMATION
The meters and display illuminate when
The power switch is in ON.
Tachometer needle feature
The tachometer needle will fade in or out during the engine starting or stopping, respectively.
The needle is completely visible after the engine is turned on or turned off.
Clock settings screen
formation display, the system may be malfunctioning. Have the vehicle inspected by your Toyota dealer.
Outside temperature display
- In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.
- When stopped, or driving at low speeds (less than 12 mph [20 km/h])
- When the outside temperature has changed suddenly (at the en-trance/exit of a garage, tunnel, etc.)
- When “–” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer.
- Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C).
- When the outside temperature is approximately 37°F (3°C) or lower,
Liquid crystal display
Customization
Settings (e.g. meter display) can be changed on [ multi-information display.
WARNING
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information dis-play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and pos-sibly an accident resulting in death or injury.
NOTICE
To prevent damage to the engine and its components
- Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
- The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
Voltmeter
When the voltmeter indicates 19 V or higher or 9 V or lower while the hybrid system is operating, there may be a 12-volt battery or charging system malfunction. Have the vehicle inspected at your Toyota dealer.
Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is running, stop the vehicle in a safe place immediately and check the amount of engine oil.
When the oil pressure drops even though the engine oil amount has not decreased, or if the oil pressure does not increase when engine oil is added, contact your Toyota dealer, as there may be a problem with the lubrication system.
Odometer and trip meter display
Display items
- Odometer
Displays the total distance the vehicle has been driven. - Trip meter A/Trip meter B
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display differ-ent distances independently. - Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is necessary.
Changing the display
Each time the [ODO TRIP] switch is pressed, the displayed item will be changed. When the trip meter is dis-played, pressing and holding the switch will reset the trip meter.
Pop-up display
In some situations the following will be temporarily displayed: Distance until next engine oil change Displays the distance until the next engine oil change. This display will be displayed in the following situations:
- When the power switch is turned to ON.
- When a warning message indicating that oil maintenance should be performed soon or is required is displayed.

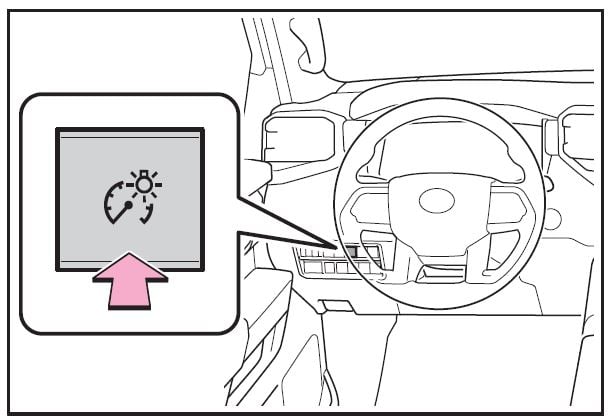

Instrument panel light control
The brightness of the instrument panel lights can be adjusted. Pressing the button will adjust bright-ness of the instrument panel light.
The brightness of the instrument panel lights can be adjusted by pressing the button.
Short press : 1 step change of bright-ness level.
Long press : continues change of brightness level until released.
INFORMATION
Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be adjusted individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument cluster brightness.
