Vauxhall ADAM (2013-2019) Fuse Box Diagrams & Location
The Vauxhall ADAM (2013–2019) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall ADAM.
Fuse Box Location
Passenger Compartment Fuse Box

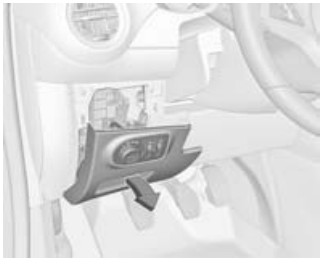

In left-hand drive vehicles, the fuse box is behind the light switch in the instrument panel. Grab into handle, then pull and fold down the light switch.

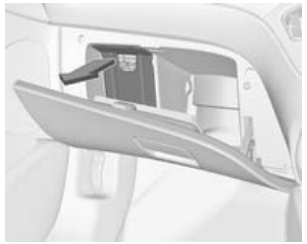

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.

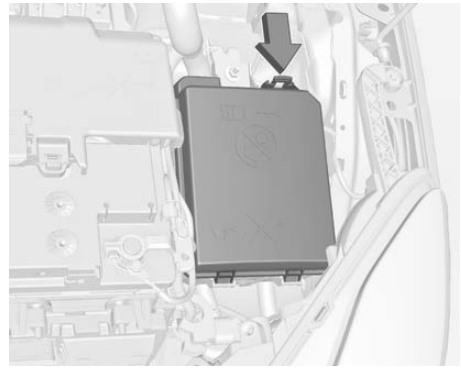

Engine Compartment Fuse Box
The fuse box is in the front left of the engine compartment. Disengage the cover and fold it upwards until it stops. Remove the cover vertically upwards.
Fuse Box Diagrams

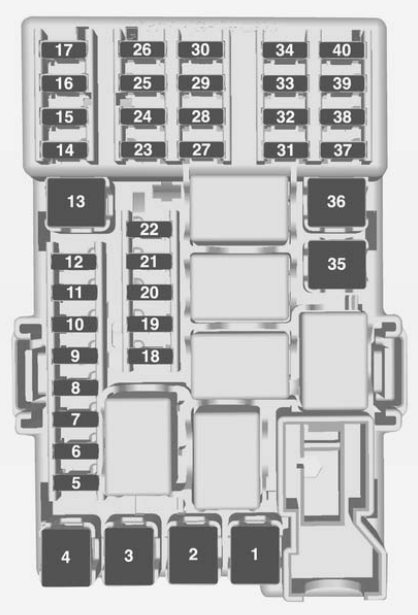

Passenger Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Power windows |
| 4 | Voltage transformer |
| 5 | Body control module 1 |
| 6 | Body control module 2 |
| 7 | Body control module 3 |
| 8 | Body control module 4 |
| 9 | Body control module 5 |
| 10 | Body control module 6 |
| 11 | Body control module 7 |
| 12 | Body control module 8 |
| 13 | – |
| 14 | Tailgate |
| 15 | 2013-20118: Diagnostic connector/ 2019: Airbag module |
| 16 | 2013-2018: Data link connection/2019: Diagnose connector |
| 17 | Ignition |
| 18 | Air conditioning system |
| 19 | Audio amplifier |
| 20 | Parking assist |
| 21 | Brake switch |
| 22 | 2013-2018 : Audio system/ 2019: Infotainment system |
| 23 | 2013-2018: Display/ 2019: USB charging port |
| 24 | 2019: Infotainment system |
| 25 | 2016-2019: OnStar |
| 26 | Instrument panel |
| 27 | Seat heating, driver |
| 28 | – |
| 29 | – |
| 30 | 2013-2018: Instrument panel/ 2019: Ignition |
| 31 | 2013-2018: Horn/ 2019: Anti-theft alarm system |
| 32 | Seat heating, passenger |
| 33 | Heated steering wheel |
| 34 | – |
| 35 | – |
| 36 | – |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | 2019: Inductive charging |
| 40 | – |
Engine Compartment Fuse Box

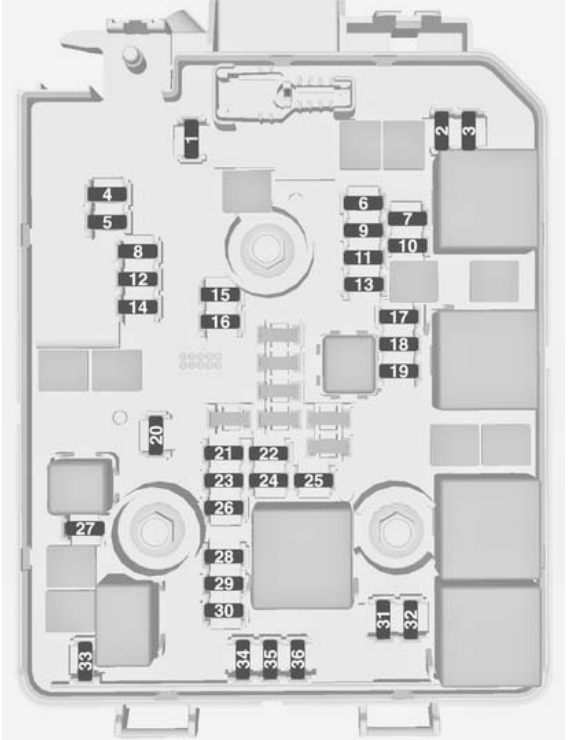

TYPE 1
| Fuse No. | Function |
|---|---|
| 1 | 2013–2018: –; 2019: Rear carrier |
| 2 | Exterior mirror switch |
| 3 | Body control module |
| 4 | 2013–2014: Chassis control module; 2015–2018: Chassis control module / Foldable sunroof; 2019: Foldable power sunroof |
| 5 | ABS |
| 6 | 2013–2018: Daytime running light left; 2019: Low beam left |
| 7 | – |
| 8 | 2013–2018: Body control module; 2019: Power window switch |
| 9 | Vehicle battery sensor |
| 10 | Headlamp levelling; 2013–2018: TPMS; 2015–2018: Foldable sunroof; 2019: Ignition |
| 11 | Rear wiper |
| 12 | Window defog |
| 13 | 2013–2018: Daytime running light right; 2019: Low beam right |
| 14 | Exterior mirror heating / Mirror defog |
| 15 | – |
| 16 | 2013–2014: LPG system; 2015–2018: LPG system / Chassis control module; 2019: Fuel pump module / LPG module |
| 17 | 2013–2018: Interior mirror; 2019: Voltage converter |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | – |
| 21 | 2013–2018: Injection coil; 2019: Solenoid canister purge |
| 22 | – |
| 23 | 2013–2018: Injection system; 2019: Ignition coils / Injectors |
| 24 | Washer system |
| 25 | 2013–2018: Lighting system; 2019: Ambient light sensor / Rain light sensor |
| 26 | 2013–2018: Engine control module; 2019: Engine sensors |
| 27 | 2013–2018: –; 2019: Engine management |
| 28 | 2013–2018:Engine control module; 2019: LPG module |
| 29 | Engine control module |
| 30 | – |
| 31 | 2013–2018: Left headlamp; 2019: Left high beam |
| 32 | 2013–2018: Right headlamp; 2019: Right high beam |
| 33 | Engine control module |
| 34 | Horn |
| 35 | 2013–2018: Clutch; 2019: Air conditioning compressor clutch |
| 36 | – |

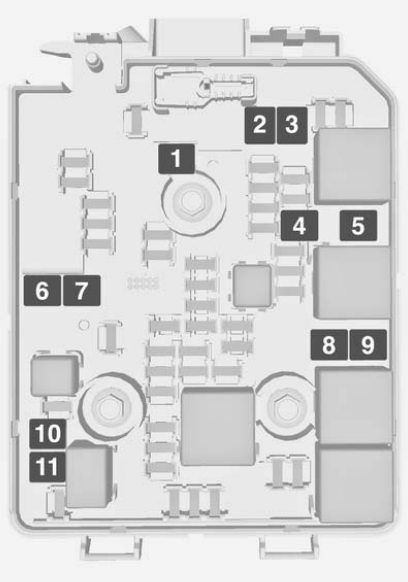

TYPE 2
| No. | Circuit |
|---|---|
| 1 | ABS Pump |
| 2 | Front Wiper |
| 3 | Blower |
| 4 | Instrument Panel |
| 5 | 2018-2019: Cooling fan |
| 6 | – |
| 7 | 2015-2018: Electrical vacuum pump |
| 8 | Cooling Fan Low |
| 9 | Cooling Fan High |
| 10 | 2013-2014: Cooling Fan/ 2015-2017: Cooling fan/Electrical vacuum pump |
| 11 | Starter |
After having changed defective fuses close the fuse box cover and press until it engages. If the fuse box cover is not closed correctly, malfunction may occur.
