Vauxhall Combo D (2012–2018) Fuse Box Diagrams & Location
The Vauxhall Combo D (2012–2018) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Combo D.
Fuse Box Location
Passenger Compartment Fuse Box
The fuse box is located behind a cover on the lower part of the instrument panel, on the driver’s side.
Engine Compartment Fuse Box
The fuse box is on the right of the engine compartment, next to the battery.
Fuse Box Diagrams

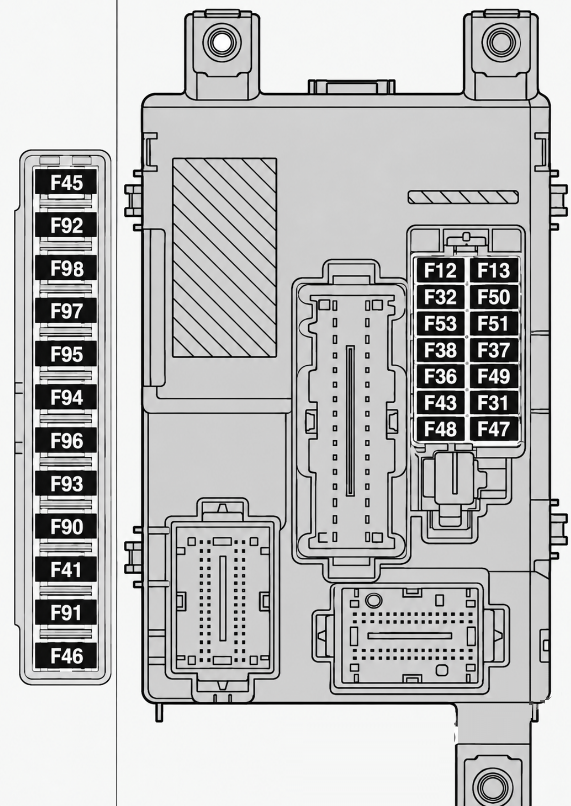

Passenger Compartment Fuse Box
| Fuse No. | Function |
|---|---|
| F12 | Right low beam |
| F13 | Left low beam / Headlight range adjustment |
| F31 | Fuse box relays / Body control unit relays |
| F32 | Courtesy lights |
| F36 | Diagnostic connector / Climate control system / Infotainment system (2012–2015); Diagnostic connector / Climate control system / Infotainment system / Tyre pressure monitoring system / Alarm siren (2016–2018) |
| F37 | Instrument panel / Braking system |
| F38 | Central locking system |
| F41 | Not used |
| F43 | Windscreen washer system |
| F45 | Not used |
| F46 | Not used |
| F47 | Power windows |
| F48 | Power windows |
| F49 | Exterior mirrors / Infotainment system / Parking assist (2012–2015); Exterior mirrors / Infotainment system / Parking assist / Tyre pressure monitoring system / Instrument illumination / Rain sensor (2016–2018) |
| F50 | Not used |
| F51 | Infotainment system / Braking system / Clutch (2012–2015); Infotainment system / Braking system / Clutch / Interior heater (2016–2018) |
| F53 | Instrument panel |
| F90 | Not used |
| F91 | Not used |
| F92 | Not used |
| F93 | Not used |
| F94 | Power outlet, load compartment |
| F95 | Cigarette lighter / Power outlet |
| F96 | Cigarette lighter / Power outlet |
| F97 | Heated front seat |
| F98 | Heated front seat |

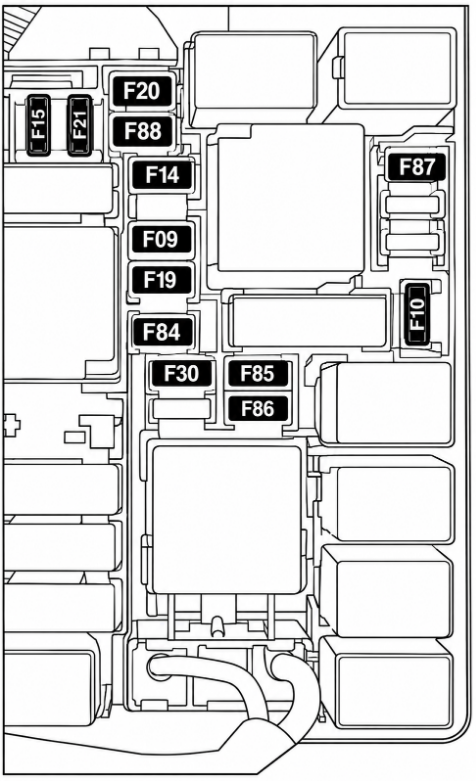

Engine Compartment Fuse Box
| № | Circuit |
|---|---|
| F09 | Rear door switch |
| F10 | Horn |
| F14 | High beam |
| F15 | PTCI additional heater |
| F19 | Air conditioning system |
| F20 | Heated rear window |
| F21 | Fuel pump |
| F30 | Fog lights |
| F84 | CNG system |
| F85 | Power outlets |
| F86 | Cigarette lighter/Heated seats |
| F87 | Stop-start system |
| F88 | Mirror heating |
