Alfa Romeo Stelvio (2017 – 2026) Fuse Box Diagrams & Location
The Alfa Romeo Stelvio (2017–2026) fuse box location and diagrams provide essential details about the vehicle’s electrical protection system. This blog covers fuse box locations, fuse assignments, and diagrams to help you correctly identify and replace blown fuses. It includes information for different model years to make electrical troubleshooting easier.
Fuse Box Location
Passenger Compartment Fuse Box

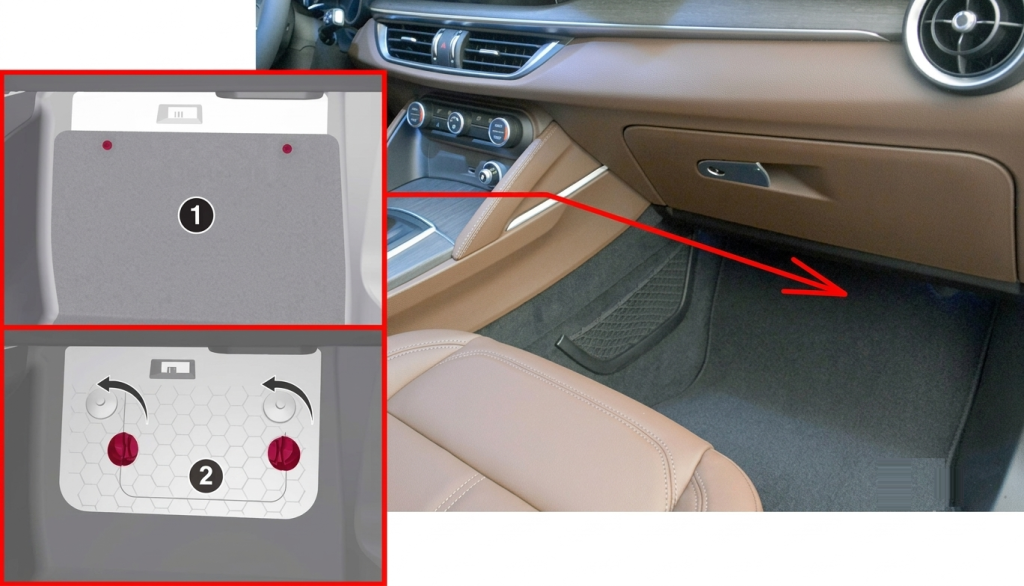

The fuse box is located below the passenger side footboard.
Luggage Compartment Fuse Box

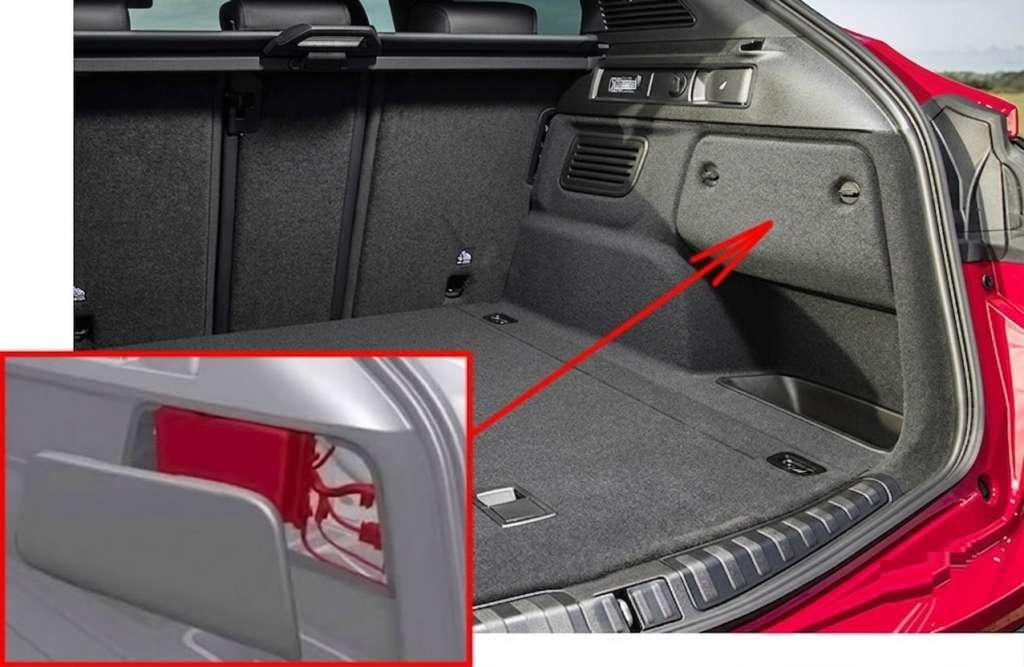

The fuse box is located on the right side of the luggage compartment behind the side cover.
Fuse Box Diagrams

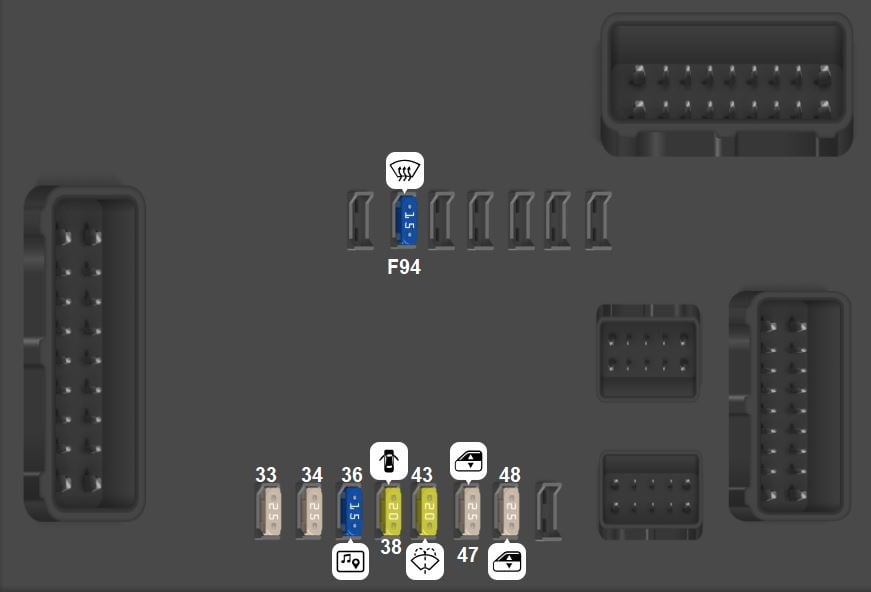

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI
25A |
F33 | Front power window (driver’s side) |
| Fuse MINI 25A |
F34 | Front power window (passenger side) |
| Fuse MINI 15A |
F36 | Supply for Information and Entertainment system, Climate Control system, alarm, power door mirror folding, EOBD system, USB port |
| Fuse MINI
20A |
F38 | Safe Lock device [driver side door unlock – if equipped], doors unlock, central lock |
| Fuse MINI
20A |
F43 | Windshield washer pump |
| Fuse MINI 25A |
F47 | Rear left power window |
| Fuse MINI
25A |
F48 | Rear right power window |
| Fuse MINI
15A |
F94 | Heater rear window coil |

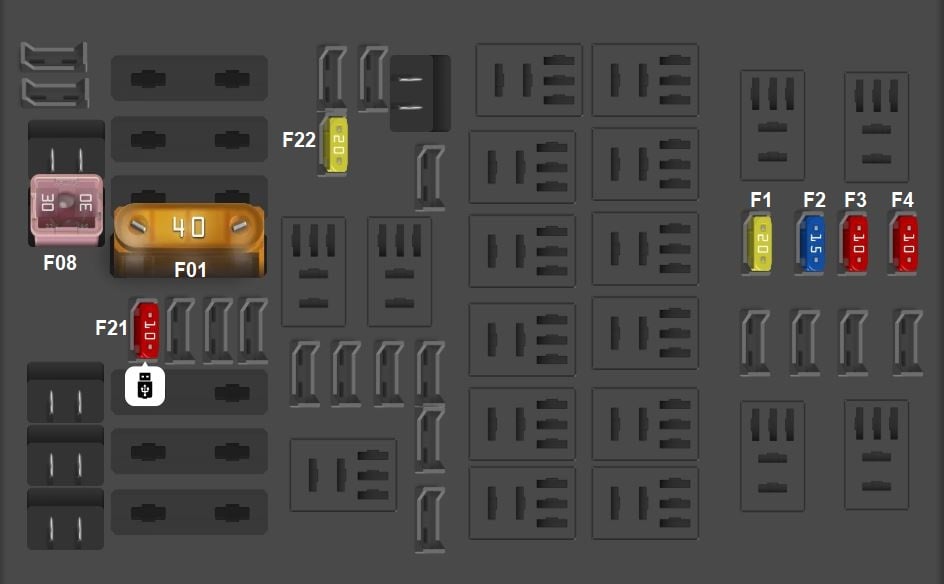

Luggage Compartment Fuse Box
| Type | No. | Description |
| Fuse MAXI 40A |
F01 | 2017 to 2026: Receiver module (TTM/TTEBM) |
| Fuse FMX/JCase
30A |
F08 | 20417 to 2026: Hi-Fi system |
| Fuse MINI
10A |
F21 | 2017 to 2026: I-Drive, USB Socket, AUX, USB Charger |
| Fuse MINI 20A |
F22 | 2017 to 2024:KL15/a 12 Volts Power socket in the luggage compartment |
| Fuse MINI
20A |
F1 | 2017 to 2024: Trailer light control unit power supply (+30) |
| Fuse MINI
15A |
F2 | 2017 to 2024: Trailer light control unit power supply (+30) |
| Fuse MINI 10A |
F3 | 2017 to 2024:Trailer socket (only EMEA) (+30) |
| Fuse MINI
10A |
F4 | 2017 to 2024: Tow bar (+15) |
