Vauxhall Meriva B (2011–2017) Fuse Box Diagrams & Location
The Vauxhall Meriva B (2011–2017) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Meriva B.
Fuse Box Location
Passenger Compartment Fuse Box

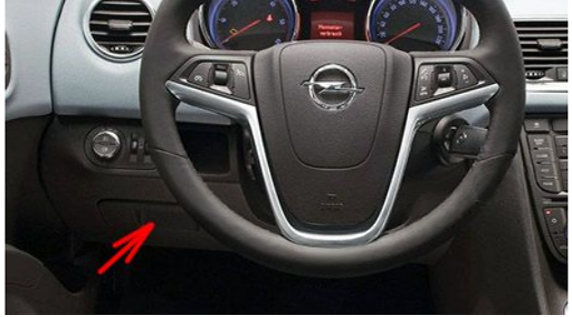

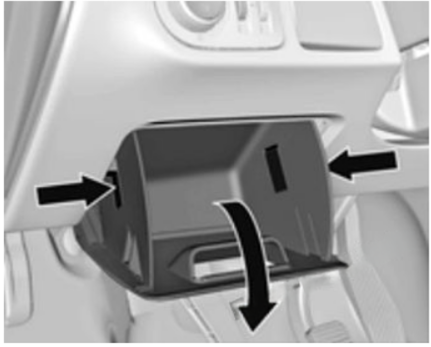

In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.
Open compartment, compress the locking tabs, fold compartment down and remove.

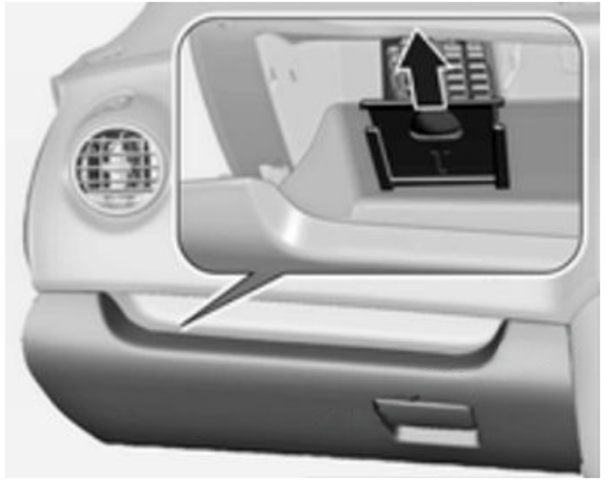

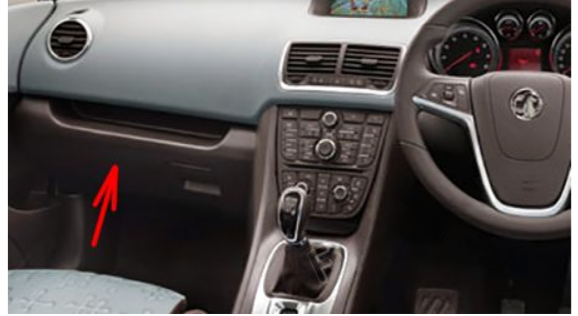

In right-hand drive vehicles, it is located behind a cover in the glovebox.
Open the glovebox, pull cover upwards and remove.
Engine Compartment Fuse Box

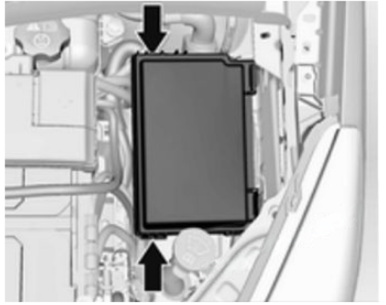

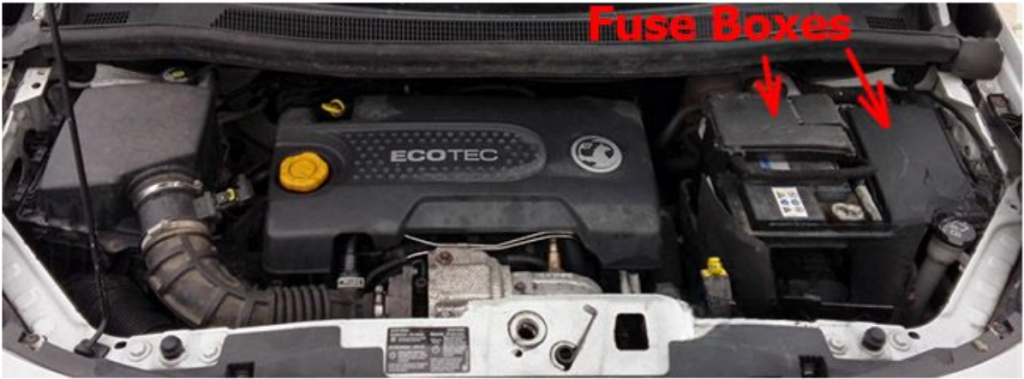

The fuse box is in the front left of the engine compartment.
Disengage the cover, lift it upwards and remove.
Load Compartment Fuse Box

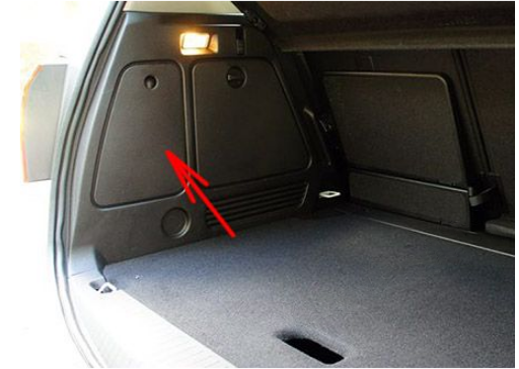

It is on the left side of the load compartment behind the cover.

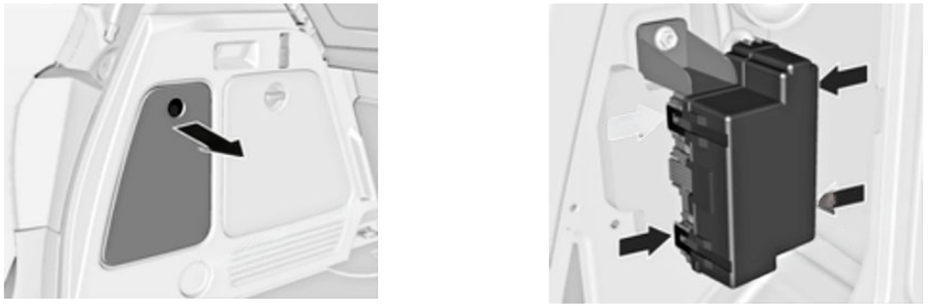

Remove the cover, disengage the four retaining lugs and remove the cover.
Fuse Box Diagrams

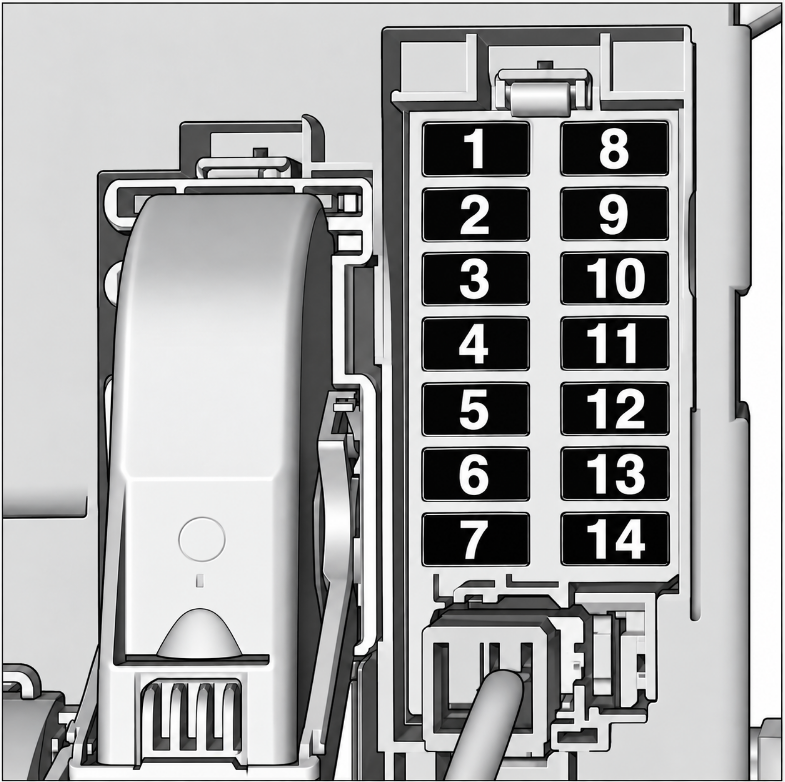

Passenger Compartment Fuse Box
| Fuse No. | Circuit / Function |
|---|---|
| 1 | 2011–2012: Rear left door unlocking; 2013–2017: Radio |
| 2 | Display, instrument, telephone |
| 3 | Radio |
| 4 | Ignition switch, immobiliser |
| 5 | Windscreen washer, rear screen washer |
| 6 | Central locking system, tailgate |
| 7 | Central locking system |
| 8 | 2011–2012: Rear right door unlocking; 2013–2017: Display, instrument, telephone |
| 9 | 2011–2012: Courtesy light; 2013–2017: Heated steering wheel |
| 10 | 2011–2012: Heated steering wheel; 2013–2017: Rear left door unlocking |
| 11 | 2011–2012: -; 2013–2017: Rear right door unlocking |
| 12 | 2011–2012: -; 2013–2017: Courtesy light |
| 13 | Rain sensor, interior mirror, exterior mirrors |
| 14 | – |

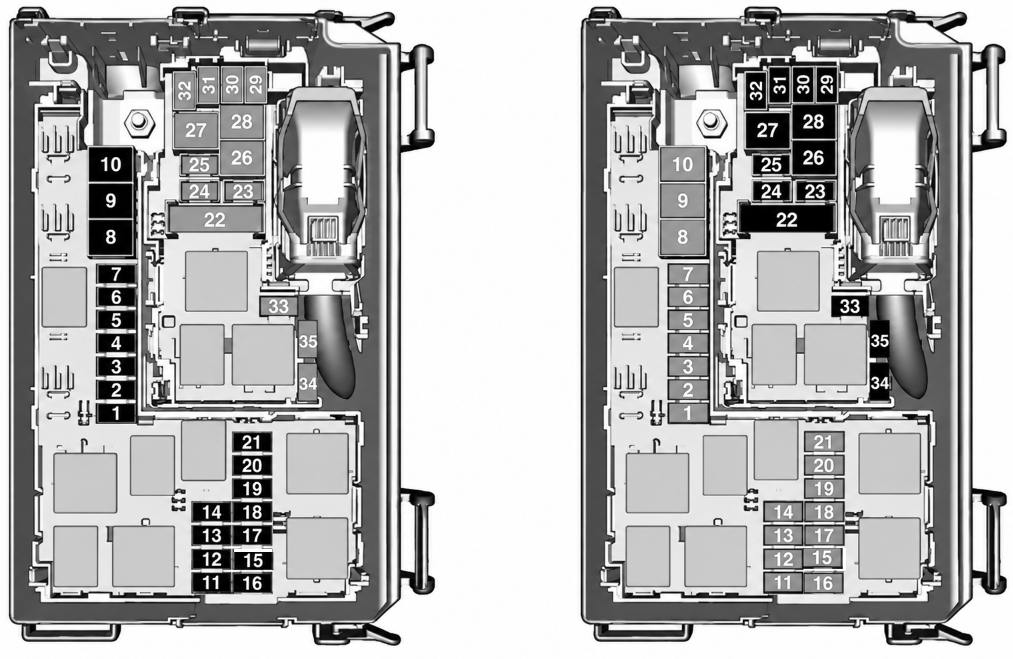

Engine Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | Starter |
| 2 | – |
| 3 | Fuel filter/Cooling |
| 4 | Horn |
| 5 | Terminal 30 |
| 6 | Engine control module/Transmission control unit |
| 7 | Fog light |
| 8 | Engine cooling |
| 9 | Engine cooling |
| 10 | Vacuum pump |
| 11 | Ignition/Preheating |
| 12 | Headlamp levelling |
| 13 | Air conditioning system/ Terminal 15 |
| 14 | Transmission control unit |
| 15 | High beam right |
| 16 | High beam left |
| 17 | Engine control module |
| 18 | Engine control module/ Terminal 15 |
| 19 | Airbag |
| 20 | Engine control module |
| 21 | Engine control module/ Terminal 87 |
| 22 | Electrical parking brake |
| 23 | Tyre repair kit |
| 24 | Fuel pump |
| 25 | ABS |
| 26 | Heated rear window |
| 27 | ABS |
| 28 | Interior fan |
| 29 | Cigarette lighter |
| 30 | Air conditioning system |
| 31 | Front power window, left |
| 32 | Front power window, right |
| 33 | Mirror heating |
| 34 | ABS |
| 35 | Airbag |

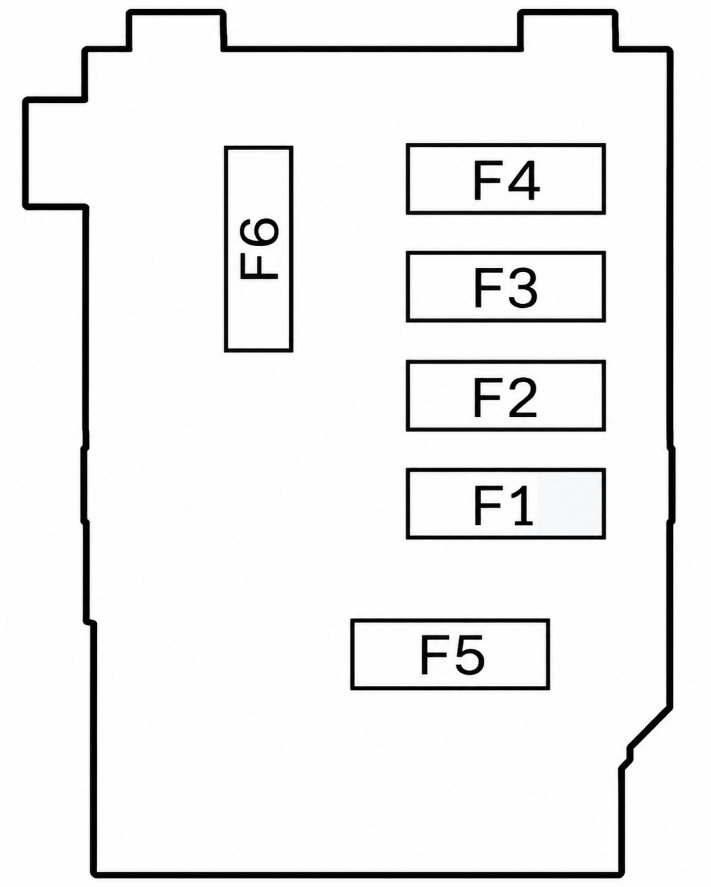

Fuses on the battery
| № | Circuit |
|---|---|
| F1 | (80A) |
| F2 | (100A) Load compartment fuse box |
| F3 | – |
| F4 | (80A) Power steering |
| F5 | (250A) |
| F6 | (300A) Starter |

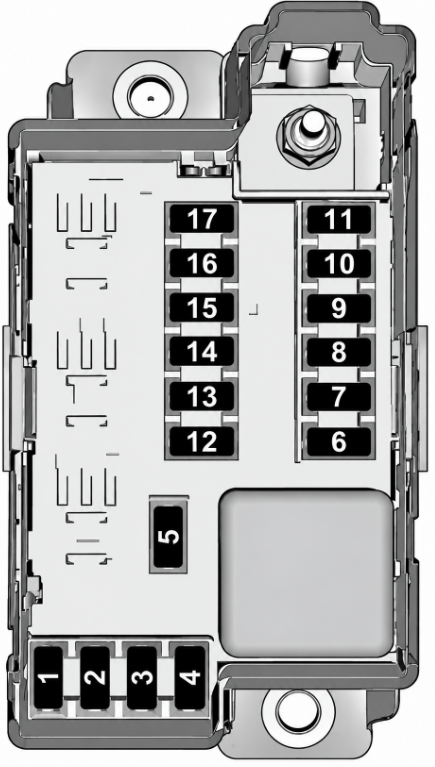

Load Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | Adaptive forward lighting |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | – |
| 6 | Right rear power window |
| 7 | Adaptive forward lighting |
| 8 | Trailer module/Trailer socket |
| 9 | Left seat lumbar support |
| 10 | Left rear power window |
| 11 | Park assist |
| 12 | Electrical sunblind |
| 13 | – |
| 14 | Heated front seats |
| 15 | Trailer module |
| 16 | Right seat lumbar support |
| 17 | – |
