Vauxhall Zafira B (2006-2014) Fuse Box Diagrams & Location
The Vauxhall Zafira B (2006–2014) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Zafira B.
Fuse Box Location
Engine Compartment Fuse Box

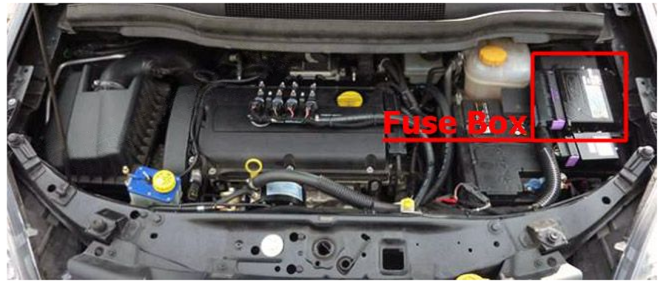

Located in the front left of the engine compartment.

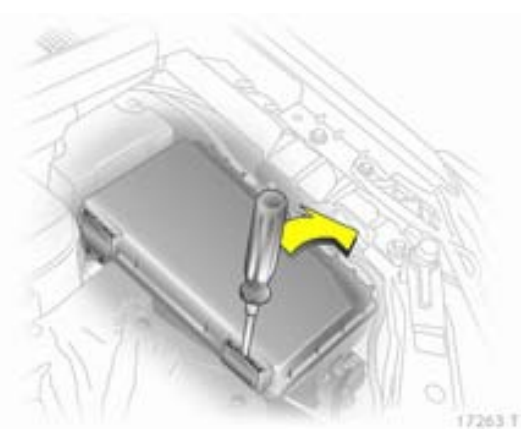

Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove it.
The fuse box has two different fuse assignments depending on the load compartment fuse box variant.
Load Compartment Fuse Box

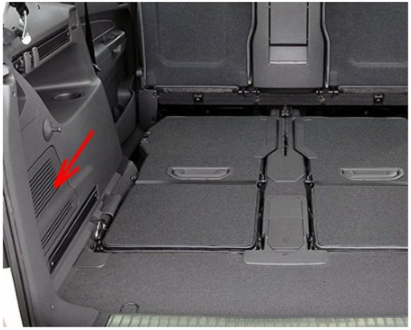

The fuse box is behind a cover on the left side of the load compartment.

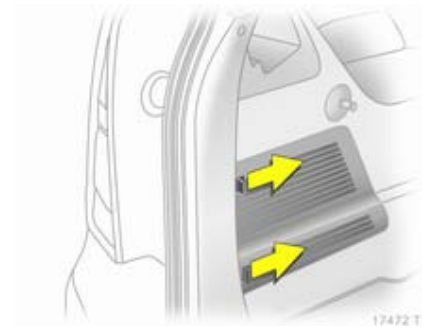

Press the locking tabs forward and remove the cover.
Fuse Box Diagrams
Engine Compartment Fuse Box

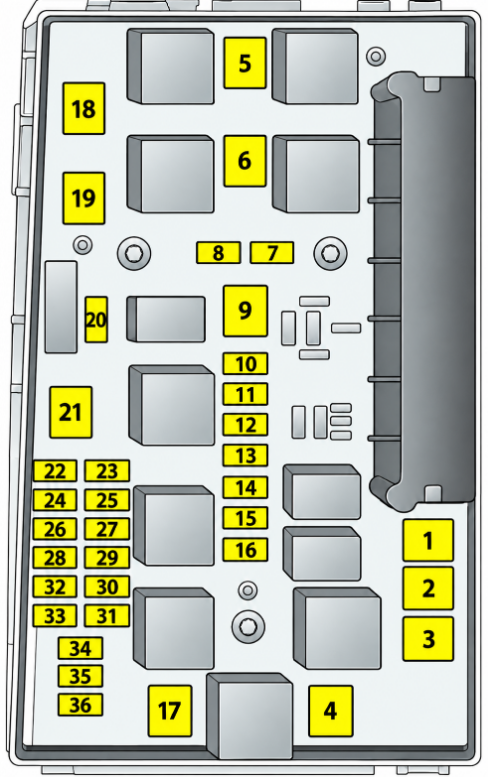

Version A
| № | Circuit |
|---|---|
| 1 | ABS |
| 2 | ABS |
| 3 | Interior fan electronic climate control |
| 4 | Interior fan heating and air conditioning system |
| 5 | Radiator fan |
| 6 | Radiator fan |
| 7 | Central locking system |
| 8 | Windscreen washer, rear window washer |
| 9 | Heated rear window, heated exterior mirror |
| 10 | Diagnostics plug |
| 11 | Instruments |
| 12 | Mobile telephone, Infotainment system, display |
| 13 | Courtesy light |
| 14 | Windscreen wiper |
| 15 | Windscreen wiper |
| 16 | Horn, ABS, brake light switch, air conditioning system |
| 17 | Diesel fuel filter or air conditioning system |
| 18 | Starter |
| 19 | – |
| 20 | Horn |
| 21 | Engine electronics |
| 22 | Engine electronics |
| 23 | Headlight range adjustment |
| 24 | Fuel pump |
| 25 | – |
| 26 | Engine electronics |
| 27 | Heating, air conditioning system, air quality sensor |
| 28 | – |
| 29 | Power steering |
| 30 | Engine electronics |
| 31 | Rear window wiper |
| 32 | Brake light switch |
| 33 | Headlight range adjustment, light switch, clutch switch, instrument, driver’s door module |
| 34 | Steering column control unit |
| 35 | Infotainment system |
| 36 | Cigarette lighter, front power outlet |
Version B
| № | Circuit |
|---|---|
| 1 | ABS |
| 2 | ABS |
| 3 | Interior fan electronic climate control |
| 4 | Interior fan heating and air conditioning system |
| 5 | Radiator fan |
| 6 | Radiator fan |
| 7 | Windscreen washer system |
| 8 | Horn |
| 9 | Headlight washer system |
| 10 | Emergency unlocking of central locking system |
| 11 | – |
| 12 | – |
| 13 | Fog light |
| 14 | Windscreen wiper |
| 15 | Windscreen wiper |
| 16 | Control module electronics, Open&Start system, ABS, brake light switch |
| 17 | Diesel fuel filter heating |
| 18 | Starter |
| 19 | Transmission electronics |
| 20 | Air conditioning system |
| 21 | Engine electronics |
| 22 | Engine electronics |
| 23 | Adaptive forward lighting, headlight range adjustment |
| 24 | Fuel pump |
| 25 | Transmission electronics |
| 26 | Engine electronics |
| 27 | Power steering |
| 28 | Transmission electronics |
| 29 | Transmission electronics |
| 30 | Engine electronics |
| 31 | Adaptive forward fighting, headlight range adjustment |
| 32 | Brake system, air conditioning system, clutch switch |
| 33 | Adaptive forward lighting, headlight range adjustment, light switch |
| 34 | Steering column control unit |
| 35 | Infotainment system |
| 36 | Mobile telephone, Infotainment system, display |
Load Compartment Fuse Box

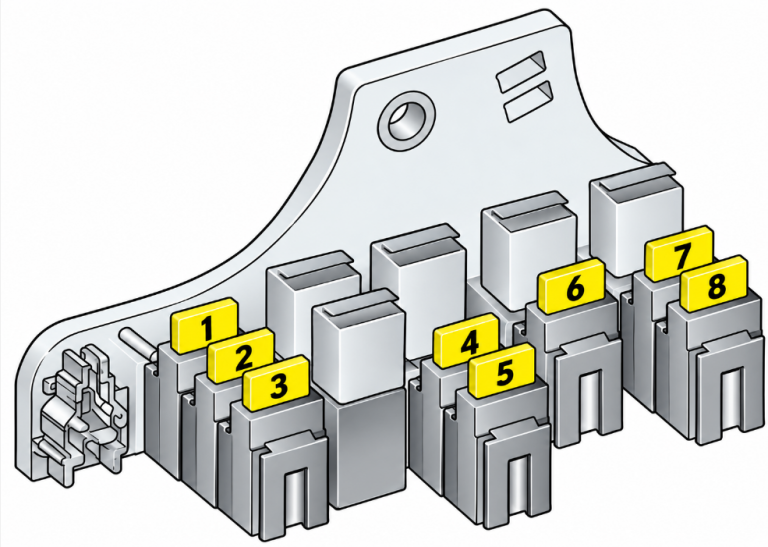

Version A
| № | Circuit |
|---|---|
| 1 | Fog light |
| 2 | Rear power outlet |
| 3 | Load compartment power outlet |
| 4 | Reversing lights |
| 5 | Rear power windows |
| 6 | Air conditioning system |
| 7 | Front power windows |
| 8 | Heated exterior mirrors |
To replace a fuse, remove the relevant protective cap.

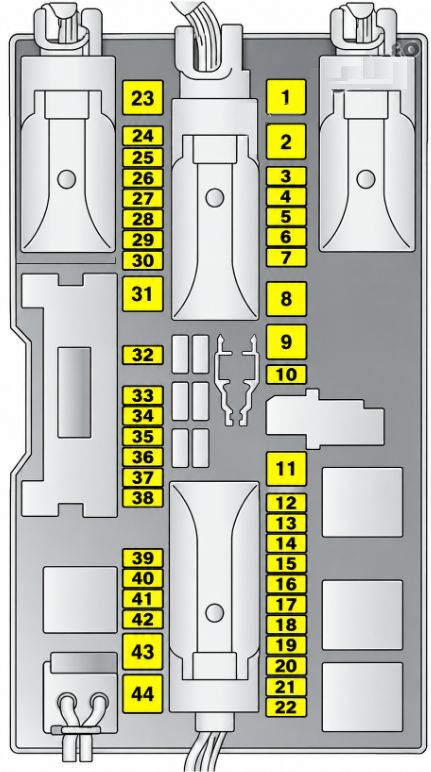

Version B
| № | Circuit |
|---|---|
| 1 | Front power windows |
| 2 | – |
| 3 | Instruments |
| 4 | Heating, air conditioning system, electronic climate control |
| 5 | Airbags |
| 6 | – |
| 7 | – |
| 8 | – |
| 9 | – |
| 10 | – |
| 11 | Heated rear window |
| 12 | Rear window wiper |
| 13 | Parking assist |
| 14 | Heating, air conditioning system |
| 15 | – |
| 16 | Seat occupancy recognition, Open&Start system |
| 17 | Rain sensor, air quality sensor, tyre pressure monitoring system, interior mirror |
| 18 | Instruments, switches |
| 19 | – |
| 20 | CDC |
| 21 | Heated exterior mirrors |
| 22 | – |
| 23 | Rear power windows |
| 24 | Diagnostics plug |
| 25 | – |
| 26 | Electrical foldable exterior mirrors |
| 27 | Ultrasonic sensor, anti-theft alarm system |
| 28 | – |
| 29 | Cigarette lighter, front power outlet |
| 30 | Rear power outlet |
| 31 | – |
| 32 | – |
| 33 | Open&Start system |
| 34 | – |
| 35 | Rear power outlet |
| 36 | Socket for towing equipment |
| 37 | – |
| 38 | Central locking system, terminal 30 |
| 39 | Left seat heating |
| 40 | Right seat heating |
| 41 | – |
| 42 | – |
| 43 | – |
| 44 | – |
