Vauxhall Meriva A (2003–2010) Fuse Box Diagrams & Location
The Vauxhall Meriva A (2003–2010) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Meriva A.
Fuse Box Location

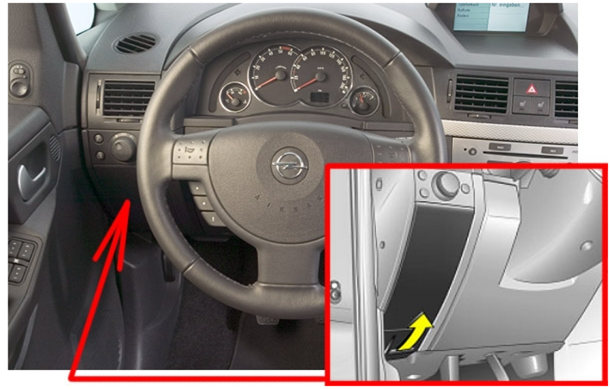

Passenger Compartment Fuse Box
Remove the fuse box cover at the bottom.

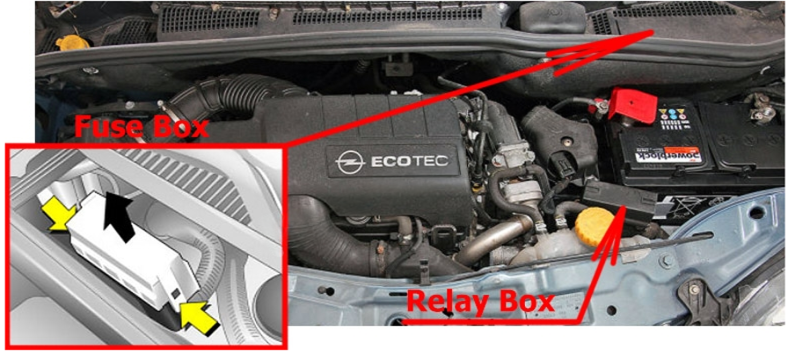

Engine Compartment Fuse Box
The fuse box is located at the front left of the engine compartment under the cover.
Fuse Box Diagrams

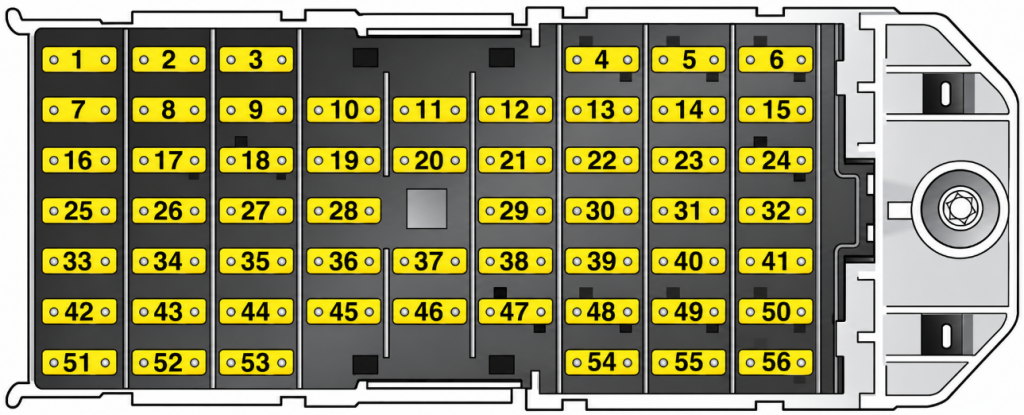

Passenger Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | Central control unit |
| 2 | Immobiliser, hazard warning lamps, exterior lighting |
| 3 | Headlamp washer system |
| 4 | Infotainment system, diesel engine |
| 5 | – |
| 6 | – |
| 7 | Starter, diesel engine: engine controller |
| 8 | Horn |
| 9 | Fuel injection system, fuel pump, stationary heater |
| 10 | Turn signal lamps |
| 11 | Infotainment system, Information display, Infotainment system |
| 12 | Heated rear window, exterior mirrors |
| 13 | Central locking, anti-theft alarm system |
| 14 | Engine control Petrol engine: Diesel engine: |
| 15 | Engine control unit, Z 17 DTH engine |
| 16 | Accessory socket, cigarette lighter |
| 17 | – |
| 18 | Adaptive Forward Lighting |
| 19 | Central locking system |
| 20 | Interior lighting, reading lamp |
| 21 | Windscreen washer system |
| 22 | Rear electric window |
| 23 | Tilt/slide sun roof, skylight roof |
| 24 | Anti-theft alarm system |
| 25 | Rear window wiper |
| 26 | Ignition system, engine electronics |
| 27 | Engine control, airbag, ESP |
| 28 | Air conditioning system |
| 29 | Front left electric window |
| 30 | – |
| 31 | Engine control, Z 17 DTH engine |
| 32 | Front right electric window |
| 33 | Central control module, immobiliser, control indicators |
| 34 | Windscreen wipers |
| 35 | Interior lighting, interior mirror, information display |
| 36 | Brake light, ABS, ESP |
| 37 | Cigarette lighter, auxiliary heater |
| 38 | Seat heater (left) |
| 39 | Seat heater (right) |
| 40 | Adaptive Forward Lighting, automatic headlamp range adjustment |
| 41 | Reversing lamps |
| 42 | Engine cooling, lighting |
| 43 | Left porking lomp |
| 44 | Right parking lamp |
| 45 | Fog tail lamp |
| 46 | Fog lamps |
| 47 | Towing equipment, accessory socket |
| 48 | Diesel filter heater |
| 49 | – |
| 50 | Diesel filter heater |
| 51 | Left dipped beam: Xenon headlamp Halogen headlamp |
| 52 | Right dipped beam: Xenon headlamp Halogen headlamp |
| 53 | Sun roof, electric windows, radio |
| 54 | Main beam (left) |
| 55 | Main beam (right) |
| 56 | – |

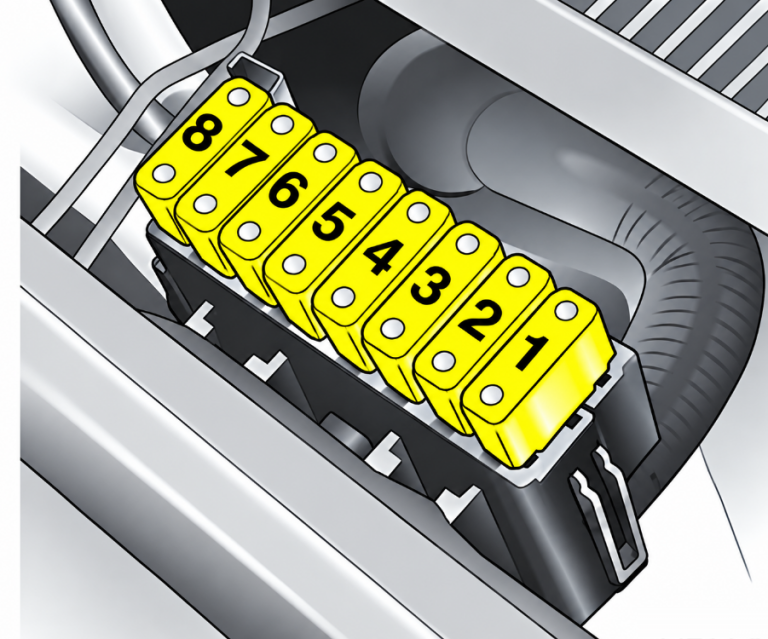

Engine Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | Interior fan |
| 2 | Power steering |
| 3 | ABS |
| 4 | Easytronic diesel preheating system |
| 5 | Heated rear window |
| 6 | Engine cooling |
| 7 | Starter |
| 8 | Engine cooling |
