2025 FORD Bronco Sport Fuses and Fuse Box User Guide
This blog covers the 2025 FORD Bronco Sport fuses and fuse box, including placement, function, and maintenance suggestions. Understand how each fuse supports car systems, promotes safety, and prevents electrical problems.
Video: FORD Bronco Sport Fuses and Fuse Box
FUSE PRECAUTIONS
WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.
WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
UNDER HOOD FUSE BOX

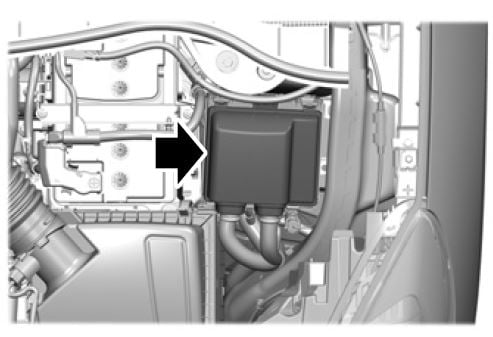

LOCATING THE UNDER HOOD FUSE BOX
ACCESSING THE UNDER HOOD FUSE BOX

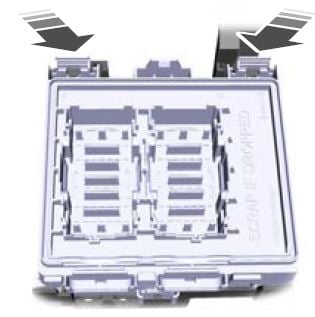

- Pull the latch toward you and remove the top cover.

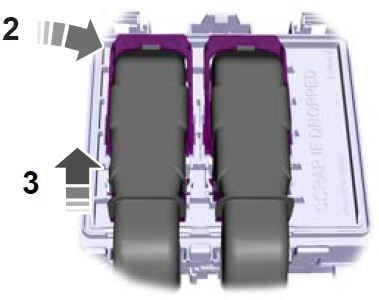

- Pull the connector lever up.
- Pull the connector up to remove.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.
To reinstall the fuse box, reverse the removal steps.
Note: After fixing the connectors, make sure you lock the connectors by pushing the connector levers down.
IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
| Item | Rating | Protected Component |
| 1 | 40 A | Body control module/ Vehicle battery 2 |
| 2 | 30 A | Body control module – Run/ start relay. |
| 4 | 20 A | Fuel pump 1 |
| 6 | 15 A | Powertrain control module power supply 1 |
| 7 | 15 A | Powertrain control module power supply 2 |
| 8 | 15 A | Powertrain control module power supply 3 |
| 9 | 15 A | Powertrain control module power supply 4 |
| 11 | 30 A | Starter motor. |
| 12 | 10 A | A/C clutch. |
| 13 | 40 A | Blower motor. |
| 14 | 10 A | Not used. |
| 15 | 20 A | Horn. |
| 16 | 20 A | Rear window washer pump. |
| 21 | 10 A | Auxiliary accessory over- head switch pack. |
| 22 | 5 A | Power steering module. |
| 23 | 10 A | Anti-lock brake system. |
| 24 | 10 A | Powertrain control module. |
| 25 | 20 A | Advanced driver assistance system – driver assist module. |
| 27 | 10 A | All wheel drive module power supply #2 |
| 28 | 40 A | Anti-lock brake system valves. |
| 29 | 60 A | Anti-lock brake system pump. |
| 30 | 30 A | Driver seat module, Driver power seat. |
| 31 | 30 A | Passenger power seat. |
| 32 | 20 A | Media bin power point. |
| 33 | 20 A | Center console power point. |
| 34 | 20 A | Rear cargo power point. |
| 36 | 40 A | Not used. |
| 36B | 60 A | 400W power inverter. |
| 37 | 30 A | Glass roof. |
| 39 | 20 A | Heated seats. |
| 44 | 10 A | Not used. |
| 47 | 60 A | Cooling fan. |
| 50 | 30 A | Rear defrost. |
| 51 | 10 A | Heated mirrors. |
| 54 | 40 A | All wheel drive module. |
| 62 | 10 A | Upfitter relay #4. |
| 63 | 10 A | Upfitter relay #3. |
| 68 | 10 A | Upfitter relay #2. |
| 69 | 30 A | Wiper motor. |
| 71 | 20 A | Right rear wiper. |
| 77 | 10 A | Not used. |
| 79 | 20 A | Not used. |
| 83 | 40 A | Positive temperature co- efficient heater bank #1. |
| 84 | 60 A | Positive temperature co- efficient heater bank #2. |
| 85 | 40 A | Positive temperature co- efficient heater bank #3. |
| 86 | 5 A | Floodlight. |
| 91 | 40 A | Trailer tow. |
| 93 | 5 A | Headlamp switch. |
| 120 | 15 A | Port fuel injectors. |
| 124 | 5 A | Rain sensors. |
| 125 | 5 A | Smart USB charger. |
| 134 | 30 A | Not used. |
| 136 | 20 A | Amplifier #1. |
| 137 | 20 A | Amplifier #2. |
| 139 | 10 A | Center rear console USB charger. |
| 146 | 10 A | Not used. |
| 157 | 25 A | Driver side headlamp. |
| 158 | 25 A | Passenger side headlamp. |
| 160 | 15 A | Heated steering wheel. |
| 183 | 15 A | Liftgate glass release. |
| 186 | 10 A | On-board diagnostic connector 2. |
| 200 | 30 A | Upfitter relay #1. |
BODY CONTROL MODULE FUSE BOX
LOCATING THE BODY CONTROL MODULE FUSE BOX
ACCESSING THE BODY CONTROL MODULE FUSE BOX
To access the fuses in the body control module fuse box, contact an authorized dealer.
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
| Item | Rating | Protected Component |
| 1 | 5 A | Not used (spare). |
| 2 | 5 A | Not used (spare). |
| 3 | 10 A | Not used (spare). |
| 4 | 10 A | Integrated control panel. Media display
Enhanced gateway. |
| 5 | 20 A | Lock. Unlock. |
| 6 | 10 A | Delayed accessories – glass roof
400W Inverter. |
| 7 | 30 A | Passenger door module. |
| 8 | 5 A | Not used (spare). |
| 9 | 5 A | Auto-dimming interior mirror. Passenger airbag deactiva- tion indicator. |
| 10 | 10 A | Extended power module. |
| 11 | 5 A | Telematics control unit. |
| Remote transceiver module. | ||
| 12 | 5 A | Not used (spare). |
| 13 | 15 A | Driver door unlock. |
| 14 | 30 A | Driver door module. |
| 15 | 15 A | Run/Start Extended power module . |
| 16 | 15 A | Not used (spare). |
| 17 | 15 A | SYNC. |
| 18 | 7.5 A | Wireless accessory charging module.
All terrain control module. |
| 19 | 7.5 A | Not used (spare). |
| 20 | 10 A | Not used (spare). |
| 21 | 7.5 A | Climate control module. Gear shift module.
Ignition switch. |
| 22 | 7.5 A | Instrument cluster Steering column controls module. |
| 23 | 20 A | Audio head unit. |
| 24 | 20 A | Not used (spare). |
| 25 | 30 A | Window switches. |
IDENTIFYING FUSE TYPES
- Micro 2.
- Micro 3.
- Maxi.
- Mini.
- M Case.
- J Case.
- J Case Low Profile.
- Slotted M Case.
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKED QUESTIONS
When do I need to check a fuse?
- If electrical components in the vehicle are not working.
When do I need to replace a fuse?
- If a fuse has blown.
How do I identify a blown fuse?
- You can identify a blown fuse by a broken wire within the fuse.
