Hyundai Getz (2005 – 2011) Fuse Box Diagrams & Location
Locate the fuse boxes and explore complete fuse diagrams for the Hyundai Getz (2005–2011). This blog helps you identify fuse locations, understand fuse assignments, and quickly troubleshoot electrical issues affecting lights, power windows, radio, air conditioning, and other essential vehicle systems.
Fuse Box Location

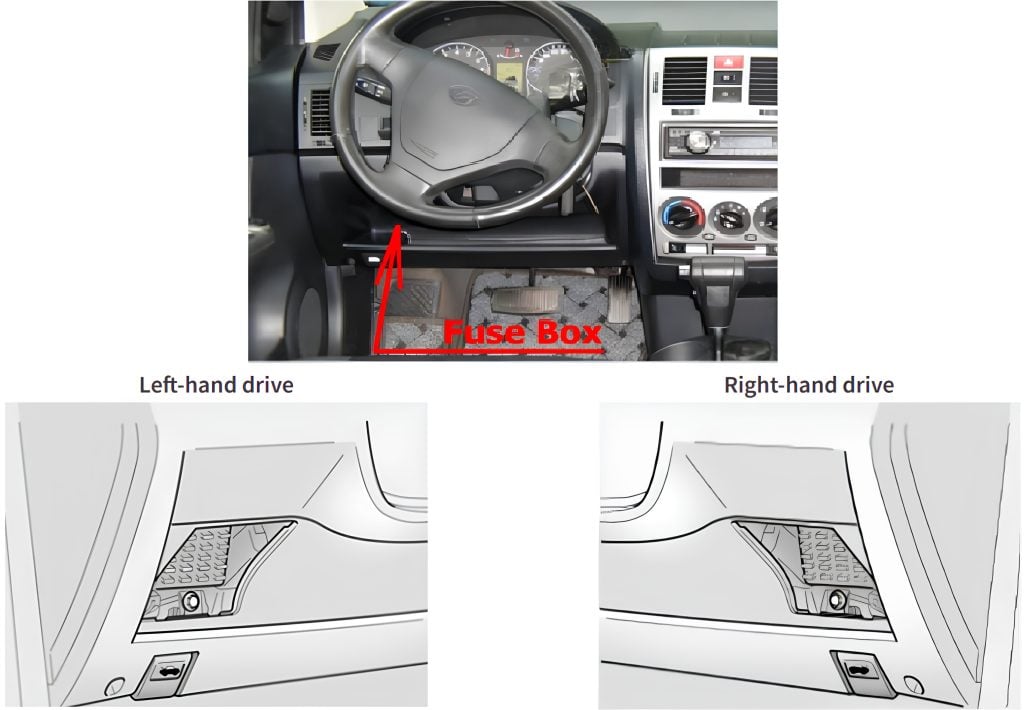

Passenger Compartment Fuse Box
The fuse box is located on the driver’s side of the instrument panel behind the cover.

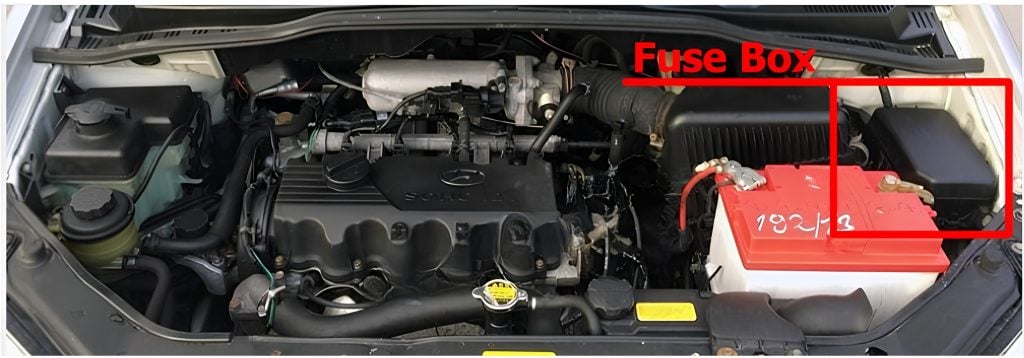

Engine Compartment Fuse Box
The fuse box is located in the engine compartment, on the left
Fuse Box Diagrams

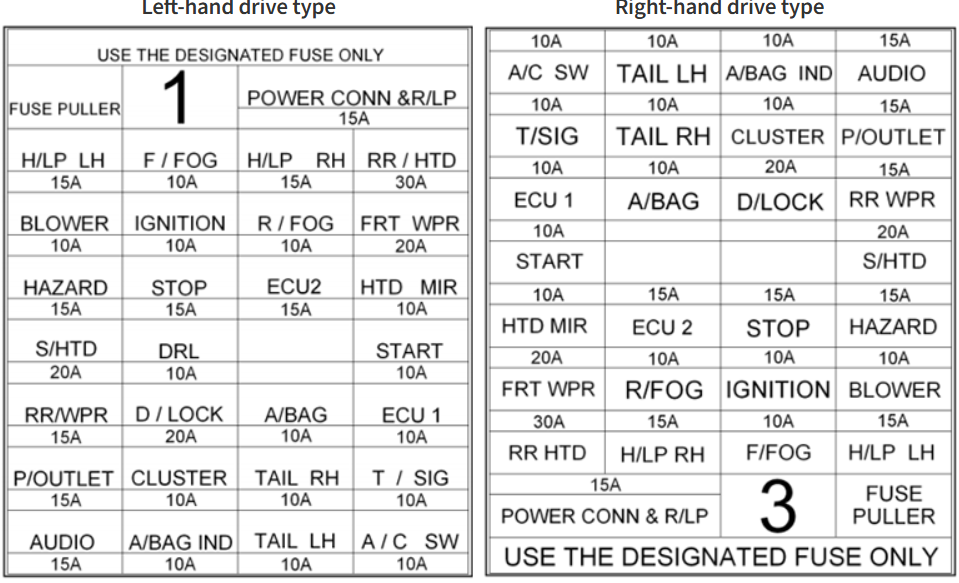

Passenger Compartment Fuse Box
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| POWER CONN & R/LP | 15A | Room Lamp, Audio, Cluster |
| H/LP LH | 15A | High Beam Light Indicator, Headlight (LH) |
| F/FOG | 10A | Front Fog Light |
| H/LP RH | 15A | Headlight (RH) |
| PR/HTD | 30A | Rear window Defroster |
| BLOWER | 10A | Blower, Sunroof |
| IGNITION | 10A | Fog light, ETACM, Power Window, Headlight leveling Device |
| R/FOG | 10A | Rear Fog Light |
| FRTWPR | 20A | Front Wiper Motor |
| HAZARD | 15A | Hazard Warning Light, ETACM |
| STOP | 15A | Stop Light, Power Window |
| ECU2 | 15A | ECM |
| HTDMIR | 10A | Rear window Defroster |
| S/HTD | 20A | Seat Warmer |
| DRL | 10A | Daytime Running Light |
| START | 10A | Start Relay, Theft alarm system |
| RR/WPR | 15A | Rear Wiper Motor |
| D/LOCK | 20A | Door Lock System, Sunroof |
| A/BAG | 10A | Air Bag |
| ECU1 | 10A | PCM, ABS control |
| P/OUTLET | 15A | Power outlet |
| CLUSTER | 10A | Cluster |
| TAIL RH | 10A | STOP/Tail Light (RH) |
| T/SIG | 10A | Turn Signal Light, Back-up Light |
| AUDIO | 15A | Audio, Electronic Outside Mirror |
| A/BAG IND | 10A | A/Bag, Indicator |
| TAIL LH | 10A | Stop/Tail Light (LH) |
| A/C SW | 10A | Air conditioner |

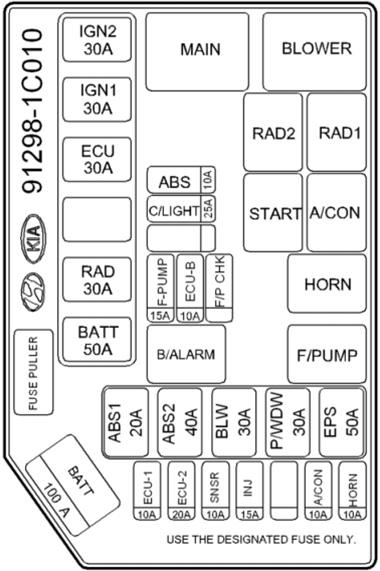

Engine Compartment Fuse Box
Gasoline
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| IGN 2 | 30A | Ignition Switch |
| IGN 1 | 30A | Ignition Switch, Start Relay |
| ECU | 30A | Fuel pump, Alternator, ECM |
| RAD | 30A | Radiator Fan |
| BATT | 50A | Headlight, Defogger Relay |
| ABS | 10A | ABS |
| C/LIGHTER | 25A | C/lighter |
| F/PUMP | 15A | Auto Fuel Cut Switch |
| ECU-B | 10A | |
| ABS1 | 20A | ABS |
| ABS2 | 40A | ABS |
| BLW | 30A | Blower, Blower Motor |
| P/WDW | 30A | Power Window |
| EPS | 50A | Electronic power steering |
| ECU-1 | 10A | ECM |
| ECU-2 | 20A | ECM |
| SNSR | 10A | A/CON, Fuel Pump |
| INJ | 15A | Injector |
| A/CON | 10A | A/Conditioner |
| HORN | 10A | Horn |
| BATT | 100A | Alternator |
Diesel
| DESCRIPTION | AMP RATING | PROTECTED COMPONENTS |
|---|---|---|
| IGN 2 | 30A | Ignition Switch |
| IGN 1 | 30A | Ignition Switch, Start Relay |
| ECU | 30A | Fuel pump, Alternator, ECM |
| FFHS | 30A | FFHS |
| RAD | 30A | Radiator Fan |
| BATT | 50A | Headlight, Defogger Relay |
| ABS | 10A | ABS |
| C/LIGHTER | 25A | C/lighter |
| F/PUMP | 15A | Auto Fuel Cut Switch |
| ECU-B | 10A | |
| ABS1 | 20A | ABS |
| ABS2 | 40A | ABS |
| BLW | 30A | Blower, Blower Motor |
| P/WDW | 30A | Power Window |
| EPS | 50A | Electronic power steering |
| ECU-1 | 10A | ECM |
| ECU-2 | 20A | ECM |
| SNSR | 10A | A/CON, Fuel Pump |
| INJ | 15A | Injector |
| A/CON | 10A | A/Conditioner |
| HORN | 10A | Horn |
| BATT | 100A | Alternator |
