Peugeot 2008 P24 (2019 – 2024) Fuse Box Diagrams & Location
The Peugeot 2008 P24 (2019–2024) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 2008.
Fuse Box Location

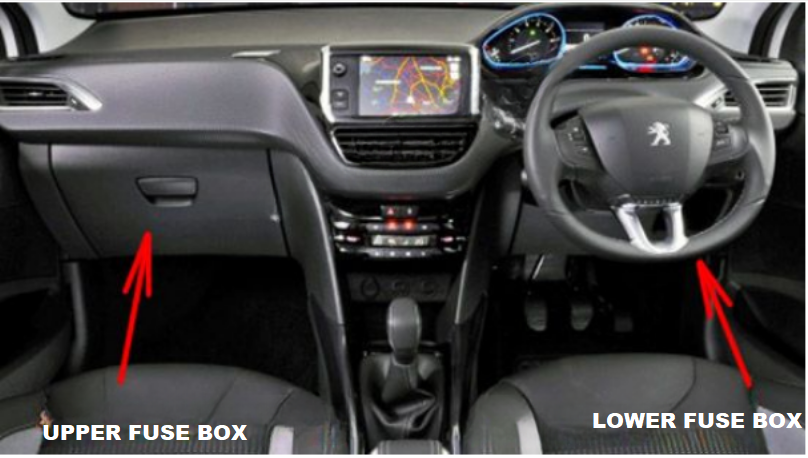

Passenger Compartment Fuse Box

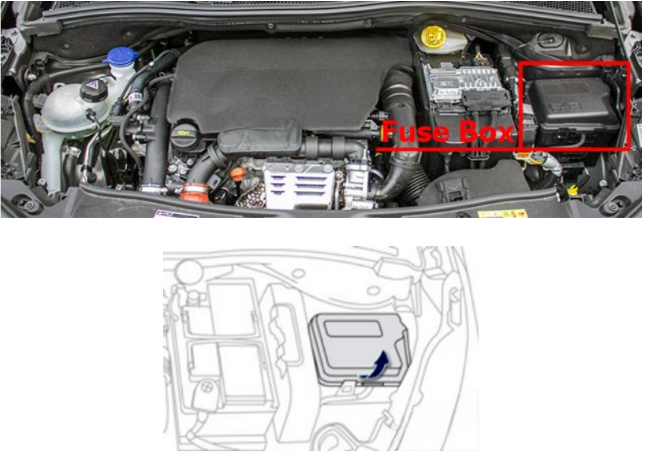

Engine Compartment Fuse Box
The fuse box is placed in the engine compartment near the battery.
Fuse Box Diagrams
Passenger Compartment Fuse Box

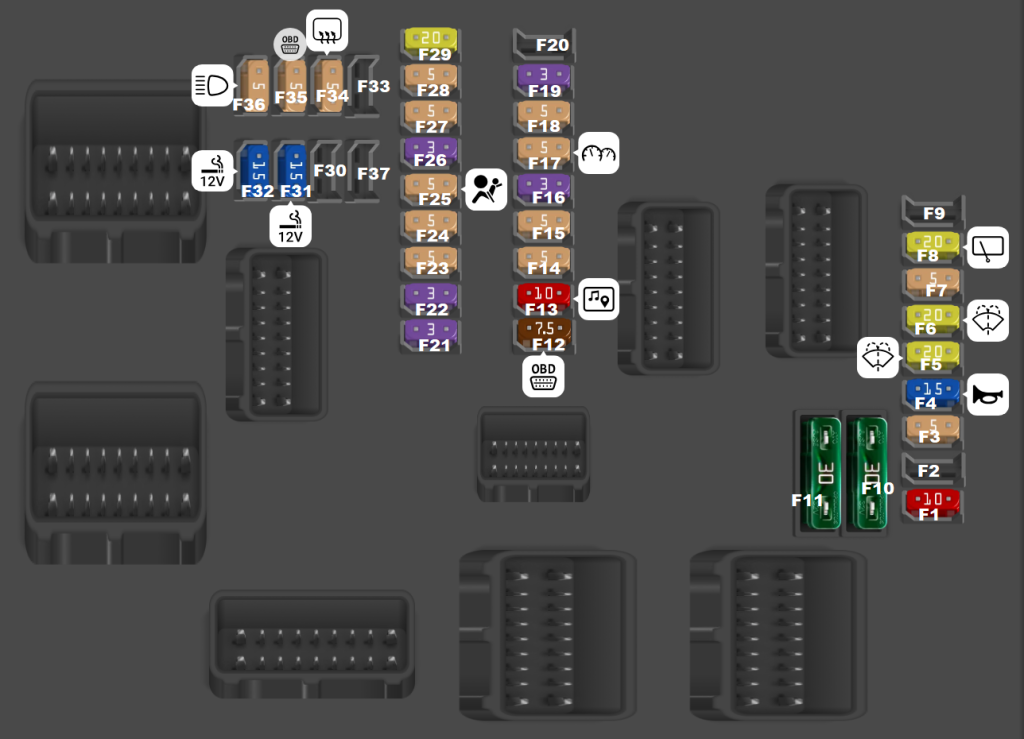

Lower fusebox
| Fuse N° | Rating (Amps) | Functions |
|---|---|---|
| F1 | 10A | Electrochromic interior mirror |
| F3 | 5A | Wireless phone charger |
| F4 | 15A | Horn |
| F5 | 20A | Windshield washer pump |
| F6 | 20A | Windshield washer pump |
| F7 | 5A | Rear USB ports |
| F8 | 20A | Rear windshield wiper |
| F10 | 30A | Lock/Unlock system |
| F11 | 30A | Lock/Unlock system |
| F12 | 7.5A | Stop-Start System / Diagnostic Connector Module / Brake System |
| F13 | 10A | Infotainment system / Climate control system |
| F14 | 5A | Emergency and assistance calls / Alarm |
| F15 | 5A | Climate control system |
| F16 | 3A | Stop-Start System / Brake system |
| F17 | 5A | Instrument panel |
| F18 | 5A | Parking assistant |
| F19 | 3A | Steering Column Electrical System / Steering Wheel Controls |
| F21 | 3A | Anti-theft alarm |
| F22 | 3A | Camera / Rain sensor / Automatic lighting control |
| F23 | 5A | Seat belt reminder |
| F24 | 5A | 7-inch touchscreen / Automatic Transmission / Advanced Parking Assist / Panoramic View System |
| F25 | 5A | Air bag system |
| F26 | 3A | Electronic Stability Control |
| F27 | 5A | Alarm (conditioned) |
| F28 | 5A | OnStar / BTA module |
| F29 | 20A | 10-inch touchscreen |
| F31 | 15A | Lighter / 12V accessory socket |
| F32 | 15A | Lighter / 12V accessory socket |
| F34 | 5A | Heated rear window / Heated windshield / Inductive charging |
| F35 | 5A | Light switch / Diagnostic connector module |
| F36 | 5A | Lighting system |

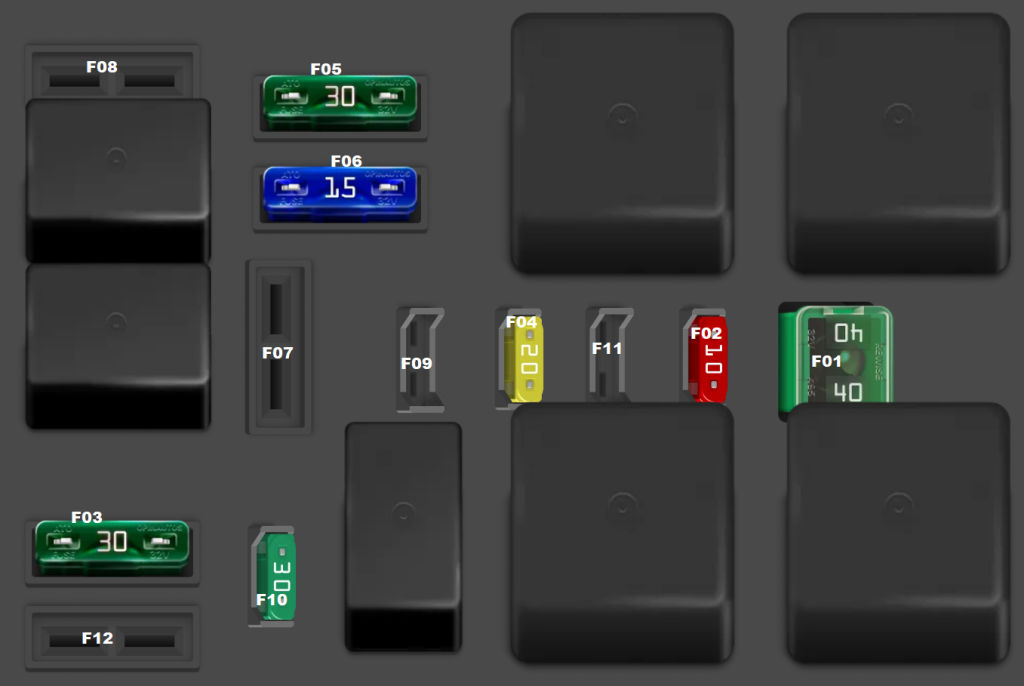

Upper fusebox
| Fuse N° | Rating (Amps) | Functions |
|---|---|---|
| F01 | 40A | Heated rear window |
| F02 | 10A | Exterior heated mirrors |
| F03 | 30A | Front sequential power windows |
| F04 | 20A | Adjustment of exterior mirrors / Folding of exterior mirrors |
| F05 | 30A | Rear sequential power windows |
| F06 | 15A | Sunroof |
| F10 | 30A | Front heated seats |

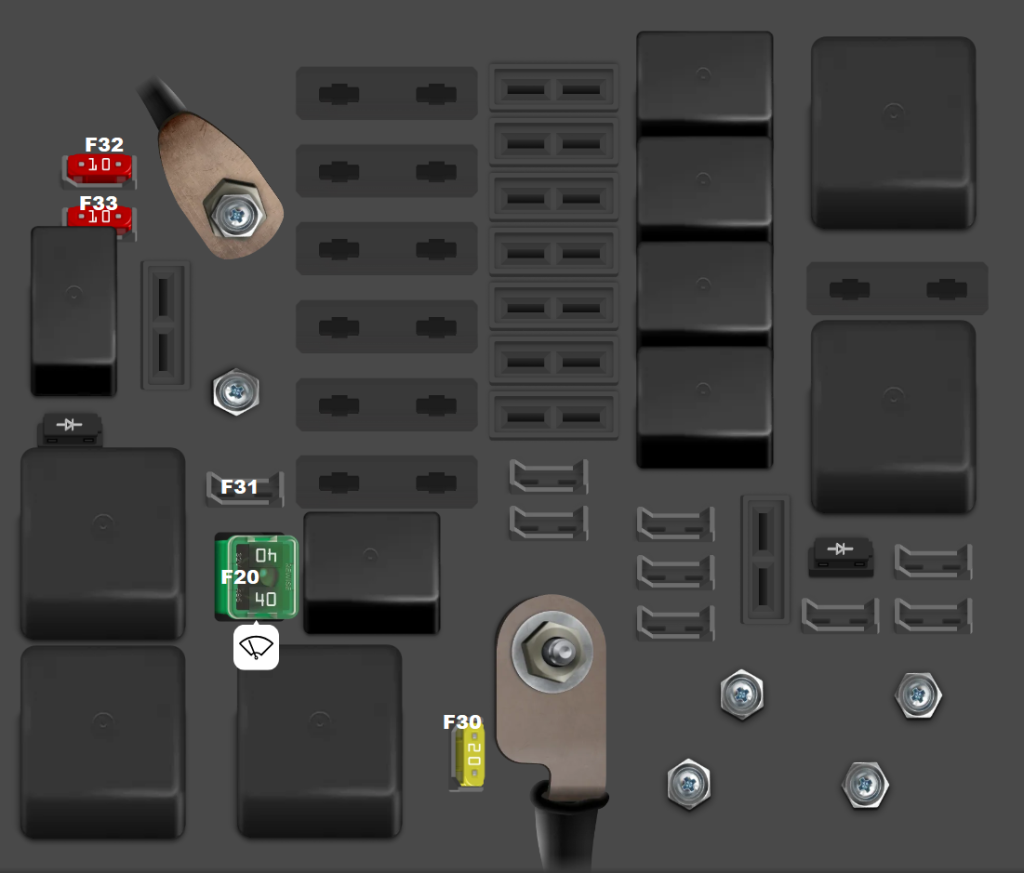

Engine Compartment Fuse Box
| Fuse N° | Rating (Amps) | Functions |
|---|---|---|
| F20 | 40A | Windshield wipers |
| F30 | 20A | Heated windshield |
| F32 | 10A | Left high beam with halogen headlights |
| F33 | 10A | Right high beam with halogen headlights |
