Peugeot 208 (2012 – 2018) Fuse Box Diagrams & Location
The Peugeot 208 (2012–2018) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 208.
Fuse Box Location
Passenger Compartment Fuse Box

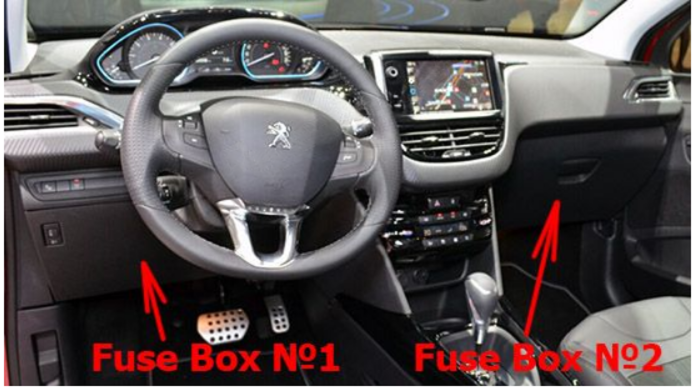

Left-hand drive vehicles

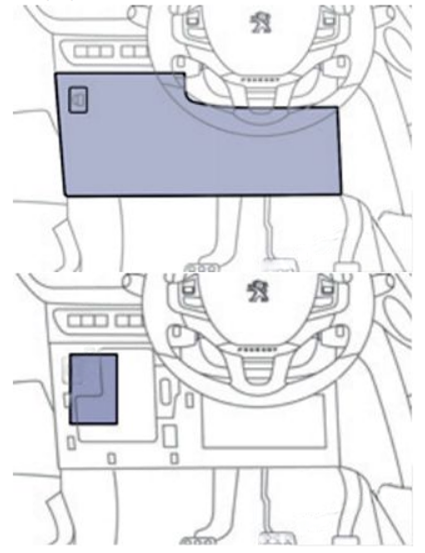

The fusebox 1 is located in the lower dashboard (left-hand side). Unclip the cover by pulling at the top right, then left, disengage the cover completely and turn it over.

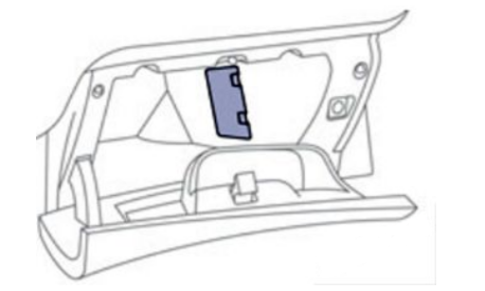

The fusebox 2 is located behind the glove box.

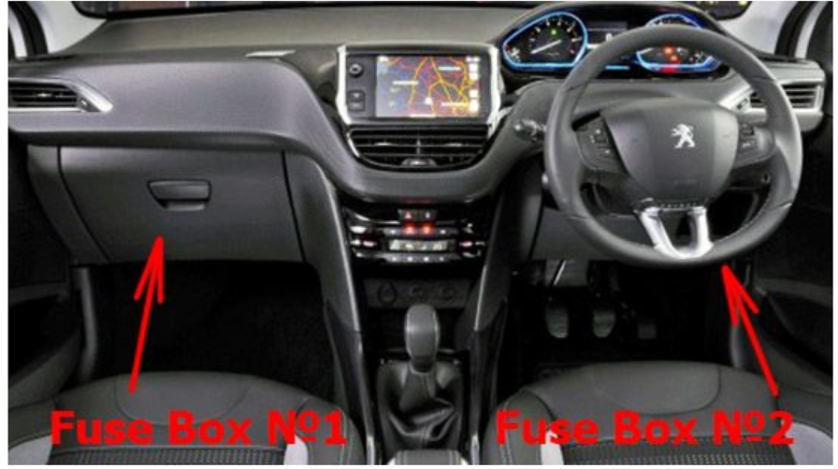

Right-hand drive vehicles

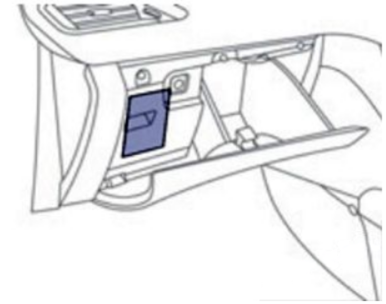

The fusebox 1 is located in the glove box. Open the glove box lid, unclip the fusebox cover by pulling at the top right, disengage the cover completely and turn it over.

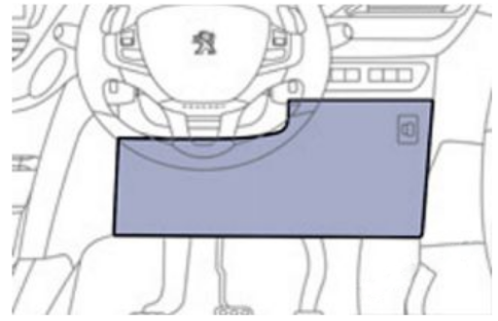

The fusebox 2 is placed in the lower dashboard (right-hand side). Unclip the cover by pulling at the top right, then left; disengage the cover completely and turn it over.

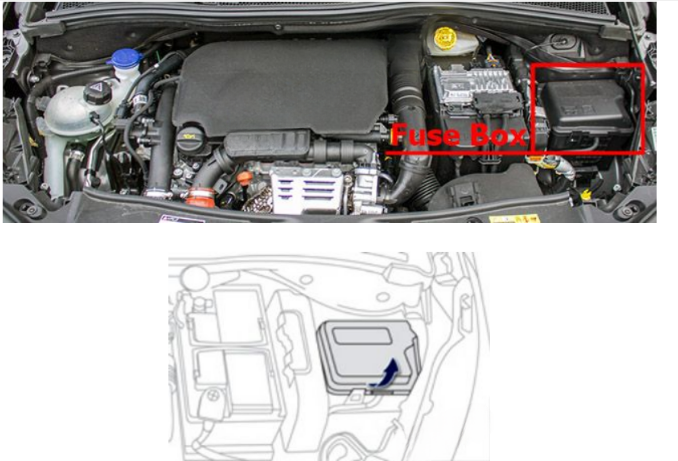

Engine Compartment Fuse Box
It is placed in the engine compartment near the battery (left-hand side).
Fuse Box Diagrams

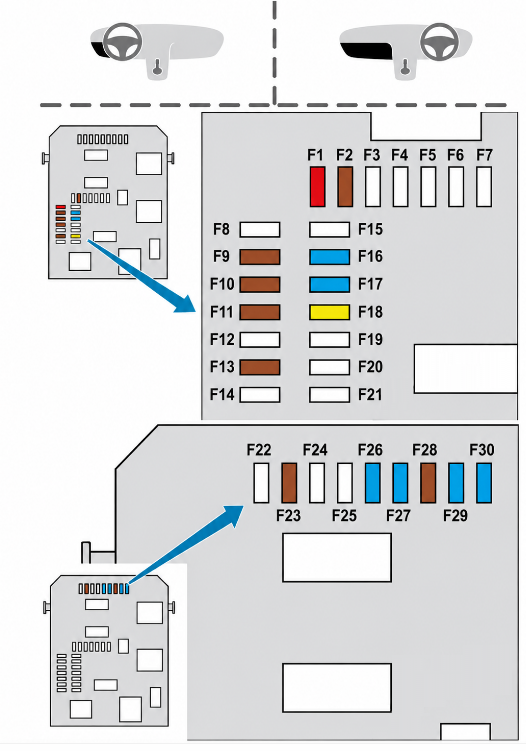

Passenger Compartment Fuse Box
Dashboard Fuses
| Fuse No. | Rating | Functions |
|---|---|---|
| F1 (GPL) | 10 A | Ignition positive (+) (2017 models) |
| F2 | 5 A | Door mirrors, headlamps, diagnostic socket |
| F9 | 5 A | Alarm system |
| F10 | 5 A | Independent telematic unit, trailer interface unit |
| F11 | 5 A | Electrochrome interior rear-view mirror, additional heating |
| F13 | 5 A | Hi-Fi amplifier, parking sensors |
| F16 | 15 A | Front 12 V power socket |
| F17 | 15 A | Audio system, accessory power supply |
| F18 | 20 A | Touch screen display |
| F23 | 5 A | Glove box lamp, courtesy mirror, map reading lamps (2012-2014).Vanity mirror, map reading lamps(2015-2018) |
| F26 | 15 A | Horn |
| F27 | 15 A | Screenwash pump |
| F28 | 5 A | Anti-theft system |
| F29 | 15 A | Air conditioning compressor |
| F30 | 15 A | Rear wiper |

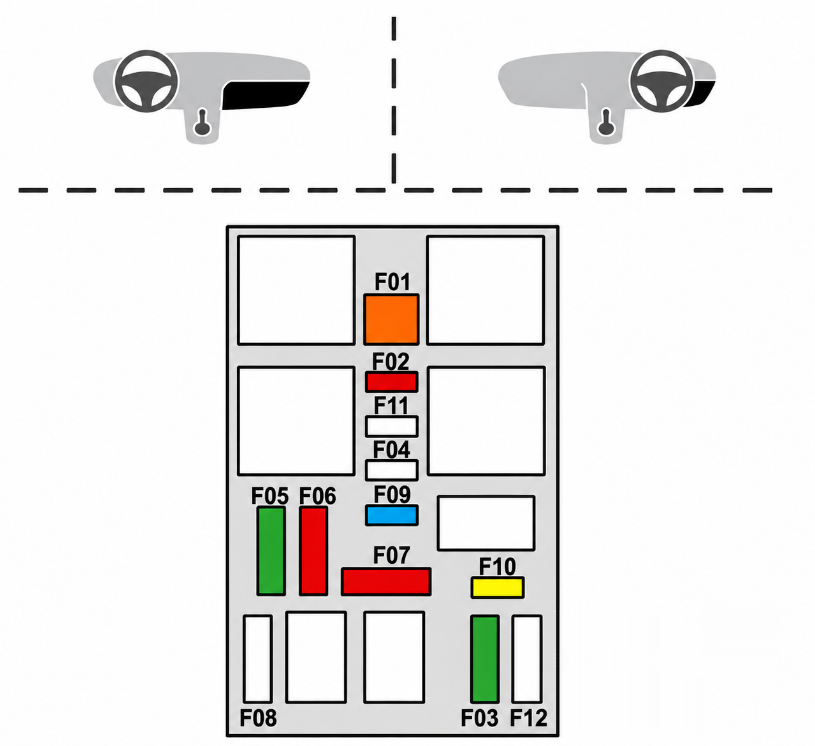

Behind The Glove Box
| Fuse No. | Rating | Functions |
|---|---|---|
| F01 | 40 A | Heated rear window |
| F02 | 10 A | Heated door mirrors |
| F03 | 30 A | Front one-touch windows |
| F04 | — | Not used |
| F05 | 30 A | Rear one-touch windows |
| F06 | 10 A | Folding door mirrors |
| F07 | 10 A | Folding door mirrors |
| F08 | — | Not used |
| F09 | 15 A | Front heated seats |
| F10 | 20 A | Hi-Fi amplifier |
| F11 | — | Not used |
| F12 | — | Not used |

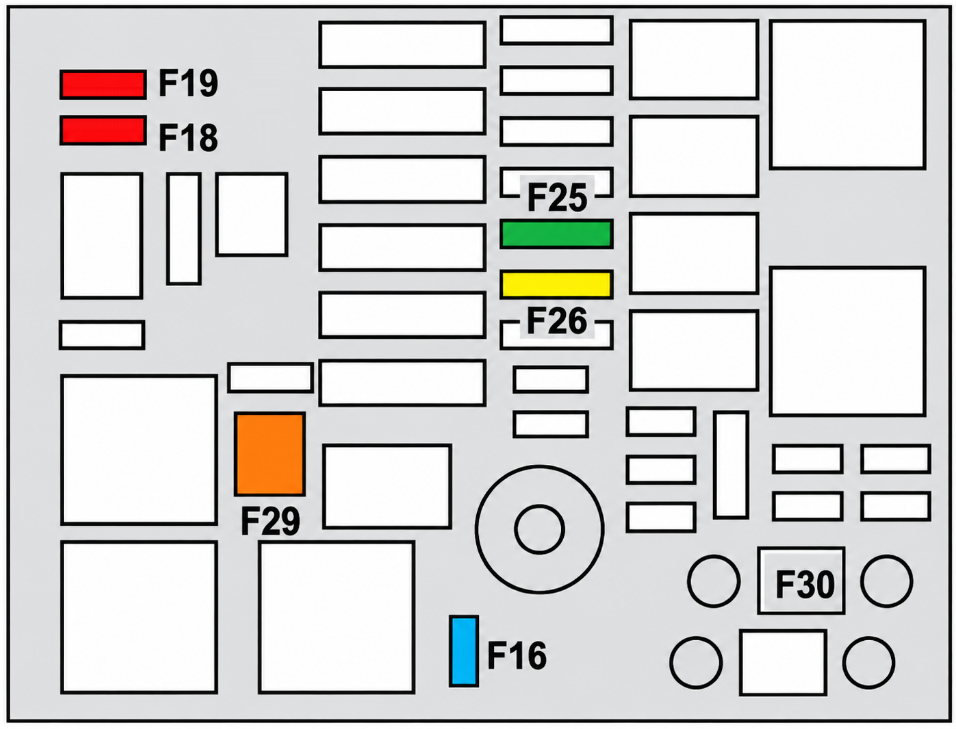

Engine Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F16 | 15 A | Front foglamps |
| F18 | 10 A | Right-hand main beam headlamp |
| F19 | 10 A | Left-hand main beam headlamp |
| F25 | 30 A | Headlamp wash relay (accessory) |
| F29 | 40 A | Front wiper motor |
| F30 | 80 A | Pre-heater plugs (Diesel)(2012-2014) |
| F26 (GPL) | 20 A | 2017: Battery + (positive) |
