Peugeot 206 (2000 – 2012) Fuse Box Diagrams & Location
The Peugeot 206 (2000–2012) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 206.
Fuse Box Location
Passenger Compartment Fuse Box

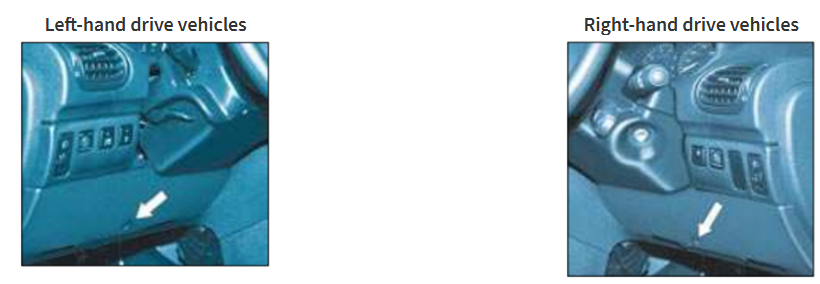

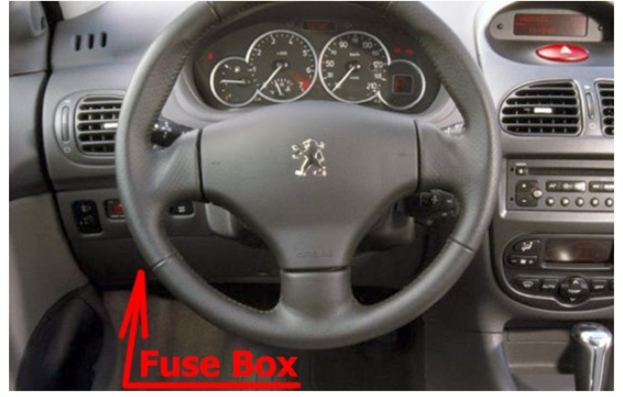

It is located below the dashboard (driver’s side) behind the panel.
Unscrew the catch a quarter turn using a coin then remove the cover to gain access to the fuses.
Engine Compartment Fuse Box

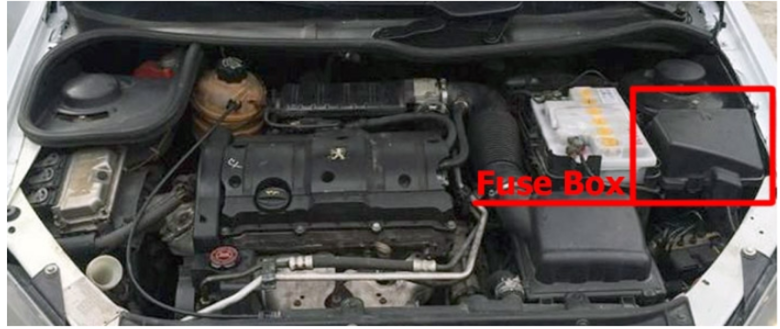

To gain access to the box in the engine compartment (next to the battery), unclip the cover.
Fuse Box Diagram

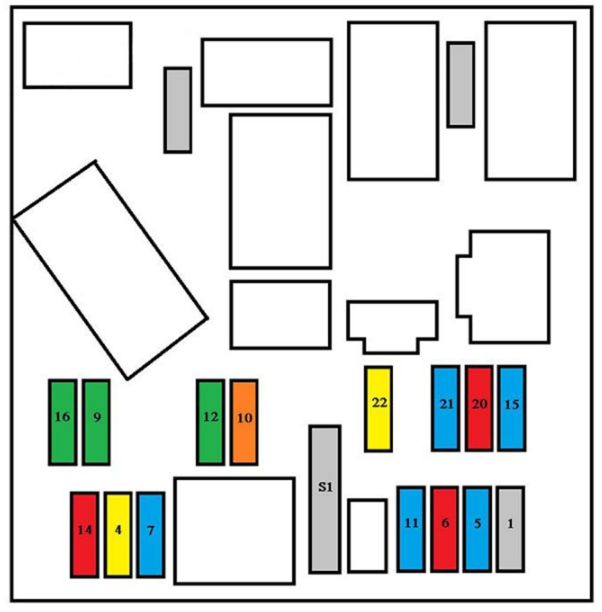

Passenger Compartment Fuse Box
| Type | No. | Description |
|---|---|---|
| Fuse MINI 15A / – | 1 | 2000–2005: Alarm system control module. 2006–2007: Heated seat – Alarm siren. 2008: Alarm siren. 2009–2012: Not used. |
| Fuse MINI 10A / 20A | 4 | 2000–2005: Audio unit. 2006–2012: Multifunction/dashboard display – Trunk/boot light – Car radio/audio equipment – Steering wheel controls – Trailer hitch. 2006 only: Navigation calculator. |
| Fuse MINI 10A / 15A / – | 5 | 2000–2005: Data link connector (DLC). 2006–2008: Automatic transmission/gearbox diagnosis. 2009–2012: Not used. |
| Fuse MINI 10A / 15A | 6 | 2000–2005: Engine coolant low warning lamp switch. 2006–2008: Coolant level – Automatic transmission – Car radio – Steering angle sensor (ESP). 2009–2012: Coolant level – Car radio. |
| Fuse MINI 15A | 7 | 2000–2005: Alarm system control module. 2006–2012: Driving school accessory – Aftermarket alarm/alarm. |
| Fuse ATO 30A / – | 9 | 2000–2005: Electric window relay. 2006–2008: Rear window regulator/rear electric windows. 2009–2012: Not used. |
| Fuse ATO 40A | 10 | 2000–2005: Electric/heated door mirrors. 2006–2008: Rear window/screen and mirror defogger/demisting. 2009–2012: Rear window defrost. |
| Fuse MINI 15A | 11 | 2000–2012: Rear wiper/rear windscreen wiper. |
| Fuse ATO 30A | 12 | 2000–2005: Electric window dual switch, driver’s door. 2006–2008: Front electric windows – Sunroof. 2009–2012: Power windows. |
| Fuse MINI 10A | 14 | 2000–2005: Alarm system boot lid/tailgate inhibitor switch. 2006–2012: Engine service/fuse box – Airbags – Steering wheel controls – Rain sensor. |
| Fuse MINI 15A | 15 | 2000–2005: A/C control module. 2006–2012: Dashboard/instrument panel – Multifunction display – Climate control/Air conditioning – Car radio/audio equipment. 2006 only: Navigation calculator. |
| Fuse ATO 30A | 16 | 2000–2005: Central locking. 2006–2007: Lock/unlock controls for openings. 2008: Locking/unlocking controls for doors, bonnet and boot – Deadlocking controls. 2009–2012: Sliding window lock/unlock controls. |
| Fuse MINI 10A | 20 | 2000–2005: Brake pedal position (BPP) switch. 2006–2012: Right stop/brake light. |
| Fuse MINI 15A | 21 | 2000–2005: Brake pedal position (BPP) switch. 2006–2012: Left stop/brake light – 3rd stop/brake light. |
| Fuse ATO 30A / 20A | 22 | 2000–2005: Auxiliary power socket – 30A. 2006–2012: Interior/courtesy/ceiling lighting – Map reader – Glove box light – Cigarette lighter/12 V accessory socket – 20A. 2006 only: Rear 12 V socket (206 SW). |
| Fuse ATO Shunt | S1 | 2006–2007: PARK shunt. 2008: PARC shunt. 2009–2012: PARQUE shunt. |

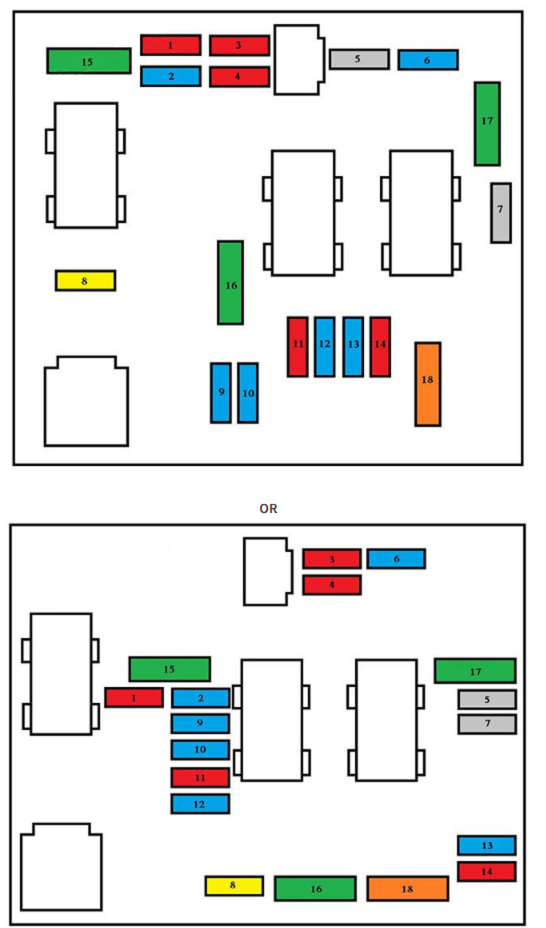

Engine Compartment Fuse Box
| Type | No. | Description |
|---|---|---|
| MINI 10A | 1 | 2000–2005: Engine coolant blower motor relay, fuel/water separator sensor, fuel filter warning lamp switch, glow plug control module, glow plug timer relay, MAF sensor, power steering pump, reverse gear position switch, secondary air injection AIR pump, vehicle speed sensor (VSS). 2006–2008: Preheating/glow plug box (Diesel), diesel water sensor, reverse light switch, speed sensor, airflow meter (Diesel). 2009–2012: Glow plug box (Diesel), diesel water sensor, reverse light switch, speed sensor, airflow meter (Diesel). |
| MINI 15A | 2 | 2000–2012: Canister solenoid valve, fuel pump. |
| MINI 10A | 3 | 2000–2005: ABS control module, brake pedal position (BPP) switch. 2006–2008: ABS/ESP control unit, ESP stop/brake switch. 2009–2012: ABS control unit. |
| MINI 10A | 4 | 2000–2005: ECM, engine coolant heater relay, TCM. 2006–2007: CCA control unit, engine control unit. 2008: Automatic gearbox control unit, engine control unit. 2009–2012: Engine control unit. |
| MINI 10A | 5 | 2000–2005: Engine control module (ECM). |
| MINI 15A | 6 | 2000–2005: Fog lamps. 2006–2008: Front fog lights/lamps. 2009–2012: Fog lights. |
| MINI 20A / – | 7 | 2000–2005: Headlamp washer pump. 2006: Headlight washer pump. 2007: Headlight washer pump. |
| MINI 20A | 8 | 2000–2005: Engine coolant blower motor relay 1/2, ECM, EGR solenoid, fuel pressure regulator control solenoid. 2006–2007: Fan motor/group relay, engine control unit, diesel injection pump, diesel high-pressure regulator, engine control solenoid valve. 2008–2012: Fan assembly/group relay, engine control unit, diesel injection pump, diesel high-pressure regulator, engine management solenoid valve. |
| MINI 15A | 9 | 2000–2012: Left low-beam/dipped-beam headlight. |
| MINI 15A | 10 | 2000–2012: Right low-beam/dipped-beam headlight. |
| MINI 10A | 11 | 2000–2012: Left high-beam/main-beam headlight. |
| MINI 15A / 10A | 12 | 2000–2008: Right high-beam/main-beam headlight — 15A. 2009–2012: Right high-beam/main-beam headlight — 10A. |
| MINI 15A | 13 | 2000–2012: Horn. |
| MINI 10A | 14 | 2000–2012: Windscreen/windshield and rear window washer pumps. |
| ATO 30A | 15 | 2000–2005: Engine management. 2006: Butterfly/throttle box heater, diesel injection pump, oxygen sensor, engine control unit, airflow meter, ignition coil, engine control solenoid valve, diesel heating, injectors, plus variable engine distribution and variable engine air-intake solenoid valves for 206 RC. 2007: Butterfly box heater, diesel injection pump, oxygen sensor, engine control unit, airflow meter, ignition coil, engine control solenoid valve, diesel heating, injectors. 2008: Throttle housing heater, diesel injection pump, oxygen sensor, engine control unit, airflow sensor, ignition coil, engine management solenoid valve, diesel heater, injectors. 2009–2012: Butterfly valve heater, diesel injection pump, oxygen sensor, engine computer, airflow meter, ignition coil, engine control solenoid valve, diesel heating, injectors. |
| ATO 30A | 16 | 2000–2005: Secondary air injection AIR pump. 2006–2012: Air pump relay. |
| ATO 30A | 17 | 2000–2005: Windscreen wiper motor. 2006–2012: High- and low-speed windscreen/windshield wipers. |
| ATO 40A | 18 | 2000–2005: AC/heater blower control module, AC/heater function control panel, heater/AC blower motor, in-car temperature sensor. 2006–2007: Climate-control fan. 2008: Air-conditioning fan. 2009–2012: Climate-control fan. |
| MAXI 20A | M1 | Fan group |
| MAXI 60A | M2 | ABS/ESP |
| MAXI 30A | M3 | ABS/ESP |
| MAXI 70A | M4 | Intelligent service box power supply |
| MAXI 70A | M5 | Intelligent service box power supply |
| MAXI – | M6 | Not used |
| MAXI 30A | M7 | Anti-theft contact power supply |
| MAXI 20A | M8 | Audio amplifier |
* The maxi fuses provide additional protection for the electrical systems. Any work on these must be carried out by a PEUGEOT dealer
