Peugeot 301 (2012 – 2020) Fuse Box Diagrams & Location
The Peugeot 301 (2012–2020) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 301.
Fuse Box Location

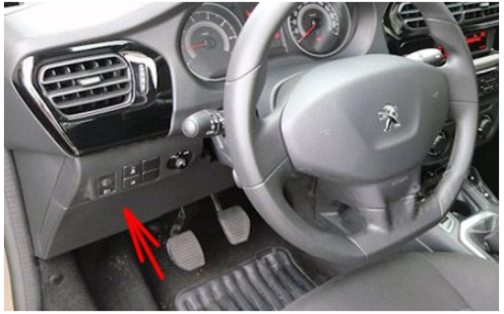

Passenger Compartment Fuse Box
The fuse box is located in the lower dashboard (left-hand side).

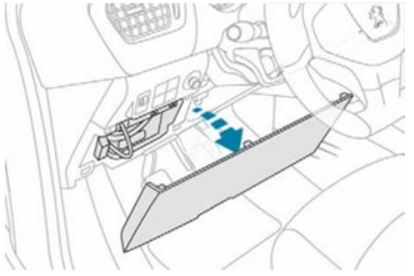

Unclip the cover by pulling at the top right, then left; disengage the cover completely and turn it over.

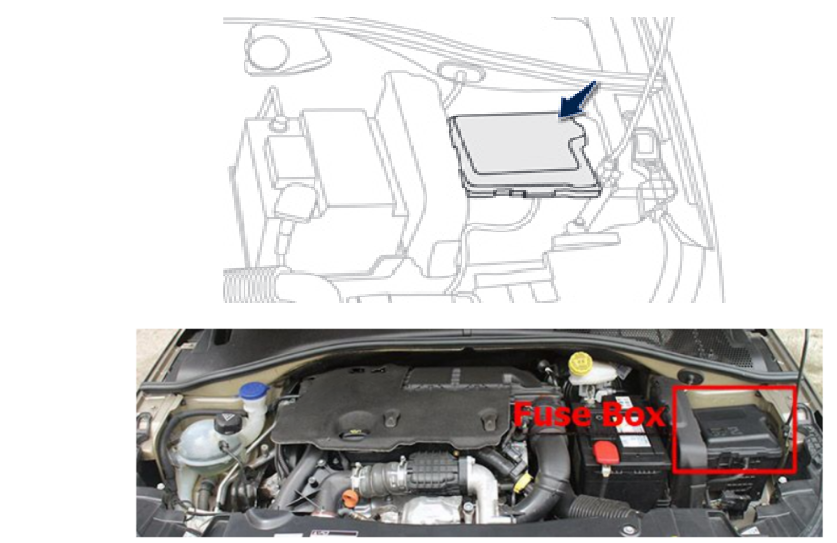

Engine Compartment Fuse Box
The fuse box is placed in the engine compartment near the battery (left-hand side).
Fuse Box Diagrams

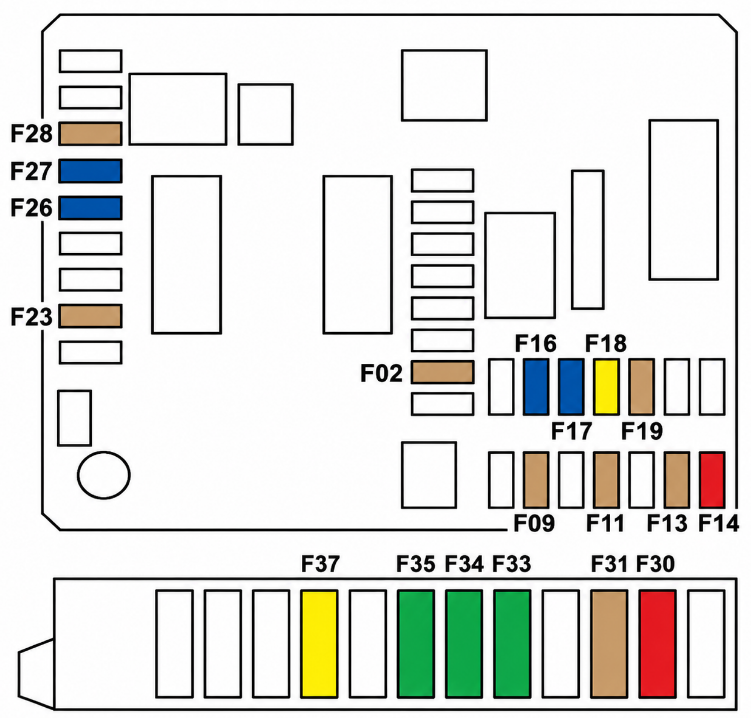

Passenger Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F02 | 5 A | Headlamp height adjuster, diagnostic socket, air conditioning panel |
| F09 | 5 A | Alarm, alarm (after-market) |
| F11 | 5 A | Additional heating |
| F13 | 5 A | Parking sensors, parking sensors (after-market) |
| F14 | 10 A | Air conditioning panel |
| F16 | 15 A | Cigarette lighter, 12 V socket |
| F17 | 15 A | Audio system, audio system (after-market) |
| F18 | 20 A | Audio system/Bluetooth, audio system (after-market) |
| F19 | 5 A | Monochrome screen C |
| F23 | 5 A | Courtesy lamps, map reading lamps |
| F26 | 15 A | Horn |
| F27 | 15 A | Screenwash pump |
| F28 | 5 A | Anti-theft system |
| F29 | — | Not used |
| F30 | 10 A | Heated door mirrors |
| F31 | 25 A | Heated rear screen |
| F32 | — | Not used |
| F33 | 30 A | Front electric windows |
| F34 | 30 A | Rear electric windows |
| F35 | 30 A | Heated front seats |
| F36 | — | Not used |
| F37 | 20 A | Trailer interface box |

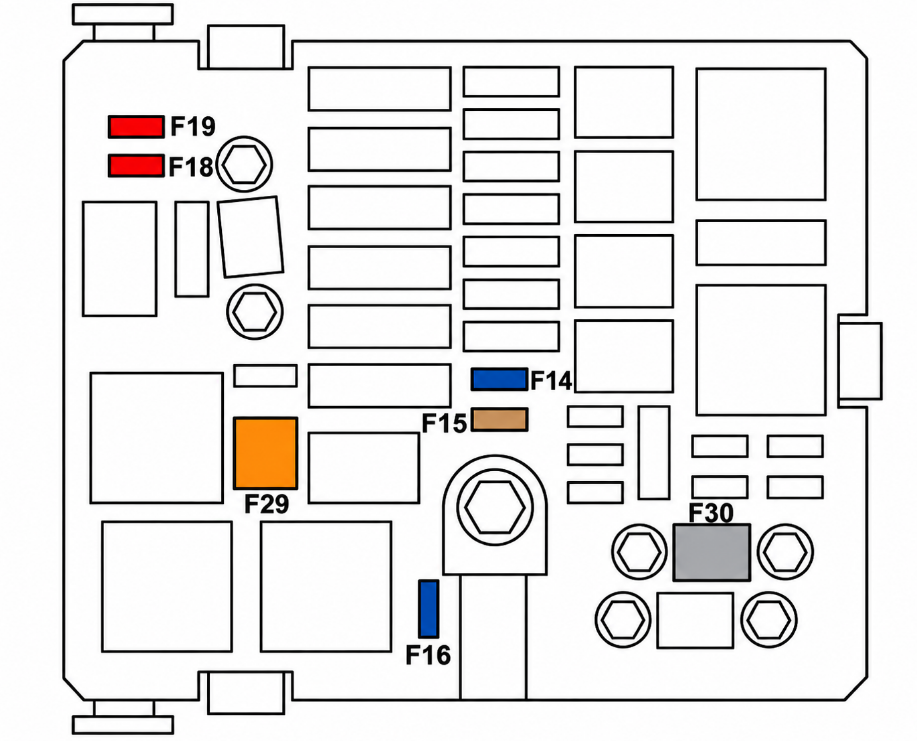

Engine Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F14 | 15 A | Heated lower windscreen |
| F15 | 5 A | Air conditioning compressor |
| F16 | 15 A | Front foglamps |
| F18 | 10 A | Right-hand main beam headlamp |
| F19 | 10 A | Left-hand main beam headlamp |
| F29 | 40 A | Front wiper motor |
| F30 | 80 A | Pre-heater plugs (Diesel) |
