Peugeot 308 (2007 – 2012) Fuse Box Diagrams & Location
The Peugeot 308 fuse box protects the vehicle’s electrical systems and components from electrical faults. This blog covers the fuse box locations and diagrams for Peugeot 308 models from 2007 to 2012, helping you find fuse positions, ratings, and protected circuits quickly and easily.
Fuse Box Location
Passenger Compartment Fuse Box

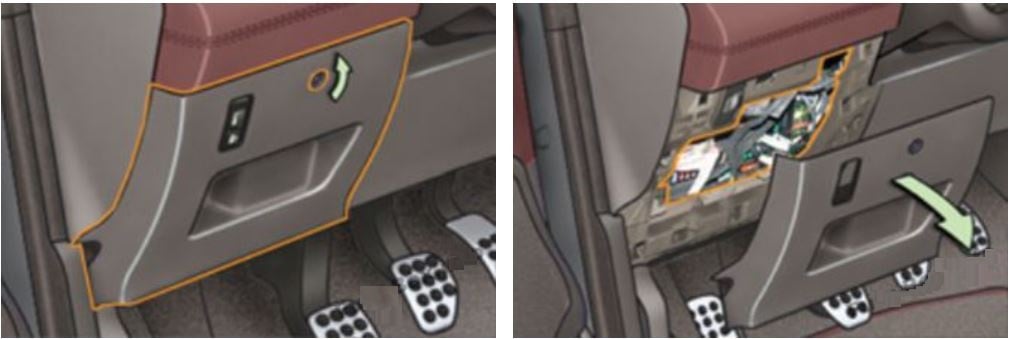

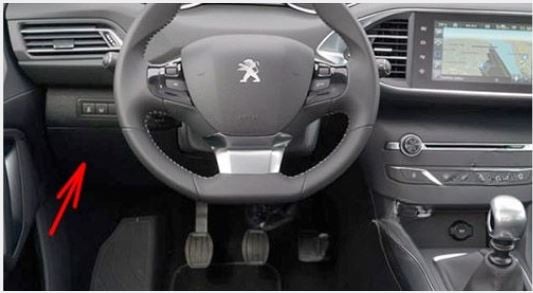

Left-hand drive vehicles: the fuse box is located in the lower dashboard (left-hand side).
Turn the screw a quarter of a turn to the left, unclip the cover by pulling the top right, disengage and pull away the cover, remove the carrier on the back of which the tweezer is fitted.

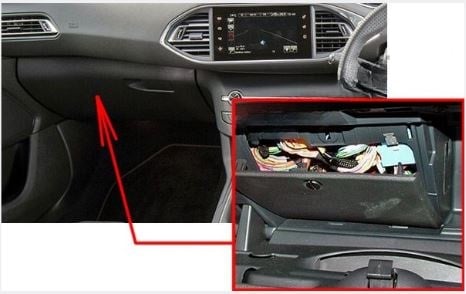

Right-hand drive vehicles: it is located in the lower left of the dashboard.

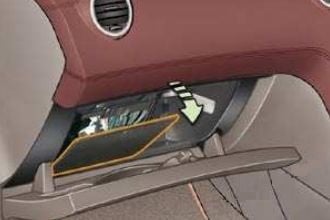

Open the glove box lid, push the opening guide to the left past the first notch, open the glove box lid fully, turn the screw a quarter of a turn to the left, unclip the fuse box cover by pulling the top right, disengage the fuse box cover completely and turn it over, extract the support, on the back of which the tweezer and the replacement fuses.
Engine Compartment Fuse Box

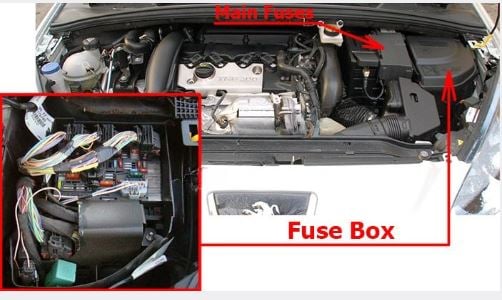

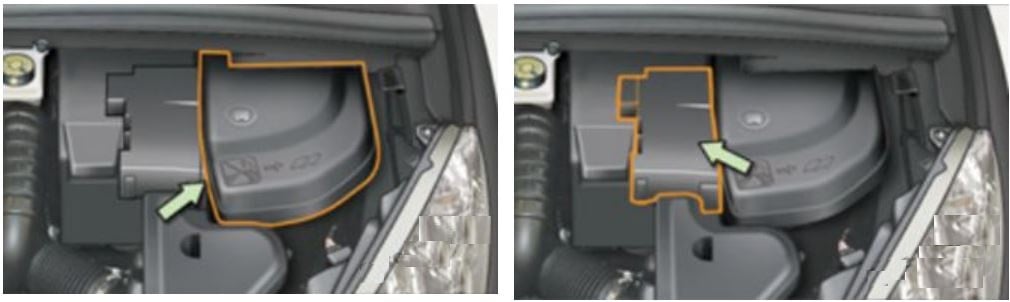

It is placed in the engine compartment near the battery (left-hand side).
Fuse Box Diagrams
Passenger Compartment Fuse Box

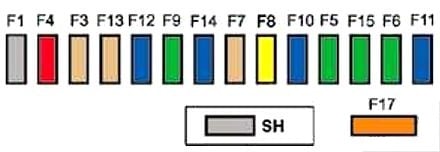

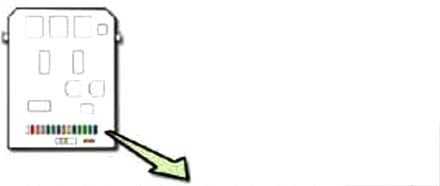

Peugeot 308 (2007 -2009)
| N° | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper.
2008-2009: Not used. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Clutch pedal and dual-function brake switches, electrochromatic interior mirror, air conditioning, steering wheel angle sensor, automatic gearbox, switching and protection unit. |
| F5 | 30 A | Front one-touch electric windows, folding mirrors supply, glass panoramic roof shutter.
2008-2009: Front one-touch electric windows, folding mirrors supply. |
| F6 | 30 A | Rear one-touch electric windows. 2008-2009: Rear one-touch electric windows, exterior door opening controls. |
| F7 | 5 A | Front and rear courtesy lights, map reading lights, rear reading lights, sun visor lighting, glove box lighting.
2008-2009: Front and rear courtesy lights, map reading lights, sun visor lighting, glove box lighting. |
| F8 | 20 A | Audio equipment, audio/telephone, CD changer, multifunction display, tyre under-inflation detection.
2008-2009: Audio equipment, audio/telephone, CD changer, multifunction display, tyre under-infl ation detection, interior storage compartments. |
| F9 | 30 A | Front 12 V socket, lighter. |
| F10 | 15 A | Steering wheel controls, alarm siren, alarm control unit. |
| F11 | 15 A | Low-current ignition switch. |
| F12 | 15 A | Instrument panel, seat belt and passenger’s front airbag warning lights display, air conditioning, driver’s seat memory unit, driving school module. 2008-2009: Instrument panel, seat belt and passenger’s front airbag warning lights display, air conditioning, driver’s seat memory unit, retractable roof unit. |
| F13 | 5 A | Engine fuse box, air bags, piloted manual gearbox gear lever.
2008-2009: Engine fuse box, airbags. |
| F14 | 15 A | Multifunction display, amplifier, hands-free kit, rain/ brightness sensor, parking assistance control unit, trailer fuse box, lane departure warning system.
2008-2009: Multifunction display, amplifier, hands-free kit, rain/ brightness sensor, parking assistance control unit, passenger’s seat memory unit. |
| F15 | 30 A | Locking and deadlocking. |
| F17 | 40 A | Rear screen and exterior mirrors de-icing. |
| SH | – | PARC shunt. |

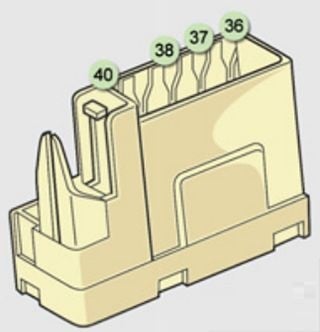

| G36 | – 30A |
Not used.
2008-2009: Driver and passenger heated seats. |
| G37 | 5 A | Trailer fuse box. |
| G38 | 30 A | Driver’s seat memory unit. |
| G39 | 30 A | Trailer fuse box supply.
2008-2009: Not used. |
| G40 | 30 A | Hi-Fi amplifier. 2008-2009: Hi-Fi amplifier, passenger’s seat memory unit. |

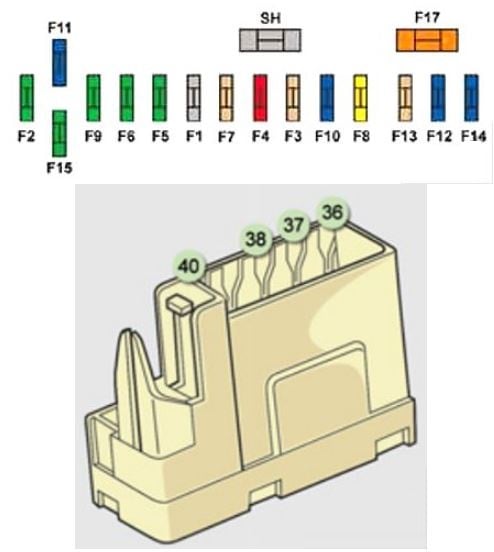

Peugeot 308 (2010 -2012)
| N° | Rating | Functions |
|---|---|---|
| F1 | – | Not used. |
| F2 | 30 A | Locking and deadlocking earth. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Clutch pedal and dual-function brake switches, electrochromatic rear-view mirror, air conditioning, steering wheel angle sensor, automatic gearbox, switching and protection unit. |
| F5 | 30 A | Front one-touch electric windows, folding mirrors supply. |
| F6 | 30 A | Rear one-touch electric windows, exterior door opening controls. |
| F7 | 5 A | Front and rear courtesy lamps, map reading lamps, sun visor lighting, glove box lighting. |
| F8 | 20 A | Audio equipment, audio/telephone, multifunction screen, tyre under-inflation detection, interior storage compartments. |
| F9 | 30 A | Front 12V socket, cigar lighter. |
| F10 | 15 A | Steering-mounted controls, alarm siren, alarm control unit. |
| F11 | 15 A | Low current ignition switch. |
| F12 | 15 A | Instrument panel, seat belt and passenger’s front airbag warning lamps display, air conditioning, driver’s seat memory unit, retractable roof unit. |
| F13 | 5 A | Engine fuse box, airbags. |
| F14 | 15 A | Multifunction screen, amplifier, hands-free kit, rain/sunshine sensor, parking sensors control unit, passenger’s seat memory unit. |
| F15 | 30 A | Locking and deadlocking. |
| F17 | 40 A | Rear screen and door mirrors demist/defrost. |
| SH | – | PARC shunt. |
| G36 | 30 A | Driver and passenger heated seats. |
| G37 | 5 A | Trailer fuse box. |
| G38 | 30 A | Driver’s seat memory unit. |
| G39 | – | Not used. |
| G40 | 30 A | Hi-Fi amplifier, passenger’s seat memory unit. |
Engine Compartment Fuse Box

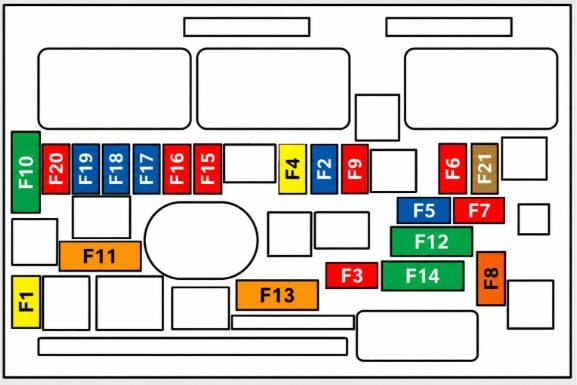

Main Fuse Box
| N° | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, injection pump and EGR solenoid valves (2 I HDI 16V), injectors (2 I HDI 16V).
2010-2011: Engine control unit supply, injection pump and EGR electrovalves (2 litre HDI), injectors (2 litre HDI). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe.
2008,2010-2012: Front wash-wipe. |
| F4 | 20 A | Headlamp wash. |
| F5 | 15 A | Fuel pump (petrol), purge canister, turbine discharge and Turbo pressure regulation solenoid valves (1.6 I THP 16V), oil vapour heater (1.6 I THP 16V), diesel heater (1.6 I HDI 16V). 2008: Purge canister, turbine discharge and Turbo pressure regulation solenoid valves (1.6 I THP 16V), oil vapour heater (1.6 I THP 16V). 2009: Purge canister, turbine discharge and Turbo pressure regulation solenoid valves (1.61 THP 16V), oil vapour heater (1.6 I THP 16V), diesel heater (1.6 I HDI 16V). 2010-2011: Purge canister, turbine discharge and Turbo pressure regulation electrovalves (1.6 I THP 16V), oil vapour heater (1.6 litre THP 16V), Diesel heater (1.6 litre HDI). |
| F6 | 10 A | Vehicle speed sensor, ABS/ESP control unit. |
| F7 | 10 A | Power steering control unit, automatic gearbox, engine coolant level detector. |
| F8 | 25 A | Starter control. 2010-2011: Starter motor control. |
| F9 | 10 A | Diagnostic socket, directional headlamps, air flow sensor (Diesel), particle emission filter pump (Diesel).
2008: Diagnostic socket, directional headlamps, air flow sensor (Diesel), particle emission filter pump (Diesel), exterior mirror controls. 2010-2011: Diagnostic socket, directional headlamps, air flow sensor (Diesel), particle emission filter pump (Diesel), door mirror controls. |
| F10 | 30 A | Engine control unit actuators (petrol: ignition coils, solenoid valves, oxygen sensors, injectors, heaters, fuel pump, controlled thermostat) (Diesel: solenoid valves, heaters). 2010-2011: Engine control unit actuators (petrol: ignition coils, electrovalves, oxygen sensors, injectors, heaters, fuel pump, electronic thermostat) (Diesel: electrovalves, heaters). |
| F11 | 40 A | Air conditioning blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Air pump.
2008,2010-2011: Not used. |
| F15 | 10 A | Right-hand main beam headlamp. |
| F16 | 10 A | Left-hand main beam headlamp. |
| F17 | 15 A | Left-hand dipped headlamp. |
| F18 | 15 A | Right-hand dipped headlamp. |
| F19 | 15 A | Oil vapour heater (1.4 I 16V and 1.6 I VTi 16V), purge canister solenoid valve (1.4 I 16V and 1.6 I VTi 16V), oxygen sensors (petrol), air cooling solenoid valves (Diesel).
2008: Oxygen sensors (petrol), air cooling solenoid valves (Diesel). 2009: Oil vapour heater (1.6 I VTi 16V), purge canister solenoid valve (1.6 I VTi 16V), oxygen sensors (petrol), air cooling solenoid valves (Diesel). 2010-2011: Oil vapour heater (1.6 litre VTi 16V), purge canister electrovalve (1.6 litre VTi 16V), oxygen sensors (petrol), air cooling electrovalves (Diesel). |
| F20 | 10 A | Controlled thermostat, variable timing solenoid valves, Turbo pressure regulation solenoid valve (Diesel), engine coolant level detector (Diesel). |
| F21 | 5 A | Fan assembly relay supply, Valvetronic relay control (1.4 I 16V and 1.6 I VTi 16V), Turbo cooling (1.6 ITHP 16V), airflow sensor (1.6 I HDI 16V).
2008: Fan assembly relay supply, Turbo cooling (1.6 l THP 16V). 2009: Fan assembly relay supply, Valvetronic relay control (1.6 I VTi 16V), Turbo cooling (1.6 I THP 16V), air flow sensor (1.6 I HDI 16V). 2010-2011: Fan assembly relay supply, Valvetronic relay control (1.6 litre VTi 16v), Turbo cooling (1.6 litre THP 16V), air flow sensor (1.6 litre HDI). |

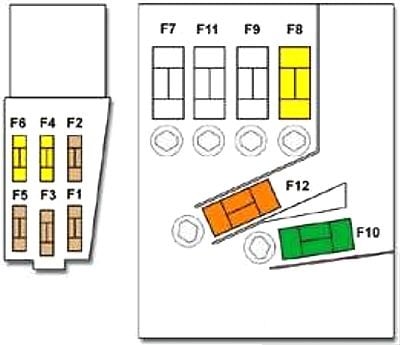

Battery Fuses

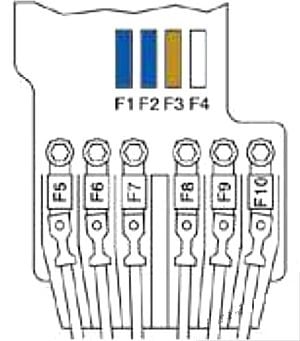

Peugeot 308 (2007 -2009)
| Fuse N° | Rating | Functions |
|---|---|---|
| F1 | 15 A | Gearbox (piloted manual or automatic).
2008-2009: Automatic gearbox. |
| F2 | 15 A | Diagnostic socket, daytime lights. |
| F3 | 5 A | Dual-function brake switch. |
| F4 | – | Not used. |
| F5* | 80 A | Power steering electropump assembly. |
| F6* | 70 A | Heating unit (Diesel). |
| F7* | 100 A | Switching and protection unit. |
| F8 | – 50A |
Not used.
2008: Driver and passenger neck heater. 2009: Driver and passenger “AIRWAVE” systems. |
| F9* | 30 A | Piloted manual gearbox electropump assembly. 2008-2009: Not used. |
| F10* | 30 A | Valvetronic electric motor (1.6 I THP 16V). |
| MF1* | 50 A | Fan assembly.
2008-2009: Retractable roof electropump assembly and unit. |
| MF2* | 50 A | Passenger compartment fuse box. |
| MF3* | 80 A/50A | Built-in systems interface.
2008-2009: Fan assembly. |
| MF4* | – 80A |
Not used.
2008-2009: Built-in systems interface. |
| MF5* | 50 A/80A | ABS/ESP control unit.
2008-2009: Built-in systems interface. |
| MF6* | 30 A/40A | ABS/ESP control unit. |
| MF7* | 80 A/30A | Built-in systems interface. 2008-2009: ABS/ESP solenoid valves. |
| MF8* | – | Not used. |
| * The maxi-fuses provide additional protection for the electrical systems. A PEUGEOT dealer must carry out all work on the maxi-fuses. |
Peugeot 308 (2010)
| N° | Rating | Functions |
|---|---|---|
| F1 | – | Not used. |
| F2 | 5 A | Dual-function brake switch. |
| F3 | 5 A | Battery charge unit. |
| F4 | 25 A | ABS/ESP electrovalves. |
| F5 | – | Not used. |
| F6 | 15 A | Automatic gearbox. |
| F7* | 80 A | Power steering electropump assembly. |
| F8* | 60 A | Fan assembly. |
| F9* | 70 A/30 A | Pre-heat unit (DieselVValvetronic electric motor (1.6 litre THP 16V). |
| F10* | 40 A | ABS/ESP electropump assembly. |
| F11* | 100 A | Switching and protection unit. |
| F12* | – | Not used. |
| MF1* | – | Not used. |
| MF2* | 30 A | Trailer fuse box. |
| MF3* | 50 A | Passenger compartment fuse box. |
| MF4* | 80 A | Built-in systems interface. |
| MF5* | 80 A | Built-in systems interface. |
| MF6* | – | Not used. |
| MF7* | 30 A | Heated seats. |
| MF8* | 20 A | Headlamp wash. |
| * The midi-fuses and maxi-fuses provide additional protection for the electrical systems. A PEUGEOT dealer must carry out all work on these types of fuses. |

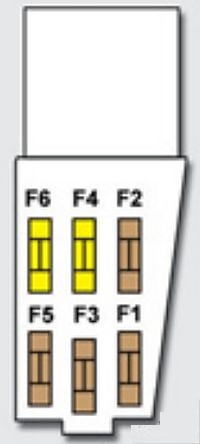

Peugeot 308 (2011 & 2012)
| N° | Rating | Functions |
|---|---|---|
| F1 | – | Not used. |
| F2 | 5 A | Dual-function brake switch. |
| F3 | 5 A | Battery charge unit. |
| F4 | 25 A | ABS/ESP solenoid valves. |
| F5 | – | Not used. |
| F6 | 15 A | Automatic gearbox.
2012: Gearbox (electronic gear control or automatic) |
