Peugeot 307 (2001 – 2005) Fuse Box Diagrams & Location
The Peugeot 307 (2001–2005) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 307.
Fuse Box Location
Passenger Compartment Fuse Box

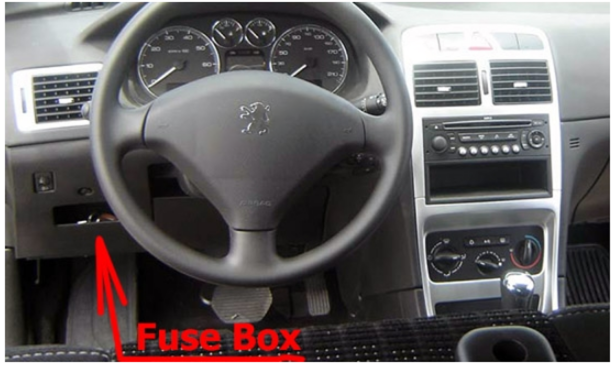

Left-hand drive vehicles: the fuse box is located in the lower dashboard (left-hand side).

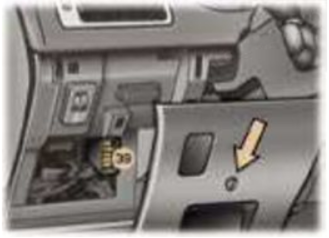

Unscrew the screw a quarter of a turn with a coin, then pull the handle to open the cover and access the fuses.

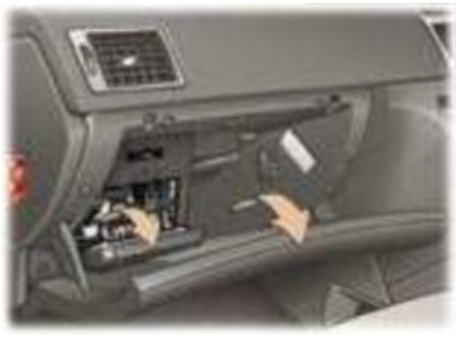

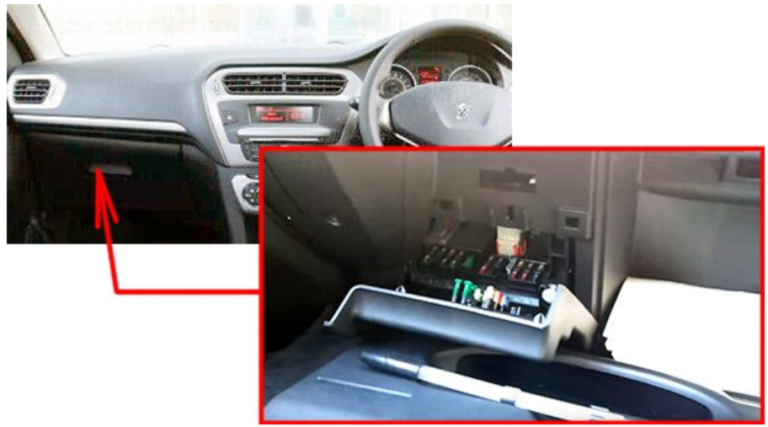

Right-hand drive vehicles: it is located in the glovebox (passenger side).
Open the glove box lid to gain access.

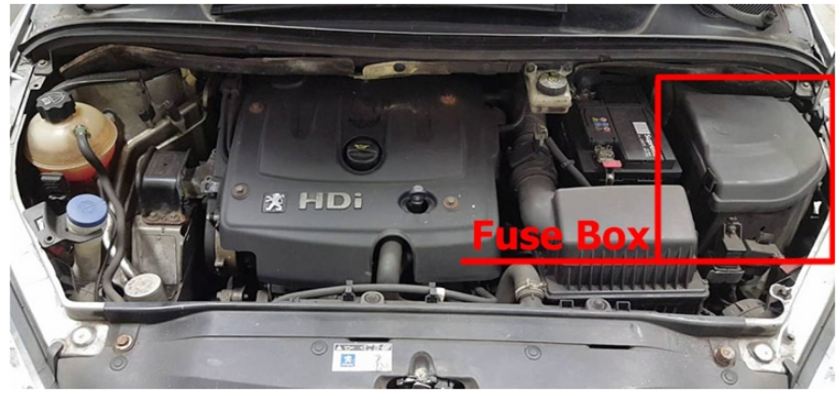

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

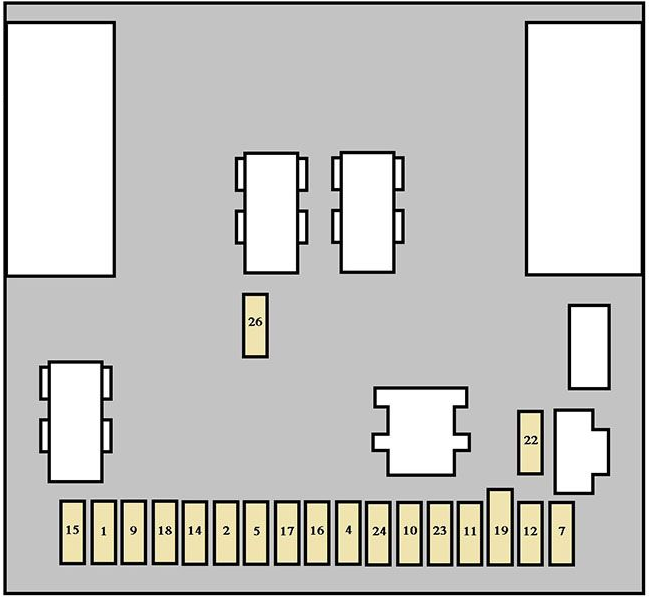

Peugeot 307 (2002)
| № | Rating | Functions |
|---|---|---|
| 1 | 10 A | Rear fog lamp. |
| 2 | 15 A | Rear screen wiper. |
| 4 | 15 A | Front electric window/sunroof. |
| 5 | 15 A | Rear brake light including trailer. |
| 7 | 20 A | Rear courtesy light, front courtesy light, map readers -Lighter – Glove box lighting. |
| 9 | 30 A | Electric windows – Press operation windows (incompatible with non-press operation windows) — Sunroof. |
| 10 | 15 A | Diagnostic socket – 12 volt rear socket. |
| 11 | 15 A | Audio equipment – Multi-function display B – Steering wheel controls – Automatic gearbox. |
| 12 | 10 A | Front right side lights, rear right side lights, number plate and trailer lighting -Central locking switches/ alarm/ESP/hazard warning lights – Air conditioning/ash tray light – Heated seats switches – Lighter – Automatic gearbox switches -Headlamp beam corrector. |
| 14 | 30 A | Door opening/closing controls – Deadlocking controls. |
| 15 | 30 A | Rear windows. |
| 16 | 5 A | Engine fuse box – Alarm – Particulate emission filter – Steering wheel controls – Air bags. |
| 17 | 10 A | Rear right brake light, additional brake light. |
| 18 | 10 A | Diagnosic socket – Steering wheel controls – Brake pedal (stop) and clutch switches -Coolant level switch – Second brake switch. |
| 19 | 30 A | PARC shunt. |
| 22 | 10 A | Front left side light, rear left side light – Number plate and trailer lighting. |
| 23 | 15 A | Alarm siren – Interior alarm control unit. |
| 24 | 15 A | Instrument panel – Audio equipment – Multi-function display – Air conditioning. |
| 26 | 30 A | Heated rear screen. |

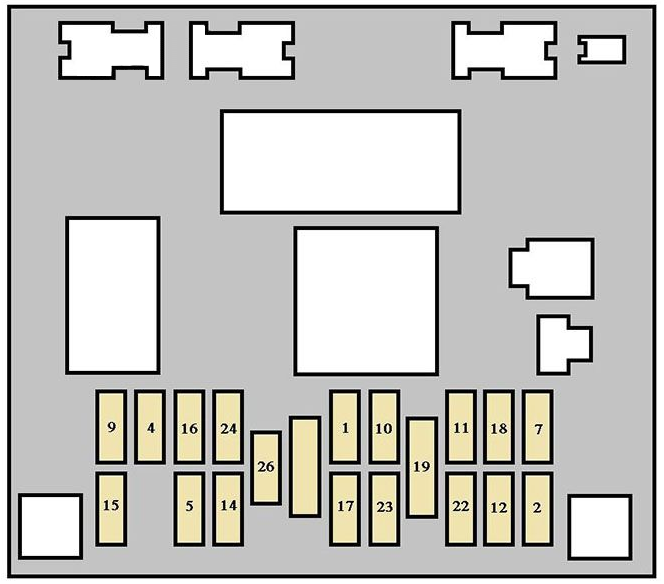

Peugeot 307 (2003 & 2004)
| Fuse No. | Rating | Function |
|---|---|---|
| 1 | 10 A | Rear fog lamp |
| 2 | 15 A | Rear screen wiper |
| 4 | 15 A | Front electric window and sunroof |
| 5 | 15 A | Left brake light including trailer |
| 7 | 30 A(2003)/20 A(2004) | Rear courtesy light, front courtesy light, map readers, 12 V front socket, glove box lighting |
| 9 | 30 A | Front electric windows, automatic electric windows, sunroof |
| 10 | 15 A | Diagnostic socket, 12 V rear socket, trailer |
| 11 | 20 A | Audio equipment, multifunction display, steering wheel controls, automatic gearbox |
| 12 | 10 A | Front right and rear right side lights, number plate and trailer lighting, central locking/alarm, hazard warning lights, ESP switch lighting, air conditioning and ashtray light, automatic gearbox switch lighting, lighter |
| 14 | 30 A | Door opening/closing controls and deadlocking controls |
| 15 | 30 A | Electric rear windows with press operation |
| 16 | 10 A | Engine fuse box, alarm, particulate emission filter, steering wheel controls, airbags |
| 17 | 10 A | Rear right brake light and third brake light |
| 18 | 10 A | Diagnostic socket, steering wheel controls, electrochromatic interior mirror, brake pedal and clutch switches, coolant level switch, second brake switch |
| 19 | 30 A | PARC shunt |
| 22 | 10 A | Front left and rear left side lights, number plate and trailer lighting |
| 23 | 15 A | Alarm siren and interior alarm control unit |
| 24 | 15 A | Instrument panel, audio equipment, multifunction display, air conditioning, rear parking assistance, rain/brightness sensor |
| 26 | 30 A | Heated rear screen |

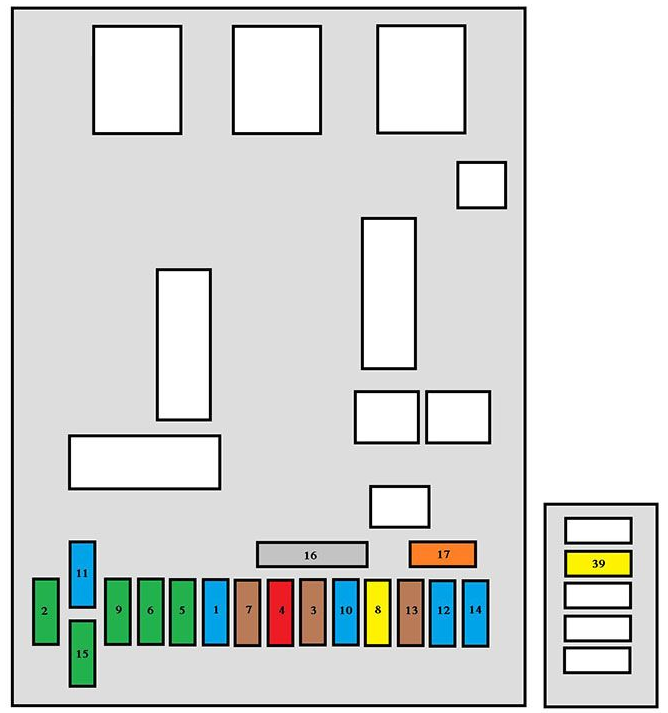

Peugeot 307 (2005)
| № | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper. |
| F2 | 30 A | Locking and deadlocking. |
| F3 | 5 A | Air bags and pre-tensioners unit. |
| F4 | 10 A | Brake (STOP) and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, ESP dual-function sensor, particle emission filter pump, diagnostic socket, electrochromatic mirror. |
| F5 | 30 A | Front electric windows, sunroof, heated mirrors. |
| F6 | 30 A | Rear electric windows. |
| F7 | DA | Front and rear courtesy lights, map reading lights, glove box lighting. |
| F8 | 20 A | Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, 12 V rear socket, trailer fuse box, driving school module. |
| F9 | 30 A | 12V front socket. |
| F10 | 15 A | Automatic gearbox control unit, tyre under-inflation control unit, STOP switch. |
| F11 | 15 A | Diagnostic socket, particle emission filter unit, low current ignition switch. |
| F12 | 15 A | Driving school module. |
| F13 | 5 A | Engine fuse box, rain and brightness sensor. |
| F14 | 15 A | Trailer fuse box, instrument panel, air bags unit, automatic air conditioning, hands-free kit. |
| F15 | 30 A | Locking and deadlocking. |
| F16 | – | PARC shunt. |
| F17 | 40 A | Heated rear screen. |
| F39 | 20 A | Heated seats |
Engine Compartment Fuse Box

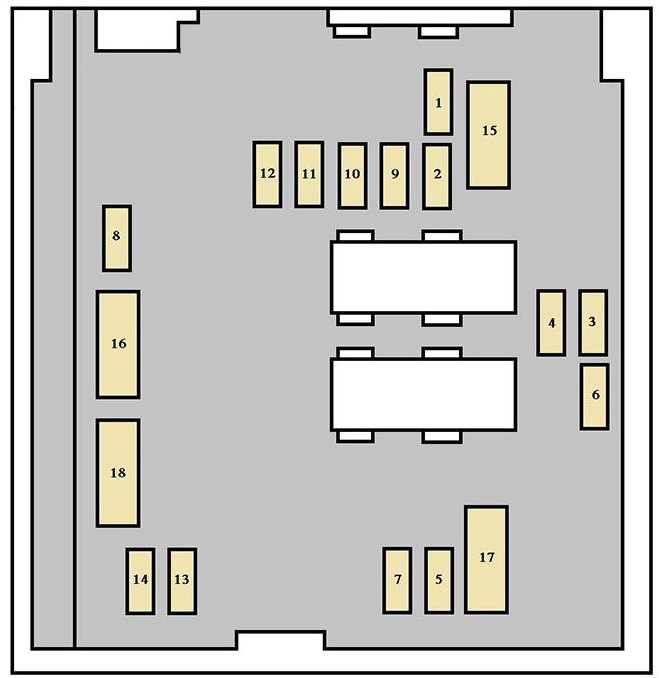

Peugeot 307 (2002 – 2004)
| Fuse No. | Rating | Function |
|---|---|---|
| 1 | 10 A | Automatic gearbox reversing lights switch; Automatic gearbox starting inhibitor relay control; Manual gearbox reversing lights switch; Vehicle speed sensor; Water in diesel sensor. (2002 additionally included Pre-heat control unit and Air flow sensor.) |
| 2 | 15 A | Canister solenoid valve; Fuel pump. |
| 3 | 10 A | Power steering control unit; ABS or ESP control unit. |
| 4 | 10 A | Injection control unit; Fan unit relay control; Additional heating relay control; Automatic gearbox control unit; Automatic gearbox sequential control; Automatic gearbox shiftlock relay. |
| 5 | 15 A | Particulate emission filter control unit. |
| 6 | 15 A | Front fog lamps. |
| 7 | 20 A | 2002: Headlamp wash pump. 2003–2004: Not used. |
| 8 | 20 A | Fan unit relay control; Engine management control unit supply; Injection pump (Diesel). (2002 listed only injection control unit supply; diesel engine management functions added in 2003–2004.) |
| 9 | 15 A | Left dipped beam. |
| 10 | 15 A | Right dipped beam. |
| 11 | 10 A | 2002: Left main beam. 2003–2004: Right main beam. |
| 12 | 10 A | 2002: Right main beam. 2003–2004: Left main beam. |
| 13 | 15 A | Horn. |
| 14 | 10 A | 2002: Front and rear headlamp wash pump. 2003–2004: Front and rear windscreen wash pumps. |
| 15 | 30 A | Oxygen sensors; Exhaust gas recirculation solenoid valve; Ignition coil; Diesel high-pressure regulator; Injector supply (petrol). 2003–2004 additionally include Pre-heat control unit, Air flow sensor (Diesel), Engine management control unit (Diesel), Injection pump (Diesel), and Diesel heater. |
| 16 | 30–40 A | Petrol engine air pump with automatic gearbox. 2002: 40 A. 2003–2004: 30 A. |
| 17 | 30 A | Front wiper low/high speed. |
| 18 | 40 A | Air conditioning blower. |
| 1* | 30–50 A | 2002: 30 A fan unit. 2003–2004: 50 A for 460 W fan unit or 30 A for 200 W fan unit. |
| 2* | 30 A | ESP/ABS pump motor. |
| 3* | 30 A | ESP/ABS solenoid valves. |
| 4* | 60–70 A | Built-in Systems Interface supply. 2002: 60 A. 2003–2004: 70 A. |
| 5* | 70 A | Built-in Systems Interface supply. |
| 6* | 20 A | 2002: Heated seats. 2003–2004: Not used. |
| 7* | 30 A | Ignition switch power supply. |
| 8* | 70 A | Power steering electro-pump unit. |
| FV1* | 20 A | Single-speed fan unit.(2003) |
| FV2* | 30 A | Dual-speed fan unit. (2003) |

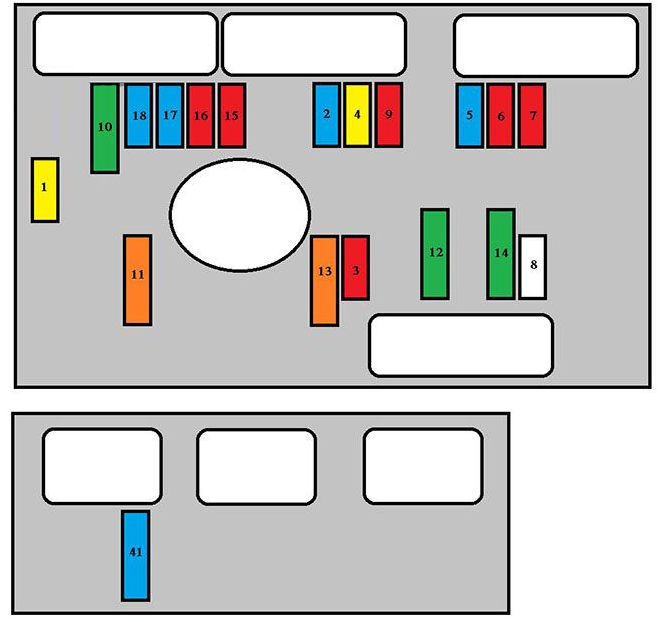

Peugeot 307 (2005)
| N° | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit and fan assembly high speed relay supply. |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front and rear wash-wipe. |
| F4 | 20 A | Headlamp wash. |
| F5 | 15 A | Fuel pump and purge canister solenoid valve. |
| F6 | 10 A | Automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay. |
| F7 | 10 A | ABS/ESP control unit, power steering electro-pump unit control unit. |
| F8 | 20 A | Ignition switch. |
| F9 | 10 A | Additional heating unit (Diesel), coolant level switch. |
| F10 | 30 A | Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters). |
| F11 | 40 A | Air conditioning blower. |
| F12 | 30 A | Windscreen wipers low/high speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Air pump (2 litre petrol). |
| F15 | 10 A | Right main beam headlamp. |
| F16 | 10 A | Left main beam headlamp. |
| F17 | 15 A | Left dipped headlamp. |
| F18 | 15 A | Right dipped headlamp. |
| MF1* | 30 A | 200 W fan unit. |
| MF1* | 50 A | 400 W and 460 W fan unit. |
| MF2* | 30 A | ABS/ESP pump. |
| MF3* | 30 A | ABS/ESP solenoid valves. |
| MF4* | 80 A | Built-in systems interface supply. |
| MF5* | 80 A | Built-in systems interface supply. |
| MF6* | 80 A | Passenger compartment fuse box. |
| MF8* | 70 A | Power steering electro-pump unit. |
| * The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer. |
